Copper Finned Tubes Manufacturer and Supplier
Amardeep Steel Centre LLP supplies copper finned tubes for air cooled heat exchangers, condensers, chillers and HVAC coils. Our copper finned tubes are built on ASTM B111 copper and copper nickel base tubes with L type, LL type or extruded fin construction, and every batch is traceable to a heat number and mill test certificate. Share your base tube alloy, fin type and duty and we will confirm the right copper finned tube specification.

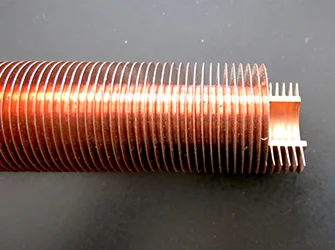

What Are Copper Finned Tubes?
Copper finned tubes are copper or copper alloy base tubes, manufactured to ASTM B111, with fins added to increase the external surface area available for heat transfer. The fin material is usually copper or aluminium strip, wound, wrapped or extruded onto the tube depending on the fin type specified.
Because copper conducts heat far better than steel, copper finned tubes remain the first choice wherever compact, high efficiency heat exchange is needed between a fluid inside the tube and air or gas outside it.
Technical Data
Copper Finned Tubes Grades (ASTM B111)
| UNS Grade | Description | Typical Duty |
|---|---|---|
| C12200 | Phosphorus deoxidized high copper (DHP) | General purpose air cooled heat exchangers and HVAC coils |
| C70600 | Copper nickel 90/10 | Marine condensers, seawater and brackish water service |
| C71500 | Copper nickel 70/30 | Higher chloride resistance for aggressive marine or process service |
| C68700 | Aluminium brass | Condenser tubes where erosion resistance is important |
Copper Finned Tubes Specification
| Parameter | Typical Range |
|---|---|
| Governing standard | ASTM B111 / B111M, ASME SB111 |
| Base tube OD | 9.52 mm (3/8 inch) to 50.8 mm (2 inch) |
| Fin height | Approximately 12.7 mm to 15.9 mm for L and LL type |
| Fin density | 7 to 11 fins per inch (FPI), application dependent |
| Certification | EN 10204 3.1B, chemical and mechanical test reports per ASTM B111 |
Finned Copper Pipe Dimensions
| Item | Fins/Inch | Wall thickness | Inside diameter | Root diameter (Min.) | Wall thickness(Min.) | Actual inside diameter | Fin diameter (Min.) | Outsurfacearea (m2/m) | Insidecrosssectionalarea (mm2) | Surface area ratio out. To in. |
|---|---|---|---|---|---|---|---|---|---|---|

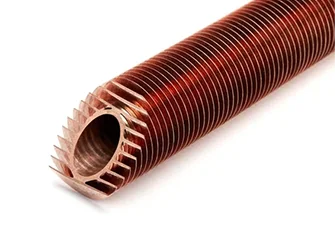

| High finned tube | 8 | 1.651 | 22.23 | 25.40 | 88 | 22.38 | 1.549 | 0.790 | 393.2 | 11.24 |
| 7 | 1.651 | 15.88 | 19.05 | 88 | 16.03 | 1.549 | 0.536 | 201.7 | 10.62 | |
| 1.651 | 22.23 | 25.40 | 88 | 22.38 | 1.549 | 0.713 | 393.5 | 10.13 | ||
| 9 | 1.651 | 15.88 | 19.05 | 88 | 16.03 | 1.549 | 0.664 | 201.7 | 13.18 |
Copper Embedded Finned Tube
| Fin Thickness (mm) | Base Tube Thickness (mm) | Base Tube O.D (mm) | Fin Height (mm) | Fin Pitch (mm) |
|---|---|---|---|---|
| 0.4 | 3.04 | 25.4 | 15.88 | 2.54 |
| Fin length (mm) | Fin Material | Base Tube Material | Tube Length (mm) | Fin Tube Quantity (Pc) |
| 9040 | Copper | ASTM A179 | 9144 | 740 |

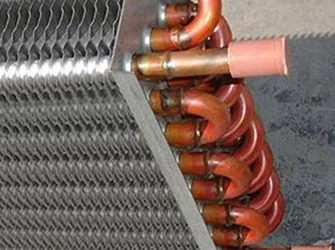

Weight Chart Of Finned Copper Tube Heat Exchanger
| TUBE OD INS. MM | S.W.G | APPROX. Tole + 1MM INS. MM | FINNED OD S.W.G | FIN | 48 FINS/FT 158 FINS/M Kg/M | 48 FINS/FT 158 FINS/M Sq.Ft. /FT. | 48 FINS/FT 158 FINS/M Sq.m /M. | 60 FINS/FT 197 FINS/M Kg/M | 60 FINS/FT 197 FINS/M Sq.Ft. /FT. | 60 FINS/FT 197 FINS/M Sq.m /M. | 72 FINS/FT 237 FINS/M Kg/M | 72 FINS/FT 237 FINS/M Sq.Ft. /FT. | 72 FINS/FT 237 FINS/M Sq.m /M. | 96 FINS/FT 316 FINS/M Kg/M | 96 FINS/FT 316 FINS/M Sq.Ft. /FT. | 96 FINS/FT 316 FINS/M Sq.m /M. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1″ 25.4 | 18 | 1.77 45 | 1.97 49 | 28 | 1.41 | 1.69 | 1.71 0.52 | 2.17 0.66 | 1.56 | 1.87 | 2.07 0.63 | 2.66 0.81 | 1.71 | 2.05 | 2.47 0.75 | 3.12 0.95 |
| 2.01 | 2.41 | 3.19 0.97 | 4.08 1.24 | |||||||||||||
| 5/8″ 15.9 | 20 | 1.26 32 | 1.42 36 | 28 | 0.73 | 0.86 | 0.98 0.30 | 1.34 0.41 | 0.81 | 0.98 | 1.18 0.36 | 1.61 0.49 | 0.89 | 1.10 | 1.41 0.43 | 1.89 0.58 |
| 1.07 | 1.34 | 1.84 0.56 | 2.49 0.76 | |||||||||||||
| 1/2″ 12.7 | 20 | 0.98 25 | 1.10 29 | 28 | 0.53 | 0.60 | 0.62 0.19 | 0.89 0.27 | 0.58 | 0.67 | 0.72 0.22 | 1.05 0.32 | 0.63 | 0.75 | 0.85 0.26 | 1.27 0.38 |
| 0.73 | 0.89 | 1.12 0.34 | 1.64 0.50 | |||||||||||||
| 3/4″ 19.1 | 18 | 1.54 39 | 1.73 44 | 28 | 1.11 | 1.29 | 1.45 0.44 | 1.99 0.61 | 1.24 | 1.47 | 1.78 0.54 | 2.42 0.74 | 1.37 | 1.64 | 2.09 0.64 | 2.88 0.88 |
| 1.63 | 1.99 | 2.73 0.83 | 3.76 1.15 |
Applications of Copper Finned Tubes
- Air cooled heat exchangers built to API 661
- Marine and industrial condensers
- Chillers and refrigeration coils
- HVAC coils and process cooling equipment
Choosing the Right Copper Finned Tubes Alloy
DHP copper (C12200) is the standard choice for fresh water and general HVAC duty at moderate cost. For seawater, brackish water or marine atmosphere exposure, copper nickel alloys resist chloride pitting and biofouling far better than plain copper, with C71500 (70/30) recommended over C70600 (90/10) for the most aggressive services.
Testing and Certification for Copper Finned Tubes
- Eddy current test on the base tube
- Hydrostatic pressure test
- Chemical composition and mechanical property verification per ASTM B111
- Mill test certificate per EN 10204 3.1B
Why Choose Amardeep Steel Centre for Copper Finned Tubes
- Copper and copper alloy base tubes sourced under the same quality system as our wider Copper and Copper Alloys range
- Custom fin height, pitch and density on request
- Full traceability by heat and lot number
- Export documentation and global dispatch experience
Copper Finned Tubes FAQs
Q. What is a copper finned tube used for?
Copper finned tubes give compact, efficient heat transfer between a fluid inside the tube and air or gas outside it, which is why they are the standard choice for air cooled heat exchangers, condensers, chillers and HVAC coils.
Q. What is the difference between L type and LL type fin?

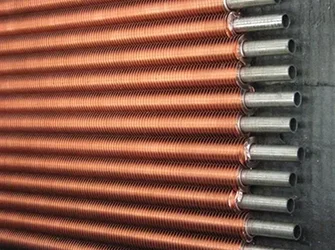

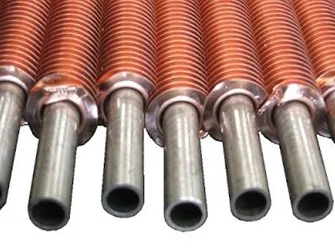

L type fin wraps a single layer of fin strip around the base tube with the foot forming an L shaped cross section. LL type doubles that wrap to fully cover the base tube, which adds corrosion protection where the tube material is less resistant than the fin.
Q. Which copper alloy is best for marine condenser tubes?
Copper nickel alloys, C70600 (90/10) or C71500 (70/30), resist chloride corrosion and biofouling far better than DHP copper (C12200) and are the standard choice for seawater and marine condenser duty.
Q. What standard governs copper finned tube base tubes?
ASTM B111 (ASME SB111) governs the base tube. The finning operation is typically qualified against TEMA or the buyer's own technical delivery conditions.
Explore related pages: Copper and Copper Alloys | Crimped Finned Tubes | Alloy Steel Heat Exchanger Tubes
Request a Quote for Copper Finned Tubes
Share the following and our technical team will respond within 24 hours:
- Copper alloy grade (C12200, C70600, C71500 or other)
- Fin type (L, LL, extruded or embedded)
- Base tube OD and wall thickness
- Fin height, pitch and quantity
