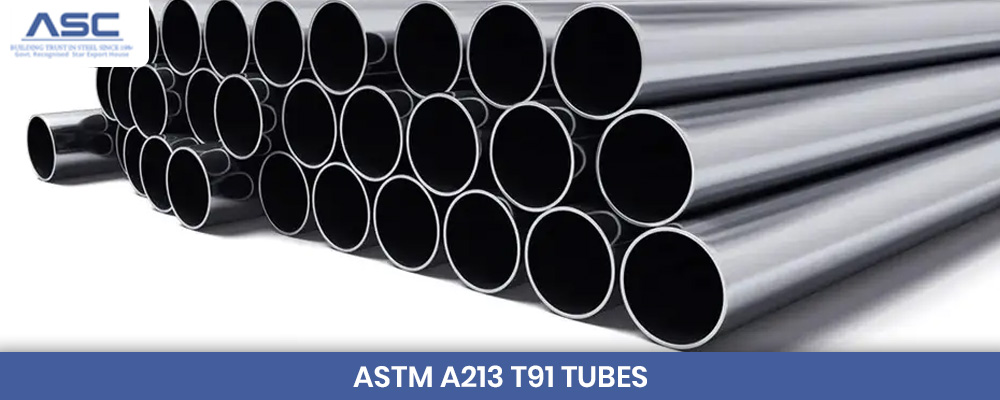

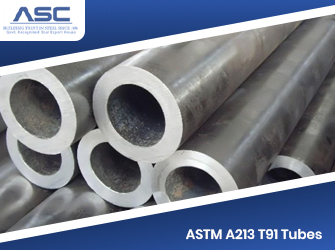

Amardeep Steel is one of the leading Manufacturers, Supplier and Exporters of high quality
ASTM A213 T91
Alloy Steel Seamless Tube, SA213 T91 Tubes & Pipes. These ASTM A213 / ASME SA213 T91 Alloy Steel SMLS
Tubes/Pipes are widely used in various application industry such as Oil & Gas, Power, Fertilizers,
Heat-Exchangers, Paper & Pulp, pharmaceuticals, Chemicals, Water Treatment, Dairy etc. We are Offered at
competitive prices for ASTM A213 / ASME SA213 T91 Alloy Steel Seamless Tubes/Pipes in the Global market.
Size (Seamless) | 6.35mm o.d to 101.60mm o.d |
Standards | ASTM A213, ASME SA213 |
Equivalent Standards | EN 10216-2, ASTM A213, GOST 550-75, WN 1.4903 |
Material | T91, K91560 |
Equivalent Material | X10CrMoVNb9-1, 1.4903, P91, K91560 |
Type | Seamless |
Specialized in | Large Diameter Size |
Outer Dimensions | 6-2500mm; WT:1-200mm |
Wall Thickness | Schedule 3mm to 15mm. |
Length | max 1~12m |
Schedule | STD, SCH40, SCH80 |
Form | Round, Square, Rectangular, Hydraulic Etc. |
Length | Single Random, Double Random & Cut Length. |
Tubing End | Plain End, Beveled End, Treaded. |
C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % | V, % | N, % | Ni, % | Al, % | Nb, % |
0.08-0.12 | 0.3-0.6 | 0.02 max | 0.01 max | 0.2-0.5 | 8.0-9.5 | 0.85-1.05 | 0.18-0.25 | 0.03-0.07 | 0.4 max | 0.04 max | 0.06-0.10 |
Tensile Strength , MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
585 min | 415 min | 20 min | 250 max |
Nominal Pipe Size | Pipe Outer Diameter | Wall Thickness | Pipe Inner Diameter | Weight per Foot | Standard to XXHY | Schedule Pipe # |
Section Modulus | Gallon Capacity Per Linear Foot |
1/2 | 0.84 | 0.109 | 0.622 | 0.85 | STD | 40 | .0407 | .0158 |
0.147 | 0.546 | 1.09 | XHY | 80 | .0478 | .0122 | ||
0.188 | 0.464 | 1.31 | 160 | .0528 | .0088 | |||
0.294 | 0.252 | 1.72 | XXHY | .0577 | .0026 | |||
3/4 | 1.05 | 0.113 | 0.824 | 1.13 | STD | 40 | .0705 | .0277 |
0.154 | 0.742 | 1.48 | XHY | 80 | .0853 | .0225 | ||
0.219 | 0.612 | 1.95 | 160 | .1006 | .0153 | |||
0.308 | 0.434 | 2.44 | XXHY | .1103 | .0077 | |||
1 | 1.315 | 0.133 | 1.049 | 1.68 | STD | 40 | .1328 | .0449 |
0.179 | 0.957 | 2.17 | XHY | 80 | .1606 | .0374 | ||
0.250 | 0.815 | 2.85 | 160 | .1904 | .0271 | |||
0.358 | 0.599 | 3.66 | XXHY | .2136 | .0146 | |||
1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 | STD | 40 | .2346 | .0777 |
0.191 | 1.278 | 3.00 | XHY | 80 | .2913 | .0666 | ||
0.250 | 1.160 | 3.77 | 160 | .3421 | .0549 | |||
0.382 | 0.896 | 5.22 | .4110 | .0328 | ||||
1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 | STD | 40 | .3262 | .1058 |
0.200 | 1.500 | 3.63 | XHY | 80 | .4118 | .0918 | ||
0.281 | 1.338 | 4.86 | 160 | .5079 | .0730 | |||
0.400 | 1.100 | 6.41 | .5977 | .0494 | ||||
2 | 2.375 | 0.109 | 2.157 | 2.64 | 10 | .4205 | .1898 | |
0.154 | 2.067 | 3.66 | STD | 40 | .5606 | .1743 | ||
0.218 | 1.939 | 5.03 | XHY | 80 | .7309 | .1534 | ||
0.250 | 1.875 | 5.68 | .8045 | .1434 | ||||
0.281 | 1.813 | 6.29 | .8666 | .1344 | ||||
0.344 | 1.687 | 7.47 | 160 | .9806 | .1161 | |||
0.436 | 1.503 | 9.04 | XXHY | 1.1043 | .0922 | |||
2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 | 10 | .6870 | .2833 | |
0.203 | 2.469 | 5.80 | STD. | 40 | 1.0640 | .2487 | ||
0.216 | 2.443 | 6.14 | 1.1169 | .2435 | ||||
0.250 | 2.375 | 7.02 | 1.2468 | .2301 | ||||
0.276 | 2.323 | 7.67 | XHY | 80 | 1.3386 | .2202 | ||
0.375 | 2.125 | 10.02 | 160 | 1.6371 | .1842 | |||
0.552 | 1.771 | 13.71 | XXXHY | 1.9971 | .1280 | |||
3 | 3.50 | 0.120 | 3.260 | 4.34 | 1.0411 | .4336 | ||
0.156 | 3.188 | 5.58 | 1.3122 | .4147 | ||||
0.172 | 3.156 | 6.12 | 1.4265 | .4064 | ||||
0.188 | 3.124 | 6.66 | 1.5342 | .3984 | ||||
0.216 | 3.068 | 7.58 | STD. | 40 | 1.7241 | .3840 | ||
0.250 | 3.000 | 8.69 | 1.9372 | .3672 | ||||
0.281 | 2.938 | 9.67 | 2.1207 | .3521 | ||||
0.300 | 2.900 | 10.26 | XHY | 80 | 2.2253 | .3431 | ||
0.438 | 2.624 | 14.34 | 160 | 2.8774 | .2811 | |||
0.600 | 2.300 | 18.6 | XXHY | 3.4243 | .2158 | |||
3 1/2 | 4.0 | 0.120 | 3.760 | 4.98 | 10 | 1.3776 | .5768 | |
0.226 | 3.548 | 9.12 | STD. | 140 | 2.3939 | .5136 | ||
0.250 | 3.500 | 10.02 | 2.6001 | .4998 | ||||
0.281 | 3.438 | 11.17 | 2.8562 | .4821 | ||||
0.318 | 3.364 | 12.52 | XHY | 80 | 3.1400 | .4617 | ||
0.636 | 2..728 | 22.87 | XXHY | 4.8795 | .3085 | |||
4 | 4.5 | 0.120 | 4.260 | 5.62 | 10 | 1.7612 | .7404 | |
0.156 | 4.188 | 7.24 | 2.2354 | .7156 | ||||
0.188 | 4.124 | 8.67 | 2.6296 | .6942 | ||||
0.203 | 4.094 | 9.32 | 2.8173 | .6838 | ||||
0.219 | 4.062 | 10.02 | 3.0184 | .6725 | ||||
0.237 | 4.026 | 10.80 | STD. | 40 | 3.2145 | .6613 | ||
0.250 | 4.000 | 11.36 | 3.3611 | .6528 | ||||
0.281 | 3.938 | 12.67 | 60 | 3.7021 | .6326 | |||
0.312 | 3.876 | 13.97 | 4.0273 | .6126 | ||||
0.337 | 3.826 | 15.00 | XHY | 80 | 4.2713 | .5972 | ||
0.438 | 3.624 | 19.02 | 120 | 5.1790 | .5361 | |||
0.531 | 3.438 | 22.53 | 160 | 5.8997 | .4822 | |||
0.674 | 3.152 | 27.57 | XXHY | 6.7927 | .4054 | |||
5 | 5.563 | 0.188 | 5.187 | 10.80 | 4.1161 | 1.0979 | ||
0.219 | 5.125 | 12.51 | 4.7279 | 1.0716 | ||||
0.258 | 5.047 | 14.63 | STD. | 40 | 5.4500 | 1.0391 | ||
0.281 | 5.001 | 15.87 | 5.8644 | 1.0204 | ||||
0.312 | 4.939 | 17.51 | 6.4074 | .99647 | ||||
0.344 | 4.875 | 19.19 | 6.9358 | .9696 | ||||
0.375 | 4.813 | 20.80 | XHY | 80 | 7.4300 | .9449 | ||
0.500 | 4.563 | 27.06 | 120 | 9.2534 | .8495 | |||
0.625 | 4.313 | 32.99 | 160 | 10.7976 | .7590 | |||
0.750 | 4.063 | 38.59 | XXHY | 12.0954 | .6734 | |||
6 | 6.625 | 0.109 | 6.407 | 7.59 | 5 | 3.5769 | 1.6748 | |
0.134 | 6.357 | 9.30 | 10 | 4.3475 | 1.6488 | |||
0.156 | 6.313 | 10.79 | 5.0107 | 1.6260 | ||||
0.188 | 6.249 | 12.94 | 5.9351 | 1.5937 | ||||
0.203 | 6.219 | 13.94 | 6.3804 | 1.5780 | ||||
0.219 | 6.187 | 15.00 | 6.8261 | 1.5620 | ||||
0.250 | 6.125 | 17.04 | 7.6905 | 1.5306 | ||||
0.280 | 6.065 | 18.99 | STD. | 40 | 8.4958 | 1.5008 | ||
0.312 | 6.001 | 21.06 | 9.3416 | 1.4688 | ||||
0.344 | 5.937 | 23.10 | 10.111 | 1.4391 | ||||
0.375 | 5.875 | 25.05 | 10.893 | 1.4082 | ||||
0.432 | 5.761 | 28.60 | XHY | 80 | 12.224 | 1.3541 | ||
0.500 | 5.625 | 32.74 | 13.711 | 1.2909 | ||||
0.562 | 5.501 | 36.43 | 120 | 14.9806 | 1.2346 | |||
0.625 | 5.375 | 40.09 | 16.1821 | 1.1787 | ||||
0.719 | 5.187 | 45.39 | 160 | 17.8243 | 1.0977 | |||
0.864 | 4.897 | 53.21 | XXHY | 20.025 | .9784 | |||
1.000 | 4.625 | 60.13 | 21.7719 | .8727 | ||||
1.125 | 4.375 | 66.14 | 23.1237 | .7809 |
IBR Alloy Steel SA 213 T91 Small Bore Tube and ASME SA213 T91 Seamless Tubing for boilers and steam power plants, Do not forget to check A213 Gr T91 Furnace Tubes Wall Thickness & Temperature Limit
Hot rolled | Outside Diameter, mm | Tolerance, % |
Outer Diameter≤101.6, Wall Thickness≤2.4 | +40/-0 | |
Outer Diameter≤101.6, 2.4<Wall Thickness≤3.8 | +35/-0 | |
Outer Diameter≤101.6, 3.8<Wall Thickness≤4.6 | +33/-0 | |
Outer Diameter≤101.6, Wall Thickness>4.6 | +28/-0 | |
Outer Diameter>101.6, 2.4<Wall Thickness≤3.8 | +35/-0 | |
Outer Diameter>101.6, 3.8<Wall Thickness≤4.6 | +33/-0 | |
Outer Diameter>101.6, Wall Thickness>4.6 | +28/-0 | |
Cold Drawn | Outside Diameter, mm | Tolerance, % |
Outer Diameter≤38.1 | +20/-0 | |
Outer Diameter>38.1 | +22/-0 |
Hot rolled | Outside Diameter, mm | Tolerance, mm |
Outer Diameter≤101.6 | +0.4/-0.8 | |
101.6<Outer Diameter≤190.5 | +0.4/-1.2 | |
190.5<Outer Diameter≤228.6 | +0.4/-1.6 | |
Cold Drawn | Outside Diameter, mm | Tolerance, mm |
Outer Diameter<25.4 | ±0.10 | |
25.4≤Outer Diameter≤38.1 | ±0.15 | |
38.1<Outer Diameter<50.8 | ±0.20 | |
50.8≤Outer Diameter<63.5 | ±0.25 | |
63.5≤Outer Diameter<76.2 | ±0.30 | |
76.2≤Outer Diameter≤101.6 | ±0.38 | |
101.6<Outer Diameter≤190.5 | +0.38/-0.64 | |
190.5<Outer Diameter≤228.6 | +0.38/-1.14 |
3" SCH80 ASTM A213 T91 material alloy Tube
Alloy ASTM A213 T91 Seamless Steel Tube
73mm grade astm A213 T91 carbon steel seamless Tube
8 inch Alloy steel Tube A213
Gr.T91
ASME SA213 T91 24 inch hot rolled seamless steel Tube
ASTM A213 14 Inch T91 Sch160 Alloy Steel Tube
Astm A213 T91 8 Inch
Alloy Steel Tube
ASTM A213 T91 material seamless alloy steel Tube
Astm A213 T91 sch std seamless steel Tube
Hot rolled | Outside Diameter, mm | Tolerance, mm |
OD≤101.6 | +0.4/-0.8 | |
101.6<OD≤190.5 | +0.4/-1.2 | |
190.5<OD≤228.6 | +0.4/-1.6 | |
Cold Drawn | Outside Diameter, mm | Tolerance, mm |
OD<25.4 | ±0.10 | |
25.4≤OD≤38.1 | ±0.15 | |
38.1<OD<50.8 | ±0.20 | |
50.8≤OD<63.5 | ±0.25 | |
63.5≤OD<76.2 | ±0.30 | |
76.2≤OD≤101.6 | ±0.38 | |
101.6<OD≤190.5 | +0.38/-0.64 | |
190.5<OD≤228.6 | +0.38/-1.14 |
Hot rolled | Outside Diameter, mm | Tolerance, % |
OD≤101.6, WT≤2.4 | +40/-0 | |
OD≤101.6, 2.4<WT≤3.8 | +35/-0 | |
OD≤101.6, 3.8<WT≤4.6 | +33/-0 | |
OD≤101.6, WT>4.6 | +28/-0 | |
OD>101.6, 2.4<WT≤3.8 | +35/-0 | |
OD>101.6, 3.8<WT≤4.6 | +33/-0 | |
OD>101.6, WT>4.6 | +28/-0 | |
Cold Drawn | Outside Diameter, mm | Tolerance, % |
OD≤38.1 | +20/-0 | |
OD>38.1 | +22/-0 |
Length: 5800mm; 6000mm; 6096mm; 7315mm; 11800mm; 12000mm; and so on.
Max length: 16000mm, also U bending can be offered.
