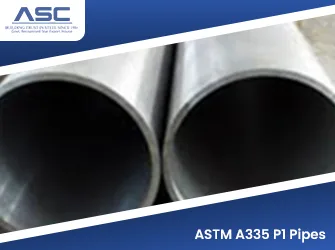

We are leading Manufacturer, Supplier & Exporter of high quality ASTM A335 P1 Alloy Steel Seamless Pipes. These are manufactured in conformance with the international quality standards. These are used in varied engineering applications as well as in high temperature pipelines, boiler tubes and other areas. We offer these seamless pipes in different size, grades, thickness & Specification demanded by the clients. These pipes are used in various application industry like petrochemical, engineering, chemical, oil and gas and other industrial etc. We also offer our clients in competitive prices in the market.
| Size | : | 1/8NB TO 26NB IN |
| Standards | : | ASTM A 335, ASME SA 335 |
| Type | : | Seamless |
| Specialized in | : | Large Diameter Size |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS, UPTO 4" WALL THICK |
| Form | : | Round, Square, Rectangular, Hydraulic Etc. |
| Length | : | Single Random, Double Random & Cut Length. |
| Tubing End | : | Plain End, Beveled End, Treaded. |
| C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % |
| 0.05-0.15 | 0.30-0.60 | 0.025 max | 0.025 max | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
| Tensile Strength, MPa | Yield Strength, MPa | Elongation, % |
| 415 min | 205 min | 30 min |
| ASTM A450 | Hot rolled | Outside Diameter, mm | Tolerance, mm |
| OD≤101.6 | +0.4/-0.8 | ||
| 101.6＜OD≤190.5 | +0.4/-1.2 | ||
| 190.5＜OD≤228.6 | +0.4/-1.6 | ||
| Cold Drawn | Outside Diameter, mm | Tolerance, mm | |
| OD＜25.4 | ±0.10 | ||
| 25.4≤OD≤38.1 | ±0.15 | ||
| 38.1＜OD＜50.8 | ±0.20 | ||
| 50.8≤OD＜63.5 | ±0.25 | ||
| 63.5≤OD＜76.2 | ±0.30 | ||
| 76.2≤OD≤101.6 | ±0.38 | ||
| 101.6＜OD≤190.5 | +0.38/-0.64 | ||
| 190.5＜OD≤228.6 | +0.38/-1.14 | ||
| ASTM A530 & ASTM A335 | NPS | Outside Diameter, inch | Tolerance, mm |
| 1/8≤OD≤1-1/2 | ±0.40 | ||
| 1-1/2＜OD≤4 | ±0.79 | ||
| 4＜OD≤8 | +1.59/-0.79 | ||
| 8＜OD≤12 | +2.38/-0.79 | ||
| OD>12 | ±1% |
| ASTM A450 | Hot rolled | Outside Diameter, mm | Tolerance, % |
| OD≤101.6, WT≤2.4 | +40/-0 | ||
| OD≤101.6, 2.4＜WT≤3.8 | +35/-0 | ||
| OD≤101.6, 3.8＜WT≤4.6 | +33/-0 | ||
| OD≤101.6, WT>4.6 | +28/-0 | ||
| OD>101.6, 2.4＜WT≤3.8 | +35/-0 | ||
| OD>101.6, 3.8＜WT≤4.6 | +33/-0 | ||
| OD>101.6, WT>4.6 | +28/-0 | ||
| Cold Drawn | Outside Diameter, mm | Tolerance, % | |
| OD≤38.1 | +20/-0 | ||
| OD>38.1 | +22/-0 | ||
| ASTM A530 | NPS | Outside Diameter, inch | Tolerance, % |
| 1/8≤OD≤2-1/2 | +20.0/-12.5 | ||
| 3≤OD≤18, WT/OD≤5% | +22.5/-12.5 | ||
| 3≤OD≤18, WT/OD>5% | +15.0/-12.5 | ||
| OD≥20, WT/OD≤5% | +22.5/-12.5 | ||
| OD≥20, WT/OD>5% | +15.0/-12.5 |
