Hastelloy Flanges Supplier
Amardeep Steel is a major supplier as well as exporter of Hastelloy flanges from Mumbai, India, to the engineers, procurement along with the various other teams working in the chemical process industry, oil & gas industry, pharmaceutical industry and the power generation industry throughout the globe. All flanges are open die forged from B574 alloy rod and solution annealed to full material certification prior to despatch, per ASTM B564. We carry pressure classes from 150 to 2500 in all three main grades (C276, C22 and B2) and nominal sizes ranging from 1/2" to 24" sizes. We supply the full Hastelloy Products range, including Hastelloy Forged Fittings and companion piping under our Nickel Alloy Flanges family, making Amardeep the single-source partner for your nickel-alloy piping systems. Contact us for mill-certified stock and fast RFQ response.
Table of Contents
- Hastelloy Flanges Supplier Overview
- Hastelloy Flange Grades
- Hastelloy Flange Types
- Hastelloy Flanges Specification
- Equivalent Grades of Hastelloy Flanges
- Hastelloy Flanges Chemical Composition
- Hastelloy Flange Mechanical Properties
- Applications of Hastelloy Flanges
- Related Hastelloy Products
- Frequently Asked Questions
Hastelloy Flange Grades
Three grades cover the vast majority of corrosive flange applications. Select the card below that matches your service medium.
Hastelloy C276 UNS N10276
- Ni-Mo-Cr alloy with 15–17% Mo and 14.5–16.5% Cr
- Up to 4% tungsten for added reducing-acid resistance
- Outstanding resistance to HCl, H2SO4, and wet-process phosphoric acid
- Industry benchmark for FGD scrubbers and chloride-bearing streams
- Werkstoff Nr. 2.4819 / GOST KhN65MVU
Hastelloy C22 UNS N06022
- Ni-Cr-Mo alloy with 12.5–14.5% Mo and 20–22.5% Cr
- Higher chromium than C276, giving superior oxidising-acid resistance
- Excellent for mixed oxidising/reducing acid service and nitric acid
- Outstanding pitting and crevice corrosion resistance in chloride media
- Werkstoff Nr. 2.4602 / EN NiCr21Mo14W
Hastelloy B2 UNS N10665
- Ni-Mo binary alloy with 26–30% Mo and maximum 2% Cr
- Highest molybdenum content in the family for reducing-acid service
- Superior resistance to boiling, concentrated HCl at all concentrations
- Not suitable for oxidising acids or FGD service (low chromium)
- Werkstoff Nr. 2.4617 / EN NiMo28

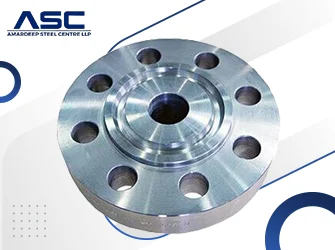

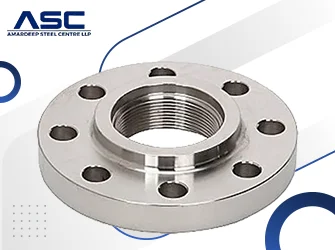

Hastelloy Flange Types
Need a Quick Quote on Hastelloy Flanges?
Our technical team responds within 24 hours with mill-certified stock availability, dimensional drawings, and competitive pricing for C276, C22, and B2 grades.
Hastelloy Flanges Specification
| Parameter | Details |
|---|---|
| Size | 1/2" to 24" (larger sizes on request) |
| Specification | ASTM / ASME SB564 / B574 / SB160 / B472 |
| Standards | ANSI, ASME, BS, DIN, EN, JIS flanges |
| Class | 150#, 300#, 600#, 900#, 1500#, 2500# | PN6, PN10, PN16, PN25, PN40, PN64 |
| Dimensions | ANSI/ASME B16.5, B16.48, BS4504, BS10, EN-1092, DIN |
| Grades | C276 (UNS N10276), C22 (UNS N06022), B2 (UNS N10665), C-4 (UNS N06455) |
Equivalent Grades of Hastelloy Flanges
| Grade | Werkstoff Nr. | UNS | JIS | GOST | EN |
|---|---|---|---|---|---|
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | KhN65MVU | NiMo16Cr15W |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | — | NiCr21Mo14W |
| Hastelloy B2 | 2.4617 | N10665 | — | — | NiMo28 |
Hastelloy Flanges Chemical Composition
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| B2 | 0.02 max | 1.0 max | 0.1 max | 0.03 max | 1.0 max | Bal | 1.0 max | 2.0 max | 26 – 30 | 0.04 max |
Hastelloy Flange Mechanical Properties
| Property | C276 (N10276) | C22 (N06022) | B2 (N10665) |
|---|---|---|---|
| Tensile Strength (min) | 690 MPa (100 ksi) | 690 MPa (100 ksi) | 690 MPa (100 ksi) |
| Yield Strength 0.2% offset (min) | 283 MPa (41 ksi) | 310 MPa (45 ksi) | 276 MPa (40 ksi) |
| Elongation in 2" (min) | 40% | 45% | 40% |
| Hardness (max) | 100 HRB | 100 HRB | 100 HRB |
| Density | 8.89 g/cm³ | 8.69 g/cm³ | 9.22 g/cm³ |
| Melting range | 1325–1370 °C | 1357–1399 °C | 1290–1350 °C |
Applications of Hastelloy Flanges
- Chemical Processing Plants
- Marine and Offshore Platforms
- Oil and Gas Refineries
- Power Generation Facilities
- Pharmaceutical Industries
- Pulp and Paper Mills
- Desalination Plants
Related Hastelloy Products
Complete your corrosion-resistant piping system with the full range of Hastelloy products available from Amardeep Steel Centre. Every product is traceable to the same mill certificates as our flanges, ensuring metallurgical compatibility across the system.
- Hastelloy Pipes and Tubes
- Hastelloy C276 Pipes and Tubes
- Hastelloy C22 Pipes and Tubes
- Hastelloy B2 Pipes and Tubes
- Hastelloy Forged Fittings
- Hastelloy Buttweld Fittings
- Hastelloy Plates, Sheets and Coils
- Hastelloy Bars, Rods and Wires
- Hastelloy Fasteners
- Nickel Alloy Flanges (full range)
Ready to Source Hastelloy Flanges from a Trusted Supplier?
Send us your grade, size, class, quantity, and delivery timeline. Our team will respond within 24 hours with a certified material offer, complete with ASTM B564 MTCs, dimensional reports, and packaging details for export.
Frequently Asked Questions
Q1. Can you supply Hastelloy flanges with EN 10204 3.1 certification?
Yes. All Hastelloy flanges are supplied with EN 10204 3.1 MTCs. Third-party inspection from SGS, BV, TUV, Lloyds, or DNV can also be arranged before shipment for export and EPC project requirements.
Q2. Which Hastelloy flange grade is best for hydrochloric acid service?
Hastelloy B2 is preferred for concentrated hydrochloric acid in reducing conditions due to its high molybdenum content. For mixed or oxidising acid environments, Hastelloy C276 is generally recommended.
Q3. Do you stock Hastelloy flanges in Class 1500 and 2500?
Yes. We supply Hastelloy flanges in ASME B16.5 pressure classes from 150# to 2500#, including weld neck, blind, slip-on, socket weld, RTJ, and custom forged flanges for high-pressure applications.
Q4. Are Hastelloy flanges suitable for offshore and sour gas service?
Yes. Hastelloy C276 flanges are widely used in offshore and sour gas systems because of their resistance to H2S, chlorides, sulphide stress cracking, and seawater corrosion in harsh marine environments.
Q5. What is the standard delivery time for Hastelloy flanges?
Standard delivery is usually 1–3 weeks depending on grade, size, pressure class, and quantity. Ready stock for common C276 flange sizes allows faster dispatch for urgent shutdown and maintenance requirements.
Q6. Do you provide PMI and third-party testing for Hastelloy flanges?
Yes. PMI testing using XRF analyzers is available for all Hastelloy grades. We also provide hydro testing, hardness testing, radiography, and third-party inspection certificates upon customer request.
Q7. Which industries commonly use Hastelloy flanges?
Hastelloy flanges are widely used in chemical processing, offshore platforms, refineries, pharmaceutical plants, desalination units, flue gas desulfurisation systems, and power generation facilities.
Q8. Can Hastelloy flanges be manufactured to DIN and EN standards?
Yes. Along with ASME B16.5 and B16.47, Hastelloy flanges can be supplied to DIN, EN 1092-1, BS4504, and JIS standards in multiple pressure ratings and flange face configurations.
