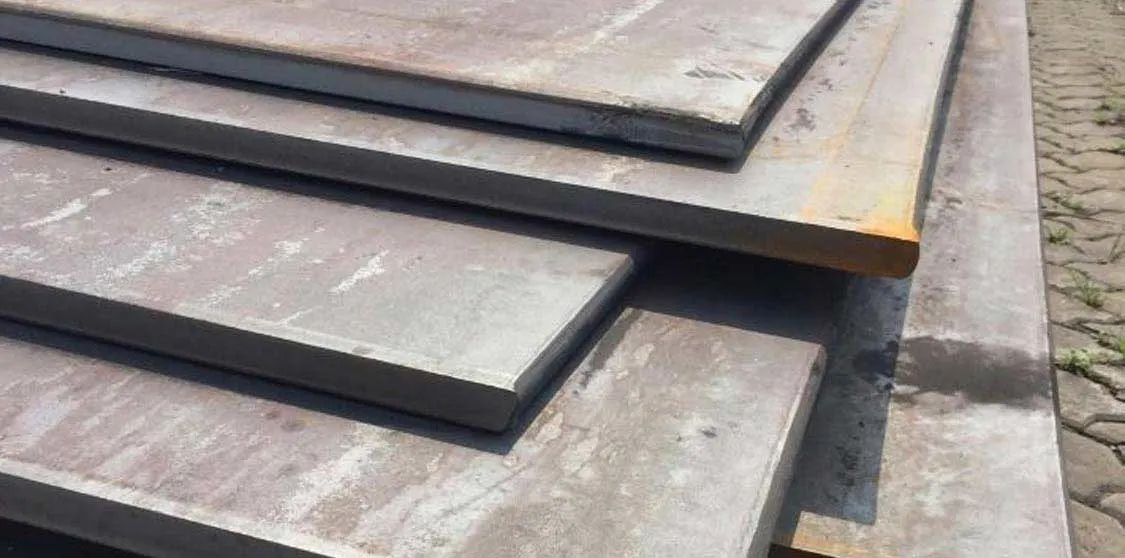

We are one of the leading Manufacturers, Supplier and Exporters of high quality Incoloy 800 Plates, Sheets & Coils in Mumbai, India. Incoloy 800 Plates/ Sheets are nickel-chromium alloy with an addition of aluminum for outstanding resistance to oxidation and other forms of high temperature corrosion. These Incoloy 800 sheets (UNS N07800) are used for Heat treating muffles and retorts, Catalyst support grids in nitric acid production, Radiant tubes, Steam super-heater tube supports, and more. Incoloy Plates, Sheets and Coils are available in special alloys like Incoloy 800, Incoloy 800H/ HT and Incoloy 800. We are manufactured as per the international quality and safety standards. These 800 Incoloy Sheets, Plates & Coils are widely used in various applications industry. We also offer these Sheets & Plates are available in different size,grades, specification & thickness as per the clients requirements.
| Size | : | 15 NB to 150 NB IN |
| Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Standards | : | ASTM B407, ASTM B163, ASTM B358, ASTM B515, ASME SB407, ASME SB163, ASME SB358, ASME SB 515, UNS N08800/10/11 / Werkstoff Nr. 1.4876/4958/59 |
| End | : | Plain End, Beveled End, Treaded. |
| Length | : | Single Random, Double Random & Cut Length. |
| Form | : | Round, Square, Rectangular, Hydraulic Etc. |
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | Z8NC32-21 | NA 15 | ЭИ670 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | Z8NC33-21 | NA 15(H) | ЭИ670 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | - | NA 15(HT) | ЭИ670 | X8NiCrAlTi32-21 | XH32T |
| Incoloy | 800 | 800H | 800HT |
| Ni | 30-35 | 30-35 | 30-35 |
| Fe | 39.5 min | 39.5 min | 39.5 min |
| Cr | 19-23 | 19-23 | 19-23 |
| Cu | 0.75 max | 0.75 max | 0.75 max |
| Ti | 0.15-0.60 | 0.15-0.60 | 0.25-0.60 |
| Al | 0.15-0.60 | 0.15-0.60 | 0.85-1.20 |
| C | 0.1 max | 0.05-0.1 | 0.06-0.1 |
| Mn | 1.5 max | 1.5 max | 1.5 max |
| S | 0.015 max | 0.015 max | 0.015 max |
| Si | 1.0 max | 1.0 max | 1.0 max |
| Density | 7.94 g/cm3 |
| Melting Point | 1385 °C (2525 °F) |
| Tensile Strength | Psi – 75,000 , MPa – 520 |
| Yield Strength (0.2%Offset) | Psi – 30,000 , MPa –205 |
| Elongation | 30 % |
