ASME B16.11 Forged Threaded Bushing

Stainless Steel Threaded Bushing, Carbon Steel Threaded Bushing Manufacturer, Suppliers & Exporter.

ASME A815, 403, 234, 860 ASME SB 336, 111, 466 ASME B16.11, MSS SP-79, BS 3799 Forged Threaded Bushing.

ASME B16.11 Forged Threaded Bushing

Amardeep Steel Centre is one of the leading Manufacturers, Supplier and Exporters of High Quality ASME B16.11 Forged Threaded Hex Head Bushing. These Forged Threaded Hex Head Bushings is a type of pipe fitting is defined as a part used in a piping system, Welding a fitting to the pipe means it is permanently leakproof. These Threaded Bushing available in different size, grades, specification & thickness as per the clients requirments. We offer the range in varied technical specifications in order to meet various industry requirements. These Bushing are widely used in various application industry.

Specifications :

Standards : ASME A182, ASME B16.9, ASME B16.11, MSS SP-43, MSS SP-95, BS3799
Dimension : ANSI B16.11
Size : 1/4" to 4"
Class : 2000LBS, 3000LBS, 6000LBS
Type : Threaded - SCREWED (SCRD) – NPT, BSP, BSPT
Range : Union, Tee, Elbow, Socket, Nipple, Coupling, Half Coupling, Full Coupling, Reducing Coupling.

Grades :

Stainless Steel Threaded Bushing :

ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H

Carbon Steel Threaded Bushing :

ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70

Alloy Steel Threaded Bushing :

ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91

Nickel Alloy Threaded Bushing :

ASTM / ASME SB 336, Nickel Alloy 200 (UNS No. 2200), Nickel Alloy 201 (UNS No. 2201), Monel 400 (UNS No. 4400), Alloy 20 / 20 CB 3 (UNS No. 8020), Inconel 825 (UNS No. 8825), Inconel 600 (UNS No. 6600), Inconel 601 (UNS No. 6601), Inconel 625 (UNS No. 6625), Hastelloy C 276 / C22 / B2 (UNS No. 10276)

Duplex & Super Duplex Steel Threaded Bushing :

ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Copper Alloy Steel Threaded Bushing :

ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

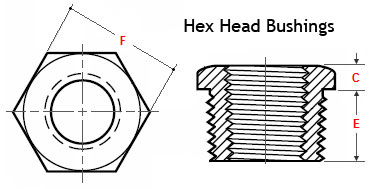

ASME B16.11 Forged Threaded Bushing Dimensions :
