Heat Exchanger Tubes Manufacturer & Supplier

High-Quality Heat Exchanger Tubes & Pipes for Industries


heat-exchanger-tubes-supplier

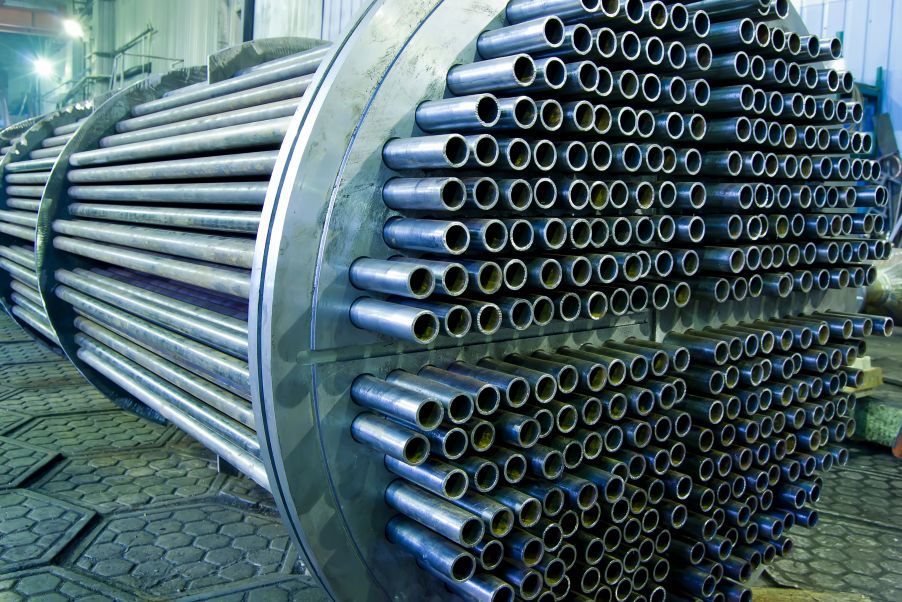

Amardeep Steel is a leading supplier of Heat Exchanger Tubes made up of a shell (a huge pressure vessel) that houses a bundle of tubes. To transfer heat between the two fluids, one fluid flows through the tubes and another fluid flows over the tubes (via the shell).

A heat exchanger is a device that uses a working fluid and a working surface with varying temperatures to transport thermal energy (enthalpy) between two or more environments. Heat exchangers can occur between solid surfaces and liquids, solid particles and liquids, and so on.

Heat exchanger tubes are part of a heat exchanger, a device that transfers heat between different media, such as liquids, and gases. A heat exchanger tube is a device that transfers heat from one medium to another for both cooling and heating processes. It separates the medium which is being used. Heat is transferred through these Heat exchanger tubes by the conduction process. Mediums can be liquid, vapor, or gas. For example, an air-cooled heat exchanger uses air to cool a liquid and a Shell & heat exchanger tube is for passing fluids.

The term ‘heat exchanger’ is mostly used when we refer to tube heat exchangers and plate heat exchangers. Refrigerators, chemical plants, air conditioners, power stations, etc. use the heat exchanging process. At times, the overall energy efficiency of a plant can be determined by heat exchanger tube material.

Heat exchangers are available in various metals including steel, copper, brass, 70-30 copper-nickel, aluminum bronze, and stainless steel.

At Amardeep Steel, we also offer a range of Heat Exchanger Pipes to meet the specific needs of various industries. These pipes are designed for efficient heat transfer applications and are critical in industries such as power generation, petrochemicals, and manufacturing. Manufactured to meet international standards, our Heat Exchanger Pipes provide reliable performance in demanding heat transfer systems.

What is the Manufacturing Process Used for Producing Heat Exchanger Tubes at Amardeep Steel Centre?

At Amardeep Steel Centre, the manufacturing process for heat exchanger tubes is meticulously engineered to cater to critical sectors such as oil and gas, marine, shipping, and electronics. Our focus on precision begins with the Cold Drawing process, a technique that ensures high accuracy in tube dimensions. This process involves drawing the tube through a die and over an internal mandrel, commonly referred to as a Drawn Mandrel (DOM). This method not only allows for exceptional control over the internal diameter (ID) of the tubes but also achieves superior surface finish and dimensional accuracy.

To consistently achieve and maintain close tolerances, Amardeep Steel Centre employs Tungsten Carbide Tools, which are integral to producing high-quality, durable tubes. Our heat exchanger tubes are available in various configurations to meet diverse industrial needs, including seamless, welded, and welded-redrawn options. We offer tubes made from several high-grade materials:

Nickel Alloys

Optimal for applications requiring high corrosion resistance and durability under extreme conditions.

Austenitic Stainless Steels

These are chosen for their excellent corrosion resistance and ability to withstand high temperatures.

Duplex Steel

Provides a beneficial mix of strength and corrosion resistance, suitable for challenging environments.

Super Duplex Super Alloys

These are designed for extreme durability and strength, ideal for highly demanding industrial applications.

By choosing Amardeep Steel Centre, product managers, and engineers are assured of receiving heat exchanger tubes that not only meet but exceed international standards, thereby enhancing the performance and reliability of their projects. Our commitment to quality and precision in manufacturing makes us a preferred partner in the industry.

Heat Exchanger Tubes Specification

Specification Grades
ASTM : A 179, A 192, A 210 (Grade A1, C), A 334 (Grade 1, 6), A 209 (Grade T1, T1a), A 213 (Grade T5, T11, T12, T22), A 556 (Grade-A2-B2-C2) A 199(T5)
BS 3059 : Part I (Grade 320), Part II (Grade 360, 440) BS 3602 PT-1, CFS 360,BS-980(CDS-1)
DIN 17175 : ST35.8, ST45.8, 15 MO3, 10CrMo44, 13CrMo910

Heat Exchanger Tubes Dimensional Tolerances

Standard SIZES OD INCHES Tolerances Chart
O.D. Wall Thickness
PLUS (+) MINUS (-) PLUS (+) MINUS (-)
ASTM-A-213 Under 1.000 .004" .004" 20% 0%
ASME-SA-213 1.000 to 1.500 .006" .005" 20% 0%
Cold Finished Seamless 1.501 to 1.999 .008" .008" 22% 0%
Heat Exchanger Tube 2.000 to 2.499 .010" .010" 22% 0%
Minimum Wall 2.500 to 2.999 .012" .012" 22% 0%
3.000 to 4.000 .015" .015" 22% 0%
4.001 to 5.000 .015" .025" 22% 0%

Mechanical Properties of SS Heat Exchanger Tubes

Grade Properties
Tensile Stress ≥ MPa Yield Strength ≥ MPa Elongation ≥ %
T12 415 220 30
TP304 515 205 35
TP304L 458 170 35
TP316 515 205 35
TP316L 485 170 35
TP317 515 205 35
TP317L 515 205 35
TP321 515 205 35

Heat Exchanger Tubes Wall Thickness

diameter BWG (inch) 20 (.035) 18 (.049) 16 (.065) 14 (.083) 13 (.095) 12 (.109) 11 (.120) 10 (.134) 9 (.148) 8 (.165) 7 (.180) 6 (.203) 5 (.220)
[mm] [inch] [mm] 0,89 1,24 1,65 2,11 2,41 2,77 3,05 3,40 3,76 4,19 4,57 5,16 5,59
12,70 1/2 lb/ft 0,190 0,256 0,327 0,399 0,441 0,487 0,519 0,555 0,586
.500 kg/m 0,283 0,381 0,487 0,594 0,657 0,725 0,773 0,826 0,873
15,88 5/8 lb/ft 0,242 0,328 0,423 0,521 0,581 0,647 0,696 0,752 0,804
.625 kg/m 0,360 0,488 0,630 0,776 0,865 0,964 1,036 1,120 1,198
19,05 3/4 lb/ft 0,400 0,518 0,643 0,720 0,807 0,872 0,948 1,021
.750 kg/m 0,595 0,771 0,957 1,072 1,202 1,299 1,412 1,521
22,23 7/8 lb/ft 0,472 0,614 0,767 0,864 0,973 1,056 1,158
.875 kg/m 0,702 0,913 1,141 1,285 1,448 1,571 1,722
25,40 1 lb/ft 0,543 0,709 0,887 0,998 1,128 1,225 1,342 1,456 1,587 1,696
1.000 kg/m 0,808 1,056 1,321 1,487 1,680 1,824 1,998 2,169 2,363 2,526
31,75 1 1/4 lb/ft 0,686 0,900 1,131 1,277 1,448 1,577 1,734 1,891 2,071 2,225 2,451 2,607
1.250 kg/m 1,022 1,340 1,684 1,902 2,157 2,349 2,583 2,816 3,085 3,313 3,650 3,882
38,10 1 1/2 lb/ft 0,830 1,090 1,375 1,556 1,769 1,930 2,128 2,326 2,556 2,753 3,047 3,253
1.500 kg/m 1,236 1,624 2,048 2,317 2,634 2,875 3,169 3,464 3,807 4,100 4,538 4,845
50,80 2 lb/ft 1,472 1,863 2,114 2,409 2,636 2,914 3,196 3,525 3,810 4,241 4,547
2.000 kg/m 2,192 2,775 3,148 3,588 3,925 4,340 4,759 5,250 5,674 6,316 6,771
63,50 2 1/2 lb/ft 1,854 2,351 2,671 3,050 3,341 3,701 4,066 4,494 4,867 5,435 5,839
2.500 kg/m 2,761 3,502 3,978 4,542 4,976 5,512 6,055 6,693 7,249 8,094 8,696
76,20 3 lb/ft 2,840 3,228 3,691 4,047 4,487 4,935 5,464 5,924 6,628 7,132
3.000 kg/m 4,229 4,808 5,497 6,027 6,683 7,350 8,137 8,823 9,871 10,622

Types of Heat Exchanger Tubes

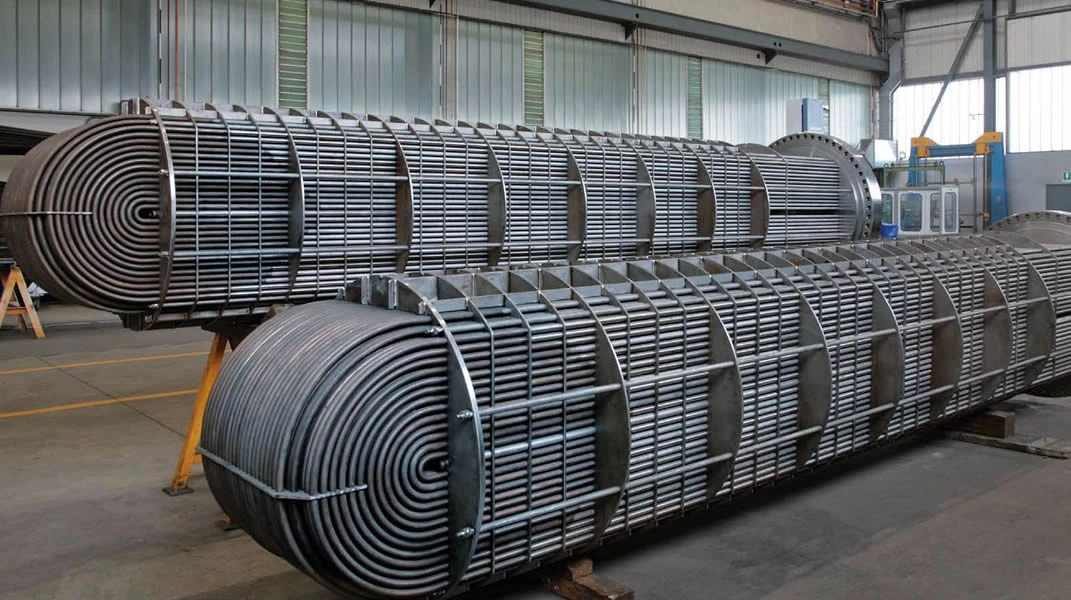

Stainless Steel Heat Exchanger Tubes

A stainless steel heat exchanger tube is designed to efficiently transfer heat between fluids in both heating and cooling systems, with superior strength to withstand high pressure and temperature without damage. These tubes are commonly used in industries such as chemical processing, oil and gas production, and cooling systems, and come in various designs like U-tube, fixed sheet, and floating heat exchangers. Manufactured from high-quality materials using the latest technology, these seamless tubes are highly durable, offering excellent corrosion and oxidation resistance. Available in SS 304 and SS 316L configurations, they are ideal for high-strength, high-pressure applications. SS 304 contains a high content of nickel and chromium, while SS 316L offers even better resistance with additional molybdenum. As a leading Stainless Steel Heat Exchanger Tube Manufacturer in India, we offer a wide range of tubes in different shapes and sizes, all quality-assured for optimal performance.

Stainless Steel Heat Exchanger Tubes

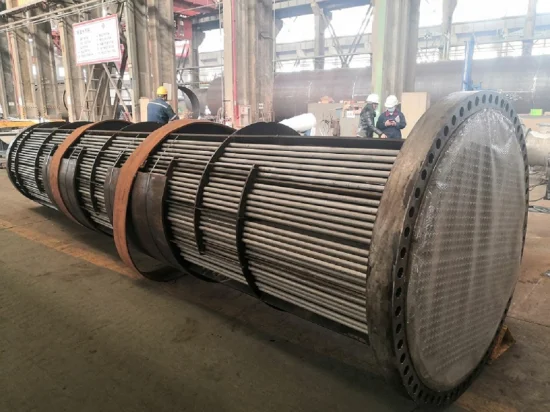

Carbon Steel Heat Exchanger Tubes

Carbon Steel Heat Exchanger Tubes are crucial components for efficient heat transfer in various industries, including chemical, petrochemical, oil & gas, and power generation. Known for their strength, durability, and cost-effectiveness, these tubes are available in seamless and welded forms, with grades like SA179, SA192, and SA210 offering excellent thermal conductivity, tensile strength, and corrosion resistance. Designed to handle high pressures and temperatures, they are ideal for applications such as heat exchangers, boilers, and condensers. At Amardeep Steel, we supply high-quality carbon steel heat exchanger tubes that meet global standards, ensuring reliable performance and long-term durability for your industrial needs.

Carbon Steel Heat Exchanger Tubes

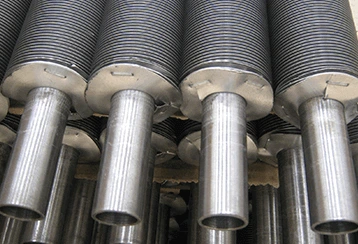

Finned Tube Heat Exchanger Tubes

One of the most popular types of heat exchangers using carbon steel tubes is the finned tube heat exchanger, where fins are attached to the surface of the tube to enhance heat transfer efficiency. These fins increase the surface area, allowing for better thermal performance in air-cooled applications. Finned tube heat exchangers are used in a variety of applications such as diesel charge air coolers, oil coolers, hydrogen coolers, waste heat recovery systems, air conditioning units, and steam condensers.

Finned Tube

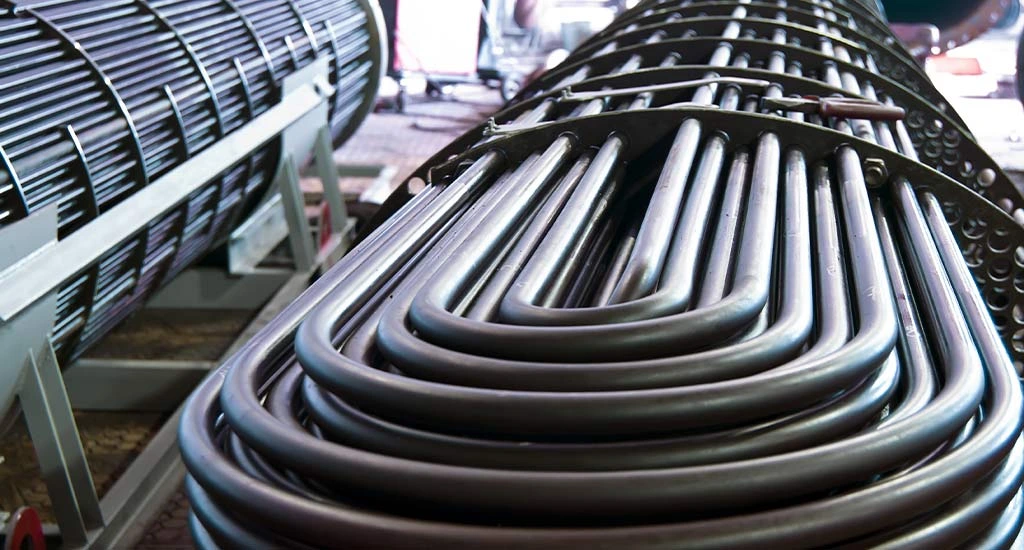

U-Tube Heat Exchanger Tubes

A U-tube heat exchanger features a bundle of tubes bent into a U-shape, housed within a shell, to efficiently transfer heat between two fluids without direct contact. This design ensures excellent energy exchange, making U-tube heat exchangers ideal for a variety of industries. At Amardeep Steel, we offer precision-crafted U-tube heat exchanger tubes that guarantee optimal heat transfer, durability, and minimal maintenance. Enhance productivity, reduce energy costs, and achieve superior performance with our high-quality U-tube heat exchangers.

 U-Tube Heat Exchanger Tubes

Find the Perfect Heat Exchanger Tube for Your Needs

Heat Exchanger Tubes Exporter

Amardeep Steel is a trusted exporter of high-quality Heat Exchanger Tubes, supplying clients worldwide with products that meet diverse industrial needs.

Mexico, Afghanistan, Italy, Switzerland, Czech Republic, Algeria, Angola, Brazil, Poland, Colombia, Slovakia, Trinidad & Tobago, Tunisia, Chile, Bahrain, Iran, Indonesia, Libya, Croatia, Austria, Norway, Estonia, Belarus, Philippines, Mexico, China, Hungary, Iraq, Jordan, Bolivia, South Africa, Australia, Chile, Israel, Bhutan, Hong Kong, Germany, Poland, Kazakhstan, Spain, Macau, Pakistan, Sri Lanka, Lebanon, Namibia, Sweden, Qatar, Kuwait, Canada, Gambia, Greece, Ukraine, United Arab Emirates, Puerto Rico, Turkey, New Zealand, Oman, Netherlands, Venezuela, Finland, Argentina, United Kingdom, Yemen, Nigeria, Nigeria, Portugal, India, South Korea, Tibet, Malaysia, Peru, Russia, Denmark, Ghana, Singapore, Bulgaria, Iran, Morocco, Ecuador, Gabon, Costa Rica, Azerbaijan, United States, Taiwan, Belgium, Lithuania, Thailand, Bangladesh, Japan, Egypt, Saudi Arabia, Mongolia, Romania, France, Serbia, Ireland, Nepal, Vietnam, Kenya, Zimbabwe.

Heat Exchanger Tubes Exporter

Amardeep Steel is a prominent exporter of Heat Exchanger Tubes, delivering high-quality products to a diverse clientele across major cities in Europe and beyond.

Ukraine, Costa Rica, Macau, Bulgaria, Afghanistan, Ghana, Nigeria, New Zealand, Qatar, Taiwan, Morocco, Nepal, Malaysia, Portugal, Bolivia, Belgium, South Korea, Finland, Argentina, Azerbaijan, Kazakhstan, South Africa, Iran, Namibia, Chile, Bhutan, Israel, Yemen, Puerto Rico, Turkey, Croatia, Austria, Poland, Netherlands, Mongolia, Sweden, United Kingdom, Belarus, Germany, Colombia, Iraq, Gabon, Poland, Spain, United States, Ecuador, Philippines, Oman, Angola, Italy, Kenya, Lithuania, Lebanon, Gambia, Russia, Hong Kong, Ireland, Sri Lanka, Venezuela, Czech Republic, Romania, Greece, United Arab Emirates, Mexico, Bangladesh, Thailand, Australia, Estonia, Singapore, Indonesia, Mexico, Switzerland, Chile, Norway, Pakistan, Bahrain, Hungary, Slovakia, Egypt, China, Jordan, Serbia, Peru, Trinidad & Tobago, Tunisia, Kuwait, Zimbabwe, Algeria, Japan, Canada, France, India, Iran, Tibet, Libya, Nigeria, Vietnam, Saudi Arabia, Denmark, Brazil.

FAQs

1. Where Are Heat Exchanger Tubes Commonly Used?

Heat Exchanger Tubes mainly find applications in Pressure Vessels, Cryogenic Pressure Vessels, High-Pressure Equipment, Tube Sheets of Heat Exchangers, Boilers, air Heater, Finned Tubes, Air Cooler Tubes, etc. They are used in Industries like Refineries, Power Plants, Steel Plants, Chemical Factories, Fertilizer Plants, and shipbuilding.

2. What is a Heat Exchanger Pipe?

A heat exchanger pipe is a crucial component used in heat transfer systems, designed to facilitate the exchange of thermal energy between two or more fluids. These pipes allow heat to flow efficiently from one fluid to another, without them coming into direct contact.

3. Why Should I Buy Heat Exchanger Tubes from Amardeep Steel?

Amardeep Steel is committed to delivering top-quality heat exchanger tubes that meet the highest industry standards. Our tubes are thoroughly inspected and approved by leading national and international agencies.

4. What is a Heat Exchanger Tubes?

Heat Exchanger Tubes are Seamless Tubes that are used to transfer heat to cool or heat a medium flowing through it. The heat exchange process is used as a process parameter or to increase efficiency by using heat energy. Industry-wise, it finds application across several industries, including Petroleum Refineries, Fertilizer Plants, Petrochemical Process Plants, Agriculture, Power plant boilers, and more.
Heat exchanger tube prices vary based on material, size, and specifications. Common materials include stainless steel, copper, and alloy steel, each with unique benefits. Higher-grade materials typically increase costs due to enhanced durability and corrosion resistance. For accurate Heat exchanger tube prices, please contact suppliers with specific requirements and quantities.

5. What Types of Heat Exchanger Tubes Do You Produce?

We, at Amardeep Steel, produce a wide range of Low Carbon Steel Heat Exchanger Tubes and Low Alloy Steel Heat Exchanger Tubes. We can supply these tubes in Straight as well as U-bent tubes as per the client's requirement.

6. What are the Various Grades of Heat Exchanger Tubes?

We manufacture seamless tubes as per various International Standards like ASTM / ASME / DIN / TEMA / IBR etc. We can supply tubes as per the customized requirements of the clients as well.
