Monel Products Supplier, Manufacturer & Exporter in India
Monel is a high-performance nickel-copper alloy known for its excellent strength, corrosion resistance, and durability in extreme conditions. Unlike regular stainless steel, monel performs well in acidic, alkaline, and seawater environments, making it one of the most reliable materials for industries such as marine, oil & gas, chemical processing, and aerospace.
At Amardeep Steel, we supply a wide range of monel products in different material grades, sizes, and standards. As a trusted monel products supplier, manufacturer, and exporter in India, we provide quality solutions that meet both domestic and international requirements. Our customers prefer us for our competitive Monel products price list, on-time delivery, and commitment to quality.
Amardeep Steel has over decades of experience in manufacturing and exporting monel products worldwide. We offer products in different monel material grades, such as monel 400 and monel K500, which are widely used in industries requiring high strength and corrosion resistance.
Whether you need Monel pipes, tubes, sheets, plates, round bars, or fittings, we ensure international standards and certifications with every delivery.
Monel Products List
Monel Products Specifications & Monel Material Grade
Standard | Grade | Form | Size Range | Schedule / Thickness | Surface Finish | End Type | Length |
---|---|---|---|---|---|---|---|

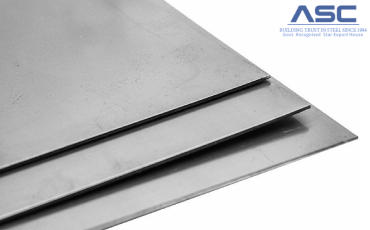

ASTM B127 / ASME SB127 | Monel 400, K500 | Sheets & Plates | 0.5 mm – 50 mm thick | Custom | Hot Rolled, Cold Rolled, Polished | – | Up to 6000 mm |
ASTM B164 / ASME SB164 | Monel 400, K500 | Rods, Bars & Wires | Dia: 10 mm – 200 mm | – | Bright, Black, Polished, Annealed | – | Cut Length / Random |
ASTM B165 / ASME SB165 | Monel 400, K500 | Pipes & Tubes (Seamless, Welded) | ½” – 12” NB (OD: 6 mm – 219 mm) | Sch 5S to Sch XXS | Annealed, Pickled, Polished | Plain End / Beveled End / Threaded | Single Random, Double Random, Custom |
ASTM B366 / ASME SB366 | Monel 400, K500 | Fittings (Elbow, Tee, Reducer, Stub End, Cap) | ½” – 24” | Sch 5S to Sch XXS | Shot Blasted, Sand Blasted, Polished | Beveled / Plain End | – |
ASTM B163 / ASME SB163 | Monel 400 | Condenser & Heat Exchanger Tubes | OD: 6 mm – 114 mm | 0.7 mm – 12 mm | Bright Annealed, Pickled | Plain End | Up to 12 M |
ASTM B564 / ASME SB564 | Monel 400, K500 | Flanges | ½” – 48” | Class 150 – 2500 | Forged, Machined, Polished | RF / RTJ / FF | – |
ASTM B163 / B725 | Monel 400 | Welded Tubes | OD: ½” – 8” | Sch 5 – Sch 40 | Annealed, Polished | Plain End / Beveled End | Custom |
Chemical Composition of Monel Products
Element | Monel 400 (%) | Monel K500 (%) |
---|---|---|
Nickel (Ni) | 63 min | 63 min |
Copper (Cu) | 28–34 | 27–33 |
Iron (Fe) | 2.5 max | 2.5 max |
Carbon (C) | 0.30 max | 0.25 max |
Manganese (Mn) | 2.0 max | 1.5 max |
Silicon (Si) | 0.5 max | 0.5 max |
Aluminum (Al) | – | 2.3–3.15 |
Titanium (Ti) | – | 0.35–0.85 |
Mechanical Properties of Monel Products
Properties | Monel 400 | Monel K500 |
---|---|---|
Tensile Strength | 480 MPa | 965 MPa |
Yield Strength | 170 MPa | 655 MPa |
Elongation | 35% | 20% |
Hardness | 110 HB | 200 HB |
Physical Properties of Monel Products
Property | Value |
---|---|
Density | 8.8 g/cm³ |
Melting Point | 1300–1350°C |
Electrical Resistivity | 344 nΩ·m |
Thermal Conductivity | 21.8 W/m·K |
Magnetic Properties | Non-magnetic to slightly magnetic |
Monel Products Equivalent Standards
Standard | Monel 400 | Monel K500 |
---|---|---|
UNS | N04400 | N05500 |
WNR | 2.4360 / 2.4361 | 2.4375 |
BS | NA 13 | NA 18 |
AFNOR | NU-30M | NU-30AT |
Applications of Monel Products
- Marine Industry – Pump shafts, seawater valves, and heat exchangers.
- Oil & Gas – Offshore drilling, pipelines, and refinery equipment.
- Chemical Processing – Vessels, reactors, and heat exchangers.
- Aerospace – Springs, fasteners, and structural components.
- Power Generation – Nuclear plants and turbines.
FAQs on Monel Products
1. What is Monel used for?
Monel is mainly used in industries where corrosion resistance and strength are critical, especially in marine and chemical environments.
2. Which Monel grade is better – 400 or K500?
Monel 400 offers excellent corrosion resistance, while Monel K500 provides higher strength with similar corrosion resistance due to added aluminum and titanium.
3. Is Monel more expensive than stainless steel?
Yes, Monel is generally more expensive than stainless steel because of its nickel content and high performance in extreme conditions.
4. Do you provide a Monel products price list?
Yes, Amardeep Steel offers a competitive Monel products price list based on grade, size, and order quantity. Contact us for the latest quotation.
5. Can Amardeep Steel export Monel products internationally?
Yes, we are a leading Monel products exporter with a strong global supply network.
