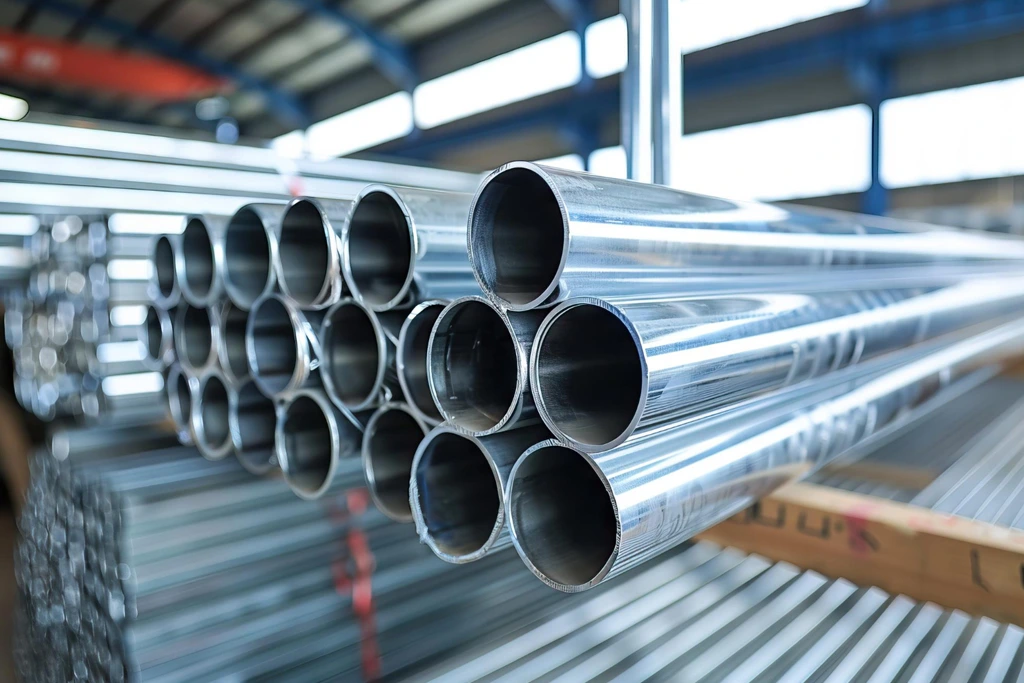

What is a Monel pipe?
Monel Pipes have a higher tensile strength and tend to be stronger than pure nickel. ASME SB725 Monel Alloy
Welded Pipes can handle sea water and steam well, even when the temperatures are high. In fact, the ASTM B165
Monel Seamless Pipe is resistant to corrosion by a wide range of corrosive media, including fast-moving
seawater.
Monel 400 Pipe is made out of a nickel-copper alloy. This particular material is very strong, doesn't rust, and
wears and tears very little. Steel India Company sells these pipes, and our customers like them because they are
easy to bend and because they don't react with acids. The Monel 400 Pipe Price can change depending on the
nominal size, the schedule, the wall thickness, the grade, and the application requirements. We make these pipes
in three different ways: welded, electric resistance welded, and seamless.
The Monel 400 Seamless Pipe has exact dimensions. This level of accuracy is helpful for applications that need to be exact. All of our types of Alloy 400 Pipe are of high quality and have been tested to meet international standards. As one of the top Alloy 400 Pipe Suppliers, we also make these pipes in different nominal sizes and shapes. Most of the time, round pipes are used, but you can also get oval, rectangular, and square pipes in the ASTM B725 UNS N04400 grade. These pipes are used in places where temperatures range from below freezing to more than 500 degrees Celsius. We have more customers and are ready to take your orders for SB 165 UNS N04400 pipe products.
ASTM Specification | ASTM B 165 ASME SB 165 / ASTM B 725 ASME SB 725 |
---|---|
Standard | ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
ASTM B165 Monel Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |
Monel Alloy Welded Pipe Size | 5.0 - 1219.2 mm |
Monel ASTM B725 Monel EFW Pipe size | 5.0 - 1219.2 mm |
Swg & Bwg | 12 Swg., 10 Swg., 16 Swg., 14 Swg., 20 Swg., 18 Swg., |
Monel Pipe Schedule | XS, SCH30, SCH40, XXS, SCH80, SCH120, SCH60, SCH140, STD, SCH10, SCH10S, SCH40S, SCH80, SCH20, SCH5, SCH160 |
Monel pipe Length | Double Random, Single Random, Standard & Cut length Pipe |
Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc |
Form | Monel are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc. |
Type of Monel Alloy Pipe | Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW Monel |
Monel pipe End | Plain End, Beveled End, Treaded Pipe, Screwed ends |
Marking on Monel Pipe | All ASTM B165 Monel Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
Application of Monel pipe | Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry |
Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
Specialize in | Large Diameter Monel pipe |
Monel pipe manufacturing Technique | Cold drawn, hot drawn, bright annealed, solid solution, hot extruding |
Our stockyard | Chennai, Tiruchirappalli, Pune, Hyderabad, Dhanbad, Mumbai, Coimbatore, Tirunelveli, Ahmedabad, Bengaluru, Thiruvananthapuram, Shivamogga, Agra, Bhubaneswar, Noida, Navi Mumbai, Pimpri-Chinchwad, |
Monel pipe Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
Material Test Certificates (MTC) | Material Test Certificates (MTC) as per EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2, 100% Radiography Test Report, Heat Treatment Charts, Raw Materials Certificate, Third Party Inspection Report, Fumigation Certificates, Monel HS Code Commercial Invoice, Form A for Generalized System of Preferences (GSP) |
Manufacturers of Monel pipe |
Monel Pipe make Tubacex Tubos Inoxidables S.A., Spain Monel Pipe make Nippon Steel Corporation, Japan Monel Pipe make Sumitomo Metals, Japan Monel Seamless Pipe make Seah Steel Corporation, Korea Monel Pipe make Kobe Special Tube, Japan Monel Pipe make Schoeller Bleckmann, Austria Monel Pipe make Sanyo Special Steel, Japan |
We can also cut, thread, and groove Monel Alloy Pipe to meet your specifications. Monel pipe Dimension ANSI/ ASME B36.10, B36.19, B2.1 |

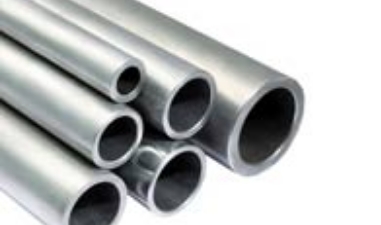

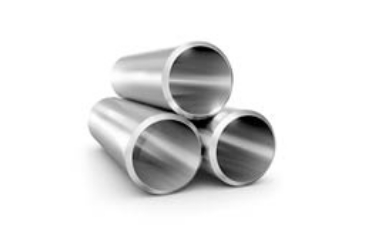

Monel Custom Pipe

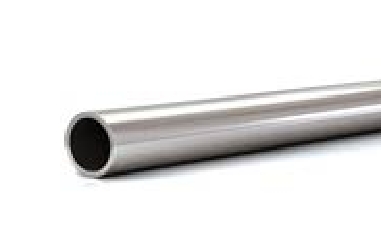

Monel ERW Pipe

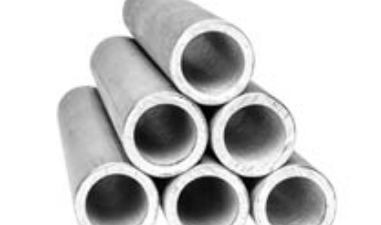

Monel Hollow Pipe

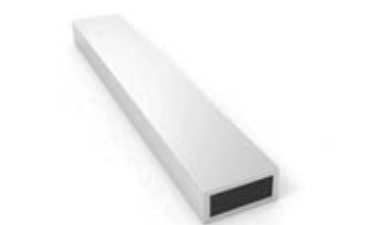

Rectangular Pipe
Schedule 5S monel Pipe

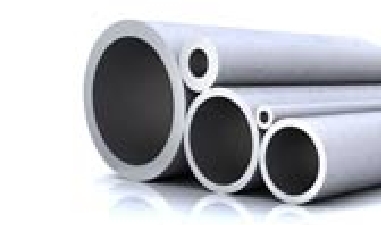

B167 monel Seamless Pipe

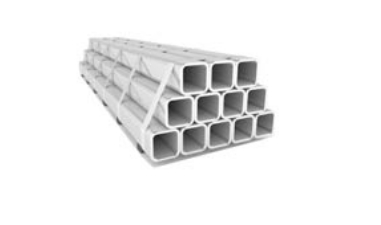

monel Alloy Square Pipe

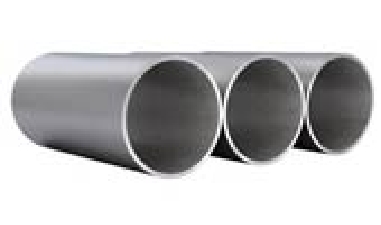

Monel Welded Pipe
Nominal | O.D. Inches | 10s | 10 | 40s & Std | 40 | 80s & E.H. | 80 | 160 |
---|---|---|---|---|---|---|---|---|
1/8 | .405 | .049 | .049 | .068 | .068 | .095 | .095 | |
1/4 | .540 | .065 | .065 | .088 | .088 | .119 | .119 | |
3/8 | .675 | .065 | .065 | .091 | .091 | .126 | .126 | |
1/2 | .840 | .083 | .083 | .109 | .109 | .147 | .147 | .187 |
3/4 | 1.050 | .083 | .083 | .113 | .113 | .154 | .154 | .218 |
1 | 1.315 | .109 | .109 | .133 | .133 | .179 | .179 | .250 |
1 1/4 | 1.660 | .109 | .109 | .140 | .140 | .191 | .191 | .250 |
1 1/2 | 1.900 | .109 | .109 | .145 | .145 | .200 | .200 | .281 |
2 | 2.375 | .109 | .109 | .154 | .154 | .218 | .218 | .343 |
2 1/2 | 2.875 | .120 | .120 | .203 | .203 | .276 | .276 | .375 |
3 | 3.500 | .120 | .120 | .216 | .216 | .300 | .300 | .437 |
3 1/2 | 4.000 | .120 | .120 | .226 | .226 | .318 | .318 | |
4 | 4.500 | .120 | .120 | .237 | .237 | .337 | .337 | .531 |
4 1/2 | 5.000 | .247 | .355 | |||||
5 | 5.563 | .134 | .134 | .258 | .258 | .375 | .375 | .625 |
6 | 6.625 | .134 | .134 | .280 | .280 | .432 | .432 | .718 |
7 | 7.625 | .301 | .500 | |||||
8 | 8.625 | .148 | .148 | .322 | .322 | .500 | .500 | .906 |
9 | 9.625 | .342 | .500 | |||||
10 | 10.750 | .165 | .165 | .365 | .365 | .500 | .593 | 1.125 |
11 | 11.750 | .375 | .500 | |||||
12 | 12.750 | .180 | .180 | .375 | .406 | .500 | .687 | 1.312 |
14 | 14.000 | .188 | .250 | .375 | .437 | .500 | .750 | 1.406 |
16 | 16.000 | .188 | .250 | .375 | .500 | .500 | .843 | 1.593 |
18 | 18.000 | .188 | .250 | .375 | .562 | .500 | .937 | 1.781 |
NPS | Outside Diameter (OD) | Wall Thickness (WT) | Weight | Weight | |||
in | mm | in | mm | Sched | kg/Mtr | Lb/ft | |
1/2" | 0.840 | 21 | 0.109 | 2.769 | 40 STD | 1.268 | 0.851 |
0.147 | 3.734 | 80 STD | 1.621 | 1.088 | |||
3/4" | 1.050 | 27 | 0.113 | 2.870 | 40 STD | 1.684 | 1.131 |
0.154 | 3.912 | 80 STD | 2.195 | 1.474 | |||
1" | 1.315 | 33 | 0.133 | 3.378 | 40 STD | 2.501 | 1.679 |
0.179 | 4.547 | 80 STD | 3.325 | 2.172 | |||
1 1/4" | 1.660 | 42 | 0.140 | 3.556 | 40 STD | 3.385 | 2.273 |
0.191 | 4.851 | 80 STD | 4.464 | 2.997 | |||
1 1/2" | 1.900 | 48 | 0.145 | 3.683 | 40 STD | 4.048 | 2.718 |
0.200 | 5.080 | 80 STD | 5.409 | 3.361 | |||
2" | 2.375 | 60 | 0.154 | 3.912 | 40 STD | 5.441 | 3.653 |
0.218 | 5.537 | 80 STD | 7.480 | 5.022 | |||
2 1/2" | 2.875 | 73 | 0.203 | 5.516 | 40 STD | 8.629 | 5.793 |
0.276 | 7.010 | 80 STD | 11.411 | 7.661 | |||
3" | 3.500 | 89 | 0.216 | 5.486 | 40 STD | 11.284 | 7.576 |
0.300 | 7.620 | 80 STD | 15.272 | 10.253 | |||
4" | 4.500 | 114 | 0.237 | 6.020 | 16.073 | 10.790 | |
0.337 | 8.560 | 22.318 | 14.983 | ||||
6" | 6.625 | 168 | 0.188 | 4.775 | 19.252 | 12.924 | |
0.203 | 5.516 | 20.739 | 13.923 | ||||
0.219 | 5.563 | 22.318 | 14.983 | ||||
0.250 | 6.350 | 25.354 | 17.021 | ||||
0.280 | 7.112 | 40 STD | 58.263 | 18.974 | |||
0.312 | 7.925 | 31.334 | 21.036 | ||||
0.375 | 9.525 | 37.285 | 25.031 | ||||
0.432 | 10.973 | 80 XHY | 42.561 | 28.573 | |||
0.500 | 12.700 | 48.719 | 32.708 | ||||
8" | 8.625 | 219 | 0.188 | 4.775 | 25.233 | 16.940 | |
0.203 | 5.156 | 27.198 | 18.259 | ||||
0.219 | 5.563 | 29.286 | 19.661 | ||||
0.250 | 6.350 | 20 | 33.308 | 22.361 | |||
0.277 | 7.036 | 30 | 36.786 | 24.696 | |||
0.322 | 8.179 | 40 | 42.352 | 28.554 | |||
0.375 | 9.525 | 49.216 | 33.041 | ||||
0.406 | 10.312 | 60 | 53.085 | 35.638 | |||
0.500 | 12.700 | 80 XHY | 64.627 | 43.388 | |||
10" | 10.750 | 273 | 0.188 | 4.775 | 31.588 | 21.207 | |
0.219 | 5.563 | 36.689 | 24.631 | ||||
0.250 | 6.350 | 20 | 41.759 | 28.035 | |||
0.307 | 7.798 | 30 | 51.002 | 34.240 | |||
0.344 | 8.738 | 56.946 | 38.231 | ||||
0.365 | 9.271 | 40 STD | 63.301 | 40.483 | |||
0.438 | 11.125 | 71.852 | 48.238 | ||||
0.500 | 12.700 | 60 XHY | 81.530 | 54.735 | |||
0.594 | 15.088 | 80 | 95.969 | 64.429 | |||
12" | 12.750 | 324 | 0.188 | 4.775 | 37.570 | 25.222 | |
0.219 | 5.563 | 43.657 | 29.309 | ||||
0.250 | 6.350 | 49.713 | 33.375 | ||||
0.281 | 7.137 | 55.739 | 37.420 | ||||
0.312 | 7.925 | 61.735 | 41.445 | ||||
0.375 | 9.525 | 73.824 | 49.562 | ||||
0.406 | 10.312 | 79.727 | 53.525 | ||||
0.500 | 12.700 | 97.438 | 65.415 | ||||
0.562 | 14.275 | 108.966 | 73.154 | ||||
14" | 14.000 | 356 | 0.188 | 4.775 | 41.308 | 27.732 | |
0.219 | 5.563 | 48.012 | 32.233 | ||||
0.250 | 6.350 | 20 | 54.685 | 36.713 | |||
0.281 | 7.137 | 61.327 | 41.172 | ||||
0.312 | 7.925 | 67.939 | 45.611 | ||||
0.375 | 9.525 | STD | 81.281 | 54.568 | |||
0.438 | 11.125 | 40 | 94.498 | 63.441 | |||
0.500 | 12.700 | XHY | 107.381 | 72.090 | |||
0.625 | 15.875 | 132.983 | 89.278 | ||||
16” | 16.000 | 406 | 0.188 | 4.775 | 47.290 | 21.748 | |
0.219 | 5.563 | 54.980 | 36.910 | ||||
0.250 | 6.350 | 10 | 62.639 | 42.053 | |||
0.281 | 7.137 | 70.268 | 47.174 | ||||
0.312 | 7.925 | 20 | 77.866 | 52.275 | |||
0.344 | 8.738 | 85.677 | 57.519 | ||||
0.375 | 9.525 | 30 STD |
93.213 | 62.578 | |||
0.438 | 11.125 | 108.433 | 72.797 | ||||
0.500 | 12.700 | 40 XHY |
123.289 | 82.770 | |||
18" | 18.000 | 457 | 0.219 | 5.563 | 61.948 | 41.588 | |
0.250 | 6.350 | 70.593 | 47.393 | ||||
0.281 | 7.137 | 79.208 | 53.176 | ||||
0.312 | 7.925 | 20 | 87.792 | 58.939 | |||
0.375 | 9.525 | STD | 105.144 | 70.588 | |||
0.438 | 11.125 | 30 | 122.369 | 82.152 | |||
0.500 | 12.700 | XHY | 139.198 | 93.450 | |||
0.562 | 14.275 | 40 | 155.904 | 104.666 | |||
0.625 | 15.875 | 172.754 | 115.978 | ||||
20" | 20.000 | 508 | 0.250 | 6.350 | 78.547 | 52.733 | |
0.282 | 7.163 | 88.458 | 59.386 | ||||
0.312 | 7.925 | 97.719 | 65.604 | ||||
0.375 | 9.525 | 20 STD | 117.075 | 78.598 | |||
0.438 | 11.125 | 136.305 | 91.508 | ||||
0.500 | 12.700 | 30 XHY | 155.106 | 104.130 | |||
0.594 | 15.088 | 40 | 183.378 | 123.110 | |||
0.625 | 15.875 | 192.640 | 129.328 | ||||
0.688 | 17.475 | 211.368 | 141.901 | ||||
24" | 24.000 | 610 | 0.250 | 6.350 | 94.456 | 63.413 | |
0.281 | 7.137 | 106.029 | 71.183 | ||||
0.312 | 7.925 | 117.573 | 18.932 | ||||
0.375 | 9.525 | 20 STD | 140.938 | 64.618 | |||
0.438 | 11.125 | 164.176 | 110.219 | ||||
0.500 | 12.700 | XHY | 186.923 | 125.490 | |||
0.625 | 15.875 | 232.410 | 156.028 | ||||
0.688 | 17.475 | 40 | 255.148 | 171.293 | |||
0.750 | 19.050 | 277.401 | 186.233 | ||||
30" | 30.000 | 762 | 0.250 | 6.350 | 118.318 | 79.433 | |
0.281 | 7.137 | 132.851 | 89.189 | ||||
0.312 | 7.925 | 10 | 147.353 | 98.925 | |||
0.375 | 9.525 | STD | 176.731 | 118.648 | |||
0.438 | 11.125 | 205.983 | 138.286 | ||||
0.500 | 12.700 | 20 XHY | 234.647 | 157.530 | |||
0.625 | 15.875 | 30 | 292.066 | 196.078 | |||
0.688 | 17.475 | 320.817 | 215.380 | ||||
0.750 | 19.050 | 348.988 | 234.293 | ||||
36" | 36.000 | 914 | 0.250 | 6.350 | 142.180 | 95.453 | |
0.281 | 7.137 | 159.672 | 107.196 | ||||
0.312 | 7.925 | 10 | 177.133 | 118.918 | |||
0.375 | 9.525 | STD | 215.525 | 142.678 | |||
0.438 | 11.125 | 247.790 | 166.353 | ||||
0.500 | 12.700 | 20 XHY | 282.372 | 198.570 | |||
0.625 | 15.875 | 351.723 | 236.128 | ||||
0.688 |
17.475 | 386.487 | 259.467 | ||||
0.750 |
19.050 | 420.576 | 282.353 | ||||
42" | 42.000 | 1067 | 0.312 | 7.925 | 206.914 | 138.911 | |
0.375 | 9.525 | STD | 248.319 | 166.708 | |||
0.500 | 12.700 | XHY | 33.097 | 221.610 | |||
0.750 | 19.050 | 492.163 | 330.413 | ||||
48" | 48.000 | 1219 | 0.375 | 9.525 | STD | 284.112 | 190.738 |
0.438 | 11.125 | 331.404 | 222.487 | ||||
0.500 | 12.700 | XHY | 377.822 | 253.650 | |||
0.750 | 19.050 | 563.750 | 378.473 | ||||
0.875 | 22.225 | 655.969 | 440.383 |
Alloy 400 Pipe O.D. (in.) |
Wall Thickness of Pipe (inches) | |||||||
---|---|---|---|---|---|---|---|---|
.028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
Working Pressure (psig) | ||||||||
1/8 | 7900 | 10100 | ||||||
1/4 | 3700 | 4800 | 7000 | 9500 | ||||
5/16 | 3700 | 5400 | 7300 | |||||
3/8 | 3100 | 4400 | 6100 | |||||
1/2 | 2300 | 3200 | 4400 | |||||
3/4 | 2200 | 3000 | 4000 | 4600 | ||||
1 | 2200 | 2900 | 3400 | 3900 | 4300 |
Types | Out diameter | Wall thickness | Length |
---|---|---|---|
NB Sizes (in stock) | 1/8” ~ 8” | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Upto 6 Meters |
Monel Seamless Pipe (Custom Sizes) | 5.0mm ~ 203.2mm | As per requirement | Upto 6 Meters |
Monel Welded Pipe (in Stock + Custom Sizes) | 5.0mm ~ 1219.2mm | 1.0 ~ 15.0 mm | Upto 6 Meters |
1/8" IPS(.405"O. D.) | 3 1/2" IPS( 4.000"O. D.) |
---|---|
SCH 40, 80 | SCH 10, 40, 80, 160, XXH |
1/4" IPS(.540"O. D.) | 4" IPS(4.500"O. D.) |
SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
3/8" IPS(.675"O. D.) | 5" IPS( 5.563"O. D.) |
SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
1/2" IPS(.840"O. D.) | 6" IPS(6.625"O. D.) |
SCH 5, 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
3/4" IPS(1.050"O. D.) | 8 ” IPS(8.625"O. D.) |
SCH 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
1" IPS:(1.315′O. D.) | 10" IPS(10.750"O. D.) |
SCH 5, 10, 40, 80, 160, XXH | SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
1-1/4" IPS(1.660"O. D.) | 12" IPS(12.750"O. D.) |
SCH 10, 40, 80, 160, XXH | SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
1-1/2" IPS(1.900"O. D.) | 14" IPS(14.000"O. D.) |
SCH 10, 40, 80, 160, XXH | SCH10 (.188), SCH40 (.375) |
2" IPS(2.375"O. D.) | 16" IPS(16.000"O. D.) |
SCH 10, 40, 80, 160, XXH | SCH10(.188), SCH40(.375) |
2 1/2" IPS(2.875"O. D.) | 18" IPS (18.000"O. D.) |
SCH 10, 40, 80, 160, XXH | SCH-40 (.375) |
3" IPS( 3.500"O. D.) | |
SCH 5, 10, 40, 80, 160, XXH |
Properties | Metric | Imperial |
---|---|---|
Density | 8.8 gm/cm3 | 0.318 lb/in3 |
Monel 400 | S | Ni | Fe | C | Si | Al | Mn | Cu |
0.02 max | 63.0 min | 1.0 – 2.5 | 0.3 max | 0.5 max | 0.50 max | 2.0 max | 28.0 – 34.0 |
Density | Yield Properties (0.2%Offset) | Melting Point | Elongational | Tensile Properties |
8.8 g/cm3 | Psi – 35,000 , MPa – 240 | 1350 °C (2460 °F) | 40 % | Psi – 80,000 , MPa – 550 |
STANDARD | WERKSTOFF NR. | UNS | AFNOR | BS | EN | JIS | GOST |
Monel 400 | 2.4360 | N04400 | NU-30M | NA 13 | NiCu30Fe | NW 4400 | МНЖМц 28-2,5-1,5 |
Mexico, Afghanistan, Italy, Switzerland, Czech Republic, Algeria, Angola, Brazil, Poland, Colombia, Slovakia, Trinidad & Tobago,Tunisia, Chile, Bahrain, Iran, Indonesia, Libya, Croatia, Austria, Norway, Estonia, Belarus, Philippines, Mexico, China, Hungary, Iraq, Jordan, Bolivia, South Africa, Australia, Chile, Israel, Bhutan, Hong Kong, Germany, Poland, Kazakhstan, Spain, Macau, Pakistan, Sri Lanka, Lebanon, Namibia, Sweden, Qatar, Kuwait, Canada, Gambia, Greece, Ukraine, United Arab Emirates, Puerto Rico, Turkey, New Zealand, Oman, Netherlands, Venezuela, Finland, Argentina, United Kingdom, Yemen, Nigeria, Nigeria, Portugal, India, South Korea, Tibet, Malaysia, Peru, Russia, Denmark, Ghana, Singapore, Bulgaria, Iran, Morocco, Ecuador, Gabon, Costa Rica, Azerbaijan, United States, Taiwan, Belgium, Lithuania, Thailand, Bangladesh, Japan, Egypt, Saudi Arabia, Mongolia, Romania, France, Serbia, Ireland, Nepal, Vietnam, Kenya, Zimbabwe.
Brisbane, Indore, Navi Mumbai, New York, Haryana, Gimhae-si, Los Angeles, Moscow, Milan, Nagpur, La Victoria, Baroda, Tehran, Atyrau, Kolkata, Granada, Coimbatore, Port-of-Spain, Abu Dhabi, Nashik, Algiers, Gurgaon, London, Courbevoie, Surat, Al Jubail, Lagos, Hyderabad, Muscat, Madrid, Noida, Howrah, Mumbai, Ernakulam, Secunderabad, Riyadh, Jaipur, Thiruvananthapuram, Jeddah, Ludhiana, Mexico City, Ahvaz, Aberdeen, Dammam, Dubai, Visakhapatnam, Busan, Petaling Jaya, Al Khobar, Karachi, Kuwait City, Sydney, Vung Tau, Rajkot, Ahmedabad, Caracas, Bhopal, Thane, Sharjah, Pimpri-Chinchwad, Chennai, Pune, Bogota, Seoul, Montreal, Faridabad, Istanbul, Houston, Hong Kong, Jamshedpur, Jakarta, Ulsan, Bangkok, Singapore, Manama, Melbourne, Edmonton, Rio de Janeiro, Colombo, Dallas, Ankara, Chiyoda, Vadodara, Lahore, Kuala Lumpur, Geoje-si, Chandigarh, Calgary, Doha, Hanoi, Santiago, Bengaluru, Ho Chi Minh City, Cairo, New Delhi, Perth, Ranchi, Toronto, Kanpur.
