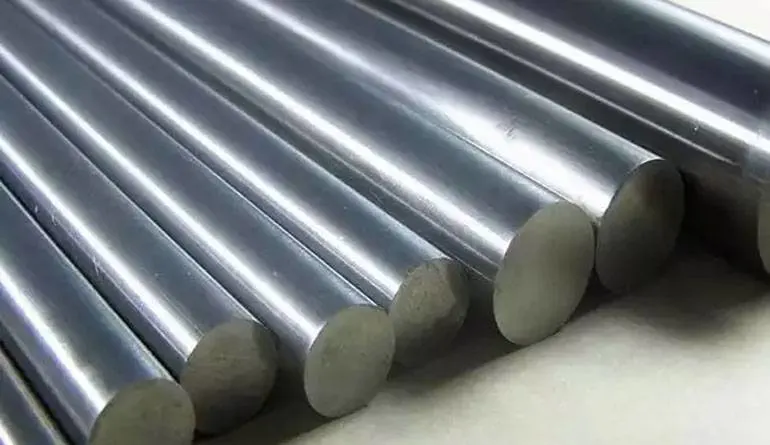

Monel 400 Round Bar Manufacturer, Supplier and Exporter in India
Amardeep Steel is a leading manufacturer and supplier of Monel 400 Round Bar. Monel 400, also known as Alloy 400, is a nickel-copper alloy that, when cold worked, develops high hardness, strength, and stiffness. Cold working the ASTM B164 UNS N04400 Bar Stock subjects the alloy to greater mechanical stress, altering its microstructure. This transformation enhances the alloy’s strength. As a result, the UNS N04400 Bright Bar gains a higher strength level and a smoother surface texture.
At ambient temperature, Monel 400 is slightly magnetic, and as a nickel-copper alloy, it boasts excellent resistance to seawater and steam, even at elevated temperatures. The 2.4068 Alloy 400 Rod also demonstrates resistance to salt solutions and caustic substances. This makes Monel 400 a popular choice in industries like chemical processing, oil, and marine engineering.
However, the increased hardness and tensile strength of Monel 400 lead to a decrease in ductility. While ductility is important in some applications, it’s less critical in structural or engineering settings where strength and resistance to deformation are prioritized. For such applications, the Monel 400 Round Bar is ideal, offering the necessary strength and durability.
Monel 400 Round Bar Price in India - Amardeep Steel
Looking for the best Monel 400 Round Bar price in India? Look no further than Amardeep Steel. Our Monel 400 Round Bars are known for their excellent strength, exceptional corrosion resistance, and durability. These round bars are perfect for industries like chemical, marine, and oil engineering, where resistance to seawater and high temperatures is crucial. We offer competitive pricing, a wide range of sizes, and fast delivery. Contact us today for the best deals on Monel 400 Round Bars in India.
What is Monel 400 Bar
Monel 400 is a copper-nickel-based alloy that has gained widespread popularity due to its outstanding performance. This alloy demonstrates excellent resistance to both acidic and alkaline environments. Additionally, it offers impressive tensile strength, ductility, and excellent thermal conductivity, and it can be hardened through cold working. Monel 400 is suitable for use in applications with temperature ranges from sub-zero to 538°C. What sets this alloy apart from other Monel alloys is its unique composition, with equal proportions of copper and nickel, making it ideal for critical industrial applications. It is commonly used in the form of Monel 400 bars globally.
Monel 400 Round Bar Specification
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|
| Monel 400 Round bars size | Diameter: 3-~800mm |
| Flat bars size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Angle bars size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel bars | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Rectangular barss Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Monel 400 Round bars Dimensions | Diameter / Height: |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Monel 400 Round bars Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Monel 400 Round bars Technique | Stainless Steel Cold Drawn, Hot Rolled, Forged Round bars,Cold Rolled, Rod |
| Processing | bars cutting to 650mm |
| Monel 400 Round bars Form | Rod, Round, Channel bars, T-bars, Flat bars, Precision Ground bars, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round bars, Ingot, Billet, I/H bars, Forging etc. |
Chemical Composition of Monel 400 Round Bar
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | S |
|---|---|---|---|---|---|---|---|---|
| Monel 400 | 63.0 min | 1.0 – 2.5 | 0.3 max | 2.0 max | 0.5 max | 28.0 – 34.0 | 0.50 max | 0.02 max |
Monel 400 Round Bar Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 35000 , MPa – 240 | 40 % |
Monel 400 Round Bar Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | BS | EN |
|---|---|---|---|---|---|---|---|
| Monel 400 | 2.4360 | N04400 | МНЖМц 28-2,5-1,5 | NU-30M | NW 4400 | NA 13 | NiCu30Fe |
Monel 400 Round Bar Weight Chart
| Round Bar | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3" | 10.900 | 35.762 |
| 1/8" | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4" | 12.800 | 41.996 |
| 5/32" | 0.029 | 0.095 | 7/8" | 0.926 | 3.038 | 3-1/2" | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4" | 17.001 | 55.780 |
| 3/16" | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4" | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1" | 1.210 | 3.970 | 4-1/4" | 21.908 | 72.249 |
| 7/32" | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2" | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4" | 27.366 | 90.249 |
| 1/4" | 0.076 | 0.249 | 1-1/8" | 1.534 | 5.033 | 5" | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2" | 36.690 | 121.000 |
| 5/16" | 0.118 | 0.387 | 1-1/4" | 1.924 | 6.349 | 6" | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2" | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8" | 2.303 | 7.550 | 7" | 59.432 | 196.000 |
| 3/8" | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2" | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8" | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10" | 121.048 | 397.140 |
| 7/16" | 0.232 | 0.761 | 1-1/2" | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2" | 0.303 | 0.994 | 1-5/8" | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4" | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16" | 0.383 | 1.256 | 1-7/8" | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8" | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2" | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8" | 5.475 | 17.963 | |||
| 11/16" | 0.573 | 1.880 | 2-1/4" | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4" | 0.682 | 2.237 | 2-3/8" | 6.838 | 22.435 | |||
| 2-1/2" | 7.576 | 24.856 | ||||||
| 2-5/8" | 8.354 | 27.409 | ||||||
| 2-3/4" | 9.169 | 30.083 | ||||||
Types of Monel 400 Round Bar
- Monel UNS N04400 Round Bar
- Alloy 400 Hex Bar
- Monel Alloy 400 Rod
- Monel 400 Bar Material
- 400 Monel Flat Bar
- Monel WERKSTOFF NR. 2.4360 Square Bar
- 400 Monel Alloy Rounds
- 2.4360 Monel 400 Polished Bar
- Nickel Alloy 400 Bright Bar
- ASTM B164 Monel 400 Annealed Bar
- ASTM B164 400 Monel Black Bar
- Din 2.4360 Round Bar Cold Drawn
- Alloy Monel 400 Flat Bar Hot Rolled
- 400 Alloy Round Bar Hot Rolled
- 400 Monel Square Bar Hot Rolled
- UNS N04400 Monel Flat Bar Cold Drawn
Monel 400 Round Bar Application Industries
- Sea Water Equipment
- Pharmaceutical Equipment
- Specialty Chemicals
- Pulp & Paper Industry
- Gas Processing
- Off-Shore Oil Drilling Companies
- Heat Exchangers
FAQs
1. What are the available sizes of Monel 400 Round Bar?
Monel 400 Round Bars are available in a variety of sizes, typically ranging from small diameters (less than 1 inch) to large diameters (over 12 inches), depending on the supplier and specific requirements.
2. Is the Monel 400 Round Bar expensive?
Yes, Monel 400 is generally more expensive than common stainless steels and other alloys due to the high cost of raw materials like nickel and copper. However, its durability and corrosion resistance can justify the cost for many industries.
3. What welding rod is used for Monel 400?
MONEL Welding Electrode 190 is used for shielded-metal-arc welding of MONEL alloys 400, R-405, and K-500. It is also used for surfacing steel. The weld metal is resistant to corrosion by sea water, salts, and reducing acids.
4. What is Monel 400 used for?
Monel 400 is essential in heat exchangers, chemical plant equipment, and boiler feeders. It is ideal in wire or rod form and is excellent for trolling wire due to its resistance to seawater. Monel 400 provides superior quality for different types of mechanical, and general engineering applications.
5. How to calculate round bar weight?
To calculate the weight of steel bars: ROUND – dia. mm2 x 0.006165 = Weight in kilograms per metre. ROUND – dia. mm2 x 0.004143 = Weight in lbs.
6. What is the density of Monel 400?
Properties of Alloy 400
| DENSITY | 8.80 g/cm³ | 0.318 lb/in³ |
|---|---|
| MELTING POINT | 1300-1350°C | 2370-2460°F |
Monel 400 Round Bar Exporter
Amardeep Steel is a prominent exporter of Monel 400 Round Bar, delivering high-quality products to a diverse clientele across major cities in Europe and beyond.
Ukraine, Costa Rica, Macau, Bulgaria, Afghanistan, Ghana, Nigeria, New Zealand, Qatar, Taiwan, Morocco, Nepal, Malaysia, Portugal, Bolivia, Belgium, South Korea, Finland, Argentina, Azerbaijan, Kazakhstan, South Africa, Iran, Namibia, Chile, Bhutan, Israel, Yemen, Puerto Rico, Turkey, Croatia, Austria, Poland, Netherlands, Mongolia, Sweden, United Kingdom, Belarus, Germany, Colombia, Iraq, Gabon, Poland, Spain, United States, Ecuador, Philippines, Oman, Angola, Italy, Kenya, Lithuania, Lebanon, Gambia, Russia, Hong Kong, Ireland, Sri Lanka, Venezuela, Czech Republic, Romania, Greece, United Arab Emirates, Mexico, Bangladesh, Thailand, Australia, Estonia, Singapore, Indonesia, Mexico, Switzerland, Chile, Norway, Pakistan, Bahrain, Hungary, Slovakia, Egypt, China, Jordan, Serbia, Peru, Trinidad & Tobago, Tunisia, Kuwait, Zimbabwe, Algeria, Japan, Canada, France, India, Iran, Tibet, Libya, Nigeria, Vietnam, Saudi Arabia, Denmark, Brazil.
