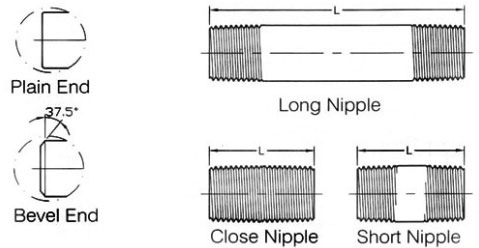

Amardeep Steel Centre is one of the leading Manufacturers, Supplier and Exporters of High Quality ASME B16.11 Forged Threaded Pipe Nipples. A pipe nipple is a length of straight pipe with male threads on both ends. They are used to fit straight end hose or pipe. These Threaded Pipe Nippple are available in various shapes, size, specification & thickness as per the clients requirments. These Pipe Nipples are widely used in various application industry such as oil refineries, chemical processing, petrochemical, cement indutry etc.
| Standards | : | ASME A182, ASME B16.9, ASME B16.11, MSS SP-43, MSS SP-95, BS3799 |
| Dimension | : | ANSI B16.11 |
| Size | : | 1/8"NB TO 4"NB IN |
| Class | : | 2000LBS, 3000LBS, 6000LBS |
| Type | : | Threaded - SCREWED (SCRD) – NPT, BSP, BSPT |
| Range | : | Pipe Nipple, Hex Nipple, Swage Nipple, Barrel Nipple |
Stainless Steel Threaded Pipe Nipples :
ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H
Carbon Steel Threaded Pipe Nipples :
ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Alloy Steel Threaded Pipe Nipples :
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91
Nickel Alloy Threaded Pipe Nipples :
ASTM / ASME SB 336 UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
Duplex & Super Duplex Steel Threaded Pipe Nipples :
ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Copper Alloy Steel Threaded Pipe Nipples :
ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
