4140 Tubing Supplier | 4140 Chrome Moly Steel

4140 Chrome Moly Steel, 4140 seamless tubing, 4140 chromoly tubing, 4140 chrome moly steel tubing, 4140 Steel Tube, 4140 chemical composition, 4140 equivalent material

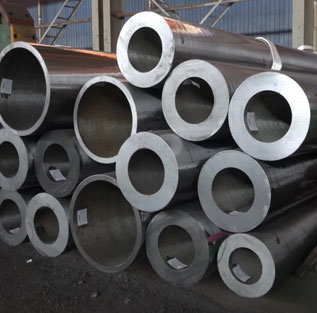

4140 alloy tubing is a type of steel tubing made from a low-alloy steel that contains chromium, molybdenum, and manganese. It is also referred to as chrome-moly tubing or chromoly tubing.

4140 Chrome Moly Steel is known for its high strength and toughness, making it a popular choice in applications that require high-stress resistance. It is commonly used in the manufacture of drill collars, tool joints, and other components in the oil and gas industry.

4140 tubing is also used in the manufacture of structural components and machinery parts, as well as in the production of high-strength fasteners. It can be easily welded, machined, and formed into various shapes, making it a versatile material for a wide range of applications.

In addition to its strength and toughness, 4140 alloy tubing also offers good wear resistance, making it suitable for use in abrasive environments. It also has excellent fatigue resistance, making it ideal for use in high-stress applications.

Overall, 4140 Chrome Moly Steel tubing is a high-quality, durable material that is widely used in a variety of applications that require high strength and toughness.

This grade of alloy also has the ability to be hardened and a high tensile strength, which is 655 Mpa. Most of the time, heat treatment is used to improve the mechanical properties of steel alloys. This alloy can be annealed in ways that are common. But because the alloy is tougher than most carbon steel alloys, it takes a lot more force to shape the UNS G41400 q&t Tube. Annealing is used on grade 4140 to get rid of any remaining cracks and make the material more flexible. Most of the time, an AISI 4140 Alloy Steel Seamless Tube Supplier will give you these parts after they have been quenched and tempered. Tempering makes the alloy harder and gives it more tensile strength. Quenching makes it harder. Because the alloy is both tough and hard, AISI 4140 qt Alloy steel Square Tubing tends to be more resistant to wear. So, it would be very hard for something outside the pipes to damage the surface. The alloy is also strong when it is turned. Materials often wear out over time, but the SAE 4140 qt Steel Round Tube has a high resistance to wear and tear.

4140 Tubing Specification

Dimensions	ASTM, ASME and API
Supplier of 4140 Alloy Steel Tube in Length	Within 13500 millimeter
Speciality in	Large Diameter Size
Size	4 to 219 millimeter W. T.: 0.5 to 20 millimeter
Length	In Single and Double Random & Cut to Length Suppliers
AISI 4140 Tube Type	Welded / Seamless / Fabricated / ERW
Form	Round, Square, Rectangular, Hydraulic.
End	Plain End, Threaded, Beveled End

Chemical Composition of 4140 Steel Tubing

Standard	Grade	C	Mn	P	S	Si	Ni	Cr	Mo
ASTM A29	4140	0.38-0.43	0.75-1.00	0.035	0.040	0.15-0.35	–	0.8-1.10	0.15-0.25
EN 10250	42CrMo4/ 1.7224	0.38-0.45	0.6-0.9	0.035	0.035	0.4	–	0.9-1.2	0.15-0.30
JIS G4105	SCM440	0.38-0.43	0.60-0.85	0.03	0.03	0.15-0.35	–	0.9-1.2	0.15-0.30

4140 Chrome Moly Steel Mechanical Properties

Properties	Metric	Imperial
Hardness, Vickers (converted from Brinell hardness)	207	207
Tensile strength	655 MPa	95000 psi
Bulk modulus (typical for steel)	140 GPa	20300 ksi
Yield strength	415 MPa	60200 psi
Hardness, Rockwell C (converted from Brinell hardness. Value below normal HRC range, for comparison purposes only)	13	13
Elastic modulus	190-210 GPa	27557-30458 ksi
Poisson’s ratio	0.27-0.30	0.27-0.30
Elongation at break (in 50 mm)	25.70%	25.70%
Shear modulus (typical for steel)	80 GPa	11600 ksi
Hardness, Brinell	197	197
Machinability (based on AISI 1212 as 100 machinability)	65	65
Hardness, Rockwell B (converted from Brinell hardness)	92	92
Hardness, Knoop (converted from Brinell hardness)	219	219

Types of AISI 4140 Steel Pipe

AISI 4140 chrome steel 30CrMo alloy steel pipes

AISI 4140 alloy steel
Pipe

AISI 4140 Hot Rolled Seamless Steel Pipe

AISI 4140 Alloy Steel Seamless Pipe

AISI 4140 Carbon steel
Pipes

AISI 4140 42Crmo4 alloy steel Pipe

326mm carbon steel aisi 4140 steel mild steel Pipe

AISI 4140 1.7225 Carbon Steel Pipe

Chrome Moly Steel Equivalent material Grade

Standard/ Grade	UNS	Temper	Specification
AISI 4140 Alloy Steel	UNS G41400	A, N, T	AMS6381

AISI 4140 Pipe Grade Heat Treatment

Annealing	800 oC – 850 oC
Normalizing	870 oC – 900 oC
Tempering	550 oC – 700 oC

Weight Table of ASTM A519 Grade 4140 Tubes

Size NPS	Tube O.D.	Wall Thickness	Tube I.D.	Weight per Foot	Standard to XXHY	Schedule Tube #	Section Modulus	Gallon Capacity Per Linear Foot
1/2	0.84	0.109	0.622	0.85	STD	40	.0407	.0158
		0.147	0.546	1.09	XHY	80	.0478	.0122
		0.188	0.464	1.31		160	.0528	.0088
		0.294	0.252	1.72	XXHY		.0577	.0026
3/4	1.05	0.113	0.824	1.13	STD	40	.0705	.0277
		0.154	0.742	1.48	XHY	80	.0853	.0225
		0.219	0.612	1.95		160	.1006	.0153
		0.308	0.434	2.44	XXHY		.1103	.0077
1	1.315	0.133	1.049	1.68	STD	40	.1328	.0449
		0.179	0.957	2.17	XHY	80	.1606	.0374
		0.250	0.815	2.85		160	.1904	.0271
		0.358	0.599	3.66	XXHY		.2136	.0146
1 1/4	1.66	0.140	1.380	2.27	STD	40	.2346	.0777
		0.191	1.278	3.00	XHY	80	.2913	.0666
		0.250	1.160	3.77		160	.3421	.0549
		0.382	0.896	5.22			.4110	.0328
1 1/2	1.90	0.145	1.610	2.72	STD	40	.3262	.1058
		0.200	1.500	3.63	XHY	80	.4118	.0918
		0.281	1.338	4.86		160	.5079	.0730
		0.400	1.100	6.41			.5977	.0494
2	2.375	0.109	2.157	2.64		10	.4205	.1898
		0.154	2.067	3.66	STD	40	.5606	.1743
		0.218	1.939	5.03	XHY	80	.7309	.1534
		0.250	1.875	5.68			.8045	.1434
		0.281	1.813	6.29			.8666	.1344
		0.344	1.687	7.47		160	.9806	.1161
		0.436	1.503	9.04	XXHY		1.1043	.0922
2 1/2	2.875	0.120	2.635	3.53		10	.6870	.2833
		0.203	2.469	5.80	STD.	40	1.0640	.2487
		0.216	2.443	6.14			1.1169	.2435
		0.250	2.375	7.02			1.2468	.2301
		0.276	2.323	7.67	XHY	80	1.3386	.2202
		0.375	2.125	10.02		160	1.6371	.1842
		0.552	1.771	13.71	XXXHY		1.9971	.1280
3	3.50	0.120	3.260	4.34			1.0411	.4336
		0.156	3.188	5.58			1.3122	.4147
		0.172	3.156	6.12			1.4265	.4064
		0.188	3.124	6.66			1.5342	.3984
		0.216	3.068	7.58	STD.	40	1.7241	.3840
		0.250	3.000	8.69			1.9372	.3672
		0.281	2.938	9.67			2.1207	.3521
		0.300	2.900	10.26	XHY	80	2.2253	.3431
		0.438	2.624	14.34		160	2.8774	.2811
		0.600	2.300	18.6	XXHY		3.4243	.2158
3 1/2	4.0	0.120	3.760	4.98		10	1.3776	.5768
		0.226	3.548	9.12	STD.	140	2.3939	.5136
		0.250	3.500	10.02			2.6001	.4998
		0.281	3.438	11.17			2.8562	.4821
		0.318	3.364	12.52	XHY	80	3.1400	.4617
		0.636	2..728	22.87	XXHY		4.8795	.3085
4	4.5	0.120	4.260	5.62		10	1.7612	.7404
		0.156	4.188	7.24			2.2354	.7156
		0.188	4.124	8.67			2.6296	.6942
		0.203	4.094	9.32			2.8173	.6838
		0.219	4.062	10.02			3.0184	.6725
		0.237	4.026	10.80	STD.	40	3.2145	.6613
		0.250	4.000	11.36			3.3611	.6528
		0.281	3.938	12.67		60	3.7021	.6326
		0.312	3.876	13.97			4.0273	.6126
		0.337	3.826	15.00	XHY	80	4.2713	.5972
		0.438	3.624	19.02		120	5.1790	.5361
		0.531	3.438	22.53		160	5.8997	.4822
		0.674	3.152	27.57	XXHY		6.7927	.4054
5	5.563	0.188	5.187	10.80			4.1161	1.0979
		0.219	5.125	12.51			4.7279	1.0716
		0.258	5.047	14.63	STD.	40	5.4500	1.0391
		0.281	5.001	15.87			5.8644	1.0204
		0.312	4.939	17.51			6.4074	.99647
		0.344	4.875	19.19			6.9358	.9696
		0.375	4.813	20.80	XHY	80	7.4300	.9449
		0.500	4.563	27.06		120	9.2534	.8495
		0.625	4.313	32.99		160	10.7976	.7590
		0.750	4.063	38.59	XXHY		12.0954	.6734
6	6.625	0.109	6.407	7.59		5	3.5769	1.6748
		0.134	6.357	9.30		10	4.3475	1.6488
		0.156	6.313	10.79			5.0107	1.6260
		0.188	6.249	12.94			5.9351	1.5937
		0.203	6.219	13.94			6.3804	1.5780
		0.219	6.187	15.00			6.8261	1.5620
		0.250	6.125	17.04			7.6905	1.5306
		0.280	6.065	18.99	STD.	40	8.4958	1.5008
		0.312	6.001	21.06			9.3416	1.4688
		0.344	5.937	23.10			10.111	1.4391
		0.375	5.875	25.05			10.893	1.4082
		0.432	5.761	28.60	XHY	80	12.224	1.3541
		0.500	5.625	32.74			13.711	1.2909
		0.562	5.501	36.43		120	14.9806	1.2346
		0.625	5.375	40.09			16.1821	1.1787
		0.719	5.187	45.39		160	17.8243	1.0977
		0.864	4.897	53.21	XXHY		20.025	.9784
		1.000	4.625	60.13			21.7719	.8727
		1.125	4.375	66.14			23.1237	.7809

Suppliers of UNS G41400 q&t Tube in various Sizes

NB	Size	OD	40S	5S	10S	S10	S20	S40	S60	XS/80S	S80	S100	S120	S140	S160	XXS
NB	Size	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
	1/8"	10.29			1.2			1.73			2.41
	1/4"	13.72			1.7			2.24			3.02
	3/8"	17.15			1.7			2.31			3.2
15	1/2"	21.34	2.8	1.7	2.1			2.77		3.73	3.73				4.78	7.47
20	3/4"	26.67	2.9	1.7	2.1			2.87		3.91	3.91				5.56	7.82
25	1"	33.4	3.4	1.7	2.8			3.38		4.55	4.55				6.35	9.09
32	1 1/4"	42.16	3.6	1.7	2.8			3.56		4.85	4.85				6.35	9.7
40	1 1/2"	48.26	3.7	1.7	2.8			3.68		5.08	5.08				7.14	10.2
50	2"	60.33	3.9	1.7	2.8			3.91		5.54	5.54				9.74	11.1
65	2 1/2"	73.03	5.2	2.1	3.1			5.16		7.01	7.01				9.53	14
80	3"	88.9	5.5	2.1	3.1			5.49		7.62	7.62				11.1	15.2
90	3 1/2"	101.6	5.7	2.1	3.1			5.74		8.08	8.08
100	4"	114.3	6	2.1	3.1			6.02		8.56	8.56		11.1		13.5	17.1
125	5"	141.3	6.6	2.8	3.4			6.55		9.53	9.53		12.7		15.9	19.1
150	6"	168.3	7.1	2.8	3.4			7.11		10.97	11		14.3		18.3	22
200	8"	219.1	8.2	2.8	3.8		6.4	8.18	10.3	12.7	12.7	15.1	19.3	20.6	23	22.2
250	10"	273.1	9.3	3.4	4.2		6.4	9.27	12.7	12.7	15.1	19.3	21.4	25.4	28.6	25.4
300	12"	323.9	9.5	4	4.6		6.4	10.3	14.3	12.7	17.5	21.4	25.4	28.6	33.3	25.4
350	14"	355.6	9.5	4	4.8	6.4	7.9	11.1	15.1	12.7	19.1	23.8	27.8	31.8	35.7
400	16"	406.4	9.5	4.2	4.8	6.4	7.9	12.7	16.7	12.7	21.4	26.2	31	36.5	40.5
450	18"	457.2	9.5	4.2	4.8	6.4	7.9	14.3	19.1	12.7	23.8	29.4	34.9	39.7	45.2
500	20"	508	9.5	4.8	5.5	6.4	9.5	15.1	20.6	12.7	26.2	32.5	38.1	44.5	50
550	22"	558.8	9.5	4.8	5.5	6.4	9.5		22.2	12.7	28.6	34.9	41.3	47.6	54
600	24"	609.6	9.5	5.5	6.4	6.4	9.5	17.5	24.6	12.7	31	38.9	46	52.4	59.5
650	26"	660.4	9.5			7.9	13			12.7
700	28"	711.2	9.5			7.9	13			12.7
750	30"	762	9.5	6.4	7.9	7.9	13			12.7
800	32"	812.8	9.5			7.9	13	17.5		12.7
850	34"	863.6	9.5			7.9	13	17.5		12.7
900	36"	914.4	9.5			7.9	13	19.1		12.7

Mechanical Analysis Requirements for 4140 Square Tube Heat-Treated

Mechanical Property Designation		R	S	S	*T	U	V	W
Limited Ruling Section mm		250	250	150	100	63	30	20
Tensile Strength Mpa	Min	700	770	770	850	930	1000	1080
Tensile Strength Mpa	Max	850	930	930	1000	1080	1150	1230
0.2% Proof Stress Mpa	Min	480	540	570	655	740	835	925
Elongation on 5.65√S₀ %	Min	15	13	15	13	12	12	12
Izod Impact J	Min	34	27	54	54	47	47	40
Charpy Impact J	Min	28	22	50	50	42	42	35
Hardness Brinell HB	Min	201	233	233	248	269	293	311
Hardness Brinell HB	Max	255	277	277	302	331	352	375
*Material stocked generally in condition T Check test certificate if critical for end use.

4140 Chrome Moly Steel Mechanical Strength Requirements for in the Heat-Treated Condition for Turned

Mechanical Property Designation		R	S	T	U	V
Limited Ruling Section		63	63	63	63	63
Tensile Strength Mpa	Min	700	770	850	930	1000
Tensile Strength Mpa	Max	850	930	1000	1080	1150
0.20% Proof Stress Mpa	Min	525	585	680	755	850
Elongation on 5.65√S₀ %	Min	12	11	9	9	9
Hardness Brinell HB	Min	201	223	248	269	293
Hardness Brinell HB	Max	255	277	302	331	352
*Material stocked generally in condition T Check test certificate if critical for end use.

Preheat temperature for 4140 Dom Tubing

Section	25mm	40mm	50mm	75mm	150mm +
^oC	370	400	425	455	510

4140 Tubing Applications & Uses

4140 alloy tubing has a wide range of applications due to its high strength and toughness properties. Some of the most common applications of 4140 alloy tubing include:

Oil and gas industry: 4140 alloy tubing is widely used in the oil and gas industry for the manufacture of drill collars, tool joints, and other high-stress components.
Machinery and equipment: 4140 alloy tubing is used in the manufacture of structural components and machinery parts, such as shafts, gears, and sprockets.
High-strength fasteners: 4140 alloy tubing is often used in the production of high-strength fasteners, such as bolts and screws, due to its high strength and toughness properties.
Automotive and motorsports: 4140 alloy tubing is commonly used in the automotive and motorsports industries for the manufacture of roll cages, suspension components, and other high-stress components.
Aerospace: 4140 alloy tubing is used in the aerospace industry for the manufacture of landing gear components, fuselage components, and other high-stress components.
Construction: 4140 alloy tubing is also used in the construction industry for the manufacture of high-strength structural components, such as support beams and columns.
