Incoloy 825 Plates, Sheets and Coils

Incoloy 825 werkstoff nr. 2.4816 Plates, ASTM B424 Incoloy 825 Sheets, ASME SB 424 Incoloy 825 Plate, Incoloy® Slit Coils Stockholders in Mumbai India.

ASTM B163 Incoloy 825 Welded Plates, Incoloy UNS N08825 Sheets, Incoloy UNS N08825 Plates, ASTM B424 Nickel Alloy 825 Cold Rolled Sheets Manufactures

ASME SB-167 / 775 / 829 Incoloy UNS N08825 Diamond Plates, Incoloy DIN 2.4858 Chequered plates, Incoloy Werkstoff No 2.4858 Sheets Dealer in India, Nickel Alloy 825 Coils

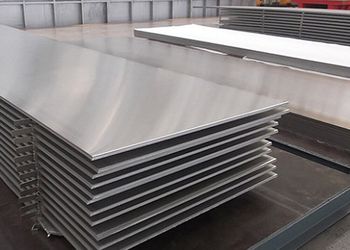

inconel-825-plates

We are one of the leading Manufacturers, Supplier and Exporters of high quality Incoloy 825 Plates, Sheets & Coils in Mumbai, India. Incoloy 825 Plates/ Sheets are nickel-chromium alloy with an addition of aluminum for outstanding resistance to oxidation and other forms of high temperature corrosion. These Incoloy 825 sheets (UNS N07825) are used for Heat treating muffles and retorts, Catalyst support grids in nitric acid production, Radiant tubes, Steam super-heater tube supports, and more. Incoloy Plates, Sheets and Coils are available in special alloys like Incoloy 600, Incoloy 601, Incoloy 718, Incoloy 625, Incoloy X-750, Incoloy 800, Incoloy 800H/ HT and Incoloy 825. We are manufactured as per the international quality and safety standards. These 825 Incoloy Sheets, Plates & Coils are widely used in various applications industry. We also offer these Sheets & Plates are available in different size,grades, specification & thickness as per the clients requirements

Specification Incoloy 825 Sheet, Plate & Coil:

Size : 15 NB to 150 NB IN
Type : Seamless / ERW / Welded / Fabricated / LSAW Pipes
Standards : ASTM B423, ASTM B163, ASTM B704, ASTM B705 / 751, ASME SB423, ASME SB163, ASME SB704, ASME SB 705 / 751, UNS N08825 / Werkstoff Nr. 2.4858
End : Plain End, Beveled End, Treaded.
Length : Single Random, Double Random & Cut Length.
Form : Round, Square, Rectangular, Hydraulic Etc.


Equivalent Grades of Incoloy 825 Plate

STANDARD WERKSTOFF NR. UNS JIS AFNOR BS GOST EN OR
Incoloy 825 2.4858 N08825 NCF 825 NFE30C20DUM NA 16 ЭП703 NiCr21Mo XH38BT

Chemical Composition Incoloy 825 Hot rolled Sheets, Plates & Coils :

Ni Fe C Mn Si Mb Cu Cr Al Ti S
38.0 – 46.0 22.0 min 0.05 max 1.0 max 0.5 max 2.5 - 3.5 1.5 - 3.0 19.5 - 23.5 0.2 max 0.6 - 1.2 0.015 max

Mechanical & Physical Properties of ASME SB424 Incoloy® Alloy 825 :

Density 8.14  g/cm3
Melting Point 1400 °C (2550 °F)
Tensile Strength Psi – 80,000 , MPa – 550
Yield Strength (0.2%Offset) Psi – 32,000 , MPa –220
Elongation 30 %

Types Of Incoloy 825 Plates, Sheets and Coils :
•   Incoloy 825 Plates
•   Incoloy 825 Sheets
•   Incoloy 825 Shim Sheet
•   Incoloy 825 Perforated Sheet
•   Incoloy 825 Chequered Plate
•   Incoloy 825 Rolls
•   Incoloy 825 Ring
•   Incoloy 825 Circles
•   Incoloy 825 Coils
•   Incoloy 825 Strips
•   Incoloy 825 Flat
•   Incoloy 825 Blank
•   Incoloy 825 Profile
•   Incoloy 825 Foils
