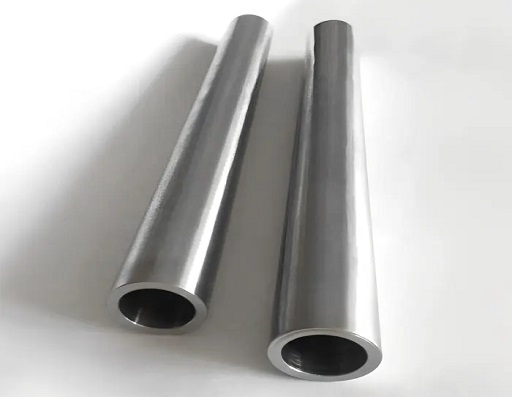

Niobium Pipe

niobium-pipe

Amardeep Steel is a leading supplier of high-performance niobium pipes and tubes, known for their exceptional strength, corrosion resistance, and stability at high temperatures. These materials are ideal for advanced applications in the aerospace, nuclear, and high-temperature industries, where durability and performance are critical. Due to niobium's ability to resist oxidation and its role in superconducting applications, Amardeep Steel's niobium products are indispensable in cutting-edge technologies and engineering sectors that require high-quality, reliable materials.

Niobium pipes and tubes exhibit excellent resistance to harsh chemicals and high temperatures, with a melting point of 2,477°C (4,491°F). They are ductile and malleable, making them easy to form into various shapes for different industrial needs. Additionally, niobium's superconducting properties and biocompatibility make it valuable for use in medical devices, particle accelerators, and nuclear reactors.

At Amardeep Steel, we offer high-purity niobium tubes, including seamless and welded varieties with purity levels ranging from 99.8% to 99.99%.

These tubes are highly sought after for their use in superconducting magnets, medical implants, and other advanced applications. We also supply tantalum niobium tubes and pipes, known for their superior corrosion resistance, high melting points, and excellent thermal conductivity, making them perfect for industries like chemical processing and aerospace.

Explore our high-quality Niobium products, such as pipes, tubes, flanges, and fittings, designed for outstanding durability and resistance to corrosion.

For more information or to inquire about our niobium pipes and tubes, contact Amardeep Steel, your trusted supplier of high-quality niobium products.

Niobium Pipe Specification

Item Specification
Outer Diameter: Φ2.0-100mm
Wall Thickness: 0.2-5.0mm
Length: 200mm-8000mm

Chemical Composition of Niobium Pipe

Composition%
Material Main Content Impurities (no more than %)
Nb Fe Si Ni W Mo Ti Ta O C H N
R04200 Remaining 0.004 0.004 0.002 0.005 0.005 0.002 0.05 0.012 0.0035 0.0012 0.003
R04210 Remaining 0.01 0.01 0.005 0.02 0.01 0.004 0.07 0.015 0.0050 0.0015 0.005

Niobium Pipe Mechanical Properties

Grade Tensile Strength  δbpsi (MPa) ≥ Yield Strength  δ0.2, psi (MPa) ≥ Elongation in 1″/2″ Gage Length, %, ≥
>=0.010 <0.010
RO4200-1 18000 (125) 12000 (85) 25 20
RO4210-2

Niobium Tube Dimensions

Out diameter 2.0-100mm
Wall thickness 0.2-5.0mm
Length 200mm-8000mm

Properties of Niobium

Niobium wire is used in various advanced applications, including:

  • Appearance: Niobium is a shiny, white, ductile metal. When exposed to air, it forms a protective oxide layer, which can display a variety of colors like blue, green, and yellow, depending on the thickness of the oxide layer.
  • Corrosion Resistance: Niobium resists corrosion due to its oxide film. However, it begins to oxidize more rapidly in air at temperatures above 200°C.
  • Chemical Properties: Niobium's chemical behavior is very similar to tantalum, another refractory metal.
  • Refractory Metal: Niobium is one of the five major refractory metals, known for their high resistance to heat and wear. The other refractory metals include tungsten, molybdenum, tantalum, and rhenium.

Applications of Niobium

Niobium wire is used in various advanced applications, including:

  • Used in heat exchangers, petrochemical thermometer protection tubes, and the electronics industry.
  • Essential for high-temperature alloys, stainless steels, and strengthening metals at low temperatures.
  • Niobium carbide is used in cutting tools.
  • Employed in nuclear reactors, jets, missiles, pipelines, superconducting magnets, and welding rods.
  • Niobium alloys are used in superconducting magnets, particle accelerators, and surgical implants due to their strength and biocompatibility.
