ASME B16.11 Forged Socket Weld Elbow Manufacturer and Exporter, India
Amardeep Steel manufactures and exports ASME B16.11 Forged Socket Weld Elbows from our facility in Mumbai, India. Our forged socket weld pipe fittings are produced to ASTM A182 material standards and are available in 45 degree and 90 degree configurations, sizes 1/4" NB to 4" NB, and pressure classes from 2000 LBS to 9000 LBS.
We supply to petrochemical, power generation, shipbuilding, pharmaceutical, and waste water treatment sectors across more than 80 countries. All fittings are 100% hydrostatically tested and comply with ASME B16.11, BS 3799, DIN, JIS, and IS standards.
Established over three decades ago, Amardeep Steel holds ISO 9001 certification and supplies all fittings with Material Test Reports (MTR) and Mill Test Certificates (MTC). Our manufacturing facility is approved by IBR, BV, and DNV for quality assurance.
What are Forged Socket Weld Elbow Fittings?
A Forged Socket Weld Elbow is a pipe fitting manufactured by hot forging, which produces grain flow aligned with the fitting shape and results in superior strength over cast alternatives. The socket weld end connection accepts the pipe into a recessed socket before fillet welding, creating a permanent, leak proof joint rated for high pressure and high temperature service. Conforming to ASME B16.11, these elbows are preferred over threaded fittings in permanent piping systems carrying hazardous, toxic, or flammable media.
These fittings are available in 45 degree, 90 degree, and 180 degree (Return Bend) configurations and can be paired with our Forged Socket Weld Tee for multi directional flow control or with Forged Threaded Pipe Fittings where removable connections are required.
ASME B16.11 Forged Socket Weld Elbow Specifications
|
Parameter |
Details |
|---|---|
|
ASTM Standard |
ASTM A182 |
|
ASME Standard |
ASME SA182 |
|
Dimension |
ANSI B 16.11 / BS3799 |
|
Size |
1/4" NB to 4" NB |
|
Class |
2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
|
Form |
45 Deg Elbow, 90 Deg Elbow, 180 Deg Return Bend, Any Required Degree |
|
Type |
Socket Weld (S/W) and Screwed (SCRD) |
|
Schedule |
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |

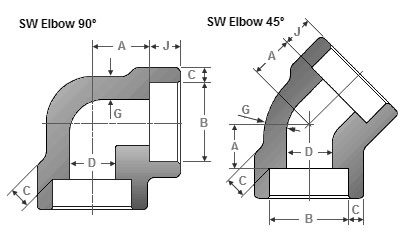

ASME B16.11 Forged Socket Weld Elbow Dimensional Data Table
|
NPS (in) |
OD (mm) |
C 45 Deg 3000# (mm) |
C 90 Deg 3000# (mm) |
C 45 Deg 6000# (mm) |
C 90 Deg 6000# (mm) |
Approx Weight 3000# (kg) |
|---|---|---|---|---|---|---|
|
1/4 |
13.7 |
11 |
11 |
11 |
11 |
0.03 |
|
3/8 |
17.1 |
14 |
14 |
14 |
14 |
0.05 |
|
1/2 |
21.3 |
14 |
14 |
14 |
14 |
0.08 |
|
3/4 |
26.7 |
17 |
17 |
17 |
17 |
0.13 |
|
1 |
33.4 |
22 |
22 |
22 |
22 |
0.23 |
|
1-1/4 |
42.2 |
25 |
25 |
25 |
25 |
0.40 |
|
1-1/2 |
48.3 |
29 |
29 |
29 |
29 |
0.56 |
|
2 |
60.3 |
35 |
35 |
38 |
38 |
0.98 |
|
2-1/2 |
73.0 |
41 |
41 |
44 |
44 |
1.70 |
|
3 |
88.9 |
51 |
51 |
57 |
57 |
2.90 |
|
4 |
114.3 |
64 |
64 |
70 |
70 |
5.50 |
Forged Socket Weld Elbow Pressure-Temperature Rating Table (ASME B16.11)
|
Class / Grade |
At -29C to 38C (psi) |
At 100C (psi) |
At 200C (psi) |
At 260C (psi) |
At 315C (psi) |
|---|---|---|---|---|---|
|
3000# A105 (CS) |
7500 |
7200 |
6900 |
6700 |
6400 |
|
6000# A105 (CS) |
15000 |
14400 |
13800 |
13400 |
12800 |
|
3000# A182 F316L (SS) |
7500 |
6900 |
6400 |
6100 |
5800 |
|
6000# A182 F316L (SS) |
15000 |
13800 |
12800 |
12200 |
11600 |
Available Grades and Materials of Forged Socket Weld Elbow
Stainless Steel Forged Socket Weld Elbow
ASTM A182 F304, F304L, F316, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Carbon Steel Forged Socket Weld Elbow
ASTM / ASME A 234 WPB, WPC | ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 and WPHY 70
Alloy Steel Forged Socket Weld Elbow
ASTM / ASME A 182, ASTM / ASME A 335 GR P1, P5, P9, P11, P12, P22, P23, P91 | ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Nickel Alloy Forged Socket Weld Elbow
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472 | UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (Alloy 20 / 20 CB3), UNS 8825 (Inconel 825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C276)
Duplex and Super Duplex Forged Socket Weld Elbow
ASTM A 182 F51, F53, F55 | S 31803, S 32205, S 32550, S 32750, S 32760, S 32950
Copper Alloy Forged Socket Weld Elbow
ASTM / ASME SB 111 UNS C10100, C10200, C10300, C10800, C12000, C12200, C70600, C71500 | ASTM / ASME SB 466 UNS C70600 (CU NI 90/10), C71500 (CU NI 70/30)
Industries and Applications of ASME B16.11 Forged Elbow
Amardeep Steel Forged Socket Weld Pipe Fittings are used across a wide range of demanding industries including petrochemical processing, oil and gas exploration, power generation, shipbuilding, dairy and breweries, pharmaceutical manufacturing, waste water treatment plants, and chemical processing plants. The ASME B16.11 standard ensures these fittings meet the pressure and temperature requirements of critical service applications.
Why Choose Amardeep Steel for Forged Socket Weld Fittings?
Amardeep Steel is an ISO certified manufacturer and exporter of forged socket weld pipe fittings based in Mumbai, India, with over three decades of manufacturing experience. Our production facility operates under stringent quality protocols including 100% hydrostatic pressure testing and full dimensional inspection before dispatch.
All Amardeep Steel forged fittings are supplied with full Material Test Reports (EN 10204 3.1 or 3.2) confirming chemical composition and mechanical properties. Third Party Inspection (TPI) by BVIS, IBR, BARC, and DNV approved inspectors is available on request.
Export and Packaging
We export ASME B16.11 Forged Socket Weld Pipe Fittings to over 80 countries including the UAE, Saudi Arabia, USA, UK, Germany, Singapore, Australia, and South Africa. All export orders are packed in wooden cases with full MTR documentation. Domestic orders are shipped in polybag and carton packaging. Standard orders dispatch within 3 to 5 business days.
Frequently Asked Questions - Forged Socket Weld Pipe Fittings
What is the pressure rating of ASME B16.11 Forged Socket Weld Elbows?
These elbows are available in Class 2000, 3000, 6000, and 9000 LBS pressure ratings to suit low, medium, and high pressure piping systems.
What is the difference between a 45 degree and 90 degree socket weld elbow?
A 45 degree elbow changes pipe direction by 45 degrees for gradual directional changes. A 90 degree elbow makes a sharp right angle turn. Both configurations are available from Amardeep Steel.
Which industries use Forged Socket Weld Elbows?
Petrochemical, power generation, oil and gas, pharmaceutical, food and beverage, shipbuilding, and waste water treatment industries commonly use these fittings.
What standards govern ASME B16.11 Forged Fittings?
ASME B16.11 governs dimensions and pressure ratings. Material standards include ASTM A182 for alloy and stainless steel, A105 for carbon steel, and ASME SA182 under the pressure vessel code. Additional applicable standards include BS 3799, DIN 2999, and IS standards.
Do you supply Mill Test Reports (MTR) with forged socket weld elbows?
Yes. All Amardeep Steel forged fittings are supplied with full Material Test Reports (EN 10204 3.1 or 3.2) confirming chemical composition and mechanical properties.
Request a Quote for Forged Socket Weld Elbows
Need a specific size, grade, or custom configuration? Contact Amardeep Steel for a fast quote and mill test report. We supply to 80 plus countries with short lead times.
