What Are ASME B16.5 Tongue & Groove Flanges?
ASME B16.5 Tongue & Groove Flanges are a type of pipe flange face configuration governed by the ASME/ANSI B16.5 standard. The standard specifies pressure-temperature ratings, materials, tolerances, marking, and testing for pipe flanges. Unlike raised-face or flat-face flanges, the tongue and groove flange design confines the gasket entirely within the groove, preventing blowout and minimising gasket contact with the process fluid. This makes them especially effective in high-pressure and high-temperature applications such as oil & gas, chemical processing, and power generation.
Both Large Tongue & Groove and Small Tongue & Groove variants are produced in accordance with ASME B16.5 and B16.47 Series A & B. Our tongue and groove flanges are self-aligning and prevent direct contact of the gasket with the inner fluid, offering outstanding corrosion resistance across all grades.
ASME B16.5 Tongue & Groove Flanges Specifications
| Parameter | Details |
|---|---|
| Size Range | 1/2" (15 NB) to 60" (1500 NB) |
| Pressure Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS; DIN ND-6, 10, 16, 25, 40 |
| Standards | ANSI B16.5, ANSI B16.47 (Series A & B), MSS SP44, ANSI B16.36, ANSI B16.48, API-605, AWWA |
| DIN Standards | DIN2527, DIN2566, DIN2573, DIN2576, DIN2627-2638, DIN2641, DIN2642, DIN2655, DIN2656, DIN2673 |
| BS Standards | BS4504, BS1560, BS10 |
| Face Types | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Tongue & Groove, Small Tongue & Groove |
| Coating / Surface Treatment | Anti-rust Paint, Oil Black Paint, Zinc Plated, Yellow Transparent, Cold & Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B, Raw Material Certificate, 100% Radiography, Third-Party Inspection, NACE MR0103, NACE MR0175 |
| Production Technique | Forged, Heat Treated, and Machined |

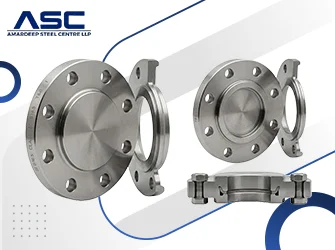

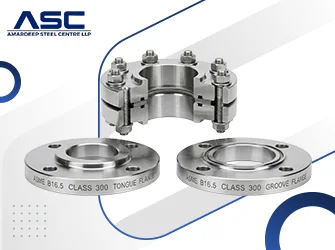

Types of Tongue & Groove Flanges
Amardeep Steel manufactures the following types of Tongue & Groove Flanges:
Material Grades of Tongue & Groove Flanges
Stainless Steel Tongue & Groove Flanges
Available at Amardeep Steel in grades: ASTM A182 F304/304L, F310, F316/316L, F316Ti, F321/H, F347/H, F410, F440, 904L. Explore our full range of Stainless Steel Flanges.
Carbon Steel Tongue & Groove Flanges
Grades: ASTM A105, ASTM A350 LF2/LF3, ASTM A694 F52/F60/F65/F70, A516 Gr.70, A36. View our Carbon Steel Flanges range.
Alloy Steel Tongue & Groove Flanges
Grades: ASTM A182 / ASME SA182 F1, F5, F9, F11, F12, F22, F91. See Alloy Steel Flanges.
Duplex & Super Duplex Steel Tongue & Groove Flanges
Grades: ASTM / ASME SA182 F44, F45, F51, F53, F55, F60, F61 (S31803, S32205, S32750, S32760). View Duplex Steel Flanges and Super Duplex Stainless Steel Flanges.
Nickel Alloy & Special Grade Tongue & Groove Flanges
Grades include: Nickel 200/201, Monel 400/500, Inconel 600/601/625/800/825, Hastelloy C276/C22, Alloy 20. Explore: Monel Flanges | Inconel Flanges | Hastelloy Flanges | Nickel Alloy Flanges.
Copper Nickel Tongue & Groove Flanges
Grades: UNS C70600 (Cu-Ni 90/10), C71500 (Cu-Ni 70/30), C10100-C12200. View Copper Nickel Flanges.
Titanium & Aluminium Tongue & Groove Flanges
Titanium grades: ASTM B381 Gr.1, Gr.2, Gr.4, Gr.5, Gr.7 | Aluminium: 5052, 6061, 6063, 7075. See Titanium Flanges and Aluminium Flanges.
ASME B16.5 Tongue & Groove Flange Dimensions

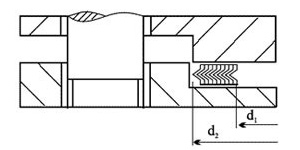

The table below lists standard ASME B16.5 Tongue and Groove Flange dimensions for sizes 1/2" to 24". All dimensions are in inches with millimetres in parentheses.
| DN | d1 | d2 | d3 | d4 | d5 | d6 | d7 | d8 | f1 | f2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 1.38 | 1.44 | 1.38 | 1.44 | 1.00 | 0.94 | 1.81 | 1.75 | 0.25 | 0.19 |
| 3/4" | 1.69 | 1.75 | 1.69 | 1.75 | 1.31 | 1.25 | 2.12 | 2.06 | 0.25 | 0.19 |
| 1" | 2.00 | 2.06 | 1.88 | 1.94 | 1.50 | 1.44 | 2.44 | 2.25 | 0.25 | 0.19 |
| 1-1/4" | 2.50 | 2.56 | 2.25 | 2.31 | 1.88 | 1.81 | 2.94 | 2.62 | 0.25 | 0.19 |
| 1-1/2" | 2.88 | 2.94 | 2.50 | 2.56 | 2.12 | 2.06 | 3.31 | 2.88 | 0.25 | 0.19 |
| 2" | 3.62 | 3.69 | 3.25 | 3.31 | 2.88 | 2.81 | 4.06 | 3.62 | 0.25 | 0.19 |
| 2-1/2" | 4.12 | 4.19 | 3.75 | 3.81 | 3.38 | 3.31 | 4.56 | 4.12 | 0.25 | 0.19 |
| 3" | 5.00 | 5.06 | 4.62 | 4.69 | 4.25 | 4.19 | 5.44 | 5.00 | 0.25 | 0.19 |
| 4" | 6.19 | 6.25 | 5.69 | 5.75 | 5.19 | 5.12 | 6.62 | 6.19 | 0.25 | 0.19 |
| 5" | 7.31 | 7.38 | 6.81 | 6.88 | 6.31 | 6.25 | 7.75 | 7.31 | 0.25 | 0.19 |
| 6" | 8.50 | 8.56 | 8.00 | 8.06 | 7.50 | 7.44 | 8.94 | 8.50 | 0.25 | 0.19 |
| 8" | 10.62 | 10.69 | 10.00 | 10.06 | 9.38 | 9.31 | 11.06 | 10.62 | 0.25 | 0.19 |
| 10" | 12.75 | 12.81 | 12.00 | 12.06 | 11.25 | 11.19 | 13.19 | 12.75 | 0.25 | 0.19 |
| 12" | 15.00 | 15.06 | 14.25 | 14.31 | 13.50 | 13.44 | 15.44 | 15.00 | 0.25 | 0.19 |
| 14" | 16.25 | 16.31 | 15.50 | 15.56 | 14.75 | 14.69 | 16.69 | 16.25 | 0.25 | 0.19 |
| 16" | 18.50 | 18.56 | 17.62 | 17.69 | 16.75 | 16.69 | 18.94 | 18.50 | 0.25 | 0.19 |
| 18" | 21.00 | 21.06 | 20.12 | 20.19 | 19.25 | 19.19 | 21.44 | 21.00 | 0.25 | 0.19 |
| 20" | 23.00 | 23.06 | 22.00 | 22.06 | 21.00 | 20.94 | 23.44 | 23.00 | 0.25 | 0.19 |
| 24" | 27.25 | 27.31 | 26.25 | 26.31 | 25.25 | 25.19 | 27.69 | 27.25 | 0.25 | 0.19 |
* Dimensions in inches. Contact us for complete dimensional data per class/series.
ANSI B16.5 Class 150 Large Tongue & Groove Flanges Dimensions
| NPS (in) | Tongue ID (in) | Tongue OD (in) | Gasket Area (sq.in.) | No. of Bolts | Bolt Size (in) | Bolt Torque (ft.lbs.) | Max Gasket Stress Avail. (psi) | Min Rec'd Torque/Bolt (ft.lbs.) | Max Rec'd Torque/Bolt (ft.lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| 0.5 | 1.00 | 1.38 | 0.71 | 4 | 0.50 | 60 | 42594 | 7 | 14 |
| 1 | 1.50 | 2.00 | 1.37 | 4 | 0.50 | 60 | 22013 | 13 | 27 |
| 2 | 2.88 | 3.62 | 3.78 | 4 | 0.63 | 120 | 12839 | 45 | 93 |
| 4 | 5.19 | 6.19 | 8.93 | 8 | 0.63 | 120 | 10854 | 53 | 120 |
| 6 | 7.50 | 8.50 | 12.56 | 8 | 0.75 | 200 | 11541 | 83 | 200 |
| 8 | 9.38 | 10.62 | 19.47 | 8 | 0.75 | 200 | 7446 | 129 | 200 |
| 12 | 13.50 | 15.00 | 33.56 | 12 | 0.88 | 320 | 8990 | 171 | 320 |
| 16 | 16.75 | 18.50 | 48.42 | 16 | 1.00 | 490 | 10923 | 215 | 490 |
| 24 | 25.25 | 27.25 | 82.43 | 20 | 1.25 | 1000 | 13525 | 355 | 1000 |
ASME B16.5 Groove & Tongue Flanges Price List
| SR NO | QTY | Description | Approx. Price Per Piece (USD $) |
|---|---|---|---|
| 1 | 32 | 2" Class 300 XH RF Tongue & Groove Flange, Carbon Steel A/SA105 | $6.40 |
| 2 | 80 | 2" Class 600 XH RF Tongue & Groove Flange, Carbon Steel A/SA105 | $8.20 |
| 3 | 200 | 4" Class 150 STD RF Tongue & Groove Flange, Carbon Steel A/SA105 | $10.90 |
| 4 | 35 | 4" Class 300 XH RF Tongue & Groove Flange, Carbon Steel A/SA105 | $16.10 |
| 5 | 100 | 4" Class 600 XH RF Tongue & Groove Flange, Carbon Steel A/SA105 | $33.80 |
Please note: The above prices are indicative prices for ANSI / ASME B16.5 Tongue & Groove Flanges in India and may vary based on material grade, size, pressure class, quantity, and market conditions. For the latest Tongue & Groove Flanges price list and an exact quotation, please contact our sales team via email.
Tongue & Groove Flanges Applications & Industries
Tongue & Groove Flanges by Amardeep Steel are used across diverse industries:
- Chemical Industry: Large & Small Tongue & Groove Flanges for corrosive fluid handling.
- Oil & Gas Pipelines: Stainless Steel Tongue & Groove Flanges for high-pressure crude oil & gas lines.
- Power Plants: ANSI B16.5 Tongue & Groove Flanges for steam and condensate systems.
- Plumbing & Water Supply: Large Tongue & Groove Flanges for water distribution systems.
- Food Processing: Stainless Steel Tongue & Groove Flanges for hygienic piping.
- Paper & Pulp Industry: Alloy Steel Tongue & Groove Flanges for pulp digesters and bleach lines.
- Petrochemical & Refinery: Nickel Alloy Tongue & Groove Flanges for acid and solvent service.
- Nuclear & Heavy Industry: Duplex & Super Duplex Tongue & Groove Flanges for ultra-high-pressure duty.
- Structural & Fabrication: Carbon Steel Groove & Tongue Flanges for general fabrication.
- Heating Systems: Copper Nickel Tongue & Groove Flanges for heat exchangers.
