ASME B16.11 Forged Threaded Hex Nipples

ASME B16.11 Threaded Hex Nipple Manufacturers In India, Hex Nipple Price, Hex Nipple Reducer, Stainless Steel Threaded Hex Nipples, Carbon Steel Threaded Hex Nipples.

Hexagon Nipple Suppliers, Reducing Hex Nipple, Screwed Hex Nipple, ASME A815, 403, 234, 860 ASME SB 336, 111, 466 ASME B16.11, MSS SP-79, BS 3799 Forged Threaded Hex Nipples.

ASME B16.11 Forged Threaded Hex Nipples

Amardeep Steel Centre is one of the leading Manufacturers, Supplier and Exporters of High Quality ASME B16.11 Forged Threaded Hex Nipples. Our Threaded Hex Nipples are tested and verified for durability, accuracy and precision. They are used to fit straight end hose or pipe. These Threaded Hex Nipple are available in different grades like Stainless Steel, Duplex & Super Duplex Steel, Nickel Alloy, Copper Alloy, Carbon Steel, Alloy Steel, Hastelloy, Monel, Inconel, Titaniun, Incoloy, Alloy 20, 254 SMO, Mild Steel(MS), Brass. We offer these Reducing Hex Nipple – ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 in all Dimensions and sizes. As a well known Manufacturer & Supplier of Hex Nipple these Threaded Hex Nippple are available in various shapes, size, specification & thickness as per the clients requirments.

Specifications Of Threaded Hex Nipple:

Standards : ASME A182, ASME B16.9, ASME B16.11, MSS SP-43, MSS SP-95, BS3799
Dimension : ANSI B16.11
Size : 1/8"NB TO 4"NB IN
Class : 2000LBS, 3000LBS, 6000LBS
Type : Threaded - SCREWED (SCRD) – NPT, BSP, BSPT
Range : Pipe Nipple, Hex Nipple, Swage Nipple, Barrel Nipple

Materials And Grades Of ASME B16.11 Threaded Hex Nipple:

Stainless Steel Threaded Hex Nipples :

ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H

Carbon Steel Threaded Hex Nipples :

ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70

Alloy Steel Threaded Hex Nipples :

ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91

Nickel Alloy Threaded Hex Nipples :

ASTM / ASME SB 564 / 160 / 472 / 336 UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201 ), UNS 10276 (HASTELLOY C 276)

Monel Threaded Hex Nipple

UNS N04400 (MONEL 400 ), UNS N05500 (MONEL K500 )

Inconel Threaded Hex Nipples :

UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625

Duplex & Super Duplex Steel Threaded Hex Nipples :

ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Copper Alloy Steel Threaded Hex Nipples :

ASTM / ASME SB 111 UNS NO.C 10100, C 10200, C 10300, C 10800, C 12000, C 12200, C 70600, C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

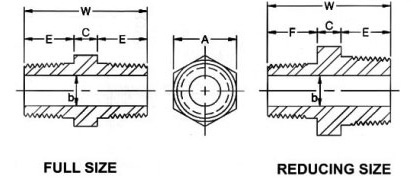

ASME B16.11 Forged Threaded Hex Nipples Dimensions :
