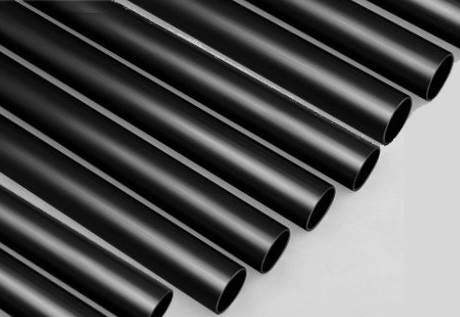

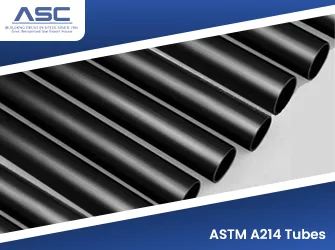

ASTM A214 Tubes Manufacturer, Supplier & Exporter
We are Manufacturers, Suppliers & Exporters of high quality ASTM A214 / ASME SA214 Carbon Steel Tubes in India. Our ASTM A214/ ASME SA214 ERW Carbon Steel Tubes and Pipes undergoes hardness test, flattening test, flaring test, flange test, and hydrostatic test Before They Are Stocked & Supplied To Our Clients. ASTM A214 Boiler Tubes Are Thermal Resistant & Corrosion Resistant In Nature Making Theme Resistant To Tough Weather Conditions. They Are Also Medium – Carbon Seamless Tubes which are used in boiler tube & boiler flue Tubes, they have minimum wall thickness.
These ASTM A214 ERW Tubes / ASME SA214 ERW Carbon Steel Tubes/Pipes are used in Fabrication Industry, Power Plants, Chemical Industry, Oil & Gas Industry & Marine Industries, Superheater, Reheaters, Economisers, Heat Exchangers, Condensers, Heat Transfer Equipment, Similar Pipes And For High-Pressure Settings, Etc. These are available in different size, specification & thickness as per the clients requirements. We Supply ASME SA214 Grade A, Grade C & Grade D Tubes. These Carbon Steel SA214 Boiler Tubes are available in different size, specification & thickness as per the clients requirements. We Supply & Export ASME SA214 Grade A, Grade C & Grade D Tubes all over the globe at reasonable market prices.
ASME SA 214 Tube Specifications
| ASTM A214 Seamless Pipe Standard | Straight lengths up to 27.00 Meters with Diameter Outside ranging from 6.00mm to 8O.00mm and thickness ranging from 0.85mm to 6mm |
| Tubo Astm A214 Type | Welded SA214 & A214 Tubes, ERW SA214 & A214 Tube |
| ASTM A214 Carbon Steel Tube Length | Double Random & Required Length, Single Random, & Available Custom Size |
| Sa 214 Carbon Steel Tubes Shape/Form | Round Tubes, Square Tube, Coiled Tubes, “U” Shape Tubes, Rectangular Tube |
| Tubes End | Beveled End, Plain End, Treaded Protected With Plastic Caps |
| ASTM A214 material Application | Galvanised Finish, Black Painting, Anti-Corrosion Oil, Finish as per Customer Requirements |
ASME SA214 Boiler Tubing Chemical Composition
| Element | C | Mn | P | S |
| SA214 | 0.18 max. | 0.27 - 0.63 | 0.035 max | 0.035 max |
ASME SA214 Carbon Steel Tube Mechanical Properties
| Element | Tensile Strength KSI (MPa) | Yield Strength KSI (MPa) | Elongation min. % | Hardness |
| SA214 | 47[325] | 26[180] | ≥35% | ≤72 HRB |
Material Comparison Tables
| ASTM | UNS NO. | KOREA/JAPANES | GERMAN | BRITISH | BELGIAN | FRENCH | |||||||
| KS/JIS Symbol | KS/JIS Numbe | DIN Type | DIN | Materiral | Re | B.S | B.S Grade | NBN Type | NBN Grade | AFNOR Type | NF | ||
| A 214 Electric Resistance Welded Heat Exchange and Condedser Tubes | K01807 | STBH 340 / STB 35 | D3563 / G3461 | St 37-2 | 1626 | 1.0036 | ERW Only | 3606 | ERW30 | D37-1 | 629 | TS34e | A49-245 |
| STBH 410 / STB 42 | D3563 / G3461 | ||||||||||||
| STBH 510 / STB 52 | D3563 / G3461 | ||||||||||||
ASTM A214 Tubing Schedule Chart
| Designation of Diameter | O/D | Nominal Wall Thickness | ||||||||||||||||
| DIA | SCH.5S | SCH.5 | SCH 10S | SCH.10 | SCH.20S | SCH.30 | SCH.40S | SCH.40 | ||||||||||
| (A) | (B) | Meter MM |
Wall Thk |
Weight Kg/Mtr | Wall Thk |
Weight Kg/Mtr | Wall Thk |
Weight Kg/Mtr | Wall Thk |
Weight Kg/Mtr | Wall Thk |
Weight Kg/Mtr | Wall Thk |
Weight Kg/Mtr | Wall Thk |
Weight Kg/Mtr | Wall Thk |
Weight Kg/Mtr |
| 6 | 1/8 | 10.3 | 1 | 0.23 | 1.2 | 0.27 | 1.5 | 0.33 | 1.73 | 0.37 | ||||||||
| 8 | 1/4 | 13.7 | 1.2 | 0.37 | 1.65 | 0.49 | 2 | 0.58 | 2.24 | 0.64 | ||||||||
| 10 | 3/8 | 17.2 | 1.2 | 0.47 | 1.65 | 0.63 | 2 | 0.74 | 2.31 | 0.87 | ||||||||
| 15 | 1/2 | 21.3 | 1.65 | 0.01 | 1.65 | 0.81 | 2.11 | 1.02 | 2.11 | 1.02 | 2.5 | 1.15 | 2.77 | 1.29 | ||||
| 20 | 3/4 | 26.7 | 1.65 | 1.03 | 1.65 | 1.03 | 2.11 | 1.3 | 2.11 | 1.3 | 2.5 | 1.49 | 2.87 | 1.71 | ||||
| 25 | 1 | 33.4 | 1.65 | 1.31 | 1.65 | 1.31 | 2.77 | 2.13 | 2.77 | 2.13 | 3 | 2.24 | 3.38 | 2.54 | ||||
| 32 | 11/4 | 24.2 | 1.65 | 1.67 | 1.65 | 1.67 | 2.77 | 2.73 | 2.77 | 2.73 | 3 | 2.9 | 3.56 | 3.44 | ||||
| 40 | 11/2 | 48.3 | 1.65 | 1.93 | 1.65 | 1.93 | 2.77 | 3.16 | 2.77 | 3.16 | 3 | 3.35 | 3.68 | 4.11 | ||||
| 50 | 2 | 60.3 | 1.65 | 1.93 | 1.65 | 2.42 | 2.77 | 3.99 | 2.77 | 3.99 | 3.5 | 4.9 | 3.91 | 5.52 | ||||
| 65 | 21/2 | 73 | 2.11 | 3.75 | 2.11 | 3.75 | 3.05 | 5.34 | 3.05 | 5.34 | 3.5 | 6 | 5.16 | 8.77 | ||||
| 80 | 3 | 88.9 | 2.11 | 4.59 | 2.11 | 4.59 | 3.05 | 6.56 | 3.05 | 6.56 | 4 | 8.37 | 5.49 | 11.47 | ||||
| 90 | 31/2 | 101.6 | 2.11 | 5.25 | 2.11 | 5.25 | 3.05 | 7.53 | 3.05 | 7.53 | 4 | 9.62 | 5.74 | 13.78 | ||||
| 100 | 4 | 114.3 | 2.11 | 5.93 | 2.11 | 5.93 | 3.05 | 8.5 | 3.05 | 8.5 | 4.5 | 12.18 | 6.02 | 6.32 | ||||
| 125 | 5 | 141.3 | 2.77 | 9.61 | 2.77 | 9.61 | 3.4 | 11.74 | 3.43 | 11.74 | 5 | 16.8 | 6.55 | 2210 | ||||
| 150 | 6 | 168.3 | 2.77 | 11.47 | 2.77 | 11.47 | 3.4 | 14.04 | 3.43 | 14.04 | 5.5 | 22.08 | 7.11 | 28.69 | ||||
| 200 | 8 | 219.1 | 2.77 | 15 | 2.77 | 15 | 3.76 | 20.77 | 3.76 | 20.27 | 6.35 | 33.82 | 7.04 | 37.38 | 8.18 | 43.2 | ||
| 250 | 10 | 273.1 | 3.4 | 22.95 | 3.4 | 22.95 | 4.19 | 28.2 | 4.19 | 28.2 | 6.35 | 42.41 | 7.8 | 51.81 | 9.27 | 61.22 | ||
| 300 | 12 | 323.9 | 3.96 | 31.72 | 4.19 | 33.6 | 4.57 | 36.54 | 4.57 | 36.54 | 6.35 | 50.48 | 8.38 | 66.2 | 9.53 | 75.01 | 10.31 | 80.94 |
| 350 | 14 | 355.6 | 3.96 | 34.86 | 4.78 | 41.99 | 6.35 | 55.53 | 7.92 | 68.95 | 9.53 | 82.58 | 9.53 | 82.58 | 11.13 | 96 | ||
| 400 | 16 | 406.4 | 4.19 | 42.2 | 4.78 | 48.07 | 6.35 | 63.61 | 7.92 | 79.03 | 9.53 | 94.7 | 9.53 | 94.7 | 12.7 | 125.2 | ||
| 450 | 18 | 457.2 | 4.19 | 47.46 | 4.78 | 54.15 | 6.35 | 71.69 | 7.92 | 89.1 | 11.13 | 124.32 | 9.53 | 106.83 | 14.27 | 158.27 | ||
| 500 | 2C | 508 | 4.78 | 60.23 | 5.54 | 69.7 | 6.35 | 79.76 | 9.53 | 118.93 | 12.7 | 157.51 | 9.53 | 118.9 | 15.06 | 185.89 | ||
| 550 | 22 | 558.8 | 4.78 | 65.95 | 5.54 | 76.75 | 6.35 | 87.84 | 9.53 | 131.07 | 12.7 | 173.66 | 9.53 | 131.07 | 15.88 | 216.04 | ||
| 600 | 24 | 609.6 | 5.54 | 83.8 | 6.35 | 95.92 | 6.35 | 95.92 | 9.53 | 143.2 | 14.27 | 212.72 | 9.53 | 143.2 | 17.45 | 258.74 | ||
| 650 | 26 | 660.4 | 7.92 | 129.4 | 12.7 | 205.97 | 9.53 | 155.32 | ||||||||||
| 700 | 28 | 711.2 | 7.92 | 139.47 | 12.7 | 222.13 | 15.88 | 276.48 | 9.53 | 167.44 | ||||||||
| 750 | 3C | 762 | 6.35 | 120.15 | 7.92 | 149.55 | 7.92 | 149.55 | 12.7 | 238.28 | 15.88 | 296.68 | 9.53 | 179.56 | ||||
| 800 | 32 | 812.8 | 7.92 | 159.62 | 12.7 | 254.44 | 15.88 | 316.88 | 9.53 | 191.69 | 17.48 | 348.11 | ||||||
| 850 | 34 | 863.6 | 7.92 | 169.64 | 12.7 | 270.5 | 15.88 | 336.96 | 9.53 | 203.74 | 17.48 | 370.22 | ||||||
| 900 | 36 | 914.4 | 7.92 | 179.77 | 12.7 | 286.75 | 15.88 | 357.28 | 9.53 | 215.93 | 19.05 | 427.09 | ||||||
ASME SA214 Carbon Steel Tubes Pressure Rating
| Pressure Rating (psig) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe Size (inches) |
Pipe Schedule | Outside Diameter (in) |
Wall Thickness (in) |
Temperature (oF) | ||||||||
| 100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||||
| Allowable Stress (psi) | ||||||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | 13500 | 13200 | 12900 | 12600 | ||||
| 1" | 40 | 1.315 | 0.133 | 2205 | 2205 | 2205 | 2047 | 1902 | 1783 | 1743 | 1703 | 1664 |
| 80 | 1.315 | 0.179 | 3061 | 3061 | 3061 | 2841 | 2640 | 2475 | 2420 | 2365 | 2310 | |
| 160 | 1.315 | 0.250 | 4493 | 4493 | 4493 | 4170 | 3874 | 3632 | 3552 | 3471 | 3390 | |
| 1 1/2" | 40 | 1.900 | 0.145 | 1629 | 1629 | 1629 | 1512 | 1404 | 1317 | 1287 | 1258 | 1229 |
| 80 | 1.900 | 0.200 | 2303 | 2303 | 2303 | 2138 | 1986 | 1862 | 1821 | 1779 | 1738 | |
| 160 | 1.900 | 0.281 | 3362 | 3362 | 3362 | 3120 | 2899 | 2717 | 2657 | 2597 | 2536 | |
| 2" | 40 | 2.375 | 0.154 | 1371 | 1371 | 1371 | 1272 | 1182 | 1108 | 1083 | 1059 | 1034 |
| 80 | 2.375 | 0.218 | 1985 | 1985 | 1985 | 1843 | 1712 | 1605 | 1569 | 1534 | 1498 | |
| 160 | 2.375 | 0.344 | 3283 | 3283 | 3283 | 3047 | 2831 | 2654 | 2595 | 2536 | 2477 | |
| 3" | 40 | 3.500 | 0.216 | 1301 | 1301 | 1301 | 1208 | 1122 | 1052 | 1028 | 1005 | 982 |
| 80 | 3.500 | 0.300 | 1844 | 1844 | 1844 | 1712 | 1590 | 1491 | 1458 | 1425 | 1391 | |
| 160 | 3.500 | 0.438 | 2787 | 2787 | 2787 | 2587 | 2403 | 2253 | 2203 | 2153 | 2103 | |
| 4" | 40 | 4.500 | 0.237 | 1102 | 1102 | 1102 | 1023 | 950 | 891 | 871 | 851 | 831 |
| 80 | 4.500 | 0.337 | 1596 | 1596 | 1596 | 1482 | 1377 | 1291 | 1262 | 1233 | 1204 | |
| 160 | 4.500 | 0.531 | 2611 | 2611 | 2611 | 2424 | 2552 | 2111 | 2064 | 2017 | 1970 | |
| 5" | 40 | 5.563 | 0.258 | 965 | 965 | 965 | 896 | 832 | 780 | 763 | 746 | 728 |
| 80 | 5.563 | 0.375 | 1428 | 1428 | 1428 | 1325 | 1231 | 1154 | 1129 | 1103 | 1077 | |
| 160 | 5.563 | 0.625 | 2474 | 2474 | 2474 | 2296 | 2133 | 2000 | 1955 | 1911 | 1866 | |
| 6" | 40 | 6.625 | 0.280 | 877 | 877 | 877 | 814 | 756 | 709 | 693 | 677 | 661 |
| 80 | 6.625 | 0.432 | 1379 | 1379 | 1379 | 1280 | 1189 | 1115 | 1090 | 1065 | 1040 | |
| 160 | 6.625 | 0.719 | 2382 | 2382 | 2382 | 2211 | 2054 | 1925 | 1883 | 1840 | 1797 | |
| 8" | 40 | 8.625 | 0.322 | 771 | 771 | 771 | 716 | 665 | 623 | 610 | 596 | 582 |
| 80 | 8.625 | 0.500 | 1218 | 1218 | 1218 | 1131 | 1050 | 985 | 963 | 941 | 919 | |
| 160 | 8.625 | 0.906 | 2298 | 2298 | 2298 | 2133 | 1982 | 1858 | 1817 | 1775 | 1734 | |
| 10" | 40 | 10.750 | 0.365 | 699 | 699 | 699 | 649 | 603 | 565 | 553 | 540 | 528 |
| 80 | 10.750 | 0.594 | 1159 | 1159 | 1159 | 1075 | 999 | 937 | 916 | 895 | 874 | |
| 160 | 10.750 | 1.125 | 2289 | 2289 | 2289 | 2124 | 1974 | 1850 | 1809 | 1768 | 1727 | |
ASTM A214 ERW Boiler Tube Dimensions
| Designation of Diameter | O/D | Nominal Wall Thickness | ||||||||||||||
| DIA | SCH 80 S | SCH 80 | SCH 100 | SCH 120 | SCH. 140 | SCH.160 | SCH.XXS | |||||||||
| (A) | (B) | Meter MM |
Wall Thk |
Weight Kg/Mtr | Wall Thk |
Weight Kg/Mtr | Wall Thk |
Weight Kg/Mtr | Wall Thk |
Weight Kg/Mtr | Wall Thk |
Weight Kg/Mtr | Wall Thk |
Weight Kg/Mtr | Wall Thk |
Weight Kg/Mtr |
| 6 | 1/8 | 10.3 | 2.41 | 0.47 | ||||||||||||
| 8 | 1/4 | 13.7 | 3.02 | 0.82 | ||||||||||||
| 10 | 3/8 | 17.2 | 3.2 | 1.12 | ||||||||||||
| 15 | 1/2 | 21.3 | 3.73 | 1.64 | 4.75 | 1.97 | 7.47 | 2.59 | ||||||||
| 20 | 3/4 | 26.7 | 3.91 | 2.93 | 5.54 | 2.93 | 7.82 | 3.69 | ||||||||
| 25 | 1 | 33.4 | 4.55 | 3.29 | 6.35 | 4.3 | 9.09 | 5.53 | ||||||||
| 32 | 11/4 | 24.2 | 4.85 | 4.53 | 6.35 | 5.69 | 9.7 | 7.88 | ||||||||
| 40 | 11/2 | 48.3 | 5.08 | 5.49 | 7.14 | 7.35 | 10.16 | 9.69 | ||||||||
| 50 | 2 | 60.3 | 5.54 | 7.6 | 8.71 | 11.26 | 11.07 | 13.65 | ||||||||
| 65 | 21/2 | 73 | 7.01 | 11.59 | 9.53 | 15.15 | 14.02 | 20.72 | ||||||||
| 80 | 3 | 88.9 | 7.62 | 15.51 | 11.13 | 21.67 | 15.24 | 28.11 | ||||||||
| 90 | 31/2 | 101.6 | 8.08 | 18.92 | 16.15 | 34.56 | ||||||||||
| 100 | 4 | 114.3 | 8.56 | 22.66 | 11.13 | 28.75 | 13.49 | 34.05 | 17.12 | 41.66 | ||||||
| 125 | 5 | 141.3 | 9.53 | 31.44 | 12.7 | 40.9 | 15.88 | 49.87 | 19.05 | 58.31 | ||||||
| 150 | 6 | 168.3 | 10.97 | 43.21 | 14.27 | 55.03 | 18.24 | 68.53 | 21.95 | 79.1 | ||||||
| 200 | 8 | 219.1 | 12.7 | 65.63 | 15.06 | 76.93 | 18.24 | 91.73 | 20.62 | 102.47 | 23.01 | 112.97 | 22.23 | 108 | ||
| 250 | 10 | 273.1 | 12.7 | 82.8 | 15.06 | 97.27 | 18.24 | 116.38 | 21.41 | 134.9 | 25.4 | 157.51 | 28.58 | 174.95 | 25.4 | 155.5 |
| 300 | 12 | 323.9 | 12.7 | 98.95 | 17.45 | 133.88 | 21.41 | 162.14 | 25.4 | 189.82 | 28.58 | 211.31 | 33.32 | 242.4 | 25.4 | 189.82 |
| 350 | 14 | 355.6 | 12.7 | 109.04 | 19.05 | 160.54 | 23.8 | 197.74 | 27.76 | 227.88 | 31.75 | 257.47 | 35.71 | 286.04 | ||
| 400 | 16 | 406.4 | 12.7 | 125.2 | 21.41 | 206.4 | 26.19 | 249.34 | 30.94 | 290.88 | 36.53 | 338.32 | 40.46 | 370.74 | ||
| 450 | 18 | 457.2 | 12.7 | 141.35 | 23.8 | 258.29 | 29.36 | 314.54 | 34.93 | 369.34 | 39.67 | 414.74 | 45.24 | 466.67 | ||
| 500 | 2C | 508 | 12.7 | 157.51 | 26.19 | 315.97 | 32.54 | 387.41 | 38.1 | 448.3 | 44.45 | 515.94 | 49.99 | 573.31 | ||
| 550 | 22 | 558.8 | 12.7 | 173.66 | 28.57 | 379.7 | 34.92 | 457.83 | 41.27 | 535.17 | 47.62 | 609.3 | 53.97 | 682.57 | ||
| 600 | 24 | 609.6 | 12.7 | 189.82 | 30.94 | 448.3 | 38.89 | 555.76 | 46.02 | 649.44 | 52.37 | 730.72 | 59.51 | 819.7 | ||
| 650 | 26 | 660.4 | 12.7 | 205.97 | (24.66D-t) t 1000 Wt/pam + formula Weight Stainless Steel Pipe OD (mm) - W.T. (mm) XW.T. (mm) X 0.02466 = Kg. per mtr. |
|||||||||||
| 700 | 28 | 711.2 | 12.7 | 222.13 | ||||||||||||
| 750 | 3C | 762 | 1270 | 238.28 | ||||||||||||
| 800 | 32 | 812.8 | 12.7 | 254.44 | ||||||||||||
| 850 | 34 | 863.6 | 12.7 | 270.5 | ||||||||||||
| 900 | 36 | 914.4 | 12.7 | 286.75 | ||||||||||||
ASTM A214 Welded Boiler Tubes Applications
ASTM A214 Welded Boiler Tubes are widely used in various industries for high-pressure applications. Some of the common applications of these tubes include:
- Boilers: ASTM A214 tubes are used in boilers for generating high-pressure steam for power generation and other industrial processes.
- Heat Exchangers: These tubes are used in heat exchangers for transferring heat between two fluids or gases.
- Condensers: ASTM A214 tubes are used in condensers for converting steam back into water after it has been used in a heat exchanger.
- Refineries: These tubes are used in refineries for processing crude oil into various petroleum products.
- Petrochemicals: ASTM A214 tubes are used in the petrochemical industry for various processes such as cracking, distillation, and fractionation.
- Power Plants: These tubes are used in power plants for various applications such as boiler tubes, superheater tubes, and reheater tubes.
- Chemical Plants: ASTM A214 tubes are used in chemical plants for various processes such as chemical reactions, distillation, and evaporation
Overall, ASTM A214 Welded Boiler Tubes are essential components in various industries that require high-pressure and high-temperature applications.
Why Choose Amardeep Steel for Your ASTM A214 Tubes?
Amardeep Steel is your trusted Manufacturer, Supplier, and Exporter of ASTM A214 Tubes in India and for the global market:
- Specialization in Heat Exchanger Tubes: We understand the critical requirements for A214 Heat Exchanger Tubes and ensure our products meet these demands.
- Quality ERW Manufacturing: Our ASTM A214 Electric Resistance Welded Tubes are produced with advanced technology and precise post-weld heat treatment for optimal performance.
- Stringent Quality Control: Adherence to ISO 9001 and comprehensive testing to ASTM A214 ensures every ASME SA 214 Tube meets or exceeds specifications.
- Competitive Pricing: We offer an excellent Price for high-quality Carbon Steel A214 Tubing, providing great value for your heat transfer projects.
- Global Export Capabilities: Efficient logistics and experience in exporting A214 ERW Tubes worldwide.
- Customization & Technical Support: We provide cut-to-length services and expert technical assistance.
