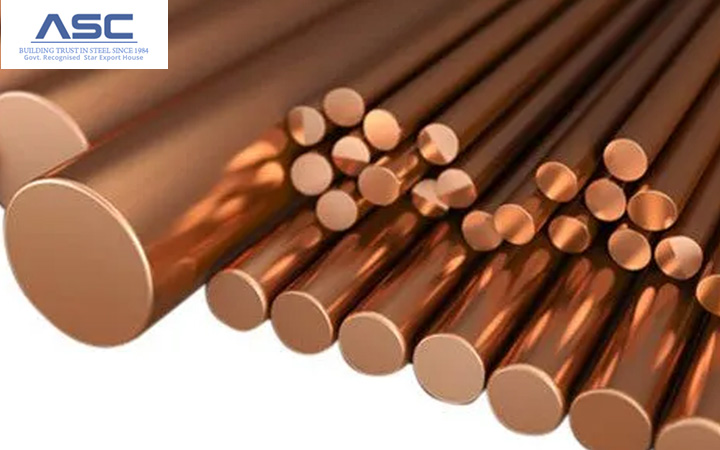

ETP, or electronic tough pitch copper, is a common and popular copper alloy used in electrical applications and equipment. It is frequently utilised due to its strength, high electrical conductivity, and range of production processes. These are high-quality bars made with high-quality raw materials and cutting-edge machinery. Every material utilised in the production of these round bars has been thoroughly tested and inspected in accordance with international quality standards. Customers can order these round bars in a variety of forms and sizes based on their needs. The diameter of these bars ranges from 6mm to 250mm, and the only shape offered is round. Furthermore, the thickness of these bars ranges from 0.3mm to 200mm and beyond. These round bars are well-known for their excellent electrical conductivity and toughness.
Electrical wires, terminals, nails, rivets, switches, and radiators all require ETP copper round bars. At the
time of manufacture, modern machines and advanced technologies are used, resulting in bars of precise size and
length. Furthermore, raw material testing, third-party inspection, and other tests are performed to ensure the
quality and durability of round bars. All of these tests are carried out under the guidance and supervision of
quality specialists, who provide test certificates certifying the product's quality and durability.
Aside from brightening the structure's appearance, CDA 110 ETP Copper is prized for its ductility. This implies
that the metal can be shaped into complex shapes such as Hex and round bars. The use of a Copper Round Rod in
the construction industry allows workers to build plumbing or roofing systems. Although the hue of the Copper
Round Bar also serves as a resourceful outlook, it serves a dual purpose. A C110 Copper Bar is often used as a
heat exchanger component in industrial applications.
Finally, when these ETP copper round bars are finished, they are packed in high-quality hardwood cases, crates,
or pallets to prevent rusting or damage during shipping.
| Dimension Details | A4 mm to 70 mm in diameter, lengths up to 6 m |
| Specifications (ETP) | ASTM B133, ASTM B124, ASTM B187, IS: 191, 613 & 1897 |
| Round Bar Size | 0.3125" ~ 3.000" |
| Conductivity | Above 97% IACS min in Half Hard,Above 99.95% in annealed |
| Purity | Copper - 99.9% |
| Specifications (OFC) | Copper: 99.99%, O 2: < 10 ppm Copper: 99.90%, O 2: < 100 ppm |
| Type | Round Bar, Round Rod |
| Nation | China | USA | U.K | Germany | Japan | |||||
| Standard No. | GB | ASTM B170 | BS 6017 | DIN 1787 | JIS H2123 | |||||
| Classification | TU0 | TU1 | Grade1 C10100 | Grade 2 C10200 | Cu-OFE C103 | Cu-OF C110 | OF-Cu 2.0040 | Grade1 C1011 | Grade2 C1020 | |
| Chemical Composition | Cu+Ag (%Min) | 99.99 | 99.9 | 99.99 | 99.95 | 99.99 | 99.95 | 99.95 | 99.99 | 99.98 |
| O2 P (PPM) | 10Max 3max | 10max N/A | 5Max 3Max | 10Max N/A | 10Max 3Max | NA NA | NA NA | 10Max 3max | 10max N/A | |
| Temper | Tensile Strength Mpa | Elongation % | Average grain size (mm) |
| >60 | >205 | >40 | >0.040 |
| >50 | >245 |
| H&T | Hardened and tempered. |
| ANN | Annealed |
| PH | Precipitation hardened. |
| CD | Cold drawn | P | Polished |
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
| Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
| 7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
| 8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
| 9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
| 10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
| 11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
| 12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
| 13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
| 14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
| 15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
| 16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
| 17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
| 18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
| Cold Drawn and Polish | 3.00 - 75.00 | 1/8 - 3.00 | h8-h9-h10-h11 |
| Cold Drawn and Ground | 10.00 - 75.00 | 5/6 - 2.50 | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 - 150.00 | 1.50 - 6.00 | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 - 50.00 | 3/4 - 2.00 | h9-h10-h11 |
| sizes in mm | Size (inch) | Thickness (mm) | Thickness (in Inches) |
| 22 | 7/8 | 17 & 18 | 2/3 - 5/7 |
| 25 | 1 | 5 to 20 | 3/16 - 4/5 |
| 30 | 1-3/16 | 5 to 20 | 3/16 - 4/5 |
| 32 | 1-1/4 | 6 to 20 | 1/4 - 4/5 |
| 35 | 1-3/8 | 5 to 20 | 3/16 - 3/16 |
| 40 | 1-4/7 | 5 to 25 | 3/16 - 1 |
| 45 | 1-7/9 | 5 to 25 | 3/16 - 1 |
| 47 | 1-6/7 | 17,25 & 32 | 2/3, 1 & 1-1/4 |
| 50 | 2 | 5 to 32 | 3/16 - 1-1/4 |
| 55 | 2-1/16 | 5 to 25 | 3/16 - 1 |
| 57 | 2-1/4 | 32 | 1-1/4 |
| 60 | 2-3/8 | 5 to 35 | 3/16 - 1-3/8 |
| 63 | 2-1/2 | 10 to 30 | 3/8 - 1-3/16 |
| 65 | 2-5/9 | 10 to 30 & 35 | 3/8 - 1-3/16, & 1-3/8 |
| 70 | 2-3/4 | 6 to 25 & 40 | 1/4 - 1, & 1-4/7 |
| 75 | 3 | 8 to 25 | 5/16 - 1 |
| 80 | 3-1/8 | 8 to 20 | 5/16 - 4/5 |
| 90 | 3-1/2 | 8 to 20 | 5/16- 4/5 |
| 100 | 4 | 8, 10, 12 | 5/16, 3/8, 1/2 |
| Size (mm) | Weight per metre (Kg) | Size (mm) | Weight per metre (Kg) |
| 12 x 12 | 1.14 | 30x30 | 7.11 |
| 16 x 16 | 2.02 | 40 x 40 | 12.60 |
| 20 x 20 | 3.16 | 50 x 50 | 19.80 |
| 25 x 25 | 4.94 |
| Size | Chucked true to OD | Chucked true to ID | |||||||
| OD, mm |
ID, mm |
Max. OD, mm |
Min. ID, mm |
Max. OD, in. |
Min. ID, in. |
Max. OD, mm |
Min. ID, mm |
Max. OD, in. |
Min. ID, in. |
| 32 | 20 | 31 | 21.9 | 1.220 | 0.862 | 30 | 21 | 1.185 | 0.827 |
| 32 | 16 | 31 | 18 | 1.220 | 0.709 | 30 | 17 | 1.181 | 0.669 |
| 36 | 25 | 35 | 26.9 | 1.378 | 1.059 | 34.1 | 26 | 1.343 | 1.024 |
| 36 | 20 | 35 | 22 | 1.378 | 0.866 | 34 | 21 | 1.339 | 0.827 |
| 36 | 16 | 35 | 18.1 | 1.378 | 0.713 | 33.9 | 17 | 1.335 | 0.669 |
| 40 | 28 | 39 | 29.9 | 1.535 | 1.177 | 38.1 | 29 | 1.500 | 1.142 |
| 40 | 25 | 39 | 27 | 1.535 | 1.063 | 38 | 26 | 1.496 | 1.024 |
| 40 | 20 | 39 | 22.1 | 1.535 | 0.870 | 37.9 | 21 | 1.492 | 0.827 |
| 45 | 32 | 44 | 33.9 | 1.732 | 1.335 | 43.1 | 33 | 1.697 | 1.299 |
| 45 | 28 | 44 | 30 | 1.732 | 1.181 | 43 | 29 | 1.693 | 1.142 |
| 45 | 20 | 44 | 22.2 | 1.732 | 0.874 | 42.8 | 21 | 1.685 | 0.827 |
| 50 | 36 | 49 | 38 | 1.929 | 1.496 | 48 | 37 | 1.890 | 1.457 |
| 50 | 32 | 49 | 34.1 | 1.929 | 1.343 | 47.9 | 33 | 1.886 | 1.299 |
| 50 | 25 | 49 | 27.2 | 1.929 | 1.071 | 47.8 | 26 | 1.882 | 1.024 |
| 56 | 40 | 55 | 42 | 2.165 | 1.654 | 54 | 41 | 2.126 | 1.614 |
| 56 | 36 | 55 | 38.1 | 2.165 | 1.500 | 53.9 | 37 | 2.122 | 1.457 |
| 56 | 28 | 55 | 30.3 | 2.165 | 1.193 | 53.7 | 29 | 2.114 | 1.142 |
| 63 | 50 | 62 | 51.9 | 2.441 | 2.043 | 61.1 | 51 | 2.406 | 2.008 |
| 63 | 45 | 62 | 47 | 2.441 | 1.850 | 61 | 46 | 2.402 | 1.811 |
| 63 | 40 | 62 | 42.2 | 2.441 | 1.661 | 60.8 | 41 | 2.394 | 1.614 |
| 63 | 36 | 62 | 38.3 | 2.441 | 1.508 | 60.7 | 37 | 2.390 | 1.457 |
| 63 | 32 | 62 | 34.4 | 2.441 | 1.354 | 60.6 | 33 | 2.386 | 1.299 |
| 71 | 56 | 69.9 | 58 | 2.752 | 2.283 | 68.9 | 57 | 2.713 | 2.244 |
| 71 | 45 | 69.9 | 47.3 | 2.752 | 1.862 | 68.6 | 46 | 2.701 | 1.811 |
| 71 | 40 | 69.9 | 42.4 | 2.752 | 1.669 | 68.5 | 41 | 2.697 | 1.614 |
| 71 | 36 | 69.9 | 38.5 | 2.752 | 1.516 | 68.4 | 37 | 2.693 | 1.457 |
| 75 | 60 | 73.8 | 62 | 2.906 | 2.441 | 72.8 | 61 | 2.866 | 2.402 |
| 75 | 50 | 73.8 | 52.2 | 2.906 | 2.055 | 72.6 | 51 | 2.858 | 2.008 |
| 75 | 40 | 73.8 | 42.5 | 2.906 | 1.673 | 72.3 | 41 | 2.846 | 1.614 |
| 80 | 63 | 78.8 | 65 | 3.102 | 2.559 | 77.8 | 64 | 3.063 | 2.520 |
| 80 | 50 | 78.8 | 52.4 | 3.102 | 2.053 | 77.4 | 51 | 3.047 | 2.008 |
| 80 | 45 | 78.8 | 47.5 | 3.102 | 1.870 | 77.3 | 46 | 3.043 | 1.811 |
| 80 | 40 | 78.8 | 42.6 | 3.102 | 1.677 | 77.2 | 41 | 3.039 | 1.614 |
| 85 | 67 | 83.7 | 69.1 | 3.295 | 2.720 | 82.6 | 68 | 3.252 | 2.677 |
| 85 | 55 | 83.7 | 57.4 | 3.295 | 2.260 | 82.3 | 56.0 | 3.240 | 2.205 |
| 85 | 45 | 83.7 | 47.6 | 3.295 | 1.874 | 82.1 | 46.0 | 3.232 | 1.811 |
| 90 | 71 | 88.6 | 73.1 | 3.488 | 2.878 | 87.6 | 72.1 | 3.449 | 2.839 |
| 90 | 63 | 88.6 | 65.3 | 3.488 | 2.571 | 87.3 | 64.0 | 3.437 | 2.520 |
| 90 | 56 | 88.6 | 58.5 | 3.488 | 2.303 | 87.1 | 57.0 | 3.429 | 2.244 |
| 90 | 50 | 88.6 | 52.6 | 3.488 | 2.071 | 87.0 | 51.0 | 3.425 | 2.008 |
| 95 | 75 | 93.5 | 77.3 | 3.681 | 3.041 | 92.4 | 76.2 | 3.641 | 2.997 |
| 95 | 67 | 93.5 | 69.3 | 3.681 | 2.728 | 92.2 | 68.0 | 3.630 | 2.677 |
| 95 | 50 | 93.5 | 52.7 | 3.681 | 2.075 | 91.8 | 51.0 | 3.614 | 2.008 |
| 100 | 80 | 98.5 | 82.3 | 3.878 | 3.240 | 97.4 | 81.2 | 3.835 | 3.197 |
| 100 | 71 | 98.5 | 73.4 | 3.878 | 2.890 | 97.2 | 72.1 | 3.827 | 2.839 |
| 100 | 63 | 98.5 | 65.5 | 3.878 | 2.579 | 97.0 | 64.0 | 3.819 | 2.520 |
| 100 | 56 | 98.5 | 58.7 | 3.878 | 2.311 | 96.8 | 57.0 | 3.811 | 2.244 |
| 106 | 80 | 104.4 | 82.5 | 4.110 | 3.248 | 103.1 | 81.2 | 4.059 | 3.197 |
| 106 | 71 | 104.4 | 73.5 | 4.110 | 2.894 | 103.0 | 72.1 | 4.055 | 2.839 |
| 106 | 63 | 104.4 | 65.7 | 4.110 | 2.587 | 102.7 | 64.0 | 4.043 | 2.520 |
| 106 | 56 | 104.4 | 58.9 | 4.110 | 2.319 | 102.5 | 57.0 | 4.035 | 2.244 |
| 112 | 90 | 110.3 | 92.5 | 4.343 | 3.642 | 109.2 | 91.4 | 4.299 | 3.598 |
| 112 | 80 | 110.3 | 82.6 | 4.343 | 3.252 | 108.9 | 81.2 | 4.287 | 3.197 |
| 112 | 71 | 110.3 | 73.7 | 4.343 | 2.902 | 108.7 | 72.1 | 4.280 | 2.839 |
| 112 | 63 | 110.3 | 65.8 | 4.343 | 2.591 | 108.5 | 64.0 | 4.272 | 2.520 |
| 118 | 90 | 116.2 | 92.7 | 4.575 | 3.650 | 114.9 | 91.4 | 4.524 | 3.598 |
| 118 | 80 | 116.2 | 82.8 | 4.575 | 3.260 | 114.6 | 81.2 | 4.512 | 3.197 |
| 118 | 71 | 116.2 | 73.8 | 4.575 | 2.906 | 114.5 | 72.1 | 4.508 | 2.839 |
| 118 | 63 | 116.2 | 66.0 | 4.575 | 2.598 | 114.2 | 64.0 | 4.496 | 2.520 |
| 125 | 100 | 123.1 | 102.7 | 4.846 | 4.043 | 121.9 | 101.5 | 4.799 | 3.996 |
| 125 | 90 | 123.1 | 92.8 | 4.846 | 3.654 | 121.7 | 91.4 | 4.791 | 3.598 |
| 125 | 80 | 123.1 | 82.9 | 4.846 | 3.264 | 121.4 | 81.2 | 4.780 | 3.197 |
| 125 | 71 | 123.1 | 74.0 | 4.846 | 2.913 | 121.3 | 72.1 | 4.772 | 2.839 |
| 132 | 106 | 130.0 | 108.8 | 5.118 | 4.283 | 128.8 | 107.6 | 5.071 | 4.236 |
| 132 | 90 | 130.0 | 93.0 | 5.118 | 3.661 | 128.4 | 91.4 | 5.055 | 3.598 |
| 132 | 80 | 130.0 | 83.1 | 5.118 | 3.272 | 128.1 | 81.2 | 5.043 | 3.197 |
| 132 | 71 | 130.0 | 74.2 | 5.118 | 2.921 | 121.2 | 72.1 | 5.035 | 2.839 |
| 140 | 112 | 137.9 | 115 | 5.429 | 4.528 | 136.6 | 113.7 | 5.378 | 4.476 |
| 140 | 100 | 137.9 | 103.1 | 5.429 | 4.059 | 136.3 | 101.5 | 5.366 | 3.996 |
| 140 | 90 | 137.9 | 93.2 | 5.429 | 3.669 | 136.1 | 91.4 | 5.358 | 3.598 |
| 140 | 80 | 137.9 | 83.3 | 5.429 | 3.280 | 135.8 | 81.2 | 5.346 | 3.197 |
| 150 | 125 | 147.7 | 128.1 | 5.815 | 5.043 | 146.5 | 126.9 | 5.768 | 4.996 |
| 150 | 106 | 147.7 | 109.3 | 5.815 | 4.303 | 146 | 107.6 | 5.748 | 4.236 |
| 150 | 95 | 147.7 | 98.4 | 5.815 | 3.874 | 145.7 | 96.4 | 5.736 | 3.795 |
| 150 | 80 | 147.7 | 83.6 | 5.815 | 3.291 | 145.3 | 81.2 | 5.720 | 3.197 |
| 160 | 132 | 157.6 | 135.3 | 6.205 | 5.327 | 156.3 | 134 | 6.154 | 5.276 |
| 160 | 122 | 157.6 | 125.4 | 6.205 | 4.937 | 156 | 123.8 | 6.142 | 4.874 |
| BS EN NUMBER | TITLE | NEAREST OLD BS EQUIVALENT |
| Unwrought Products | ||
| 1976 | Cast unwrought copper products | 6017 |
| 1977 | Copper drawing stock (wire rod) | 6926 |
| 1978 | Copper cathods | 6017 |
| 1981 | Master Alloys | - |
| 1982 | Ingots and castings | 1400 |
| Copper Rod / Bar, Wire, Profiles | ||
| 12163 | Rod for general purposes | 2874 |
| 12164 | Rod for free machining purposes | 2874 |
| 12165 | Wrought and unwrought forging stock | 2872 |
| 12167 | Profiles and rectangular bar for general purposes | 2874 |
| 12168 | Hollow rod for free machining purposes | - |
| 13347 | Rod and wire for welding and braze welding | 1453, 1845, 2901 |
| Copper Electrical Purposes | ||
| 13601 | Copper rod, bar and wire general electrical purposes | 1433, 1432, 4109 |
| 13605 | Copper profiles for electrical purposes | - |
| • Condensers | • Specialty Chemicals |
| • Gas Processing | • Pharmaceutical Equipment |
| • Power Generation | • Petrochemicals |
| • Sea Water Equipment | • Off-Shore Oil Drilling Companies |
| • Pharmaceuticals | • Heat Exchangers |
| • Pulp and Paper Industry | • Chemical Equipment |
| Diameter | Length |
| 3.2 MM - 250MM | Up to 6400mm |
| C17510 Cuni2be Copper Beryllium Round Bar | C10200 C11000 Pure Copper Rod Round Flat Brass Copper Bars |
| Copper C1020 Round Rod Bar 2mm 3mm 4mm 16mm | Pure Copper Alloy Round Rod Bar |
| Pure Red Round C12000 Copper Bar / Rod 2mm 3mm 4mm 5mm 6mm 8mm | 10mm 15mm C21000 C22000 C23000 Copper Flat Round Bar |
| Copper Hex Round Bar | 20mm 30mm 160mm Copper Nickel Alloy Round Bar/rod |
| Copper Alloy C11000 Round bar | Electrolytic Tough Pitch Copper round bars |
| CDA 110 Cu-ETP Copper round bar | C11000 ETP Copper round bars supplier |
| CW004A ETP Copper Round bar | ASTM B187 ETP Copper Round bar |
| ASME SB187 ETP Copper Round bar | DIN 2.0060 ETP Copper Round bar |
Saudi Arabia, Costa Rica, Bolivia, Nigeria, India, Gabon, Hungary, Serbia, Ukraine, Finland, Germany, Ecuador, Libya, Singapore, Portugal, Yemen, Japan, Angola, Malaysia, Vietnam, Iran, Jordan, Nigeria, Bhutan, Poland, Oman, United States, Czech Republic, Venezuela, New Zealand, Poland, Bangladesh, Iraq, Pakistan, Chile, Kuwait, Colombia, United Kingdom, Nepal, Bahrain, Estonia, Bulgaria, Hong Kong, Spain, Philippines, Australia, Egypt, Zimbabwe, Israel, Kenya, Sri Lanka, Iran, Chile, Mexico, Greece, South Africa, Trinidad & Tobago,Tunisia, Peru, Algeria, Qatar, Kazakhstan, Lithuania, Indonesia, Denmark, China, Norway, United Arab Emirates, Tibet, Azerbaijan, Sweden, Morocco, Austria, Mexico, Macau, Canada, Ghana, Slovakia, Lebanon, Belgium, Puerto Rico, Italy, Argentina, Taiwan, Afghanistan, Brazil, South Korea, Turkey, Belarus, Ireland, Russia, Thailand, Gambia, Switzerland, France, Namibia, Croatia, Romania, Mongolia, Netherlands.
Navi Mumbai, Santiago, Dubai, Pimpri-Chinchwad, Chiyoda, Faridabad, Jaipur, Geoje-si, New York, Indore, Sydney, Cairo, Atyrau, Karachi, Ludhiana, Manama, Dammam, Secunderabad, Madrid, Noida, Courbevoie, Jamshedpur, Lagos, Kuwait City, Caracas, Doha, Rajkot, Visakhapatnam, Chandigarh, Jeddah, Kanpur, Bogota, Los Angeles, Port-of-Spain, Ahmedabad, Colombo, Hyderabad, Edmonton, Baroda, Coimbatore, Surat, Chennai, Gimhae-si, Pune, Ulsan, Ho Chi Minh City, Granada, Seoul, Algiers, Istanbul, London, Riyadh, Jakarta, Hanoi, Petaling Jaya, Moscow, Dallas, Brisbane, Aberdeen, Hong Kong, Gurgaon, Al Jubail, Kolkata, Singapore, Perth, Vadodara, Al Khobar, Tehran, Toronto, Nagpur, Abu Dhabi, La Victoria, New Delhi, Ernakulam, Howrah, Milan, Ankara, Haryana, Vung Tau, Houston, Mexico City, Montreal, Kuala Lumpur, Calgary, Melbourne, Thane, Busan, Sharjah, Bhopal, Mumbai, Rio de Janeiro, Lahore, Muscat, Ahvaz, Ranchi, Bengaluru, Bangkok, Nashik, Thiruvananthapuram.
