Stainless Steel 304 Flanges Manufacturer & Supplier
Stainless Steel 304 flanges are forged pipe fittings, which are applied in connecting the pipes, valves and equipment to provide a secure and leak free piping system. It is austenitic stainless steel and they have about 18-20 percent chromium and 8-10.5 percent nickel that gives it high corrosive properties and strength in different conditions. These stainless steel flanges are also characterized by good mechanical properties which are high tensile strength, good ductile and excellent weldable, thus suitable in low and moderately high temperature applications. As ASTM A182 F304 made, they come in many standards such as ANSI B16.5, and are offered in sizes of 1/2 to 48 inch and in forms of weld neck, slip-on, and blind flanges. The stainless steel 304 flanges are commonly used in chemical processing, food and beverage, water treatment and construction industries. Amardeep Steel is a reputable manufacturer and supplier of SS 304 flanges, stainless steel 304 plates & Sheets and other in terms of quality assurance and supply.
Specification of Stainless Steel 304 Flanges
Category |
Specification Details |
|---|---|
Material Specifications |
ASTM A182, A240 / ASME SA182, SA240 |
Manufacturing Standards |
ANSI, ASME, DIN, EN, BS, JIS, AWWA |
Dimensional Standards |
ASME B16.5, B16.47 (Series A & B), B16.48, BS4504, BS 10, EN-1092, DIN |
Size Range |
1/2″ (15 NB) to 48″ (1200 NB) |
Pressure Class |
150#, 300#, 600#, 900#, 1500#, 2500# |
Flange Face Types |

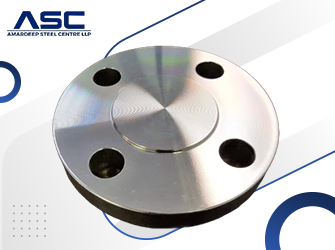

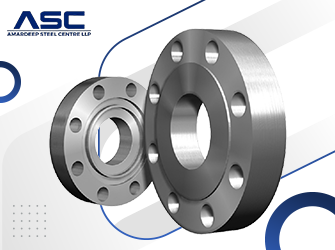

Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
SS 304 Flanges Chemical Composition
| Grade | C | Ni | Si | N | Mn | P | Cr | Mo | S | |
|---|---|---|---|---|---|---|---|---|---|---|
| SS 304 | Min. | — | 8.0 | — | — | — | — | 18.0 | — | — |
| Max. | 0.08 | 10.5 | 0.75 | 0.10 | 2.00 | 0.045 | 20.0 | — | 0.030 |
Mechanical Properties of SS 304 Flanges
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness Rockwell B (HR B) max | Hardness Brinell (HB) max |
|---|---|---|---|---|---|
| SS 304 | 515 | 205 | 40 | 92 | 201 |
Physical Properties of SS 304 Flanges
| Gr. | Density (kg/m³) | Elastic Modulus (GPa) | Mean CTE (µm/m/°C) 0–100°C | Mean CTE (µm/m/°C) 0–315°C | Mean CTE (µm/m/°C) 0–538°C | Thermal Conductivity (W/m·K) at 100°C | Thermal Conductivity (W/m·K) at 500°C | Specific Heat 0–100°C (J/kg·K) | Electrical Resistivity (n·m) |
|---|---|---|---|---|---|---|---|---|---|
| A182 304 | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Equivalent Grades of Stainless Steel 304 (DIN 1.4301) Pipe Flanges
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‑09 | X5CrNi18-10 |
HSN Code of SS 304 Flanges
| Description | HS Code |
|---|---|
| SS 304 Flanges | 73072100 |

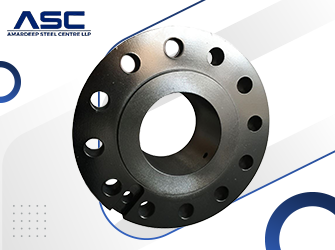

Different Types of ASTM A182 Gr F304 Flanges

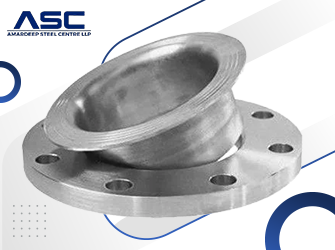

Lap Joint Flange

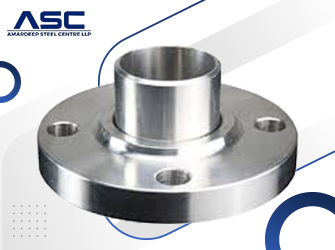

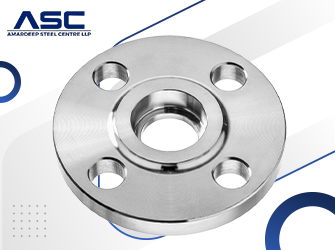

SORF Flange

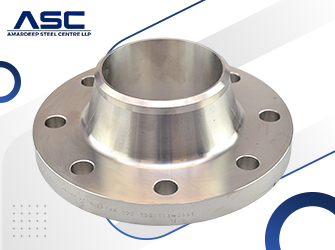

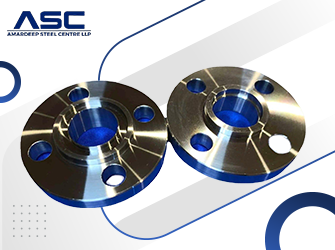

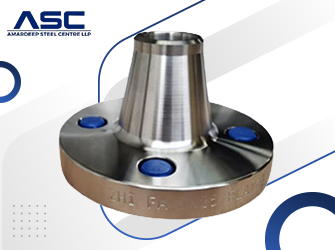

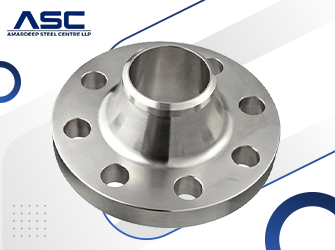

WNRF Flange

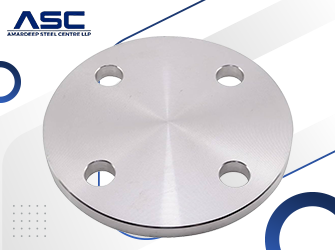

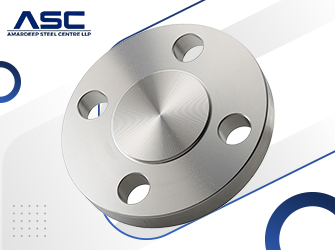

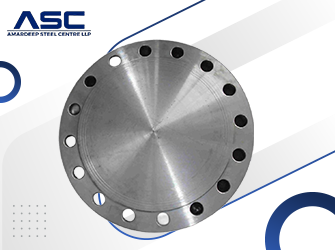

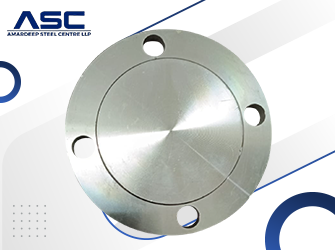

BLRF Flange

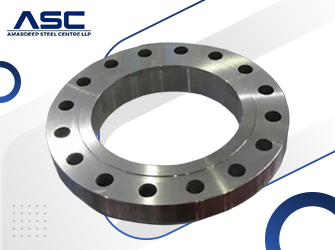

Raised Face Flange
Long Weld Neck Flange
Weight Chart of Stainless Steel 304 Flanges in KG
| Pipe Size (NPS) | OD Flange (O) | Thk. (C) | Hub Dia. (X) | Raised Face (G) | Hub Length (Y) | Thread Length (T) | Bolt Circle (BC) | Hole Dia. (BH) | No. of Bolts (BN) | Bolt Dia. (BD) | Weight (KG) | Weight (LB) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2″ | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2″ | 0.4 | 0.9 |
| 3/4″ | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2″ | 0.7 | 1.5 |
| 1″ | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2″ | 0.8 | 1.8 |
| 1-1/4″ | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2″ | 1.2 | 2.6 |
| 1-1/2″ | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2″ | 1.5 | 3.3 |
| 2″ | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8″ | 2.3 | 5.1 |
| 2-1/2″ | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8″ | 3.7 | 8.1 |
| 3″ | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8″ | 4.1 | 9.0 |
| 3-1/2″ | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8″ | 5.1 | 11.2 |
| 4″ | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8″ | 5.9 | 13.0 |
| 5″ | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4″ | 7.0 | 15.4 |
| 6″ | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4″ | 8.4 | 18.5 |
| 8″ | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4″ | 13.0 | 28.6 |
| 10″ | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8″ | 18.0 | 39.5 |
| 12″ | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8″ | 29.0 | 64.0 |
| 14″ | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1″ | 39.0 | 86.0 |
| 16″ | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1″ | 47.0 | 103.0 |
| 18″ | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8″ | 57.0 | 126.0 |
| 20″ | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8″ | 76.0 | 167.0 |
| 24″ | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4″ | 97.0 | 214.0 |
ASTM A182 SS F304 Dimension Chart
| Standard / Class | Diameter (mm) | Bolt Circle (mm) | Number of Bolts | Bolt Size | Bolt Hole Dia. (mm) |
|---|---|---|---|---|---|
| AS4087 PN14 | 95 | 67 | 4 | M12 | 14 |
| AS 2129 (Table C, D, E, F) | 95 | 67 | 4 | 1/2″ (13mm) | 14 |
| AS 2129 (Table H, J) | 114 | 83 | 4 | 5/8″ (16mm) | 17 |
| ANSI 150 | 89 | 60 | 4 | 1/2″ (13mm) | 16 |
| ANSI 300 / 600 | 95 | 67 | 4 | 1/2″ (13mm) | 16 |
| ANSI 900 / 1500 | 121 | 83 | 4 | 3/4″ (19mm) | 22 |
| ISO 7005 (PN6) | 80 | 55 | 4 | M10 | 11 |
| ISO 7005 (PN10 / 16 / 25 / 40) | 95 | 65 | 4 | M12 | 14 |
| ISO 7005 (PN20) | 90 | 60.5 | 4 | M14 | 16 |
Pressure Rating Chart of A182 Gr 304 Stainless Steel Flange
| Temp (°F) | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
|---|---|---|---|---|---|---|---|
| -20 to 100 | 285 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 260 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 230 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 200 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
Application Usage of Stainless Steel 304 Flanges
- Oil & Gas Industry
- Chemical Industry
- Petrochemical Industry
- Power Generation Industry
- Architecture, Building, and Construction
- Fertilizers Industry
- Automotive Industry
- Food And Beverage Industry
Price List of Stainless Steel 304 Flanges
| Product Description | Price in India (INR) | Price in UAE (AED) |
|---|---|---|
| ASTM A182 Grade F304 Blind Flange | Rs. 567.62 | UAE Dirham 29.39 |
| ASTM A182 Gr F304 Flanges | Rs. 212.86 | UAE Dirham 11.02 |
| 304 Stainless Steel Flanges (Standard) | Rs. 709.53 | UAE Dirham 36.74 |
| ASME SA182 F304 Pipe Flanges (Mumbai) | Rs. 276.72 | UAE Dirham 14.33 |
| ASTM A182 304 SS Plate Flanges | Rs. 993.34 | UAE Dirham 51.44 |

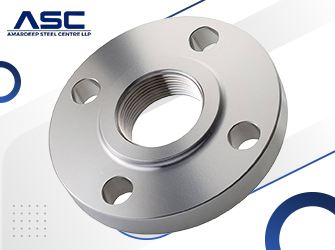

| ASTM A182 F304 Threaded Flanges | Rs. 567.62* | UAE Dirham 29.39* |
Note: Prices are indicative and updated regularly. Contact Kalpataru Piping for current pricing based on quantity, pressure class, and delivery terms.
