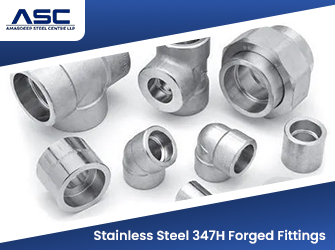

Stainless Steel 347H Forged Fitting is a niobium-stabilized stainless steel fitting that is used in high temperature and harsh conditions. Grade 347H is made of 17-19 % chromium, 9-13 % nickel, and niobium (columbium) that enhances resistance to intergranular corrosion and stress corrosion cracking. The increased carbon content of 347H increases the creep strength and increases its ability to withstand extended exposure to higher temperatures than standard 347. These fabricated fittings are produced to meet ASTM A182, ASME B16.11, and other international standards to provide pressure integrity and dimensional accuracy.
SS 347H has high carbon density and good oxidation resistance that makes it reliable in high pressure and thermal cycling conditions. It is widely applicable in various industries in power generation plants, refineries, petrochemical plants, pressure vessels, and heat exchangers due to all these features. There are other products like 347H Pipe Fittings and Stainless Steel 347H Butt weld Fittings that provide stability of the welds and long service life in critical environments. Amardeepsteel is the largest manufacturer and supplier of stainless steel 347H forged fittings and numerous other materials. We also make sure that our products undergo strict quality checks, are made with certified raw material, have mill test certification, and have a reliable supply of vital industrial piping systems.

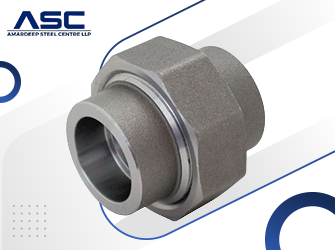

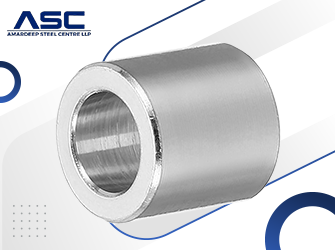

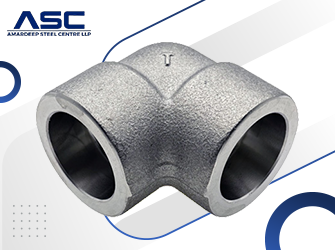

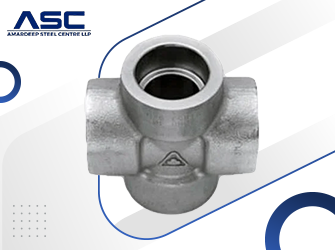

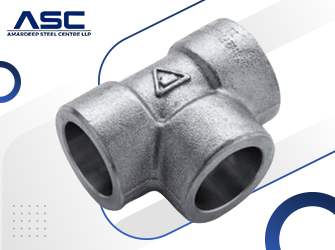

Stainless Steel ASTM A403 347H Cross, 347H SS Full Couplings, Werkstoff No 1.4961 SS High Pressure Forged Fittings, Stainless Steel 347H Equal Tee, BS 3799 Union, Forged 90 Deg Screwed Threaded Elbow, Manufacturer Of ASTM A403 347H Stainless Steel Bushing in Mumbai, India.
Table of Contents
- Specifications of Stainless Steel 347H Forged Fittings
- ASTM A403 Stainless Steel 347H Chemical Properties
- Mechanical Properties of Stainless Steel 347H Forged Fittings
- ASME SA403 347H SS Pipe Fittings Equivalent Grades
- Types of Stainless Steel 347H Forged Fittings
- Stainless Steel 347H Forged Fittings Price List
Specifications of Stainless Steel 347H Forged Fittings
| Feature | Specification Details |
|---|---|
| Material Specification | ASTM A403 / ASME SA403 |
| Size Range | 1/8” NB to 48” NB |
| Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Wall Thickness (Schedule) | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS |
| Compliance | NACE MR 01-75 (Sour Gas Service) |
| Construction Type | Seamless / Welded / Fabricated (100% X-Ray Welded) |
ASTM A403 Stainless Steel 347H Chemical Properties
| Grade | C | Ni | Mn | P | S | Cr | Si | Mo | N |
|---|---|---|---|---|---|---|---|---|---|
| SS 347H | 0.04 – 0.10* | 9.00 – 13.00 | 2.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 1.0 max | — | — |
Mechanical Properties of Stainless Steel 347H Forged Fittings
| Property | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|---|
| Value | 8.0 g/cm³ | 1454 °C (2650 °F) | 75,000 Psi (515 MPa) | 30,000 Psi (205 MPa) | 35% |
ASME SA403 347H SS Pipe Fittings Equivalent Grades
| Standard | Werkstoff Nr. | UNS Number | JIS (Japan) | EN Standard |
|---|---|---|---|---|
| SS 347H | 1.4961 | S34709 | SUS 347H | X6CrNiNb18-12 |

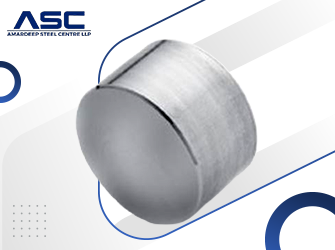

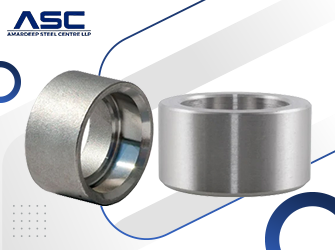

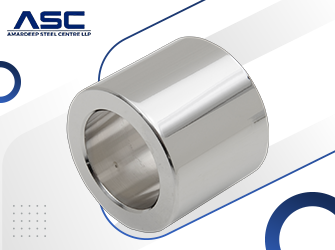

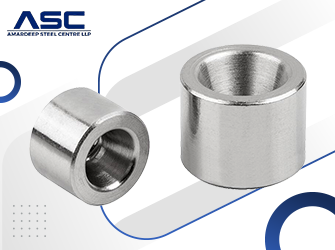

Types of Stainless Steel 347H Forged Fittings
Stainless Steel 347H Forged Fittings Price List
| Product Description | Specification / Size | Price (USD) |
|---|---|---|
| 347 Stainless Steel Buttweld Pipe Fittings | Bulk Rate (Per Kg) | $12.50 / kg |
| 347H Stainless Steel Butt Weld Fitting | Schedule 10, 2” NB | $7.50 / each |
| Stainless Steel 347 Concentric Reducer | Standard Size | $10.30 / each |
Note: Prices are estimated market averages and change daily based on raw material costs and order specifications.
