A socket weld fitting is a pipe fitting that works by consisting of a pipe fitting inserted into a recessed socket of the fitting, and is fillet-welded around the joint. This design provides a robust connection that is leak-free, particularly in small-diameter and high-pressure piping systems. Unlike common types of stainless steel, like SS 312, SS 321 socket weld fittings are more stable at higher temperatures since they are titanium stabilized to prevent carbide precipitation during welding.
Stainless Steel 321 Forged Fittings have about 17 -19% chromium and 9-12% nickel, and with titanium added to the alloy, which increases intergranular corrosion and oxidation resistance. The 321H type offers greater carbon content to enhance high-temperature strength. These fittings are produced to meet the requirements of ASTM A182 and ASME B16.11 standards, and can be used in refineries, petrochemical plants, heat exchangers, and power generation units. In addition to the types of socket welds, there are also 321 Pipe Fittings and Stainless Steel 321 Butt weld Fittings that can be used to suit different piping requirements. Amardeepsteel is a trusted manufacturer and supplier and therefore guarantees certified quality, stringent inspection, and reliable worldwide delivery.
Table of Contents
- Specification of Stainless Steel 321 Forged Fittings
- Equivalent Grades of SS 321 Forged Fittings
- ASTM A182 F321 Fittings Chemical Composition
- UNS S32100 Forged Fittings Mechanical Properties
- SS 321 Forged Fittings Dimensional Chart
- Different Types of Stainless Steel 321 Forged Fittings
- Weight Chart of the Stainless Steel 321 Forged Fittings
- ASME B16.11 Stainless Steel 321 Forged Fitting Size Chart
- Pressure rating chart of S32100 forged fittings
- Application & Industrial Uses of Stainless Steel 321 Forged Fittings
Specification of Stainless Steel 321 Forged Fittings
| Feature | Specification / Requirement |
|---|---|
| Material Specification | ASTM A182 / ASME SA182 |
| Dimension Standards | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS 3799 |
| Size Range | 1/8" NB to 4" NB |
| Available Types | Socketweld Fittings, Screwed-Threaded Fittings |
| Threaded End Class | 2000 / 3000 / 6000 LBS |
| Socket-weld End Class | 3000 / 6000 / 9000 LBS |
DIN 1.4541 Round Plug Manufacturer, ASTM A182 SS 321 45 Degree Elbow Manufacturer, DIN 1.4541 Threaded Street Elbow Supplier, SS 321 Threaded 45 Lateral Tee Exporter, 321 SS Reducing Tee Exporter, UNS S32100 Cross Manufacturer.
Equivalent Grades of SS 321 Forged Fittings
| Standard | Werkstoff Nr. | UNS Number | JIS (Japan) | EN Standard |
|---|---|---|---|---|
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
ASTM A182 F321 Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
|---|---|---|---|---|---|---|---|---|---|
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5 × (C + N) – 0.70 max |
UNS S32100 Forged Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm³ | 1457 °C (2650 °F) | 75,000 psi (515 MPa) | 30,000 psi (205 MPa) | 35% |
SS 321 Forged Fittings Dimensional Chart
| NPS | OD (mm) | Wall Thk (T) (mm) | Sch | LR 45° C/F (B) (mm) | LR 45° Weight (kg) | LR 90° C/F (A) (mm) | LR 90° Weight (kg) | SR 90° C/F (A) (mm) | SR 90° Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 21.3 | 2.78 / 3.73 | STD / XS | 15.9 | 0.04 / 0.05 | 38.1 | 0.08 / 0.10 | — | — |
| 3/4" | 26.7 | 2.87 / 3.91 | STD / XS | 11.1 | 0.04 / 0.05 | 28.6 | 0.08 / 0.11 | — | — |
| 1" | 33.4 | 3.38 / 4.55 | STD / XS | 22.2 | 0.09 / 0.11 | 38.1 | 0.15 / 0.19 | 25.4 | 0.11 / 0.14 |
| 1-1/4" | 42.2 | 3.56 / 4.85 | STD / XS | 25.4 | 0.14 / 0.20 | 47.6 | 0.28 / 0.39 | 31.75 | 0.18 / 0.24 |
| 1-1/2" | 48.3 | 3.68 / 5.08 | STD / XS | 28.6 | 0.20 / 0.25 | 57.1 | 0.43 / 0.53 | 38.1 | 0.26 / 0.35 |
| 2" | 60.3 | 3.91 / 5.54 | STD / XS | 34.9 | 0.36 / 0.50 | 76.2 | 0.72 / 1.00 | 50.8 | 0.50 / 0.68 |
| 2-1/2" | 73.0 | 5.16 / 7.01 | STD / XS | 44.4 | 0.73 / 0.91 | 95.2 | 1.46 / 1.82 | 63.5 | 0.95 / 1.27 |
| 3" | 88.9 | 5.49 / 7.62 | STD / XS | 50.8 | 1.11 / 1.45 | 114.3 | 2.18 / 2.86 | 76.2 | 1.45 / 1.95 |
| 4" | 114.3 | 6.02 / 8.56 | STD / XS | 63.5 | 2.10 / 2.90 | 152.4 | 4.20 / 5.70 | 101.6 | 2.80 / 3.90 |
| 5" | 141.3 | 6.65 / 9.50 | STD / XS | 79.4 | 3.40 / 5.00 | 190.0 | 6.80 / 10.0 | 127.0 | 4.80 / 6.50 |
| 6" | 168.3 | 7.11 / 10.97 | STD / XS | 95.2 | 5.10 / 7.70 | 229.0 | 10.1 / 15.3 | 152.4 | 6.80 / 10.2 |
| 8" | 219.1 | 8.18 / 12.70 | STD / XS | 127.0 | 10.2 / 15.5 | 305.0 | 20.4 / 30.9 | 203.0 | 13.6 / 20.9 |
| 10" | 273.9 | 9.27 / 12.70 | STD / XS | 159.0 | 18.1 / 24.4 | 381.0 | 36.1 / 48.8 | 254.0 | 24.1 / 32.5 |
| 12" | 323.9 | 9.52 / 12.70 | STD / XS | 190.0 | 26.6 / 35.0 | 457.0 | 53.1 / 70.0 | 305.0 | 35.4 / 46.7 |
| 14" | 355.6 | 9.52 / 12.70 | STD / XS | 222.0 | 34.1 / 45.0 | 533.0 | 68.1 / 90.0 | 356.0 | 45.4 / 60.0 |
| 16" | 406.4 | 9.52 / 12.70 | STD / XS | 254.0 | 45.0 / 59.0 | 610.0 | 89.3 / 118.0 | 406.0 | 59.5 / 78.7 |
| 18" | 457.0 | 9.52 / 12.70 | STD / XS | 286.0 | 56.5 / 75.0 | 686.0 | 113.0 / 150.0 | 457.0 | 75.6 / 100.0 |
| 20" | 508.0 | 9.52 / 12.70 | STD / XS | 318.0 | 85.0 / 112.5 | 762.0 | 140.0 / 186.0 | 508.0 | 93.5 / 124.0 |
| 24" | 610.0 | 9.52 / 12.70 | STD / XS | 381.0 | 101.5 / 134.5 | 914.0 | 203.0 / 269.0 | 610.0 | 135.0 / 179.0 |

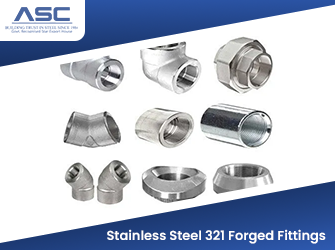

Different Types of Stainless Steel 321 Forged Fittings
Weight Chart of the Stainless Steel 321 Forged Fittings
| Normal Pipe Size (NPS) | Dimension A | Dimension B | Quantity (QTY) | Weight (kg) |
|---|---|---|---|---|
| 1/4" | 0.81 | 0.88 | 160 | 0.20 |
| 3/8" | 0.97 | 1.00 | 130 | 0.26 |
| 1/2" | 1.12 | 1.31 | 100 | 0.57 |
| 3/4" | 1.31 | 1.57 | 50 | 0.71 |
| 1" | 1.50 | 1.81 | 40 | 1.08 |
| 1-1/4" | 1.75 | 2.19 | 25 | 1.68 |
| 1-1/2" | 2.00 | 2.44 | 18 | 2.38 |
| 2" | 2.38 | 2.97 | 10 | 3.55 |
| 2-1/2" | 3.00 | 3.62 | 4 | 6.22 |
| 3" | 3.38 | 4.31 | 2 | 10.36 |
| 4" | 4.19 | 5.75 | 1 | 23.91 |
ASME B16.11 Stainless Steel 321 Forged Fitting Size Chart
| Nominal Pipe Size (NPS) | Bore Diameter (D) | Socket Depth (C) | Wall Thickness (G) | Center to Bottom of Socket (A) |
|---|---|---|---|---|
| 1/8" | 10.7 mm | 9.5 mm | 3.18 mm | 11.0 mm |
| 1/4" | 14.1 mm | 9.5 mm | 3.78 mm | 11.0 mm |
| 3/8" | 17.6 mm | 9.5 mm | 4.01 mm | 13.5 mm |
| 1/2" | 21.7 mm | 9.5 mm | 4.67 mm | 15.5 mm |
| 3/4" | 27.1 mm | 12.5 mm | 4.90 mm | 19.0 mm |
| 1" | 33.8 mm | 12.5 mm | 5.69 mm | 22.5 mm |
| 1-1/4" | 42.6 mm | 14.5 mm | 6.07 mm | 27.0 mm |
| 1-1/2" | 48.7 mm | 16.0 mm | 6.35 mm | 32.0 mm |
| 2" | 61.1 mm | 19.0 mm | 6.93 mm | 38.0 mm |
Pressure rating chart of S32100 forged fittings
| Temperature (°F) | Temperature (°C) | Class 150 | Class 300 (1/4" - 1") | Class 300 (1-1/4" - 2") | Class 300 (2-1/2" - 3") |
|---|---|---|---|---|---|
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | — | 935 | 750 | 560 |
| 450 | 232 | — | 725 | 600 | 475 |
| 500 | 260 | — | 510 | 450 | 385 |
| 550 | 288 | — | 300 | 300 | 300 |
Stainless Steel 321 Forged Fittings Price List
| Product Description | Estimated FOB Price (per Piece) | Availability |
|---|---|---|
| Stainless Steel Elbow | USD $2.06 – $10.07 | Contact Us |
| Stainless Steel Equal Tee | USD $2.06 – $10.07 | Contact Us |
| Stainless Steel Reducing Tee | USD $2.06 – $10.07 | Contact Us |
| Stainless Steel Cross | USD $2.06 – $10.07 | Contact Us |
| Stainless Steel Cap | USD $2.06 – $10.07 | Contact Us |
Note: Prices are estimated market averages and change daily based on raw material costs and order specifications.
Application & Industrial Uses of Stainless Steel 321 Forged Fittings
- Petrochemical Industry - Refinery equipment, cracking units
- Power Generation - Boilers, superheaters, heat recovery systems
- Furnace Components - Kiln furniture, burner parts, retorts
- Heat Treatment Equipment - Annealing furnaces, tempering furnaces
- Chemical Processing - High-temperature reactors, catalytic converters
- Thermal Processing - Calcination equipment, sintering furnaces
- Pulp & Paper Industry - Digesters, bleaching systems
- Food Processing - High-temperature ovens, dryers
- Aerospace Industry - Jet engine components, exhaust systems
- Glass Manufacturing - Melting furnaces, annealing lehrs
