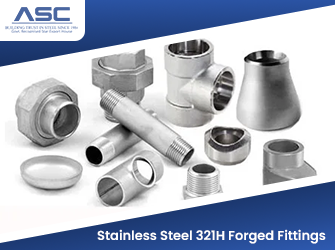

Stainless Steel 321H Forged Fittings are commonly used in piping systems where leak-proof, high-pressure, and temperature joints are needed. The fittings are especially useful in those applications where there is constant exposure to heat, since the titanium stabilization in Grade 321 prevents intergranular corrosion during welding. The 321H is not the same as regular 321 because of the increased carbon content, which increases high-corrosion strength and strengthens against harsh conditions, making it more effective in long-term high-temperature service than regular stainless steel fittings.
Stainless steel 321H is usually composed of 17-19% chromium, 9-12% nickel, and titanium to stabilize it. It provides a minimum tensile strength of 515Mpa and yield strength of 205 Mpa, and has great oxidation resistance and structural stability. These fittings are commonly used in refineries, petrochemical plants, heat exchangers, boilers and power generation units and are manufactured to ASTM A182, ASME B16.11 and MSS-SP standards. Together with 321H Pipe Fittings and Stainless Steel 321H Butt weld Fittings, Amardeepsteel offers certified products with Mill Test Certificates, third-party inspection, and high dimensional tolerances and dependable global delivery that can be used in critical industrial applications.
Table of Contents
- Specifications of Stainless Steel 321H Forged Fittings
- UNS S32109 Forged Fittings Chemical Compositions
- Mechanical properties of SS 321H Forged Fittings
- ASME SA182 321H SS Forged Fittings Equivalent Grades
- Types of WERKSTOFF 1.4878 SS 321H Forged Fittings
- Applicational & Industrial Uses of Stainless Steel 321H Forged Fittings
Specifications of Stainless Steel 321H Forged Fittings
| Feature | Specification Details |
|---|---|
| Material Specification | ASTM A182 / ASME SA182 |
| Dimension Standards | ASME B16.11, MSS SP-79, MSS SP-83, MSS SP-95, MSS SP-97, BS 3799 |
| Size Range | 1/8" NB to 4" NB |
| Pressure Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Connection Types | Socket Weld Fittings, Screwed-Threaded Fittings |
Stainless Steel 321H High Pressure Forged Fittings, SUS 321H Forged Fittings, ASME SA 182 SS 321H Bushing, 321H SS Coupling, SS 321H Forged Equal Tee, SS 321H Forged Cross, Stainless Steel 321H Forged Cap Stockist, Stainless Steel 321H Union Exporter in India.
SS 321H Forged Fittings, SS DIN 1.4878 Pipe Nipple, SS 321H Forged Fittings at Best Price, 321H SS Industrial Forged Fittings Distributors, 321H Stainless Steel Socket weld Elbow, Stainless Steel 321H 90° Socket weld Elbow Manufacturer in India.
UNS S32109 Forged Fittings Chemical Compositions
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
|---|---|---|---|---|---|---|---|---|---|
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4 × (C + N) – 0.70 max |
Mechanical properties of SS 321H Forged Fittings
| Property | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|---|
| Value | 8.0 g/cm³ | 1457 °C (2650 °F) | 75,000 Psi (515 MPa) | 30,000 Psi (205 MPa) | 35% |
ASME SA182 321H SS Forged Fittings Equivalent Grades
| Standard | Werkstoff Nr. | UNS Number | JIS (Japan) | EN Standard |
|---|---|---|---|---|
| SS 321H | 1.4878 | S32109 | SUS 321H | X12CrNiTi18-9 |

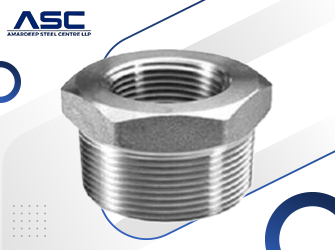

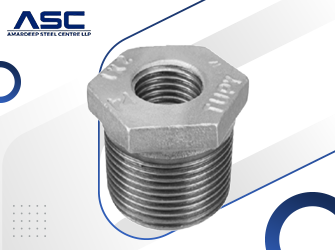

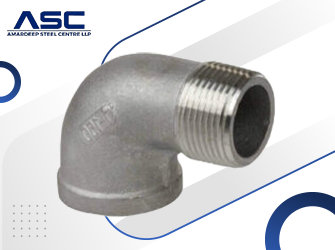

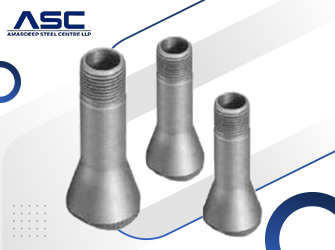

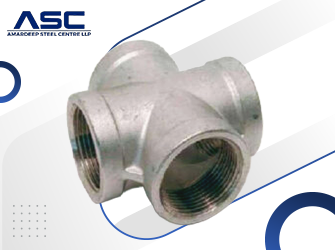

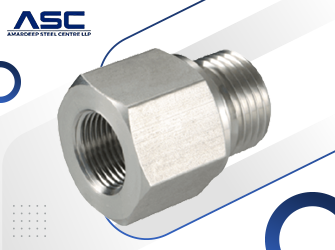

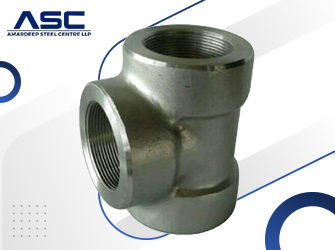

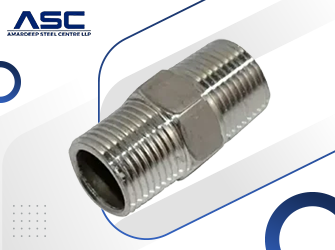

Types of WERKSTOFF 1.4878 SS 321H Forged Fittings
Amardeep Steel maintains ready stock of various 310S Forged Fittings and SS 310 Forged Fittings types:
Applicational & Industrial Uses of Stainless Steel 321H Forged Fittings
- Petrochemical Industry - Refinery equipment, cracking units
- Power Generation - Boilers, superheaters, heat recovery systems
- Furnace Components - Kiln furniture, burner parts, retorts
- Heat Treatment Equipment - Annealing furnaces, tempering furnaces
- Chemical Processing - High-temperature reactors, catalytic converters
- Thermal Processing - Calcination equipment, sintering furnaces
- Pulp & Paper Industry - Digesters, bleaching systems
- Food Processing - High-temperature ovens, dryers
- Aerospace Industry - Jet engine components, exhaust systems
- Glass Manufacturing - Melting furnaces, annealing lehrs
