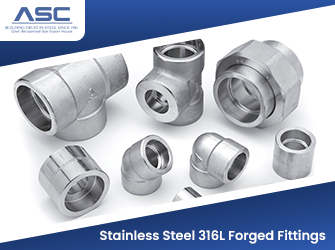

The Stainless steel 316L forged fittings are significant in industries where good strength, resistance to corrosion, and durability are critical. They come in different types and forms, such as elbows, tees, reducers, caps, and flanges, which are manufactured as per the stringent international standards such as ASTM, ASME, and EN standards. All of our 316L Pipe Fittings come with certifications that include ISO 9001, ISO 14001, and OHSAS 18001 that guarantee quality and monitoring of materials utilized and compliance with the international standards of the industry.
Amardeep Steel is a reputable manufacturer and supplier of stainless steel 316L Forged Fittings in India and has a diverse range of products that sell to both the local and foreign markets. They are of various types of fittings which include stainless steel 316L Buttweld fittings, socket, threaded fittings, among others, that provide high levels of reliability, precision, and longevity, in various sectors of the economy such as marine, petrochemical, pharmaceutical, and many more.
Table of Contents
- Specification of Stainless Steel 310S Forged Fittings
- Chemical Composition of Stainless Steel 316L Forged Fittings
- SS 316L Forged Fittings Physical Properties
- Stainless Steel 316L Fittings Mechanical Properties
- ASME B16.11 SS 316 Forged Fittings Equivalent Grades
- Different types of Stainless steel 316L Forged Fittings
- HS Code of WNR 1.4404 Forged Fittings
- AISI 316L Socket Weld Forged Fittings Pressure Rating
- 316L Stainless Steel Socket Forged Fittings Weight Chart
- SS 316L Forged Fittings Dimensions Chart
Specification of Stainless steel 316L forged fittings
| Category | Details & Specifications |
|---|---|
| Size & Pressure | Size: 1/8" to 4" NPS |
| Standards | ASME SA 182, ASTM A182, MSS SP44, ASME B16.5, ISO 683-13 |
| Manufacturing | Casting, Forging, Rolling/Cutting |
| Thread Types | NPT, FNPT, MNPT, BSPP, BSPT |
| Facing Types | RF (Raised Face), FF (Flat Face), RTJ (Ring Type Joint), LJF, T & G |
| Olet/Fitting Types | Blind, Weld Neck, Slip On, Socket Weld, Lap Joint |
| Surface Finish | Smooth, Serrated, Concentric/Spiral, Mirror Finish |
| Testing Methods | Pressure Testing, Hardness, PMI (Positive Material Identification), Tensile |
| Connection Types | Welded, Threaded, Bolted |
| Compliance | NACE MR0103/MR0175, ISO 15156, Sour Service |
| Origin | India, Japan, Korea, Europe |
Chemical Composition of Stainless Steel 316L Forged Fittings
| Grade | C (max) | Mn (max) | Si (max) | P (max) | S (max) | Cr | Mo | Ni | Fe (min) |
|---|---|---|---|---|---|---|---|---|---|
| SS 316L | 0.035% | 2.0% | 1.0% | 0.045% | 0.030% | 16.0–18.0% | 2.0–3.0% | 10.0–14.0% | 68.89% |
SS 316L Forged Fittings Physical Properties
| Property | Electrical Resistivity (Ω-inch) | Heat Capacity (Btu/lb∘F) | Density (lb/in³) | Thermal Conductivity (Btu/ft hr∘F) | Modulus of Elasticity (psi) |
|---|---|---|---|---|---|
| Value | 28.7 × 10⁻⁶ | 0.12 | 0.285 | 8.7 | 29 × 10⁶ |
Stainless Steel 316L Fittings Mechanical Properties
Stainless Steel 310S Forged Fittings are available in various international standard equivalents to meet global project requirements.
| Property | Yield Strength (0.2% Offset) | Tensile Strength | Elongation | Hardness (Rockwell B) |
|---|---|---|---|---|
| Value (min) | 170 MPa | 485 MPa | 40% | 95 HRB (max) |
ASME B16.11 SS 316 Forged Fittings Equivalent Grades
| Grade | UNI | WNR | AFNOR | SS | BS | EN | GOST |
|---|---|---|---|---|---|---|---|
| SS 316L | X2CrNiMo17-12 | 1.4404 | Z3CND17‐11‐02 | 2348 | 316S11 | 1.4404 | 03Ch17N14M3 |

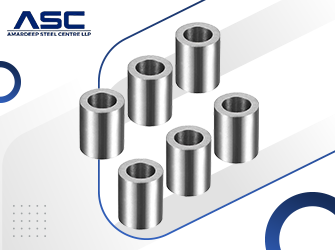

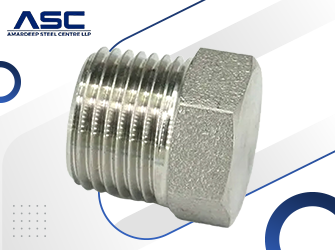

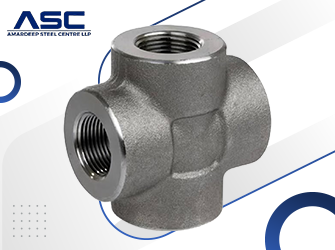

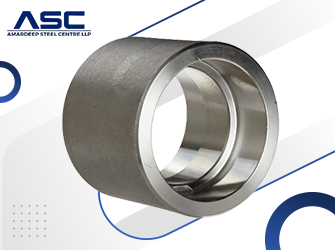

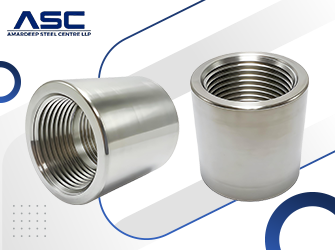

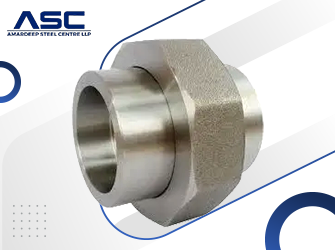

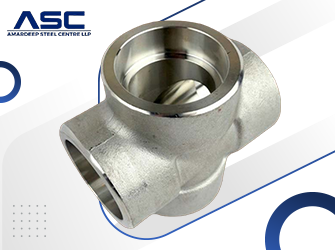

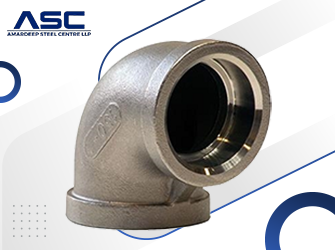

Different types of Stainless steel 316L Forged Fittings
HS Code of WNR 1.4404 Forged Fittings
| Product Description | HS Code |
|---|---|
| SS 316L Forged Fittings | 73072900 |
AISI 316L Socket Weld Forged Fittings Pressure Rating
| Size (Inches) | Pressure Rating (PSI) | Temperature (°F) |
|---|---|---|
| 1/2 | 1,200 | 100°F |
| 1-1/2 | 750 | 300°F |
| 2 | 650 | 200°F |
| 2 | 700 | 100°F |
| 1 | 1,000 | 100°F |
| 1-1/2 | 850 | 100°F |
| 1/2 | 1,100 | 300°F |
| 2 | 600 | 300°F |
| 1 | 900 | 300°F |
| 1/2 | 1,150 | 200°F |
| 1 | 950 | 200°F |
| 1-1/2 | 800 | 200°F |
316L Stainless Steel Socket Forged Fittings Weight Chart
| Size (Inch) | Weight (Kg) |
|---|---|
| 2 1/2 | 0.58 |
| 1 1/2 | 0.30 |
| 2 | 0.40 |
| 1/2 | 0.12 |
| 3 | 0.80 |
| 1 1/4 | 0.25 |
| 4 | 1.15 |
| 3/4 | 0.14 |
| 1 | 0.20 |
SS 316L Forged Fittings Dimensions Chart
| NPS (Inch) | Dimension A | Dimension B | Dimension C |
|---|---|---|---|
| 3/8 | 0.840 | 0.675 | 2.750 |
| 3/8 | 1.050 | 0.675 | 3.000 |
| 1/4 | 0.840 | 0.540 | 2.750 |
| 1-1/2 | 2.375 | 1.900 | 6.500 |
| 1/4 | 1.050 | 0.540 | 3.000 |
| 3 | 4.500 | 3.500 | 9.000 |
| 3-1/2 | 4.500 | 4.000 | 9.000 |
| 1/2 | 1.050 | 0.840 | 3.000 |
| 1/2 | 1.660 | 0.840 | 4.000 |
| 3/4 | 1.660 | 1.050 | 4.000 |
| 1 | 1.660 | 1.315 | 4.000 |
| 5 | 6.625 | 5.563 | 12.00 |
| 1/8 | 0.675 | 0.405 | 2.500 |
| 3/4 | 2.875 | 1.050 | 7.000 |
| 1 | 2.875 | 1.315 | 7.000 |
| 1-1/2 | 4.000 | 1.900 | 8.000 |
