As a reliable source for quality fittings, Amardeep Steel maintains competitive SS 304L Forged Fittings price in India while delivering products that exceed customer expectations. Our comprehensive inventory includes socket weld fittings, threaded fittings, and various forged configurations available in multiple pressure ratings and sizes. Each fitting undergoes stringent quality testing including PMI, hardness testing, and dimensional verification to ensure compliance with international codes. Our experienced team provides technical support and prompt delivery services across domestic and international markets. For complete piping system solutions, we also offer 304L Pipe Fittings and Stainless Steel 304L Butt Weld Fittings to meet your project requirements with consistent quality and competitive pricing.
Amardeep Steel is a leading producer, distributor, and exporter of high quality Stainless Steel 304L Forged Fittings. We have an extensive selection of socket weld fittings, threaded fittings and other kinds of forged fittings in several sizes and pressure ratings. Each fitting is subjected to very strict quality tests such as PMI, hardness test and dimensional test to make sure that the fitting is done to conform to the international codes. The qualified staff offers both technical services and delivery services in a timely manner in local and international markets. To address the piping system needs, we also have 304L Pipe Fittings and Stainless Steel 304L Butt Weld Fittings depending on your project demands with stable quality and low costs.
Table of Contents
- Equivalent Grades of SS 304L Forged Fittings
- Chemical Composition of ASTM A182 / ASME SA182 SS 304L Forged Fittings
- Mechanical Properties of Stainless Steel 304L Forged Fittings
- ASTM A182 / ASME SA182 SS 304L Forged Fittings Specifications
- Related Stainless Steel Grades Available
- Types of Stainless Steel 304L Forged Fittings
- Chemical Composition of SS 304L Forged Fittings
- Industrial Applications of SS 304L Forged Fittings
Equivalent Grades of SS 304L Forged Fittings
| STANDARD | UNS | WNR | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| SS 304L | S30403 | 1.4306 / 1.4307 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 | SUS 304L | 304S11 | 03Х18Н11 |
Chemical Composition of ASTM A182 / ASME SA182 SS 304L Forged Fittings
| Element | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| Composition (%) | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18.0 – 20.0 | – | 8.0 – 13.0 |
Mechanical Properties of Stainless Steel 304L Forged Fittings
| Property | Value |
|---|---|
| Density | 8.0 g/cm³ |
| Melting Point | 1400°C (2550°F) |
| Tensile Strength | Psi – 70,000 / MPa – 485 |
| Yield Strength (0.2% Offset) | Psi – 25,000 / MPa – 170 |
| Elongation | 40% (minimum) |
| Hardness (Rockwell B) | 88 max |
| Hardness (Brinell) | 201 HB max |
Here are the recreated tables and specifications for Stainless Steel 304L Forged Fittings with integrated keywords:
ASTM A182 / ASME SA182 SS 304L Forged Fittings Specifications
Amardeep Steel - Leading Manufacturer, Supplier, and Exporter of Stainless Steel 304L Forged Fittings in India
| Specification | Details |
|---|---|
| Standards | ASTM, ASME |
| Designation | A182 / SA182 Grade F304L |
| Dimension Standard | ANSI B16.11, MSS SP-79, MSS SP-83, MSS SP-95, MSS SP-97, BS3799 |
| End Connections | Socket Weld (S/W) & Threaded/Screwed (NPT / BSP / BSPT) |
| Pressure Class | 2000#, 3000#, 6000#, 9000# |
| Size Range | 15 NB (1/8") – 100 NB (4") |
| Test Certificates | EN 10204-3.1, EN 10204-3.2 (Third Party Inspection Available) |
Related Stainless Steel Grades Available
| Grade Family | Available Grades |
|---|---|
| 300 Series | 304, 304L, 304H, 316, 316L, 316LN, 316Ti, 309, 310S, 317L, 321, 347 |
| 400 Series | 410, 420, 440C |
| 200 Series | 202 |

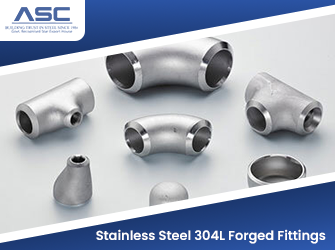

Types of Stainless Steel 304L Forged Fittings
Chemical Composition of SS 304L Forged Fittings
ASTM A182 / ASME SA182 SS 304L Forged Fittings Chemical Analysis:
| C | Mn | Si | P | S | Cr | Ni | Fe | N |
|---|---|---|---|---|---|---|---|---|
| 0.030 max | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 8.00 – 12.00 | Balance | 0.10 max |
Industrial Applications of SS 304L Forged Fittings
Stainless Steel 304L Forged Fittings are extensively used across various industries:
- Oil & Gas Industry - Pipeline connections, offshore platforms
- Chemical Processing - Acid handling, chemical reactors
- Petrochemical Plants - Refineries, distillation units
- Power Generation - Boilers, heat exchangers
- Pharmaceutical Industry - Sanitary piping systems
- Food & Beverage - Processing equipment, dairy plants
- Pulp & Paper - Bleaching systems, digesters
- Water Treatment - Filtration systems, desalination plants
- Marine Applications - Ship building, offshore structures
- Fertilizer Plants - Ammonia and urea production
Get SS 304L Forged Fittings Price
For competitive SS 304L Forged Fittings price in India and bulk quotations, contact Amardeep Steel today. We offer:
- Transparent pricing with no hidden costs
- Volume discounts for large orders
- Quick price responses within 24 hours
- Free technical consultation
Frequently Asked Questions (FAQs)
Which is better, Stainless Steel 304 or 304L?
304 has a higher tensile strength and yield strength, and is therefore more suitable in high-stress applications. 304L has lower strength than 304, but is still adequate in most applications, especially where corrosion resistance matters more.
Is 304L more expensive than 304?
The reduced carbon content in 304L ensures minimal precipitation of carbides in the heat-affected zone near welds, reducing the risk of intergranular corrosion in certain environments. Due to this, stainless steel 304L costs more compared to 304.
What does the letter L in 304L mean?
The L in 304L indicates that the carbon content is limited to a maximum of 0.03 percent (compared to 0.08 percent in 304), which improves weldability and reduces the risk of corrosion in welded areas.
Will 304L stainless steel rust?
Stainless steel is available in over 150 different grades, all of which can be prone to corrosion under certain conditions. However, 304 and 304L stainless steel resist rust under normal atmospheric conditions.
