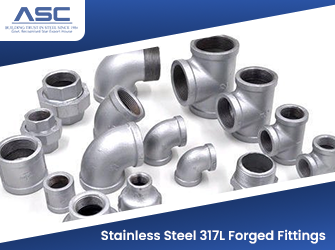

The stainless steel 317L forged fitting is slightly different from the SS 317 forged fitting, and it is also applied in the industry where corrosion resistance and strength are needed. The chemical composition of this forged fitting is about 18-20% Chromium, 11-15% Nickel, and 3-4 percent Molybdenum with low carbon content, hence it is easy to weld into various applications and reduce the carbide precipitation at high temperatures. SS 317L Forged fittings are produced according to the ASTM A182 and ASME B16.11 requirements to be accurate, reliable under pressure, and maintain a uniform quality.
This forged fitting is stable even in high temperatures up to approximately 870 °C. The material provides a minimum tensile strength of 515 MPa and a yield strength of 205 Mpa, which is reliable when it comes to working under pressure. It is usually applied in oil and gas processing, petrochemical plants, marine systems, heat exchangers, and power generation units due to its high resistance and durability characteristics. Amardeepsteel is a reliable manufacturer and supplier of SS 317L Forged fittings, 317L Pipe Fittings, Stainless steel 317L Butt weld Fittings, and other materials with Mill Test Certification and optional third-party inspection to ensure quality.
Bitumen upgraders, Heavy oil refineries, Nuclear power, Petrochemicals, Acids
Equivalent Grades of Stainless Steel 317L Forged Fittings
Grade
Werkstoff Nr.
UNS Number
JIS (Japan)
EN Standard
SS 317L
1.4438
S31703
SUS 317L
X2CrNiMo18-15-4
Chemical composition of Werkstoff No 1.4438 SS Forged Fittings
Grade
Si
Cr
Mo
P
C
Mn
S
Ni
Fe
SS 317L
1.0 max
18.00 – 20.00
3.00 – 4.00
0.045 max
0.035 max
2.0 max
0.030 max
11.00 – 15.00
57.89 min
Grade 317 SS forged Fitting Mechanical Properties
Grade
Yield Strength (0.2% Offset)
Tensile Strength
Density
Melting Point
Elongation
F317 / F317L
30,000 psi / 205 MPa
75,000 psi / 515 MPa
7.9 g/cm³
1400 °C (2550 °F)
35%
HS Code of ASTM A182 Stainless Steel 317L Forged Fittings
Product Description
Material Grade
HS Code
Forged Elbows, Bends, and Sleeves
ASTM A182 SS 317L
730722
Forged Flanges
ASTM A182 SS 317L
730721
Butt Welding Fittings
ASTM A182 SS 317L
730723
Other (Threaded, Socket Weld, etc.)
ASTM A182 SS 317L
730729
Types of ASTM A182 F317L forged fittings

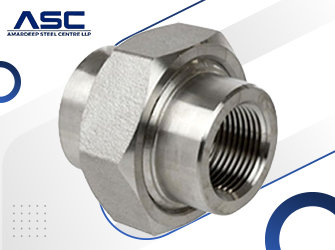

ASTM A182 F317L Threaded Screwed Union

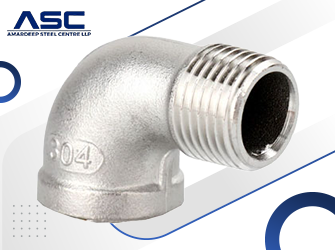

ASTM A182 F317L Threaded Screwed Street Elbow

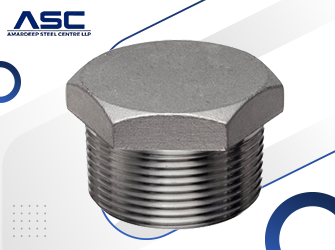

ASTM A182 F317L Threaded Screwed Hex Plug

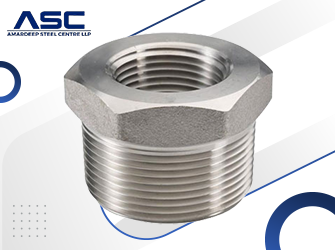

ASTM A182 F317L Threaded Screwed Bushing

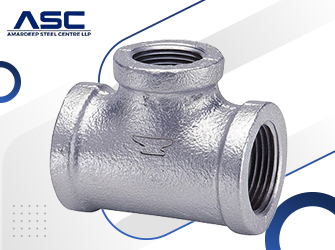

ASTM A182 F317L Stainless Steel Socket Weld Reducing Tee
ASTM A182 F317L Forged Pipe Elbow
ASTM A182 F317L Forged 90 Degree Elbow

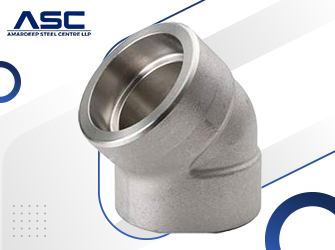

ASTM A182 F317L Forged 45 Degree Elbow

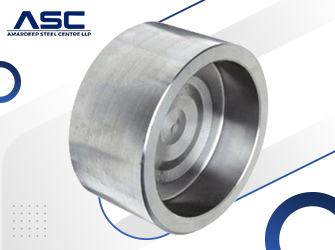

ASTM A182 F317L Stainless Steel Socket Weld Cap

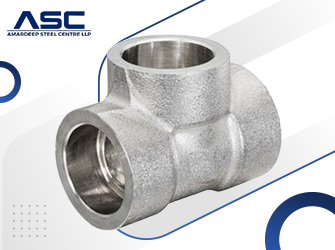

ASTM A182 F317L Forged Socket Weld Tee

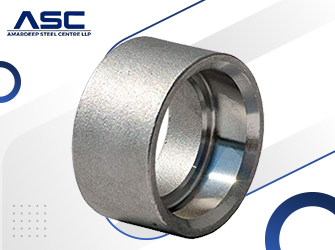

ASTM A182 F317L Forged Socket Weld Half Coupling
ASTM A182 F317L Forged Socket Weld Full Coupling
ASTM A182 F317L Forged Socket Weld Cross
317 threaded pipe fitting dimensions, 317 forged fittings definition, 3000 lb stainless steel 317 forged fittings, 317 forged fittings definition, 317 forged steel fittings, Stainless 317 class 3000 fittings pressure rating, 317L threaded pipe fitting dimensions, 317L forged fittings definition, 3000 lb stainless steel 317L forged fittings, 317L forged steel fittings, 317L ss class 3000 pipe fittings pressure rating, asme b16.11 class 3000, A Wide Range Of the Best Quality 317L Stainless Steel Forged Fittings, ss 317L forged fittings price list, ss 317L forged fittings price, asme b16.11 F317L fittings.
Class 150 ASTM A182 SS 317L Forged Fitting Pressure Rating Chart
Fitting Schedule/Class
Pipe Size
Connection Type
Material
Max. Pressure
Class 150
1/2"
FNPT / Welded
Stainless Steel 317
150 psi
Class 150
1/2"
Forged
Forged Stainless Steel 317
275 psi
Class 150
3/4"
FNPT / Welded
Stainless Steel 317
150 psi
Class 150
3/4"
Forged
Forged Stainless Steel 317
275 psi
Class 150
1"
FNPT / Welded
Stainless Steel 317
150 psi
Class 150
1"
Forged
Forged Stainless Steel 317
275 psi
Class 150
1-1/4"
FNPT / Welded
Stainless Steel 317
150 psi
Class 150
1-1/4"
Forged
Forged Stainless Steel 317
275 psi
Class 150
1-1/2"
FNPT / Welded
Stainless Steel 317
150 psi
Class 150
1-1/2"
Forged
Forged Stainless Steel 317
275 psi
Class 150
2"
FNPT / Welded
Stainless Steel 317
150 psi
Class 150
2"
Forged
Forged Stainless Steel 317
275 psi
Class 150
2-1/2"
FNPT / Welded
Stainless Steel 317
150 psi
Class 150
2-1/2"
Forged
Forged Stainless Steel 317
275 psi
Class 150
3"
FNPT / Welded
Stainless Steel 317
150 psi
Class 150
3"
Forged
Forged Stainless Steel 317
275 psi
Class 150
4"
FNPT / Welded
Stainless Steel 317
150 psi
Class 150
4"
Forged
Forged Stainless Steel 317
275 psi
Class 150
6"
FNPT / Welded
Stainless Steel 317
150 psi
SS UNS S31709 3000 LB Forged Screwed Fittings, Stockist of Wrought Austenitic Stainless Steel DIN 1.4449 317L Forged Fittings, 317L SS Forged 90 Deg Screwed Elbow, Affordable Price of ASME SA182M Stainless Steel 317 Class 6000 Fittings in Mumbai.
Size & Weight Chart of 317L SS Forged Fittings
DN-NPT
Major Diameter (mm)
Tapping Drill Size (mm)
TPI (Threads Per Inch)
Pitch (mm)
1/16"
7.895
6.00
27
0.941
1/8"
10.242
8.25
27
0.941
1/4"
13.616
10.70
18
1.411
3/8"
17.055
14.10
18
1.411
1/2"
21.223
17.40
14
1.814
3/4"
26.568
22.60
14
1.814
1"
33.228
28.50
11.5
2.209
1 1/4"
41.985
37.00
11.5
2.209
1 1/2"
48.054
43.50
11.5
2.209
2"
60.092
55.00
11.5
2.209
2 1/2"
72.699
65.50
8
3.175
3"
88.608
81.50
8
3.175
3 1/2"
101.316
94.30
8
3.175
4"
113.973
107.00
8
3.175
5"
141.300
134.384
8
3.175
6"
168.275
161.191
8
3.175
8"
219.075
211.673
8
3.175
10"
273.050
265.311
8
3.175
12"
323.850
315.793
8
3.175
DIN 1.4438 SS Socket Weld Cap, Exporter of 317 Stainless Steel Bushing, 317 Stainless Steel Threaded Plug, A182 F317L Forged Pipe Elbow, Grade 317 Threaded Street Elbow, SS 317 Forged Steel Screwed Fittings, SS 317L Forged Pipe Nipples Price per Kg in India.
Application Uses of Stainless Steel 317L Forged Fittings
Petrochemical Industry - Refinery equipment, cracking units
Power Generation - Boilers, superheaters, heat recovery systems
