Inconel 800 Flanges are manufactured from an alloy that consists of nickel, iron and chromium and is known for its high strength, resistance against oxidation and thermal stability. These flanges are used in heat exchanger, petrochemical plants, power generation plants, furnaces, etc, where carburization and corrosion protection is needed. Inconel 800 Flanges possess exceptional weldability properties and superior mechanical properties which enable them to be used in challenging pipe lines in the industry. The Inconel 800 Flanges that we manufacture and supply are: Welding neck, Slip-on, Blind, Socket welding and Lap joints.
Amardeep Steel is one of the leading manufacturer and supplier companies of Inconel 800 Flanges that are available in various sizes and dimensions as per international standards and deliver in different parts of the indian as well as internationally.Each flange is supplied with EN 10204 3.1/3.2 MTC, PMI reports, dimensional inspection, and third-party inspection support on request. We also supply 800H and 800HT variants for elevated-temperature creep-strength applications where standard Alloy 800 is not sufficient.
Table of Contents
- Incoloy 800 Flanges Specifications (ASTM B564 / ASME SB564, UNS N08800)
- Types of Incoloy Alloy 800 Flanges
- Chemical Composition of Incoloy Alloy 800 Flanges
- Mechanical Properties of Incoloy 800 Flanges
- Equivalent Standards of Incoloy Alloy 800 Flanges
- UNS Code of Incoloy Alloy 800 Flanges
- Dimensions Chart of Class 600 Nickel 800 Pipe Flange
- Weight Chart of Incoloy Alloy 800 Flanges
- Pressure Rating Chart of Incoloy Alloy 800 Flanges
- Applications Uses of Inconel 800 Flanges
- Frequently Asked Questions
Incoloy 800 Flanges Specifications (ASTM B564 / ASME SB564, UNS N08800)
| Category | Specification Details |
|---|---|
| Common Grades | Incoloy 800, 800H, 800HT |
| Size Range | 1/2" (15 NB) to 48" (1200 NB); DN10 to DN5000 |
| Global Standards | ANSI/ASME B16.5, B16.47 (Series A & B), B16.48, B16.36; BS 4504, BS 10, BS 1560-3.1; EN-1092; DIN; GOST; ISO 70051; JIS B2220; MSS S44; API 7S-15, 7S-43, 605 |
| Pressure Ratings | ANSI: Class 150, 300, 600, 900, 1500, 2500 LBS DIN/EN/UNI: PN6, PN10, PN16, PN25, PN40, PN64 JIS: 5K, 10K, 16K, 20K, 30K, 40K, 63K |
| Flange Face Types | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Lap-Joint Face (LJF), Male-Female (LMF/SMF), Tongue & Groove |
| Manufacturing Types | Forged, Threaded, Screwed, Plate |
| Production Technique | Forged, Heat treated, and Machined |
| Testing & Quality | 100% Radiography, EN 10204/3.1B, Raw Material Certificate, Third Party Inspection, Direct-reading Spectrograph, Hydrostatic testing, X-ray detector, Ultrasonic flaw detector, Magnetic particle detector |
| Equipment Used | Press machine, Bending machine, Pushing Machine, Electric bevelling machine, Sand-blasting machine |
| Special Designs | As per drawing; Equal and Reducing Configurations; 15 NB (1/2") to 200 NB (8") |
Chemical Composition of Incoloy Alloy 800 Flanges
| Grade | Carbon (C) | Mn | Si | S | Cu | Iron (Fe) | Nickel (Ni) | Cr | Al | Ti |
|---|---|---|---|---|---|---|---|---|---|---|
| 800 | max 0.10 | max 1.50 | max 1.00 | max 0.015 | max 0.75 | min 39.50 | 30.0 - 35.0 | 19.0 - 23.0 | 0.15 - 0.60 | 0.15 - 0.60 |
| 800H | 0.05 - 0.10 | max 1.50 | max 1.00 | max 0.015 | max 0.75 | min 39.50 | 30.0 - 35.0 | 19.0 - 23.0 | 0.15 - 0.60 | 0.15 - 0.60 |
| 800HT | 0.06 - 0.10 | max 1.50 | max 1.00 | max 0.015 | max 0.75 | min 39.50 | 30.0 - 35.0 | 19.0 - 23.0 | 0.15 - 0.60 | 0.15 - 0.60 |
Mechanical Properties of Incoloy 800 Flanges
| Property | Value |
|---|---|
| Density | 7.94 g/cm3 |
| Melting Point | 1385 °C (2525 °F) |
| Tensile Strength (R_m) | 75,000 Psi / 520 MPa |
| Yield Strength (0.2% Offset) | 30,000 Psi / 205 MPa |
| Elongation (A) | 30% |
Equivalent Standards and UNS Code of Incoloy 800 Flanges
| Grade | Werkstoff Nr. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 |
UNS Code of Incoloy Alloy 800 Flanges
| Standard | Designation / Value |
|---|---|
| UNS Number | N08800 |

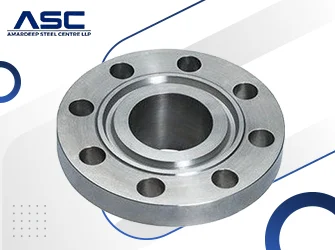

Types of Incoloy Alloy 800 Flanges
We supply a complete range of ASTM B564 and ASME SB564 UNS N08800 flanges in standard and project-specific configurations:
Dimensions Chart of Class 600 Nickel 800 Pipe Flange
| Nom. Size | OD | Min. T | RF Dia (R) | Holes | Hole Dia | Bolt Circle (BC) | SO Bore (SB) | Hub Base (HB) | Hub Top (HT) | SO LTH (SL) | WN LTH (WL) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 3.75 | 0.56 | 1.38 | 4 | 0.63 | 2.62 | 0.88 | 1.50 | 0.84 | 0.88 | 2.06 |
| 3/4 | 4.62 | 0.62 | 1.69 | 4 | 0.75 | 3.25 | 1.09 | 1.88 | 1.05 | 1.00 | 2.25 |
| 1 | 4.88 | 0.69 | 2.00 | 4 | 0.75 | 3.50 | 1.36 | 2.12 | 1.32 | 1.06 | 2.44 |
| 1-1/4 | 5.25 | 0.81 | 2.50 | 4 | 0.75 | 3.88 | 1.70 | 2.50 | 1.66 | 1.12 | 2.62 |
| 1-1/2 | 6.12 | 0.88 | 2.88 | 4 | 0.88 | 4.50 | 1.95 | 2.75 | 1.90 | 1.25 | 2.75 |
| 2 | 6.50 | 1.00 | 3.62 | 8 | 0.75 | 5.00 | 2.44 | 3.31 | 2.38 | 1.44 | 2.88 |
| 2-1/2 | 7.50 | 1.12 | 4.12 | 8 | 0.88 | 5.88 | 2.94 | 3.94 | 2.88 | 1.62 | 3.12 |
| 3 | 8.25 | 1.25 | 5.00 | 8 | 0.88 | 6.62 | 3.57 | 4.62 | 3.50 | 1.81 | 3.25 |
| 4 | 10.75 | 1.50 | 6.19 | 8 | 1.00 | 8.50 | 4.57 | 6.00 | 4.50 | 2.12 | 4.00 |
| 6 | 14.00 | 1.88 | 8.50 | 12 | 1.12 | 11.50 | 6.72 | 8.75 | 6.63 | 2.62 | 4.62 |
| 8 | 16.50 | 2.19 | 10.62 | 12 | 1.25 | 13.75 | 8.72 | 10.75 | 8.63 | 3.00 | 5.25 |
| 10 | 20.00 | 2.50 | 12.75 | 16 | 1.38 | 17.00 | 10.88 | 13.50 | 10.75 | 3.38 | 6.00 |
| 12 | 22.00 | 2.62 | 15.00 | 20 | 1.38 | 19.25 | 12.88 | 15.75 | 12.75 | 3.62 | 6.12 |
| 16 | 27.00 | 3.00 | 18.50 | 20 | 1.63 | 23.75 | 16.16 | 19.50 | 16.00 | 4.19 | 7.00 |
| 20 | 32.00 | 3.50 | 23.00 | 24 | 1.75 | 28.50 | 20.20 | 24.00 | 20.00 | 5.00 | 7.50 |
| 24 | 37.00 | 4.00 | 27.25 | 24 | 2.00 | 33.00 | 24.25 | 28.25 | 24.00 | 5.50 | 8.00 |
Weight Chart of Incoloy Alloy 800 Flanges
| Standard / Class | Diameter (mm) | Bolt Circle Dia. (mm) | No. of Bolts | Bolt Size | Bolt Hole Dia. (mm) |
|---|---|---|---|---|---|
| AS4087 PN14 | 120 | 87 | 4 | M12 | 14 |
| AS 2129 Table C | 120 | 87 | 4 | 13 | 14 |
| AS 2129 Table D | 120 | 87 | 4 | 13 | 14 |
| AS 2129 Table E | 120 | 87 | 4 | 13 | 14 |
| AS 2129 Table F | 135 | 98 | 4 | 16 | 18 |
| ANSI 150 | 117 | 89 | 4 | 13 | 16 |
| ANSI 300 | 133 | 98 | 4 | 16 | 19 |
| ANSI 600 | 133 | 98 | 4 | 16 | 19 |
| ANSI 900 | 159 | 111 | 4 | 22 | 25 |
| ANSI 1500 | 159 | 111 | 4 | 22 | 25 |
| ISO 7005 (DIN) PN6 | 120 | 90 | 4 | M12 | 14 |
| ISO 7005 (DIN) PN10 | 140 | 100 | 4 | M16 | 18 |
| ISO 7005 (DIN) PN16 | 140 | 100 | 4 | M16 | 18 |
| ISO 7005 (DIN) PN40 | 140 | 100 | 4 | M16 | 18 |
Pressure Rating Chart of Incoloy Alloy 800 Flanges
| Temperature (°C) | Class 1500 (Bar) | Class 2500 (Bar) |
|---|---|---|
| -29 to 38 | 258.6 | 430.9 |
| 50 | 258.6 | 430.9 |
| 100 | 257.6 | 429.4 |
| 150 | 250.8 | 418.2 |
| 200 | 241.7 | 402.8 |
| 250 | 231.8 | 386.2 |
| 300 | 214.4 | 357.1 |
| 350 | 201.1 | 335.3 |
| 400 | 183.1 | 304.9 |
| 450 | 169.0 | 281.8 |
| 500 | 140.9 | 235.0 |
| 550 | 124.9 | 208.0 |
| 600 | 107.0 | 178.5 |
| 650 | 70.4 | 117.3 |
| 700 | 43.8 | 73.0 |
Applications Uses of Inconel 800 Flanges
- Heat exchangers and pressure vessels
- Petrochemical and chemical processing plants
- Power generation and thermal power stations
- Furnace components and heat treatment equipment
- Oil & gas processing industries
- Nuclear engineering applications
- Boilers and superheater systems
Frequently Asked Questions
What are Inconel 800 flanges?
Inconel 800 flanges are nickel-iron-chromium alloy pipe flanges designed for high-temperature and corrosive industrial applications.
What is ASTM B564 Inconel 800 flange?
ASTM B564 Inconel 800 flange is a forged alloy flange manufactured according to ASTM B564 standards using UNS N08800 material.
Are Inconel 800 flanges corrosion resistant?
Yes, Inconel 800 flanges offer excellent resistance to oxidation, carburization, and corrosion in high-temperature environments.
What is the difference between Inconel 800, 800H, and 800HT flanges?
Inconel 800H and 800HT have higher carbon and controlled chemistry for improved creep strength at elevated temperatures compared to Inconel 800.
Are Inconel 800 flanges suitable for high-pressure applications?
Yes, Inconel 800 flanges are suitable for high-pressure and high-temperature piping systems in critical industries.
Request a Quote for Inconel 800 Flanges
Amardeep Steel Centre stocks a wide range of Inconel Flanges flanges ready for immediate dispatch. Whether you need standard sizes or custom-engineered flanges for critical service conditions, our team can assist with product selection, certifications, and export documentation.
