Inconel 825 Flanges Manufacturer and Exporter
The Inconel 825 Flanges are flanges made of a nickel-iron-chromium alloy that is highly resistant to oxidation, reduction, acids, and stress corrosion cracking in harsh industrial applications. They are ideal for chemical processing, marine, oil & gas, pollution control applications and are able to resist pitting, crevice corrosion, sulfuric acid, phosphoric acid and chloride attack. They are more resistant to corrosion, weldable, and thermally stable in a broad temperature range, including the cryogenic and high temperature range. Inconel 825 Flanges are also highly robust and strong for high-demand pipelines. Amardeep Steel Centre is a trusted manufacturer and supplier of top-notch quality Inconel 825 Flanges with precision-engineered products available in several dimensions, pressure classes and international standards for all over the world industrial applications.
Table of Contents
- Specifications of Inconel 825 Flanges
- Chemical Composition of Inconel 825 Flanges
- Mechanical Properties of Inconel 825 Flanges
- Equivalent Standards of Inconel 825 Flanges
- Types of Inconel 825 Flanges
- HS Code of Inconel 825 Flanges
- Dimension Table for Alloy 825 Flanges
- Weight Chart of 825 Incoloy Flanges
- Pressure Rating Classes of Nickel Alloy 825 Flanges
- Applications Usage of Inconel 825 Flanges
- Price list of Incoloy 825 & Nickel Alloy Flanges
- Frequently Asked Questions
Specifications of Inconel 825 Flanges
| Parameter | Details |
|---|---|
| Specifications | ASTM B564 / ASME SB 564 / 160 / 472 |
| Standards | ANSI, ASME, DIN, EN, BS, JIS, AWWA Flanges, etc. |
| Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Size Range | 1/2″ NB to 60″ NB |
| Pressure / Class | LBS: 150#, 300#, 600#, 900#, 1500#, 2500# PN: PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Chemical Composition of Inconel 825 Flanges
| Element | Carbon (C) | Manganese (Mn) | Silicon (Si) | Sulfur (S) | Copper (Cu) | Iron (Fe) | Nickel (Ni) | Chromium (Cr) |
|---|---|---|---|---|---|---|---|---|
| Weight % | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 |
Mechanical Properties of Inconel 825 Flanges
| Grade | Tensile Strength (min) | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|
| Incoloy 825 | 80,000 psi (550 MPa) | 32,000 psi (220 MPa) | 30% |
Equivalent Standards of Inconel 825 Flanges
| Grade | Werkstoff Nr. | UNS | BS (UK) | GOST (Russia) | EN (Europe) | JIS (Japan) | AFNOR (France) |
|---|---|---|---|---|---|---|---|
| Incoloy 825 | 2.4858 | N08825 | NA 16 | ЭП703 / XH38BT | NiCr21Mo | NCF 825 | NFE30C20DUM |

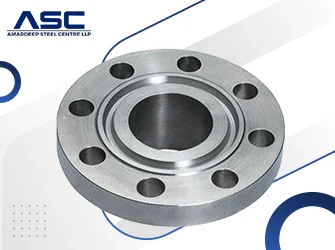

Types of Inconel 825 Flanges
HS Code of Inconel 825 Flanges
| Product Grade | HS Code |
|---|---|
| Incoloy 825 Flanges | 7307.91.90 |
Dimension Table for Alloy 825 Flanges
| NPS | OD | Holes | Thick (T) | RF Dia (R) | Bolt Circle (BC) | SO Bore (SB) | Hub Base (HB) | Hole Dia | WN Bore (WB) | Hub Top (HT) | WN LTH (WL) | SO LTH (SL) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3" | 8.25 | 8 | 1.25 | 5.00 | 6.62 | 3.57 | 5.00 | 0.88 | * | 3.50 | 4.00 | 2.12 |
| 4" | 10.75 | 8 | 1.50 | 6.19 | 8.50 | 4.57 | 6.25 | 1.00 | * | 4.50 | 4.50 | 2.75 |
| 5" | 13.00 | 8 | 1.75 | 7.31 | 10.50 | 5.66 | 7.50 | 1.12 | * | 5.56 | 5.00 | 3.12 |
| 6" | 14.00 | 12 | 1.88 | 8.50 | 11.50 | 6.72 | 9.25 | 1.12 | * | 6.63 | 5.50 | 3.38 |
| 8" | 16.50 | 12 | 2.19 | 10.63 | 13.75 | 8.72 | 11.75 | 1.25 | * | 8.63 | 6.38 | 4.00 |
| 10" | 20.00 | 16 | 2.50 | 12.75 | 17.00 | 10.88 | 14.50 | 1.38 | * | 10.75 | 7.25 | 4.25 |
| 12" | 22.00 | 20 | 2.62 | 15.00 | 19.25 | 12.88 | 16.50 | 1.38 | * | 12.75 | 7.88 | 4.63 |
| 14" | 23.75 | 20 | 2.75 | 16.25 | 20.75 | 14.14 | 17.75 | 1.50 | * | 14.00 | 8.38 | 5.12 |
| 16" | 27.00 | 20 | 3.00 | 18.50 | 23.75 | 16.16 | 20.00 | 1.63 | * | 16.00 | 8.50 | 5.25 |
| 18" | 29.25 | 20 | 3.25 | 21.00 | 25.75 | 18.18 | 22.25 | 1.75 | * | 18.00 | 9.00 | 6.00 |
| 20" | 32.00 | 24 | 3.50 | 23.00 | 28.50 | 20.20 | 24.50 | 1.75 | * | 20.00 | 9.75 | 6.25 |
| 24" | 37.00 | 24 | 4.00 | 27.25 | 33.00 | 24.25 | 29.50 | 2.00 | * | 24.00 | 11.50 | 8.00 |
Weight Chart of 825 Incoloy Flanges
| Standard | Class / Table | Dia (mm) | Bolt Size | No. of Bolts | Bolt Circle Dia | Dia of Bolt Hole |
|---|---|---|---|---|---|---|
| ISO 7005 (DIN) | PN16 | 95 | M12 | 4 | 65 | 14 |
| ISO 7005 (DIN) | PN10 | 95 | M12 | 4 | 65 | 14 |
| ISO 7005 (DIN) | PN25 | 95 | M12 | 4 | 65 | 14 |
| ISO 7005 (DIN) | PN6 | 80 | M10 | 4 | 55 | 11 |
| ISO 7005 (DIN) | PN20 | 90 | M14 | 4 | 60.5 | 16 |
| ISO 7005 (DIN) | PN40 | 95 | M12 | 4 | 65 | 14 |
| ANSI B16.5 | ANSI 1500 | 121 | 19 | 4 | 83 | 22 |
| ANSI B16.5 | ANSI 600 | 95 | 13 | 4 | 67 | 16 |
| ANSI B16.5 | ANSI 300 | 95 | 13 | 4 | 67 | 16 |
| ANSI B16.5 | ANSI 900 | 121 | 19 | 4 | 83 | 22 |
| ANSI B16.5 | ANSI 150 | 89 | 13 | 4 | 60 | 16 |
| AS 4087 | PN14 | 95 | M12 | 4 | 67 | 14 |
| AS 2129 | Table F | 95 | 13 | 4 | 67 | 14 |
| AS 2129 | Table D | 95 | 13 | 4 | 67 | 14 |
| AS 2129 | Table J | 114 | 16 | 4 | 83 | 17 |
| AS 2129 | Table E | 95 | 13 | 4 | 67 | 14 |
| AS 2129 | Table H | 114 | 16 | 4 | 83 | 17 |
| AS 2129 | Table C | 95 | 13 | 4 | 67 | 14 |
Pressure Rating Classes of Nickel Alloy 825 Flanges
| Class | 100°F (37.8°C) | 200°F (93.3°C) | 400°F (204.4°C) | 600°F (315.6°C) | 800°F (426.7°C) |
|---|---|---|---|---|---|
| 150 | 285 psi (2.0 MPa) | 270 psi (1.9 MPa) | 240 psi (1.7 MPa) | 210 psi (1.4 MPa) | 185 psi (1.3 MPa) |
| 300 | 740 psi (5.1 MPa) | 700 psi (4.8 MPa) | 620 psi (4.3 MPa) | 540 psi (3.7 MPa) | 480 psi (3.3 MPa) |
| 600 | 1480 psi (10.2 MPa) | 1370 psi (9.4 MPa) | 1240 psi (8.6 MPa) | 1080 psi (7.5 MPa) | 960 psi (6.6 MPa) |
| 900 | 2220 psi (15.3 MPa) | 2050 psi (14.1 MPa) | 1840 psi (12.7 MPa) | 1620 psi (11.1 MPa) | 1440 psi (9.9 MPa) |
Applications Usage of Inconel 825 Flanges
- Acidic Environments
- Seawater
- Sour Gas
- Chemical Processing
- Oil and Gas
- Offshore Drilling
- Nuclear Fuel Reprocessing
- Marine & Ship Building
- Power Generation
Price list of Incoloy 825 & Nickel Alloy Flanges
| Product Description | Pricing Unit | FOB Price (USD) |
|---|---|---|
| Incoloy 825 ASTM B564 SO (10") | Kilogram | $1.00 – $100.00 |
| Incoloy 825 ASTM B564 SO (10") | Piece | $1.00 – $100.00 |
| Incoloy 825 ASTM B564 SO (5") | Kilogram | $1.00 – $300.00 |
| Incoloy 825 ASTM B564 Weld Neck (12") | Piece | $1.00 – $100.00 |
| Incoloy 825 ASTM B564 Weld Neck (5") | Kilogram | $1.00 – $300.00 |
| Incoloy 825 Forged & Plate Flanges (SO/WN) | Kilogram | $18.00 – $30.00 |
| Incoloy 825 Slip-On Flanges (Forged/Plate) | Kilogram | $18.00 – $30.00 |
| Incoloy 825 UNS N08825 Orifice Flange | Kilogram | $8.00 – $25.00 |
| Incoloy 825 Flanges (ASTM/ASME SB 564) | Kilogram | $30.00 – $45.00 |
| Incoloy 825 Rotating Flange | Kilogram | $1.00 – $30.00 |
| Incoloy 825 UNS N08825 (Lap Joint / Blind / WN) | Piece | $1.00 – $10,000.00 |
| Incoloy 825 Weld Overlay Clad Flange | Ton | $752.00 – $852.00 |
| Incoloy 825 UNS N08825 (General) | Kilogram | $20.00 – $100.00 |
| ANSI B16.5 Nickel Alloy Flange | Kilogram | $10.00 – $300.00 |
| Incoloy 825 / Inconel 600 / 625 Forgings | Kilogram | $30.00 – $35.00 |
| Inconel UNS N06600 | Piece | $10.00 – $118.00 |
Frequently Asked Questions
What is Inconel 825 used for?
Inconel 825 is used in chemical processing, marine, oil & gas, and pollution control applications.
Why are Inconel 825 Flanges used in chemical industries?
They are used because they offer excellent resistance to acids, corrosion, and harsh chemicals.
Is Inconel 825 better than stainless steel?
In corrosive and high-temperature environments, Inconel 825 performs better than standard stainless steel.
What makes Inconel 825 corrosion resistant?
Its high nickel, chromium, molybdenum, and copper content improves resistance to corrosion and chemical attack.
Can Inconel 825 Flanges handle high temperatures?
Yes, Inconel 825 Flanges perform well in both high-temperature and cryogenic conditions.
Request a Quote for Inconel 825 Flanges
Amardeep Steel Centre stocks a wide range of Inconel Flanges flanges ready for immediate dispatch. Whether you need standard sizes or custom-engineered flanges for critical service conditions, our team can assist with product selection, certifications, and export documentation.
