Brass Finned Tubes Manufacturer and Supplier in India
Brass Finned Tubes are manufactured to meet the demands of requiring high thermal conductivity and corrosion resistance, making them suitable for use in heat exchangers where heat dissipation and durability are key requirements. The tubes are produced by winding, extruding or machining outside fins on to a brass base tube, which results in a higher surface area for heat transfer but allows the tube to retain its structure. Typical proportions of copper and zinc in most grades of brass for finned tubes are about 60–70% Cu and 30–40% Zn; thermal conductivity is up to 120 W/m·K; tensile strength is 300–500 MPa,
depending on the grade of brass. Amardeep Steel is a reliable Brass Finned Tubes manufacturer in India and also a supplier of Brass Finned Tubes that delivers precision engineered finned tubes in custom sizes, fin profile and material grade that are required to adhere to international quality standards.
Technical Data
Specifications of Brass Finned Tubes
| Parameter | Metric Value / Designation | Imperial Value / Standard |
|---|---|---|
| Tube Outer Diameter (OD) | 12.7 mm to 101.6 mm | 0.50″ to 4.00″ |
| Fin Height | 6.35 mm to 19.05 mm | 0.25″ to 0.75″ |
| Fin Thickness | 0.30 mm to 1.50 mm | 0.012″ to 0.059″ |
| Fins Per Inch (FPI) | 4, 5, 7, 8, 9, 10, 11, 14, 16 FPI | 4 to 16 FPI |
| Fin Density | 157 to 630 fins/meter | 157 to 630 fins/meter |
| Maximum Tube Length | Up to 15,240 mm | Up to 600″ (50 ft) |
| Tube Materials (Named Grades) | Admiralty Brass, Arsenical Brass, Antimonial Brass, Aluminium Brass, Cartridge Brass, CuZn28Sn1 | UNS C44300, UNS C44400, UNS C44500, UNS C68700, UNS C26000, EN CZ111 |
| Fin Materials | 1060 / 1100 Aluminium, ETP Copper, Admiralty Brass | ASTM B209 (Aluminium), ASTM B152 (C11000 Copper), ASTM B111 (C44300 Brass) |
| Fin Types / Attachments | L-Foot (Tension), Double L (KL), Embedded (G-Type), Extruded (High Profile) | Helical Solid, Helical Serrated, Low Fin (High & Low Profile) |
| Manufacturing & Testing Standards | DIN 1785, EN 12451 / EN 12452 | ASTM B111 / B111M, ASME SB111, TEMA Class R/B/C |
Size Chart of Brass Finned Tubes
| Fin Diameter | Tube Diameter | Fins Per Inch (FPI) |
|---|---|---|
| 1 3/8″ (35 mm) | 5/8″ (15.9 mm) | 4 to 8 FPI |
| 1 1/2″ (38.1 mm) | 3/4″ (19 mm) | 5 to 10 FPI |
| 1 3/4″ (44.5 mm) | 7/8″ (22.2 mm) | 7 to 11 FPI |
| 2″ (50.8 mm) | 1″ (25.4 mm) | 9 to 14 FPI |
| 2 1/2″ (63.5 mm) | 1 1/2″ (38.1 mm) | 8 to 16 FPI |
Types of Brass Finned Tubes
.webp "Admiralty Brass Finned Tube (ASME VIII-1)")
Admiralty Brass Finned Tube (ASME VIII-1)
Admiralty Brass Finned Tubes
Admiralty Brass Low Finned Tube
Aluminium Brass Fin Tube

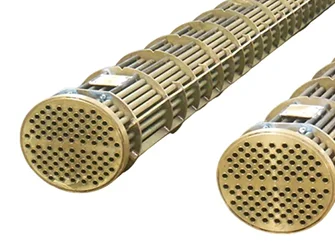

Brass Finned Tube Heat Exchanger

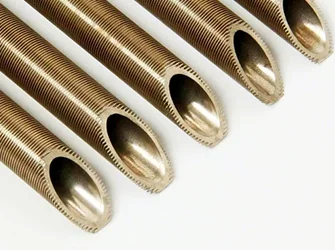

C44300 Admiralty Brass Finned Tubes

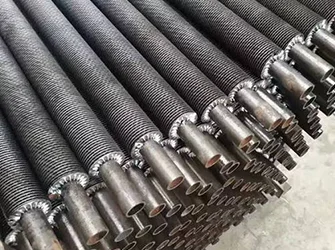

Crimped Type Brass Fin Tube
 Brass Fin Tube.webp "Extruded (Bimetallic) Brass Fin Tube")

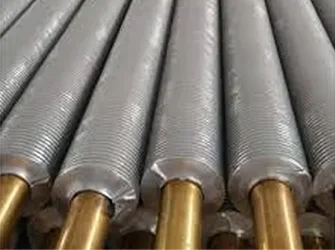

Extruded (Bimetallic) Brass Fin Tube
G-Type _ Embedded Brass Fin Tube
Integral Low Finned Brass Tube

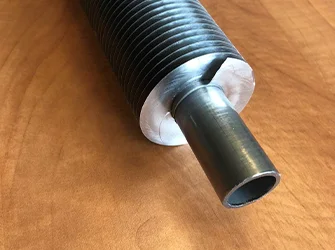

L-Type Brass Fin Tube
LL-Type Brass Fin Tube

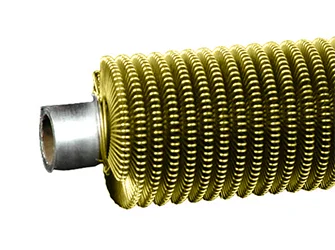

Tension Wound _ Spiral Wound Brass Fin Tube
Applications and Industrial Uses of Brass Finned Tubes
- Shell and Tube Heat Exchangers
- Surface Condensers
- Marine Cooling Systems
- HVAC Systems
- Power Generation Plants
- Petrochemical Processing Plants
- Oil & Gas Heat Recovery Systems
- Industrial Process Cooling Equipment
Frequently Asked Questions
1. What are Brass Finned Tubes?
Brass Finned Tubes are heat exchanger tubes with external brass fins designed to increase surface area and improve heat transfer efficiency.
2. How are Brass Finned Tubes manufactured?
They are manufactured by attaching fins to a brass tube using processes such as winding, extrusion, or machining, depending on the application requirements.
3. Why is brass used for finned tubes?
Brass is used because it offers excellent thermal conductivity, good corrosion resistance, high strength, and long service life in cooling and heat exchange applications.
4. What is the difference between Brass Finned Tubes and Copper Finned Tubes?
Brass Finned Tubes provide better mechanical strength and corrosion resistance, while Copper Finned Tubes offer higher thermal conductivity but are softer and less durable.
5. Are Brass Finned Tubes corrosion resistant?
Yes. Brass Finned Tubes have excellent resistance to corrosion in cooling water, seawater, and many industrial process fluids, making them suitable for demanding environments.
