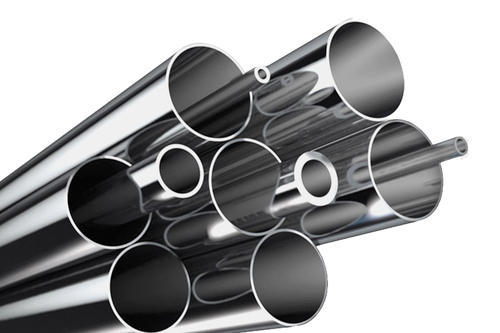

Stainless Steel 316 Pipe is an austenitic stainless steel grade pipe that has good resistance to chloride ion corrosion stress cracking. For this reason, SS 316 Pipes is used in marine and seawater applications with ease. The wall thickness of SS 316 Pipes ranges from 0.5mm to 6.35mm and the length varies according to the custom needs. There are welded seamless, and electric fusion welded pipe types. The SS 316 Pipe, 316 Stainless Steel Seamless Pipe ranges in outer diameter from ½ inches to 16 inches the welded pipes range up to 24 inches and the electric fusion welded pipes range up to 100 inches.
Stainless Steel 316 Welded Pipe is welded from strips of the same grade and they have equal strength as the 304 types but with added corrosion resistance due to the 4% molybdenum content in the composition. The ASTM A312 TP316 ERW Pipe belongs to the A312 specification for tubular products and it can be used for high-temperature and high-pressure applications. The most use cases of the Stainless Steel DIN 1.4401 Pipe can be seen in pollution control, wastewater purification, seawater desalination, and marine applications. Please contact us for more product information and the SS UNS S31600 Schedule 40 Pipe pricing.
Stainless Steel 316 Supplier
Amardeep Steel is a leading supplier and manufacturer of Stainless Steel 316 Pipe products in various scales and dimensions.316 alloy is a standard molybdenum-bearing grade. The Stainless Steel 316 Pipe/ Tube is designed with excellent corrosion resistance. SS 316 Pipe grade has better crevice corrosion and pitting resistance compared to the 304 grade. The Stainless Steel 316 Pipe is designed with a minimum tensile strength of 515Mpa and minimum yield strength of 200Mpa. They also possess a good density of 8000kg/m3. The standard wall thickness of SS 316 Pipes ranges from 0.5mm to 6.35mm. The SS 316 Seamless Pipe is made without a fillet or welds.
SS 316 Pipes range from ½ inches to 16 inches in outer diameter. SS 316 Pipes are widely used in marine systems, pulp, and paper, chemical industries, etc. This Marine grade 316 Stainless Steel Tubing doesn’t corrode or rust in these harsh marine environments. It is also referred to in many cases as marine stainless steel.
SS 316 Pipe Price Per Kg
A price list for SS 316 pipe is offered for buyers’ convenience. 316 stainless steel pipe price list is based upon some criteria, including the raw materials used in its manufacture, its components, and logistics. The list contains additional fees and taxes in addition to establishing the price per foot. When compared to other types of pipes, the pricing of SS 316 pipes is competitive. Check the quality of the pipes before purchasing them while comparing the 316 stainless steel pipe pricing list.
Strength difference between stainless steel 316 seamless and welded pipe
The strength is different in different types of materials and methods of production. The pipes are produced in welded or seamless conditions. The seamless pipes are produced by drawing them from a single billet where the wall thickness is even and there is no joint between two parts of the pipe. So the strength is evenly distributed.
The welded pipes on the other hand are welded from a strip of metal either longitudinally or spirally. In both cases, the welded joints are weak spots when it comes to pressure containment. So the welded pipes can operate up to 80% of the pressure levels where the seamless ones can operate.
Check Out Our Related Blog on - 304 Stainless Steel vs 316
SS 316 Pipe Specification
316 Steel Pipe Specification; 0.020" –0.220", (special wall thicknesses available) · Single Random, Double Random, Standard & Cut length Pipe & Tube · Polished
| Specifications | ASTM A 312 ASME SA 312 / ASTM A 358 ASME SA 358 |
|---|---|
| Dimensions | ASTM, ASME and API |
| SS 316 – 316L Pipes | 1/2″ NB – 16″ NB |
| ERW 316 – 316L Pipes | 1/2″ NB – 24″ NB |
| EFW 316 – 316L Pipes | 6″ NB – 100″ NB |
| Size | 1/8″NB TO 30″NB IN |
| Specialized in | Large Diameter Size |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |
ASTM A312 Grade Tp 316 Chemical Composition
| Weight % | C | Mn | P | S | Si | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| 316 |
.08
|
2.00
|
.045
|
.030
|
1.00
|
16.0-18.0
|
11.0-14.0
|
2.0-3.0
|
Mechanical Properties of Stainless Steel 316 Pipe
| Grade | Elongation (% in 50mm) min | Strength of Yield 0.2% Proof (MPa) minimum | Strength of Tensile (MPa) minimum | Pipe Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) maximum | Brinell (HB) maximum | ||||
| 316 | 40 | 205 | 515 | 95 | 217 |
Schedules 40 316 Stainless Steel Pipe
316 pipe stock is available in full-size and custom-cut lengths. We carry 316 pipes in Schedule 10, Schedule 40, and Schedule 80.
| 316 Stainless Steel Pipes OD mm |
Pipe WT mm |
in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
316 Stainless Steel Pipe Dimensions
| Nominal Pipe Size | Outside Diameter | Sch 5s Lbs/ft | Sch 10s Lbs/ft | Sch 40s Lbs/ft | Sch 80s Lbs/ft | Sch 160 Lbs/ft | XX Strong Lbs/ft |
|---|---|---|---|---|---|---|---|
| 1/8 | 0.405 | 0.049 | 0.19 | 0.068 | 0.25 | 0.095 | - |
| 1/4 | 0.54 | 0.065 | 0.31 | 0.088 | 0.43 | 0.119 | - |
| 3/8 | 0.675 | 0.085 | 0.43 | 0.091 | 0.58 | 0.126 | - |
| 1/2 | 0.84 | 0.109 | 0.55 | 0.109 | 0.85 | 0.147 | 1.09 |
| 3/4 | 1.05 | 0.065 | 0.7 | 0.083 | 1.2 | 0.154 | 1.29 |
| 1 | 1.315 | 0.065 | 1.4 | 0.133 | 1.7 | 0.179 | 2 |
| 1-1/4 | 1.66 | 0.065 | 1.9 | 0.14 | 2.3 | 0.191 | 3.1 |
| 1-1/2 | 1.9 | 0.065 | 2.2 | 0.145 | 2.7 | 0.2 | 3.7 |
| 2 | 2.375 | 0.065 | 3 | 0.154 | 3.7 | 0.218 | 5.1 |
| 2-1/2 | 2.875 | 0.083 | 3.1 | 0.203 | 5.8 | 0.276 | 7.7 |
| 3 | 3.5 | 0.083 | 4.3 | 0.216 | 7.6 | 0.3 | 10.3 |
| 3-1/2 | 4 | 0.083 | 5.1 | 0.226 | 9 | 0.318 | 12.4 |
| 4 | 4.5 | 0.083 | 6.3 | 0.237 | 10.8 | 0.337 | 14.8 |
| 5 | 5.563 | 0.109 | 8 | 0.258 | 15 | 0.375 | 23 |
| 6 | 6.625 | 0.109 | 10.8 | 0.28 | 19 | 0.432 | 29.8 |
| 8 | 8.625 | 0.109 | 14.3 | 0.322 | 29.2 | 0.5 | 44.5 |
| 10 | 10.75 | 0.134 | 18.9 | 0.365 | 43.4 | 0.5 | 60.2 |
| 12 | 12.75 | 0.156 | 24.7 | 0.375 | 50.7 | 0.5 | 67 |
| 14 | 14 | 0.156 | 27.8 | 0.375 | 55 | 0.5 | 73.8 |
| 16 | 16 | 0.188 | 36.6 | 0.375 | 64.1 | 0.5 | 84.7 |
| 18 | 18 | 0.188 | 42.8 | 0.375 | 71.6 | 0.5 | 95.7 |
| 20 | 20 | 0.218 | 51.9 | 0.375 | 88.7 | 0.5 | 107.5 |
| 22 | 22 | 0.218 | 58.7 | 0.375 | 96.9 | 0.5 | 119.2 |
| 24 | 24 | 0.218 | 64.9 | 0.375 | 105.2 | 0.5 | 130.9 |
| 26 | 26 | - | 81.3 | 0.375 | 121.3 | 0.5 | 144 |
| 28 | 28 | - | 88.4 | 0.375 | 129.1 | 0.5 | 155 |
| 30 | 30 | - | 95.6 | 0.375 | 137 | 0.5 | 166 |
| 32 | 32 | - | 101 | 0.375 | 145 | 0.5 | 177 |
| 34 | 34 | - | 105.2 | 0.375 | 153 | 0.5 | 188 |
| 36 | 36 | - | 113.5 | 0.375 | 161 | 0.5 | 199 |
| 38 | 38 | - | 121.8 | 0.375 | 171 | 0.5 | 210 |
| 40 | 40 | - | 130 | 0.375 | 183 | 0.5 | 221 |
| 42 | 42 | - | 138.3 | 0.375 | 195 | 0.5 | 233 |
| 48 | 48 | - | 155 | 0.375 | 260 | 0.5 |
316 Stainless Steel Pipe Sizes
| Wall Thickness | Stainless Steel 316 Tube Sizes ( O.D.) |
|---|---|
| .010 | 1/16" , 1/8" , 3/16" |
| .020 | 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8" |
| .012 | 1/8" |
| .016 | 1/8" , 3/16" |
| .028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
| .035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
| .083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
| .095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
| .109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
| .120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
| .125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
| .134 | 1" |
| .250 | 3" |
| .375 | 3 1/2" |
SS 316 Pipe HSN Code
| HS CODE | DESCRIPTION |
|---|---|
| 7307 | Tube Or Pipe Fittings (For Example, Couplings, Elbows, Sleeves), Of Iron Or Steel |
| 73071900 | Other |
| 73072900 | Other |
| 73072300 | Butt welding fittings |
| 7304 | Tubes, Pipes And Hollow Profiles, Seamless, Of Iron (Other Than Cast Iron) Or Steel |
| 73044100 | Cold-drawn or cold-rolled (cold-reduced) |
| 73041110 | Tubes and pipes |
Stainless Steel 316 Pipe Exporter
Amardeep Steel is a trusted exporter of high-quality Stainless Steel 316 Pipe, supplying clients worldwide with products that meet diverse industrial needs.
Mexico, Afghanistan, Italy, Switzerland, Czech Republic, Algeria, Angola, Brazil, Poland, Colombia, Slovakia, Trinidad & Tobago, Tunisia, Chile, Bahrain, Iran, Indonesia, Libya, Croatia, Austria, Norway, Estonia, Belarus, Philippines, Mexico, China, Hungary, Iraq, Jordan, Bolivia, South Africa, Australia, Chile, Israel, Bhutan, Hong Kong, Germany, Poland, Kazakhstan, Spain, Macau, Pakistan, Sri Lanka, Lebanon, Namibia, Sweden, Qatar, Kuwait, Canada, Gambia, Greece, Ukraine, United Arab Emirates, Puerto Rico, Turkey, New Zealand, Oman, Netherlands, Venezuela, Finland, Argentina, United Kingdom, Yemen, Nigeria, Nigeria, Portugal, India, South Korea, Tibet, Malaysia, Peru, Russia, Denmark, Ghana, Singapore, Bulgaria, Iran, Morocco, Ecuador, Gabon, Costa Rica, Azerbaijan, United States, Taiwan, Belgium, Lithuania, Thailand, Bangladesh, Japan, Egypt, Saudi Arabia, Mongolia, Romania, France, Serbia, Ireland, Nepal, Vietnam, Kenya, Zimbabwe.
Stainless Steel 316 Pipe Exporter
Amardeep Steel is a prominent exporter of Stainless Steel 316 Pipe, delivering high-quality products to a diverse clientele across major cities in Europe and beyond.
Ukraine, Costa Rica, Macau, Bulgaria, Afghanistan, Ghana, Nigeria, New Zealand, Qatar, Taiwan, Morocco, Nepal, Malaysia, Portugal, Bolivia, Belgium, South Korea, Finland, Argentina, Azerbaijan, Kazakhstan, South Africa, Iran, Namibia, Chile, Bhutan, Israel, Yemen, Puerto Rico, Turkey, Croatia, Austria, Poland, Netherlands, Mongolia, Sweden, United Kingdom, Belarus, Germany, Colombia, Iraq, Gabon, Poland, Spain, United States, Ecuador, Philippines, Oman, Angola, Italy, Kenya, Lithuania, Lebanon, Gambia, Russia, Hong Kong, Ireland, Sri Lanka, Venezuela, Czech Republic, Romania, Greece, United Arab Emirates, Mexico, Bangladesh, Thailand, Australia, Estonia, Singapore, Indonesia, Mexico, Switzerland, Chile, Norway, Pakistan, Bahrain, Hungary, Slovakia, Egypt, China, Jordan, Serbia, Peru, Trinidad & Tobago, Tunisia, Kuwait, Zimbabwe, Algeria, Japan, Canada, France, India, Iran, Tibet, Libya, Nigeria, Vietnam, Saudi Arabia, Denmark, Brazil.
FAQs
1. What is the difference between 304 and 316 pipes?
Most stainless steel ordered around the world is Grade 304. It offers the standard corrosion resistance, formability, strength, and easy maintenance for which stainless is known. While 316 comes in second in terms of quantities sold, it offers vastly superior corrosion resistance to chlorides and acids.
2. How to check stainless steel 304 and 316?
Acid testing is one test that will separate 304 and 316 grades of stainless steel. Hydrochloric acid attacks 304 grade very rapidly and produces gas, but attacks 316 grade only very slowly.
3. What is the density of the SS316 pipe?
The density of Stainless Steel 316 is approximately 8.0 g/cm³ (grams per cubic centimeter) or 0.289 lb/in³ (pounds per cubic inch).
SS 316 Pipe Weight Chart
| NPS | Outside Diameter | Wall Thickness | Weight | Weight | |||
|---|---|---|---|---|---|---|---|
| in | mm | in | mm | Sched | kg/Mtr | Lb/ft | |
| 1/2″ | 0.840 | 21 | 0.109 | 2.769 | 40 STD | 1.268 | 0.851 |
| 0.147 | 3.734 | 80 STD | 1.621 | 1.088 | |||
| 3/4″ | 1.050 | 27 | 0.113 | 2.870 | 40 STD | 1.684 | 1.131 |
| 0.154 | 3.912 | 80 STD | 2.195 | 1.474 | |||
| 1″ | 1.315 | 33 | 0.133 | 3.378 | 40 STD | 2.501 | 1.679 |
| 0.179 | 4.547 | 80 STD | 3.325 | 2.172 | |||
| 1 1/4″ | 1.660 | 42 | 0.140 | 3.556 | 40 STD | 3.385 | 2.273 |
| 0.191 | 4.851 | 80 STD | 4.464 | 2.997 | |||
| 1 1/2″ | 1.900 | 48 | 0.145 | 3.683 | 40 STD | 4.048 | 2.718 |
| 0.200 | 5.080 | 80 STD | 5.409 | 3.361 | |||
| 2″ | 2.375 | 60 | 0.154 | 3.912 | 40 STD | 5.441 | 3.653 |
| 0.218 | 5.537 | 80 STD | 7.480 | 5.022 | |||
| 2 1/2″ | 2.875 | 73 | 0.203 | 5.516 | 40 STD | 8.629 | 5.793 |
| 0.276 | 7.010 | 80 STD | 11.411 | 7.661 | |||
| 3″ | 3.500 | 89 | 0.216 | 5.486 | 40 STD | 11.284 | 7.576 |
| 0.300 | 7.620 | 80 STD | 15.272 | 10.253 | |||
| 4″ | 4.500 | 114 | 0.237 | 6.020 | 16.073 | 10.790 | |
| 0.337 | 8.560 | 22.318 | 14.983 | ||||
| 6″ | 6.625 | 168 | 0.188 | 4.775 | 19.252 | 12.924 | |
| 0.203 | 5.516 | 20.739 | 13.923 | ||||
| 0.219 | 5.563 | 22.318 | 14.983 | ||||
| 0.250 | 6.350 | 25.354 | 17.021 | ||||
| 0.280 | 7.112 | 40 STD | 58.263 | 18.974 | |||
| 0.312 | 7.925 | 31.334 | 21.036 | ||||
| 0.375 | 9.525 | 37.285 | 25.031 | ||||
| 0.432 | 10.973 | 80 XHY | 42.561 | 28.573 | |||
| 0.500 | 12.700 | 48.719 | 32.708 | ||||
| 8″ | 8.625 | 219 | 0.188 | 4.775 | 25.233 | 16.940 | |
| 0.203 | 5.156 | 27.198 | 18.259 | ||||
| 0.219 | 5.563 | 29.286 | 19.661 | ||||
| 0.250 | 6.350 | 20 | 33.308 | 22.361 | |||
| 0.277 | 7.036 | 30 | 36.786 | 24.696 | |||
| 0.322 | 8.179 | 40 | 42.352 | 28.554 | |||
| 0.375 | 9.525 | 49.216 | 33.041 | ||||
| 0.406 | 10.312 | 60 | 53.085 | 35.638 | |||
| 0.500 | 12.700 | 80 XHY | 64.627 | 43.388 | |||
| 10″ | 10.750 | 273 | 0.188 | 4.775 | 31.588 | 21.207 | |
| 0.219 | 5.563 | 36.689 | 24.631 | ||||
| 0.250 | 6.350 | 20 | 41.759 | 28.035 | |||
| 0.307 | 7.798 | 30 | 51.002 | 34.240 | |||
| 0.344 | 8.738 | 56.946 | 38.231 | ||||
| 0.365 | 9.271 | 40 STD | 63.301 | 40.483 | |||
| 0.438 | 11.125 | 71.852 | 48.238 | ||||
| 0.500 | 12.700 | 60 XHY | 81.530 | 54.735 | |||
| 0.594 | 15.088 | 80 | 95.969 | 64.429 | |||
| 12″ | 12.750 | 324 | 0.188 | 4.775 | 37.570 | 25.222 | |
| 0.219 | 5.563 | 43.657 | 29.309 | ||||
| 0.250 | 6.350 | 49.713 | 33.375 | ||||
| 0.281 | 7.137 | 55.739 | 37.420 | ||||
| 0.312 | 7.925 | 61.735 | 41.445 | ||||
| 0.375 | 9.525 | 73.824 | 49.562 | ||||
| 0.406 | 10.312 | 79.727 | 53.525 | ||||
| 0.500 | 12.700 | 97.438 | 65.415 | ||||
| 0.562 | 14.275 | 108.966 | 73.154 | ||||
| 14″ | 14.000 | 356 | 0.188 | 4.775 | 41.308 | 27.732 | |
| 0.219 | 5.563 | 48.012 | 32.233 | ||||
| 0.250 | 6.350 | 20 | 54.685 | 36.713 | |||
| 0.281 | 7.137 | 61.327 | 41.172 | ||||
| 0.312 | 7.925 | 67.939 | 45.611 | ||||
| 0.375 | 9.525 | STD | 81.281 | 54.568 | |||
| 0.438 | 11.125 | 40 | 94.498 | 63.441 | |||
| 0.500 | 12.700 | XHY | 107.381 | 72.090 | |||
| 0.625 | 15.875 | 132.983 | 89.278 | ||||
| 16” | 16.000 | 406 | 0.188 | 4.775 | 47.290 | 21.748 | |
| 0.219 | 5.563 | 54.980 | 36.910 | ||||
| 0.250 | 6.350 | 10 | 62.639 | 42.053 | |||
| 0.281 | 7.137 | 70.268 | 47.174 | ||||
| 0.312 | 7.925 | 20 | 77.866 | 52.275 | |||
| 0.344 | 8.738 | 85.677 | 57.519 | ||||
| 0.375 | 9.525 |
30 STD |
93.213 | 62.578 | |||
| 0.438 | 11.125 | 108.433 | 72.797 | ||||
| 0.500 | 12.700 |
40 XHY |
123.289 | 82.770 | |||
| 18″ | 18.000 | 457 | 0.219 | 5.563 | 61.948 | 41.588 | |
| 0.250 | 6.350 | 70.593 | 47.393 | ||||
| 0.281 | 7.137 | 79.208 | 53.176 | ||||
| 0.312 | 7.925 | 20 | 87.792 | 58.939 | |||
| 0.375 | 9.525 | STD | 105.144 | 70.588 | |||
| 0.438 | 11.125 | 30 | 122.369 | 82.152 | |||
| 0.500 | 12.700 | XHY | 139.198 | 93.450 | |||
| 0.562 | 14.275 | 40 | 155.904 | 104.666 | |||
| 0.625 | 15.875 | 172.754 | 115.978 | ||||
| 20″ | 20.000 | 508 | 0.250 | 6.350 | 78.547 | 52.733 | |
| 0.282 | 7.163 | 88.458 | 59.386 | ||||
| 0.312 | 7.925 | 97.719 | 65.604 | ||||
| 0.375 | 9.525 | 20 STD | 117.075 | 78.598 | |||
| 0.438 | 11.125 | 136.305 | 91.508 | ||||
| 0.500 | 12.700 | 30 XHY | 155.106 | 104.130 | |||
| 0.594 | 15.088 | 40 | 183.378 | 123.110 | |||
| 0.625 | 15.875 | 192.640 | 129.328 | ||||
| 0.688 | 17.475 | 211.368 | 141.901 | ||||
| 24″ | 24.000 | 610 | 0.250 | 6.350 | 94.456 | 63.413 | |
| 0.281 | 7.137 | 106.029 | 71.183 | ||||
| 0.312 | 7.925 | 117.573 | 18.932 | ||||
| 0.375 | 9.525 | 20 STD | 140.938 | 64.618 | |||
| 0.438 | 11.125 | 164.176 | 110.219 | ||||
| 0.500 | 12.700 | XHY | 186.923 | 125.490 | |||
| 0.625 | 15.875 | 232.410 | 156.028 | ||||
| 0.688 | 17.475 | 40 | 255.148 | 171.293 | |||
| 0.750 | 19.050 | 277.401 | 186.233 | ||||
| 30″ | 30.000 | 762 | 0.250 | 6.350 | 118.318 | 79.433 | |
| 0.281 | 7.137 | 132.851 | 89.189 | ||||
| 0.312 | 7.925 | 10 | 147.353 | 98.925 | |||
| 0.375 | 9.525 | STD | 176.731 | 118.648 | |||
| 0.438 | 11.125 | 205.983 | 138.286 | ||||
| 0.500 | 12.700 | 20 XHY | 234.647 | 157.530 | |||
| 0.625 | 15.875 | 30 | 292.066 | 196.078 | |||
| 0.688 | 17.475 | 320.817 | 215.380 | ||||
| 0.750 | 19.050 | 348.988 | 234.293 | ||||
| 36″ | 36.000 | 914 | 0.250 | 6.350 | 142.180 | 95.453 | |
| 0.281 | 7.137 | 159.672 | 107.196 | ||||
| 0.312 | 7.925 | 10 | 177.133 | 118.918 | |||
| 0.375 | 9.525 | STD | 215.525 | 142.678 | |||
| 0.438 | 11.125 | 247.790 | 166.353 | ||||
| 0.500 | 12.700 | 20 XHY | 282.372 | 198.570 | |||
| 0.625 | 15.875 | 351.723 | 236.128 | ||||
|
0.688 |
17.475 | 386.487 | 259.467 | ||||
|
0.750 |
19.050 | 420.576 | 282.353 | ||||
| 42″ | 42.000 | 1067 | 0.312 | 7.925 | 206.914 | 138.911 | |
| 0.375 | 9.525 | STD | 248.319 | 166.708 | |||
| 0.500 | 12.700 | XHY | 33.097 | 221.610 | |||
| 0.750 | 19.050 | 492.163 | 330.413 | ||||
| 48″ | 48.000 | 1219 | 0.375 | 9.525 | STD | 284.112 | 190.738 |
| 0.438 | 11.125 | 331.404 | 222.487 | ||||
| 0.500 | 12.700 | XHY | 377.822 | 253.650 | |||
| 0.750 | 19.050 | 563.750 | 378.473 | ||||
| 0.875 | 22.225 | 655.969 | 440.383 | ||||
