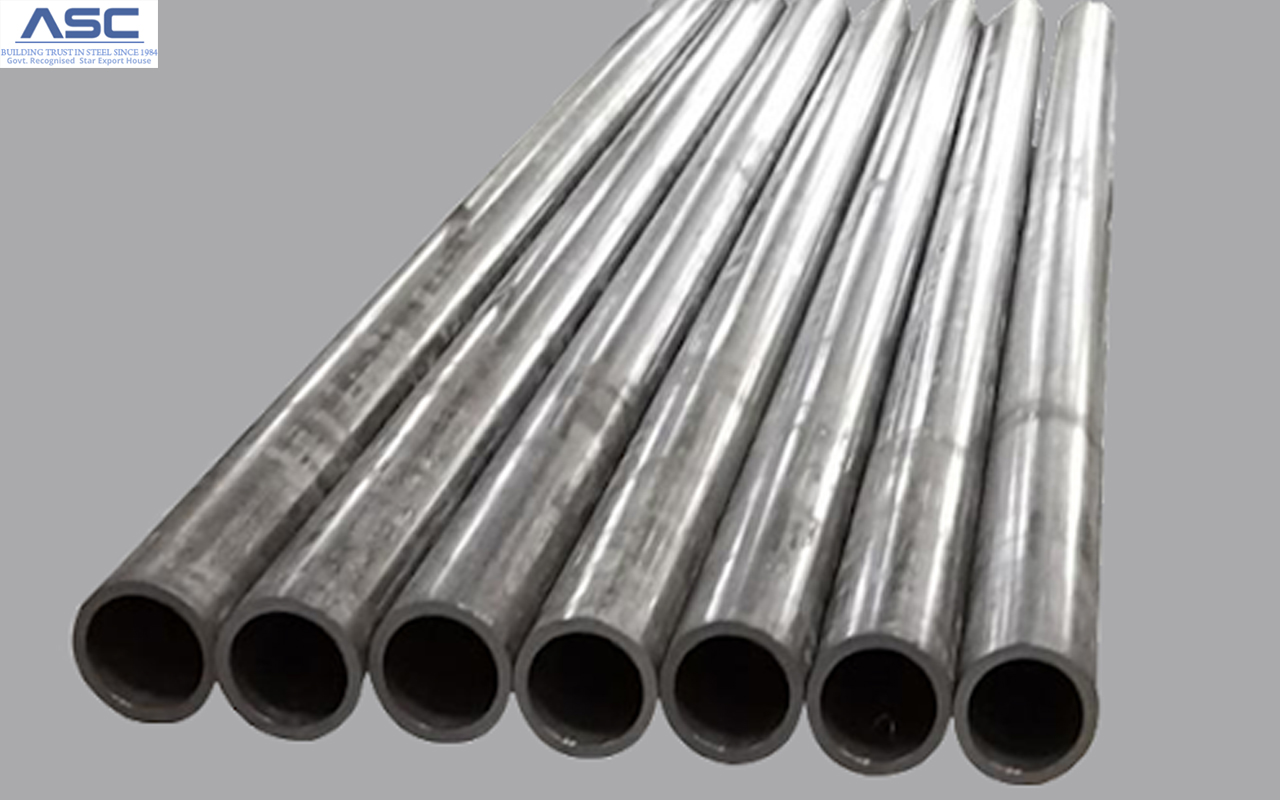

.jpg "CK45 Carbon Steel Tube & Pipe")
Amardeep Steel Center is a leading manufacturer and supplier of CK45 Carbon Steel Round Bar
made from high quality raw materials and modern technology. Ck45 tubes are commercially known as carbon steel
tubes and are manufactured in accordance with Din specifications. These tubes are used in general purpose
applications all over the world. These tubes are durable, strong, and long-lasting. Seamless circular steel
tubes for tempering and quenching are also included in this specification. We manufacture and supply Ck45
pipes and tubes with bevelled ends, deburred ends, and plain square cuts.
Power Plants, Seamless Pipes, Ship Building, Petroleum Cracking, Fluid Pipes, Conduit Pipes, Low Pressure And
High Pressure Boiler Tubes, Scaffolding Pipes, Structure Pipes, Pharmaceuticals, and Other Industries Use Din
17200 Ck45 Tube. CK45 Tubes are quenched and tempered high quality carbon structural steel. The carbon content
of CK45 steel tubes is low.
| product name | : | CK45 steel honed tubes for cylinder |
| Standard | : | DIN 2391 EN10305 |
| Wall Thickness | : | 3-40mm |
| Out Diamete | : | 36-480mm |
| Material | : | ST 44 ST 52 |
| Steel Grade | : | 20# 45# 16Mn ST 45 ST 52 |
| Length | : | cuttable length, or random length as customer demand |
| DIN | EN | BS | NFA | ASTM | ASME |
| DIN 17204 Grade Ck45 |
EN 10083-1 : 1991 Grade C45E |
- | ASTM A519 Grade 1045 |
ASME SA 519 Grade 1045 |
- |
| CK45 | Carbon | Silicon | Manganese | Sulphur | Phosphorous |
| 0.42-0.5 | 0.40 max | 0.5-0.8 | 0.02-0.04 | 0.035 max |
| Grade | Tensile Strength / Mpa |
Elongation % | Yield Strength / Mpa |
| CK45 | 580 – 770 | 4-8% | 330-640 |
• Automobile Sectors
• Interior & Exterior Architectural Structures
• water pipe lines
• Gas lines
• Oil & Gas industries
| Carbon Steel | Low Temperature Carbon Steel | Low Temperature Alloy Steel |
| Alloy Steel | High Temperature Carbon Steel | High Temperature Alloy Steel |
| Execution | Size Range | OD Tolerance | Wall tolerance |
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall < 12 mmWall - 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm |
| Hot-rolled peeled tube | All sizesWall < 12 mmWall - 12 mm | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) |
| Cold Worked tubecold-rolled or cold-drawn | OD < 40 mmOD 40 - 80 mmOD> 80 Wall Thickness< 6 mm Wall Thickness6 - 8 mm Wall Thickness> 8 | + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* | ± 0.30 mm± 0.35 mm± 0.40 mm |
Straightness
The maximum deviation from the straight line is 1 mm on a gauge length of 1000 mm.
Ovality
The maximum out-of-roundness is 65% of the total outer diameter tolerance.
| Component length (mm) | OD 30-100 mm | OD 100-254 mm |
| 10-100 | + 1.0/- 0 | + 2.0/- 0 |
| 100-600 | + 2.0/- 0 | + 3.0/- 0 |
| 600-1200 | + 3.0/- 0 | + 4.0/- 0 |
| 1200-5000 | + 5.0/- 0 | + 6.0/- 0 |
| Tube Ends | Protection |
| All tubes are supplied with clean, square cut ends.Deburring and/or chamfering can be carried out on request. | Black and Bare External Varnished with Black or Clear LAcquer |
| Tube surface | Mill test certificate |
| Tubes are supplied normally without anti-corrosive treatment, but anti-corrosive treatment is available and is carried out on request. | MTC is issued in accordance with EN 10204. |
| Packaging | Marking | Labelling |
| Tubes are bundled as standard, with steel straps into hexagonal bundles with one end flush.Length sorting can be carried out on request. Tubes can also be bundled in multiples. Bundle weights are adjusted as requested by the customer. Each bundle contains tubes from a single cast/heat only. | Each tube is marked with tube type, heat number, steel grade and size. Information is repeated along the whole length of the tube. Other markings, such as stamping, can be made on request. Bundles are also labeled with a tag having info both alphanumeric and by bar code. | Material delivered direct from our mill is labeled in accordance with automotive standard, ie with both alphanumeric and bar code information. Customer specific data can be added on request. |
FEDERAL
WWP-404c is similar to ASTM A-53 except that Government inspection and continuous identification marking of
electric weld and seamless is mandatory. It covers black and galvanized welded and seamless pipe for flanging,
bending, and coiling and for use with fresh water, oil, steam, air, and gas on shore plus a limited number of
shipboard uses. Sizes 1/8 inch through 24 inch.WWP-406c is a federal specification comparable to ASTM A-120
(withdrawn 1988). Mills can certify that A-120 pipe in a distributor-s stock meets all the requirements of
WWP-406c.
A.W.W.A.
C-200 covers black welded and seamless pipe intended for the conveyance of water in sizes 6 inch and larger.
Specification prescribes hydrostatic test pressures for sizes of pipe covered. Tensile, flattening, and bending
tests are required.
ASME
• B31.1 Code for pressure piping.plants, and industrial plants.
• B31.2 Fuel Gas Piping.
• B31.3 Petroleum Refinery Piping.
• B31.4 Liquid PetroleumTransportation Piping Systems.
• B31.5 Refrigeration Piping.
• B31.7 Nuclear Power Piping
• B31.8 GasTransmission and Distributing Piping Systems. Covers design, fabrication,
installation, inspection, testing, and the safety aspects of operation and
maintenance of gas transmission and
distribution systems.
ANSI (ASME)
B36.10 American Standard for Wrought-Steel and Wrought-Iron pipe. Designates dimensions, weights, and schedule
numbers for welded and seamless pipe. Schedules 10 through Schedules Double Extra Heavy (DXH/XXH).
B36.19 American Standard for Stainless Steel Pipe. Designates dimensions, weights, and schedule numbers for
welded and seamless Stainless Steel Pipe, Schedules 5 through Schedules 80.
A.A.R.
M-111 covers black and galvanized welded and seamless pipe intended for coiling, bending, flanging, and other
special purposes and is suitable for welding. Purpose for which pipe is intended should be stated on orders.
M-111 is comparable in most requirements to ASTM A-53.
M-130 covers black and galvanized welded and seamless pipe for ordinary uses in steam, water, gas, and air
lines. Sizes 1/8 inch through 12 inch. Pipe to this specification is not intended for close coiling, bending, or
high temperature service. M-130 is comparable in most requirements to ASTM A-120.
