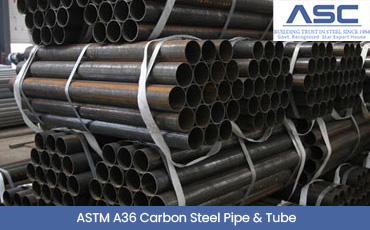

Amardeep is the leading supplier, manufacturer and exporter of ASTM A36 Carbon Steel
Pipe & Tube. This specification, ASTM A36, encompasses carbon steel products, specifically pipes and
tubes, designed for use in the construction of bridges and buildings. Moreover, ASTM A36 Carbon
Steel Pipe serves various customary structural purposes, as outlined within the specification. To
ensure compliance, a heat analysis is performed on the ASTM A36 Carbon Steel Tube, aimed at
determining the required chemical composition.
The alloy composition of ASTM A36 Pipe comprises elements like manganese, carbon, phosphorus,
silicon, sulfur, and copper. In addition to the heat analysis, the ASTM A36 Seamless Pipe undergoes
a tension test.
This test assesses critical parameters including tensile and yield strength, along with elongation properties. All these properties must adhere to the specified tensile requirements. Notably, being classified as a structural-grade material, carbon steel ASTM A36 Water Pipe exhibits excellent weldability characteristics. It can be easily welded using various techniques, such as gas metal arc welding (GMAW) or MIG welding, shielded metal arc welding (SMAW) or stick welding, as well as oxyacetylene welding. Furthermore, the ASTM A36 Steel Pipe can be hardened or carburized using conventional methods typically employed for alloy steel grade AISI 1018.
Item | ASTM A36 Carbon Steel Pipe & Tube |
Standard | API 5L, API 5CT, ASTM 53, EN10217, DIN 2458. IS 3589, GB/T3091, GB/T9711 |
Certificate | API 5L PSL1 / PSL2, API 5CT |
Out Diameter | 355.6mm– 1626mm |
Wall Thickness | 8 -50mm |
Length | up to 12m |
Steel Grade | |
API 5L | GR B, X42,X46, X56, X60,X65,X70 |
ASTM A53 | GR A, GR B, GR C |
EN | S275, S275JR, S355JRH, S355J2H |
GB | Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555 |
Surface | Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement |
Standard | Grade | Process | Chemical Composition % | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
C max | Mn* | P max | S max | Si min | Cr˟ max | Cu˟ max | Ni˟ max | Mo˟ max | V˟ max | |||
ASTM A36 | B | SMLS | 0.30* | 0.29-1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 |
ASTM A36 Grade A | ASTM A36 Grade B | ASTM A36 Grade C | ||
---|---|---|---|---|
ASTM A36 | Tenside strength, min, psi (MPa) | 48000(330) | 60000(415) | 70000(485) |
Yield strength, min, psi (MPa) | 30000(205) | 35000(240) | 40000(275) |
NPS [DN Designator] | Over | Under | ||
---|---|---|---|---|
in. | mm | in. | mm | |
1/8 to 1-1/2 [6 to 40], incl | 1/64 (0.015) | 0.4 | 1/64 (0.015) | 0.4 |
Over 1-1/2 to 4 [40 to 100], incl | 1/32 (0.031) | 0.8 | 1/32 (0.031) | 0.8 |
Over 4 to 8 [100 to 200], incl | 1/16 (0.062) | 1.6 | 1/32 (0.031) | 0.8 |
Over 8 to 18 [200 to 450], incl | 3/32 (0.093) | 2.4 | 1/32 (0.031) | 0.8 |
Over 18 to 26 [450 to 650], incl | 1/8 (0.125) | 3.2 | 1/32 (0.031) | 0.8 |
Over 26 to 34 [650 to 859], incl | 5/32 (0.156) | 4.0 | 1/32 (0.031) | 0.8 |
Over 34 to 48 [850 to 1200], incl | 3/16 (0.187) | 4.8 | 1/32 (0.031) | 0.8 |
Maximum Allowable Pressure (psi) | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NPS | Outside Diameter | Schedule | ||||||||||||
(in) | (in) | 10 | 20 | 30 | STD | 40 | 60 | XS | 80 | 100 | 120 | 140 | 160 | XXS |
1/4 | 0.54 | 7985 | 7985 | 10798 | 10798 | |||||||||
3/8 | 0.675 | 6606 | 6606 | 9147 | 9147 | |||||||||
1/2 | 0.84 | 6358 | 6358 | 8575 | 8575 | 10908 | 17150 | |||||||
3/4 | 1.05 | 5273 | 5273 | 7187 | 7187 | 10220 | 14373 | |||||||
1 | 1.315 | 4956 | 4956 | 6670 | 6670 | 9316 | 13340 | |||||||
1 1/4 | 1.66 | 4133 | 4133 | 5638 | 5638 | 7380 | 11276 | |||||||
1 1/2 | 1.9 | 3739 | 3739 | 5158 | 5158 | 7247 | 10316 | |||||||
2 | 2.375 | 3177 | 3177 | 4498 | 4498 | 7097 | 8995 | |||||||
2 1/2 | 2.875 | 3460 | 3460 | 4704 | 4704 | 6391 | 9408 | |||||||
3 | 3.5 | 3024 | 3024 | 4200 | 4200 | 6132 | 8400 | |||||||
3 1/2 | 4 | 2769 | 2769 | 3896 | 3896 | |||||||||
4 | 4.5 | 2581 | 2581 | 3670 | 3670 | 4769 | 5782 | 7339 | ||||||
5 | 5.563 | 2273 | 2273 | 3303 | 3303 | 4404 | 5505 | 6606 | ||||||
6 | 6.625 | 2071 | 2071 | 3195 | 3195 | 4157 | 5318 | 6390 | ||||||
8 | 8.625 | 1420 | 1574 | 1829 | 1829 | 2307 | 2841 | 2841 | 3375 | 4085 | 4613 | 5147 | 4971 | |
10 | 10.75 | 1140 | 1399 | 1664 | 1664 | 2279 | 2279 | 2708 | 3277 | 3847 | 4558 | 5128 | 4558 | |
12 | 12.75 | 961 | 1268 | 1441 | 1560 | 2160 | 1922 | 2644 | 3244 | 3843 | 4324 | 5042 | 3843 | |
14 | 14 | 875 | 1092 | 1313 | 1313 | 1533 | 2079 | 1750 | 2625 | 3283 | 3829 | 4375 | 4921 | |
16 | 16 | 766 | 956 | 1148 | 1148 | 1531 | 2009 | 1531 | 2585 | 3157 | 3733 | 4404 | 4882 | |
18 | 18 | 681 | 849 | 1192 | 1021 | 1530 | 2042 | 1361 | 2553 | 3147 | 3743 | 4252 | 4848 | |
20 | 20 | 613 | 919 | 1225 | 919 | 1455 | 1989 | 1225 | 2526 | 3138 | 3675 | 4288 | 4824 | |
22 | 22 | 557 | 835 | 1114 | 835 | 1949 | 1114 | 2506 | 3063 | 3619 | 4176 | 4733 | ||
24 | 24 | 510 | 766 | 1147 | 766 | 1405 | 1978 | 1021 | 2489 | 3126 | 3700 | 4210 | 4786 | |
30 | 30 | 510 | 817 | 1021 | 613 | 817 | ||||||||
32 | 32 | 478 | 766 | 957 | 574 | 1054 | ||||||||
34 | 34 | 450 | 721 | 901 | 540 | 992 | ||||||||
36 | 36 | 425 | 681 | 851 | 510 | 1021 | ||||||||
42 | 42 | 583 | 729 | 438 | 875 | |||||||||
Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot | Standard to XXHY | Schedule Pipe # |
Section Modulus | Gallon Capacity Per Linear Foot |
---|---|---|---|---|---|---|---|---|
1/2 | 0.84 | 0.109 | 0.622 | 0.85 | STD | 40 | .0407 | .0158 |
0.147 | 0.546 | 1.09 | XHY | 80 | .0478 | .0122 | ||
0.188 | 0.464 | 1.31 | 160 | .0528 | .0088 | |||
0.294 | 0.252 | 1.72 | XXHY | .0577 | .0026 | |||
3/4 | 1.05 | 0.113 | 0.824 | 1.13 | STD | 40 | .0705 | .0277 |
0.154 | 0.742 | 1.48 | XHY | 80 | .0853 | .0225 | ||
0.219 | 0.612 | 1.95 | 160 | .1006 | .0153 | |||
0.308 | 0.434 | 2.44 | XXHY | .1103 | .0077 | |||
1 | 1.315 | 0.133 | 1.049 | 1.68 | STD | 40 | .1328 | .0449 |
0.179 | 0.957 | 2.17 | XHY | 80 | .1606 | .0374 | ||
0.250 | 0.815 | 2.85 | 160 | .1904 | .0271 | |||
0.358 | 0.599 | 3.66 | XXHY | .2136 | .0146 | |||
1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 | STD | 40 | .2346 | .0777 |
0.191 | 1.278 | 3.00 | XHY | 80 | .2913 | .0666 | ||
0.250 | 1.160 | 3.77 | 160 | .3421 | .0549 | |||
0.382 | 0.896 | 5.22 | .4110 | .0328 | ||||
1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 | STD | 40 | .3262 | .1058 |
0.200 | 1.500 | 3.63 | XHY | 80 | .4118 | .0918 | ||
0.281 | 1.338 | 4.86 | 160 | .5079 | .0730 | |||
0.400 | 1.100 | 6.41 | .5977 | .0494 | ||||
2 | 2.375 | 0.109 | 2.157 | 2.64 | 10 | .4205 | .1898 | |
0.154 | 2.067 | 3.66 | STD | 40 | .5606 | .1743 | ||
0.218 | 1.939 | 5.03 | XHY | 80 | .7309 | .1534 | ||
0.250 | 1.875 | 5.68 | .8045 | .1434 | ||||
0.281 | 1.813 | 6.29 | .8666 | .1344 | ||||
0.344 | 1.687 | 7.47 | 160 | .9806 | .1161 | |||
0.436 | 1.503 | 9.04 | XXHY | 1.1043 | .0922 | |||
2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 | 10 | .6870 | .2833 | |
0.203 | 2.469 | 5.80 | STD. | 40 | 1.0640 | .2487 | ||
0.216 | 2.443 | 6.14 | 1.1169 | .2435 | ||||
0.250 | 2.375 | 7.02 | 1.2468 | .2301 | ||||
0.276 | 2.323 | 7.67 | XHY | 80 | 1.3386 | .2202 | ||
0.375 | 2.125 | 10.02 | 160 | 1.6371 | .1842 | |||
0.552 | 1.771 | 13.71 | XXXHY | 1.9971 | .1280 | |||
3 | 3.50 | 0.120 | 3.260 | 4.34 | 1.0411 | .4336 | ||
0.156 | 3.188 | 5.58 | 1.3122 | .4147 | ||||
0.172 | 3.156 | 6.12 | 1.4265 | .4064 | ||||
0.188 | 3.124 | 6.66 | 1.5342 | .3984 | ||||
0.216 | 3.068 | 7.58 | STD. | 40 | 1.7241 | .3840 | ||
0.250 | 3.000 | 8.69 | 1.9372 | .3672 | ||||
0.281 | 2.938 | 9.67 | 2.1207 | .3521 | ||||
0.300 | 2.900 | 10.26 | XHY | 80 | 2.2253 | .3431 | ||
0.438 | 2.624 | 14.34 | 160 | 2.8774 | .2811 | |||
0.600 | 2.300 | 18.6 | XXHY | 3.4243 | .2158 | |||
3 1/2 | 4.0 | 0.120 | 3.760 | 4.98 | 10 | 1.3776 | .5768 | |
0.226 | 3.548 | 9.12 | STD. | 140 | 2.3939 | .5136 | ||
0.250 | 3.500 | 10.02 | 2.6001 | .4998 | ||||
0.281 | 3.438 | 11.17 | 2.8562 | .4821 | ||||
0.318 | 3.364 | 12.52 | XHY | 80 | 3.1400 | .4617 | ||
0.636 | 2..728 | 22.87 | XXHY | 4.8795 | .3085 | |||
4 | 4.5 | 0.120 | 4.260 | 5.62 | 10 | 1.7612 | .7404 | |
0.156 | 4.188 | 7.24 | 2.2354 | .7156 | ||||
0.188 | 4.124 | 8.67 | 2.6296 | .6942 | ||||
0.203 | 4.094 | 9.32 | 2.8173 | .6838 | ||||
0.219 | 4.062 | 10.02 | 3.0184 | .6725 | ||||
0.237 | 4.026 | 10.80 | STD. | 40 | 3.2145 | .6613 | ||
0.250 | 4.000 | 11.36 | 3.3611 | .6528 | ||||
0.281 | 3.938 | 12.67 | 60 | 3.7021 | .6326 | |||
0.312 | 3.876 | 13.97 | 4.0273 | .6126 | ||||
0.337 | 3.826 | 15.00 | XHY | 80 | 4.2713 | .5972 | ||
0.438 | 3.624 | 19.02 | 120 | 5.1790 | .5361 | |||
0.531 | 3.438 | 22.53 | 160 | 5.8997 | .4822 | |||
0.674 | 3.152 | 27.57 | XXHY | 6.7927 | .4054 | |||
5 | 5.563 | 0.188 | 5.187 | 10.80 | 4.1161 | 1.0979 | ||
0.219 | 5.125 | 12.51 | 4.7279 | 1.0716 | ||||
0.258 | 5.047 | 14.63 | STD. | 40 | 5.4500 | 1.0391 | ||
0.281 | 5.001 | 15.87 | 5.8644 | 1.0204 | ||||
0.312 | 4.939 | 17.51 | 6.4074 | .99647 | ||||
0.344 | 4.875 | 19.19 | 6.9358 | .9696 | ||||
0.375 | 4.813 | 20.80 | XHY | 80 | 7.4300 | .9449 | ||
0.500 | 4.563 | 27.06 | 120 | 9.2534 | .8495 | |||
0.625 | 4.313 | 32.99 | 160 | 10.7976 | .7590 | |||
0.750 | 4.063 | 38.59 | XXHY | 12.0954 | .6734 | |||
6 | 6.625 | 0.109 | 6.407 | 7.59 | 5 | 3.5769 | 1.6748 | |
0.134 | 6.357 | 9.30 | 10 | 4.3475 | 1.6488 | |||
0.156 | 6.313 | 10.79 | 5.0107 | 1.6260 | ||||
0.188 | 6.249 | 12.94 | 5.9351 | 1.5937 | ||||
0.203 | 6.219 | 13.94 | 6.3804 | 1.5780 | ||||
0.219 | 6.187 | 15.00 | 6.8261 | 1.5620 | ||||
0.250 | 6.125 | 17.04 | 7.6905 | 1.5306 | ||||
0.280 | 6.065 | 18.99 | STD. | 40 | 8.4958 | 1.5008 | ||
0.312 | 6.001 | 21.06 | 9.3416 | 1.4688 | ||||
0.344 | 5.937 | 23.10 | 10.111 | 1.4391 | ||||
0.375 | 5.875 | 25.05 | 10.893 | 1.4082 | ||||
0.432 | 5.761 | 28.60 | XHY | 80 | 12.224 | 1.3541 | ||
0.500 | 5.625 | 32.74 | 13.711 | 1.2909 | ||||
0.562 | 5.501 | 36.43 | 120 | 14.9806 | 1.2346 | |||
0.625 | 5.375 | 40.09 | 16.1821 | 1.1787 | ||||
0.719 | 5.187 | 45.39 | 160 | 17.8243 | 1.0977 | |||
0.864 | 4.897 | 53.21 | XXHY | 20.025 | .9784 | |||
1.000 | 4.625 | 60.13 | 21.7719 | .8727 | ||||
1.125 | 4.375 | 66.14 | 23.1237 | .7809 |
