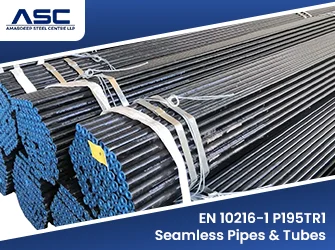

EN 10216-1 P195TR1 Seamless Pipes & Tubes

For general service where easy fabrication matters, EN 10216-1 P195TR1 seamless pipes and tubes provide a straightforward low carbon steel option. Material grade 1.0107, P195TR is the lowest substance category in EN 10216-1 with a minimum yield point of 195 MPa and tensile range of 320MPa and 440MPa respectively. Because the alloy with low carbon concentration does not harden as well as other alloys, thus the pipes and tubes made of it have better ability to bend, flare and weld while their fabrication and installation. Amardeep Steel produces seamless tubes and pipes according to EN 10216-1, providing mill certifications and heat tracing documents for each product. If impact tested material is required, see our EN 10216-1 P195TR2 seamless tubes, or browse all carbon steel seamless pipes and tubes. Every order includes an EN 10204 3.1 mill test certificate and full heat traceability.

What Are P195TR1 Seamless Pipes and Tubes?

EN 10216-1 covers seamless non-alloy steel tubes for pressure purposes with properties specified at room temperature. In the grade name, P stands for pressure purposes, 195 is the minimum yield in MPa, T stands for tubes and R for room temperature. The "1" marks quality TR1: no aluminium requirement and no mandatory impact test.

When to Choose TR1

TR1 suits low pressure systems at ambient temperature where impact testing is not called for, such as water, air and general pressure lines. EN 10216-1 allows TR1 tubes to be supplied with non-specific inspection, though we supply EN 10204 3.1 certificates as standard.

Applications of P195TR1 Seamless Pipes and Tubes

• Low pressure water, air and gas lines
• Compressed air and pneumatic systems
• General mechanical and structural pressure parts
• Instrument and small bore lines that are bent or flared on site
• Furniture, frame and machine tubes needing a pressure rated grade

Testing and Documentation

Every order of P195TR1 seamless tube goes through the checks below at our testing facility or approved third party labs.

• Ladle chemical analysis
• Tensile test
• Flattening or ring expanding test
• Leak tightness test: hydrostatic or electromagnetic
• Visual and dimensional inspection

Mill test certificates are issued to EN 10204 3.1, with 3.2 available on request. You can view our approvals on the certificates page.

Packing and Marking

Each tube is marked with EN 10216-1, P195TR1, size, heat number and manufacturer name. Tubes are varnished or oiled against rust, ends capped on request, and packed in hexagonal bundles with steel strapping. Read more about our packing and despatch process.
