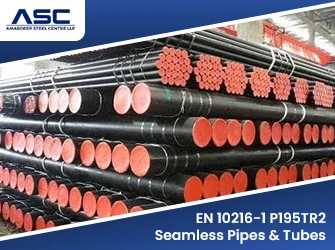

EN 10216-1 P195TR2 seamless pipes and tubes are used when standard P195TR1 is not enough and the material certificate needs to show verified impact performance. Made to steel number 1.0108, P195TR2 has the same 195 MPa minimum yield strength as P195TR1, but comes with tighter material controls. It is aluminium killed, has a lower sulfur limit and requires impact testing at 0°C, along with specific inspection requirements. This makes P195TR2 a better fit when a design code, project specification or client requires impact values to be recorded with the supplied material. Amardeep Steel supplies P195TR2 seamless pipes and tubes with EN 10204 3.1 mill test certificates, with 3.2 inspection available on request. You can compare it with our EN 10216-1 P195TR1 seamless tubes or browse all carbon steel seamless pipes and tubes.
What Are P195TR2 Seamless Pipes and Tubes?
P195TR2 is the quality 2 version of P195 in EN 10216-1. The minimum 0.020% total aluminium makes it a fully killed, fine grain steel, which gives more consistent toughness. Every lot is impact tested and supplied with specific inspection, so the certificate shows results from the tubes delivered.
What TR2 Adds Over TR1
- Aluminium, total: 0.020% minimum (not specified for TR1)
- Sulfur: 0.015% maximum (0.020% for TR1)
- Charpy V impact test at 0°C, mandatory
- Specific inspection and testing, with EN 10204 3.1 or 3.2
- Non-destructive testing options available by agreement
EN 10216-1 P195TR2 Specifications
Parameter | Details |
|---|---|
Standard | EN 10216-1 (seamless non-alloy steel tubes for pressure purposes, room temperature properties) |
Grade | P195TR2 (1.0108) |
Type | Seamless, hot finished or cold finished |
Outside Diameter | About 10 mm to 508 mm OD, to EN 10220 series |
Wall Thickness | About 1.6 mm to 40 mm, depending on OD |
Delivery Condition | Normalised or normalising formed (+N); cold finished tubes are normalised after cold forming |
Inspection | Specific inspection and testing |
Length | Random and exact lengths |
Ends | Plain end, bevelled end on request |
Test Certificate | EN 10204 3.1, with 3.2 available on request |
P195TR2 Chemical Composition
Element | Content (%) |
|---|---|
Carbon (C) | 0.13 max |
Silicon (Si) | 0.35 max |
Manganese (Mn) | 0.70 max |
Phosphorus (P) | 0.025 max |
Sulfur (S) | 0.015 max |
Chromium (Cr) | 0.30 max |
Molybdenum (Mo) | 0.08 max |
Nickel (Ni) | 0.30 max |
Copper (Cu) | 0.30 max |
Aluminium, total (Al) | 0.020 min |
Niobium (Nb) | 0.010 max |
Titanium (Ti) | 0.040 max |
Vanadium (V) | 0.02 max |
Cr + Cu + Mo + Ni | 0.70 max |
P195TR2 Mechanical Properties
Property | Value |
|---|---|
Upper Yield Strength ReH, min (wall up to 16 mm) | 195 MPa |
ReH, min (wall over 16 to 40 mm) | 185 MPa |
ReH, min (wall over 40 to 60 mm) | 175 MPa |
Tensile Strength Rm | 320 to 440 MPa |
Elongation A, min (longitudinal / transverse) | 27% / 25% |
Impact Energy KV, min at 0°C | 40 J longitudinal, 28 J transverse |
Impact values are minimum averages of three Charpy V specimens. Confirm the test direction and temperature against the edition on your order.
P195TR2 Equivalent Grades
Standard | Designation |
|---|---|
EN steel number | 1.0108 |
Former DIN 1629 / 1630 | St 37.4 is the nearest impact tested predecessor, with higher yield; not identical |
Welded equivalent | EN 10217-1 P195TR2 |
Equivalent grades are close matches, not direct substitutes. Check the drawing before switching standards.
P195TR2 vs P195TR1 vs P235TR1
Property | P195TR1 | P195TR2 | P235TR1 | P235GH (EN 10216-2) |
|---|---|---|---|---|
Carbon, max | 0.13% | 0.13% | 0.16% | 0.16% |
Manganese, max | 0.70% | 0.70% | 1.20% | 1.20% |
Sulfur, max | 0.020% | 0.015% | 0.020% | 0.010% |
Aluminium | Not specified | 0.020% min | Not specified | 0.020% min |
ReH min (wall up to 16 mm) | 195 MPa | 195 MPa | 235 MPa | 235 MPa |
Rm | 320 to 440 MPa | 320 to 440 MPa | 360 to 500 MPa | 360 to 500 MPa |
Impact test | Not required | 40 J at 0°C (long.) | Not required | Required |
Inspection | Non-specific allowed | Specific | Non-specific allowed | Specific |
Design temperature | Room temperature | Room temperature | Room temperature | Elevated temperature |
Values per EN 10216-1 and EN 10216-2. P235TR1 and P235GH share a yield level but are not interchangeable: P235GH has specified elevated temperature properties. Confirm values against the edition on your order.
If impact testing is not required, EN 10216-1 P195TR1 seamless tubes cost less. For elevated temperature service, see EN 10216-2 P235GH tubes.
P195TR2 Size and Weight Chart
OD (mm) | 2.0 mm | 2.6 mm | 3.2 mm | 4.0 mm | 5.0 mm | 6.3 mm |
|---|---|---|---|---|---|---|
21.3 | 0.95 | 1.20 | 1.43 | 1.71 | n/a | n/a |
26.9 | 1.23 | 1.56 | 1.87 | 2.26 | n/a | n/a |
33.7 | 1.56 | 1.99 | 2.41 | 2.93 | 3.54 | 4.26 |
42.4 | 1.99 | 2.55 | 3.09 | 3.79 | 4.61 | 5.61 |
48.3 | 2.28 | 2.93 | 3.56 | 4.37 | 5.34 | 6.53 |
60.3 | n/a | 3.70 | 4.51 | 5.55 | 6.82 | 8.39 |
76.1 | n/a | 4.71 | 5.75 | 7.11 | 8.77 | 10.84 |
88.9 | n/a | 5.53 | 6.76 | 8.38 | 10.35 | 12.83 |
114.3 | n/a | 7.16 | 8.77 | 10.88 | 13.48 | 16.78 |
139.7 | n/a | 8.79 | 10.77 | 13.39 | 16.61 | 20.73 |
168.3 | n/a | 10.62 | 13.03 | 16.21 | 20.14 | 25.17 |
219.1 | n/a | 13.88 | 17.04 | 21.22 | 26.40 | 33.06 |
Weights in kg/m, worked out as (OD minus wall) x wall x 0.02466, for steel at 7.85 g/cm³. Outside diameters follow EN 10220 series 1. Other ODs and walls are made to order.
Applications of P195TR2 Seamless Pipes and Tubes
- Low pressure water, air and gas lines
- Compressed air and pneumatic systems
- General mechanical and structural pressure parts
- Pressure equipment built to PED where impact values are needed on the certificate
- Outdoor lines exposed to cold weather down to 0°C
Testing and Documentation
Every order of P195TR2 seamless tube goes through the checks below at our testing facility or approved third party labs.
- Ladle chemical analysis
- Tensile test
- Flattening or ring expanding test
- Leak tightness test: hydrostatic or electromagnetic
- Charpy V impact test at 0°C
- Non-destructive testing for imperfections by agreement
- Visual and dimensional inspection
Mill test certificates are issued to EN 10204 3.1, with 3.2 available on request. You can view our approvals on the certificates page.
Packing and Marking
Each tube is marked with EN 10216-1, P195TR2, size, heat number and manufacturer name. Tubes are varnished or oiled against rust, ends capped on request, and packed in hexagonal bundles with steel strapping. Read more about our packing and despatch process.
Request a Quote for EN 10216-1 P195TR2 Seamless Pipes & Tubes
Send us the OD, wall thickness, impact direction, inspection document (3.1 or 3.2), length and quantity, and our team will reply with price and delivery. Use the enquiry form or reach us through the contact page.
Frequently Asked Questions
What is P195TR2?
P195TR2 (1.0108) is the quality 2 version of P195 in EN 10216-1: a non-alloy, aluminium killed steel for seamless pressure tubes, with mandatory impact testing and specific inspection.
What is the impact test requirement for P195TR2?
EN 10216-1 requires a Charpy V impact test at 0°C, with a minimum average of 40 J longitudinal or 28 J transverse.
Why is P195TR2 aluminium killed?
The minimum 0.020% total aluminium deoxidises the steel and refines the grain, which gives more consistent toughness.
Can P195TR2 replace P195TR1?
Yes. P195TR2 meets every P195TR1 requirement and adds impact testing and specific inspection. The reverse is not true.
