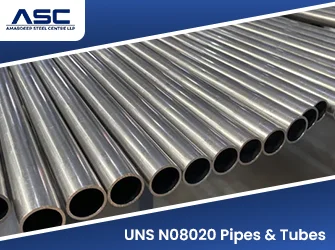

UNS N08020 Pipes & Tubes Manufacturer and Supplier in India

Nickel (Ni)

32.0 to 38.0

Chromium (Cr)

19.0 to 21.0

Molybdenum (Mo)

2.0 to 3.0

Copper (Cu)

3.0 to 4.0

Niobium + Tantalum (Nb + Ta)

8 x C min, 1.00 max

Carbon (C)

0.07 max

Manganese (Mn)

2.00 max

Silicon (Si)

1.00 max

Phosphorus (P)

0.045 max

Sulphur (S)

0.035 max

Iron (Fe)

Balance

Tensile strength, min

550 MPa (80 ksi)

Yield strength (0.2% offset), min

240 MPa (35 ksi)

Elongation in 50 mm, min

30%

Density

8.08 g/cm³ (0.292 lb/in³)

Specific heat (0°C to 100°C)

500 J/kg·K

Thermal conductivity (100°C)

About 13 W/m·K

Mean thermal expansion (25°C to 100°C)

14.7 µm/m·°C

Modulus of elasticity

200 GPa

Magnetic permeability (annealed)

Below 1.02 (essentially non-magnetic)

UNS

N08020

Werkstoff Nr.

2.4660

EN / DIN name

NiCr20CuMo

Common names

Alloy 20, 20Cb-3, Carpenter 20

ASTM pipe / tube

B729 (seamless), B464 (welded pipe), B468 (welded tube), B474 (EFW pipe)

1/2"

21.34

1.65 mm / 0.82 kg/m

2.11 mm / 1.03 kg/m

2.77 mm / 1.31 kg/m

3.73 mm / 1.67 kg/m

3/4"

26.67

1.65 mm / 1.05 kg/m

2.11 mm / 1.32 kg/m

2.87 mm / 1.73 kg/m

3.91 mm / 2.26 kg/m

1"

33.40

1.65 mm / 1.33 kg/m

2.77 mm / 2.15 kg/m

3.38 mm / 2.58 kg/m

4.55 mm / 3.33 kg/m

1 1/4"

42.16

1.65 mm / 1.70 kg/m

2.77 mm / 2.77 kg/m

3.56 mm / 3.49 kg/m

4.85 mm / 4.59 kg/m

1 1/2"

48.26

1.65 mm / 1.95 kg/m

2.77 mm / 3.20 kg/m

3.68 mm / 4.16 kg/m

5.08 mm / 5.57 kg/m

2"

60.33

1.65 mm / 2.46 kg/m

2.77 mm / 4.05 kg/m

3.91 mm / 5.60 kg/m

5.54 mm / 7.70 kg/m

2 1/2"

73.03

2.11 mm / 3.80 kg/m

3.05 mm / 5.42 kg/m

5.16 mm / 8.89 kg/m

7.01 mm / 11.75 kg/m

3"

88.90

2.11 mm / 4.65 kg/m

3.05 mm / 6.65 kg/m

5.49 mm / 11.62 kg/m

7.62 mm / 15.72 kg/m

4"

114.30

2.11 mm / 6.01 kg/m

3.05 mm / 8.61 kg/m

6.02 mm / 16.55 kg/m

8.56 mm / 22.98 kg/m

6"

168.28

2.77 mm / 11.64 kg/m

3.40 mm / 14.23 kg/m

7.11 mm / 29.09 kg/m

10.97 mm / 43.81 kg/m

8"

219.08

2.77 mm / 15.21 kg/m

3.76 mm / 20.55 kg/m

8.18 mm / 43.79 kg/m

12.70 mm / 66.53 kg/m

1/2" (12.70 mm)

0.27 kg/m

0.36 kg/m

0.46 kg/m

0.57 kg/m

0.70 kg/m

5/8" (15.88 mm)

0.34 kg/m

0.46 kg/m

0.60 kg/m

0.74 kg/m

0.92 kg/m

3/4" (19.05 mm)

0.41 kg/m

0.56 kg/m

0.73 kg/m

0.91 kg/m

1.14 kg/m

1" (25.40 mm)

0.55 kg/m

0.76 kg/m

0.99 kg/m

1.25 kg/m

1.59 kg/m

1 1/4" (31.75 mm)

0.70 kg/m

0.96 kg/m

1.26 kg/m

1.59 kg/m

2.04 kg/m

1 1/2" (38.10 mm)

0.84 kg/m

1.16 kg/m

1.53 kg/m

1.93 kg/m

2.48 kg/m

2" (50.80 mm)

1.13 kg/m

1.56 kg/m

2.06 kg/m

2.61 kg/m

3.38 kg/m
