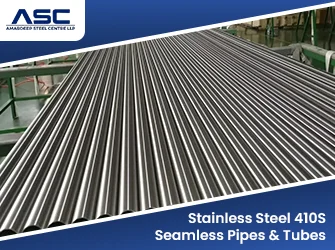

Stainless Steel 410S seamless pipes and tubes (UNS S41008, EN 1.4000) are a lower carbon version of 410, containing 11.5% to 13.5% chromium. With carbon limited to 0.08%, the grade stays softer and more ductile after welding, making it easier to fabricate than standard 410. It is a useful choice for applications that need the corrosion and heat resistance of a chromium stainless steel without excessive hardening around welded areas. Amardeep Steel supplies SS 410S seamless pipes and tubes with EN 10204 3.1 mill test certificates, heat treatment records and complete heat traceability. Compare our TP410 pipes and tubes and SS 430 tubes, or browse our SS seamless pipes and tubes.
What Are Stainless Steel 410S Seamless Pipes & Tubes?
Grade 410S is a ferritic, non hardening 12% chromium stainless steel. It resists oxidation and mild corrosion, and its low carbon means it does not form hard martensite in the weld zone, so welded parts stay ductile without post weld heat treatment.
410S vs 410: Why the "S" Matters
Standard 410 allows up to 0.15% carbon and hardens on cooling, which makes it strong but brittle near welds. 410S cuts carbon to 0.08% maximum and limits nickel, so it stays soft. Choose 410 when you need hardness; choose 410S when you weld the part or need formability.
SS 410S Seamless Tube Specifications
Parameter | Details |
|---|---|
Grade | Stainless Steel 410S |
UNS | S41008 |
Chemistry Basis | ASTM A240 S41008 limits; tube made to purchase specification |
Type | Seamless, hot finished or cold drawn, and machined hollows |
Size Range | To drawing or purchase specification |
Length | Random, fixed and cut lengths |
Supply Condition | Annealed |
Test Certificate | EN 10204 3.1, with 3.2 available on request |
SS 410S Chemical Composition
Element | Content (%) |
|---|---|
Carbon (C) | 0.08 max |
Chromium (Cr) | 11.50 to 13.50 |
Nickel (Ni) | 0.60 max |
Manganese (Mn) | 1.00 max |
Silicon (Si) | 1.00 max |
Phosphorus (P) | 0.040 max |
Sulfur (S) | 0.030 max |
SS 410S Mechanical Properties
Property | Value |
|---|---|
Tensile Strength, min | 415 MPa (60 ksi) |
Yield Strength, min | 205 MPa (30 ksi) |
Elongation, min | 22% |
Hardness, max | 183 HBW (89 HRB) |
Values are the ASTM A240 annealed limits for S41008. Confirm against the specification on your order.
SS 410S Equivalent Grades
Standard | Designation |
|---|---|
UNS | S41008 |
EN / Werkstoff No. | 1.4000 (X6Cr13) |
JIS | SUS410S |
Equivalent grades are close matches, not direct substitutes. Check the drawing before switching standards.
410 vs 410S vs 416
Property | 410 | 410S | 416 |
|---|---|---|---|
Carbon, max | 0.15% | 0.08% | 0.15% |
Sulfur | 0.030% max | 0.030% max | 0.15% min |
Hardenable | Yes | No | Yes |
Main use | Strength and hardness | Welded and formed parts | Machined parts |
For hardened parts see our TP410 pipes and tubes; for machined parts see our SS 416 seamless pipes and tubes.
Applications of SS 410S Seamless Pipes and Tubes
- Refinery and petrochemical trays and liners
- Heat treatment and annealing boxes
- Oxidation resistant furnace parts
- Welded assemblies that need ductile weld zones
Testing and Documentation
Every order of SS 410S seamless tube goes through the checks below at our testing facility or approved third party labs.
- Chemical analysis and PMI
- Tension test
- Flattening and flaring tests
- Hardness test
- Hydrostatic test on request
- Ultrasonic or eddy current testing on request
- Visual and dimensional inspection
Mill test certificates are issued to EN 10204 3.1, with 3.2 available on request. You can view our approvals on the certificates page.
Packing and Marking
Each length is marked with grade, size, heat number and heat treatment condition. Ends are capped. Tubes are packed in bundles or wooden boxes for export. Read more about our packing and despatch process.
Request a Quote for Stainless Steel 410S Seamless Pipes & Tubes
Send us the OD, ID or wall thickness, heat treatment condition, length and quantity, and our team will reply with price and delivery. Use the enquiry form or reach us through the contact page.
Frequently Asked Questions
What is Stainless Steel 410S?
Stainless Steel 410S (UNS S41008, EN 1.4000) is a low carbon 12% chromium stainless steel with 0.08% carbon maximum, made so that it does not harden after welding.
What is the difference between 410 and 410S?
410 allows up to 0.15% carbon and hardens on cooling. 410S limits carbon to 0.08%, so it stays soft and ductile after welding and forming.
Is 410S stainless steel magnetic?
Yes. 410S is magnetic.
Can 410S be hardened by heat treatment?
No. Its low carbon content means 410S does not harden significantly by heat treatment. Use 410 or 420 when hardness is needed.
