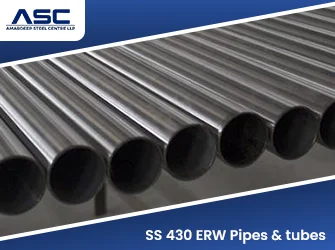

The stainless steel pipes and tubes of 430 ERW are ferritic type that contain from 16 to 18 percent chromium. Grade 430 or UNS S43000, or EN 1.4016 has magnetic properties, good oxidation and corrosion resistance and also does not have any intentional addition of nickel in order to keep the price less than the 300 series. These tubes are used for automotive trim, kitchen equipment, appliances, architectural parts and industrial heating equipment. Amardeep Steel Centre supplies them in India for domestic and export orders. Compare our SS 430 tubes and browse SS welded pipes and tubes.
Technical Data
Specifications of Stainless Steel 430 ERW Pipes & Tubes
Parameter | Specification |
|---|---|
Grade | SS 430 / UNS S43000 / EN 1.4016 (X6Cr17) |
Standard | ASTM A268 / ASME SA268 (tubing) |
Manufacturing Process | Electric Resistance Welded (ERW) |
Outer Diameter (OD) | 1/2 inch NB to 8 inch NB (larger and custom sizes on request) |
Wall Thickness | Schedule 5S to Schedule 40 (custom wall thicknesses on request) |
Form | Round, Square, Rectangular, Custom Profiles |
Length | Single Random, Double Random, Cut to Length |
End Finish | Plain End (PE), Beveled End (BE) |
Documentation | Mill Test Certificate to EN 10204 3.1 supplied with every order |
Surface Finish | Mill finish, polished, brushed, other finishes to specification |
Testing | Chemical analysis, tension, flattening, flaring and hardness tests, hydrostatic or eddy current test, PMI on request |
Chemical Compositions of Stainless Steel 430 ERW Pipes & Tubes
Element | Composition (UNS S43000) |
|---|---|
Carbon (C) | 0.12% max |
Manganese (Mn) | 1.00% max |
Silicon (Si) | 1.00% max |
Chromium (Cr) | 16.00% to 18.00% |
Phosphorus (P) | 0.040% max |
Sulfur (S) | 0.030% max |
Mechanical Properties of SS 430 ERW Pipes & Tubes (ASTM A268)
Mechanical Property | ASTM A268 Minimum Requirement |
|---|---|
Tensile Strength (Ultimate) | 415 MPa (60 ksi) min |
Yield Strength (0.2% Offset) | 240 MPa (35 ksi) min |
Elongation (in 2 in / 50 mm) | 20% min |
Hardness (Max) | 90 HRB (190 HBW) max |
Equivalent Grades of Stainless Steel 430 ERW Pipes & Tubes
Grade | UNS | DIN / EN | AISI | AFNOR | BS | IS | JIS | SIS | UNI |
|---|---|---|---|---|---|---|---|---|---|
SS 430 | S43000 | 1.4016 | 430 | Z 8 C 17 | 430 S 17 | X10 Cr 17 | SUS 430 | 2320 | X12Cr17 |
Working and Temperature Pressure of Stainless Steel 430 ERW Pipes & Tubes
Parameter | Typical Rating |
|---|---|
Maximum Operating Temperature | Continuous service up to 815°C (1500°F); Intermittent service up to 870°C (1600°F). |
Typical Working Pressure | Calculated from the allowable stress for the grade, the wall thickness and the outside diameter. Send the design pressure and temperature with your enquiry. |
Corrosion Resistance | Good resistance in mild atmospheric conditions, fresh water, steam, nitric acid, and organic acids. Not recommended for marine environments, chloride-rich media, or strongly reducing acid service. |
SS 430 ERW Pipe & Tube Size Chart
Dimensional Parameter | ERW Manufacturing Range |
|---|---|
Outside Diameter (OD) | 6.00 mm to 114.30 mm |
Wall Thickness (WT) | 0.50 mm to 4.50 mm (custom wall in mm or SWG) |
Length | 6.0 m, 12.0 m, or precision cut-to-length |
Dimensional Tolerance | Per ASTM A268 |
Applications and Industrial Uses of Stainless Steel 430 ERW Pipes & Tubes
- Automotive Exhaust Components
- Kitchen and Food-Service Equipment
- Domestic Appliance Components
- Architectural Trim and Decorative Structures
- Industrial Heating Equipment
- Interior Architectural Handrails and Panels
- Heat Exchanger Components
- Automotive Decorative Tubing and Trim
Frequently Asked Questions
Why are Stainless Steel 430 ERW Pipes used instead of SS 304 Pipes?
SS 430 ERW Pipes are often selected when moderate corrosion resistance, magnetic properties, heat resistance, and lower material cost are sufficient.
Are SS 430 ERW Pipes suitable for automotive exhaust applications?
Yes. They can be used for exhaust components where moderate corrosion and oxidation resistance are required.
Does Stainless Steel 430 ERW Pipe have good oxidation resistance?
Yes. SS 430 provides good oxidation resistance at moderately elevated temperatures.
Can SS 430 ERW Tubes be used in kitchen and appliance manufacturing?
Yes. They are used in appliance components, kitchen equipment, decorative parts, and other fabricated products.
Is Stainless Steel 430 ERW Pipe suitable for acidic environments?
It has resistance to some acids, but it is not recommended for severe or highly corrosive acidic environments.
What surface finishes are available for Stainless Steel 430 ERW Tubes?
Common finishes include mill finish, polished, brushed, and other finishes specified according to the application.
Can Stainless Steel 430 ERW Tubes be formed and fabricated easily?
Yes. SS 430 ERW Tubes offer good formability and can be fabricated using suitable forming, cutting, and welding processes.
