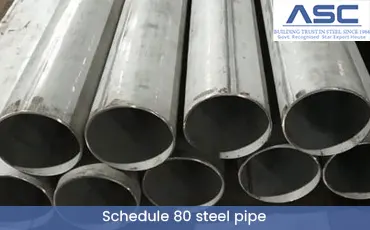

Name: Schedule 80 Steel Pipe
Brand: Amardeep Steel Centre

What is Schedule 80 Steel Pipe?

Galvanized pipe schedule 80, Schedule 80 Steel Pipe Pressure Rating, Exporter & supplier of ANSI SCH 80 Pipe in ASTM A106/ A53 Grade B, API 5L, A333 Gr 6, A335 P22/ P11/ P9 in India, Schedule 80 Carbon Steel Pipe

ASME B36.10 is a way to tell what the schedule of a steel pipe is. This is shown by the letter "Sch" on the pipe. Most steel pipes are used to move fluids and gases, so the diameter inside the pipe is very important. One of these schedules is Schedule 80 Steel Pipes. Pipes with sch 80 pipes dimensions are stronger than other pipes. Most of the time, they are used when the pipes need to be seen.

Compared to sch 40 pipes, schedule 80 pipes are heavier. Sch 80 pipes are used in many different industries and are in high demand. Sch 80 pipes dimensions in mm are more expensive than sch 40 pipes because more material is used to make them. The schedule 80 pipe dimensions are made so that they can handle high pressure and high temperatures.

This is the best choice for the application that used pipes with high water pressure and high water temperature. The wall thickness of schedule 80 pipes is greater. This makes the pipes better able to handle higher PSI. Also, they are thought to be perfect for chemical uses in the industry. The 1 inch Sch 80 pipes are about 0.179 inches thick and 630 PSI. This number is higher than the PSI and thickness of sch 40.

Most suppliers of Schedule 80 Steel Pipes offer these pipes in grey. The highest temperature that these pipes can handle is 140 degrees F. Not only do they have to deal with high pressure, but they also have to deal with corrosive chemicals. The thickness of schedule 80 pipes is measured in millimetres so that they can be used in internal installations. Their diameters range from 2 inches to 3 and a half inches. In continuous service, the 2 inches schedule 80 thickness is rated for 920 PSI, and it tends to burst when the temperature of schedule 80 steel pipes dimensions goes over 7340 PSI. Steel Tubes India is one of the biggest manufacturers of schedule 80 steel pipe dimensions in mm, which we sell to a wide range of customers in many different industries. We use both inches and millimetres to measure and make these sch 80 pipes.

Amardeep Steel Centre holds comprehensive stock of the high quality Carbon Steel, Alloy Steel & Stainless Steel Schedule 80 Pipe.

Schedule 80 steel pipe dimensions in mm :

Nominal size [inches]	Outside diameter [inches]	Outside diameter [mm]	Wall thickness [inches]	Wall thickness [mm]	Weight [lb/ft]	Weight [kg/m]
1/2	0.840	21.3	0.083	2.11	0.68	1.00
3/4	1.050	26.7	0.083	2.11	0.87	1.29
1	1.315	33.4	0.109	2.77	1.41	2.11
1 1/4	1.660	42.2	0.109	2.77	1.82	2.71
1 1/2	1.900	48.3	0.109	2.77	2.1	3.13
2	2.375	60.3	0.109	2.77	2.66	3.96
2 1/2	2.875	73.0	0.120	3.05	3.56	5.29
3	3.500	88.9	0.120	3.05	4.37	6.50
3 1/2	4.000	101.6	0.120	3.05	5.01	7.46
4	4.500	114.3	0.120	3.05	5.66	8.42
5	5.563	141.3	0.134	3.40	7.82	11.64
6	6.625	168.3	0.134	3.40	9.35	13.91
8	8.625	219.1	0.148	3.76	13.50	20.10
10	10.750	273.1	0.165	4.19	18.79	27.96
12	12.750	323.9	0.180	4.57	24.34	36.22
14	14.000	355.6	0.188	4.78	27.97	41.62
16	16.000	406.4	0.188	4.78	32.02	47.65
18	18.000	457.0	0.188	4.78	36.05	53.65
20	20.000	508.0	0.218	5.54	46.42	69.09
22	22.000	559.0	0.218	5.54	51.14	76.10
24	24.000	610.0	0.250	6.35	63.93	95.13
30	30.000	762.0	0.312	7.92	99.60	148.22

SCH 80 Pipes Pressure Rating

Maximum Allowable Pressure (psi) (kPa)
NPS	Outside Diameter	Schedule
(inch)	(inch) (mm)	10	20	30	STD	40	60	XS	80	100	120	140	160	XXS
1/4 Inch	0.54 Inch 13.7				7985 55057	7985 55057		10798 74452	10798 74452
3/8 Inch	0.675 Inch 17.1				6606 45548	6606 45548		9147 63069	9147 63069
1/2 Inch	0.84 Inch 21.3				6358 43838	6358 43838		8575 59125	8575 59125				10908 75211	17150 118249
3/4 Inch	1.05 Inch 26.7				5273 36357	5273 36357		7187 49554	7187 49554				10220 70467	14373 99102
1 Inch	1.315 Inch 33.4				4956 34172	4956 34172		6670 45990	6670 45990				9316 64234	13340 91979
1 1/4 Inch	1.66 Inch 42.2				4133 28497	4133 28497		5638 38874	5638 38874				7380 50885	11276 77748
1 1/2 Inch	1.9 Inch 48.3				3739 25780	3739 25780		5158 35564	5158 35564				7247 49968	10316 71129
2 Inch	2.375 Inch 60.3				3177 21905	3177 21905		4498 31014	4498 31014				7097 48934	8995 62021
2 1/2 Inch	2.875 Inch 73				3460 23857	3460 23857		4704 32434	4704 32434				6391 44066	9408 64868
3 Inch	3.5 Inch 88.9				3024 20850	3024 20850		4200 28959	4200 28959				6132 42280	8400 57918
3 1/2 Inch	4 Inch 102				2769 19092	2769 19092		3896 26863	3896 26863
4 Inch	4.5 Inch 114				2581 17796	2581 17796		3670 25305	3670 25305		4769 32882		5782 39867	7339 50602
5 Inch	5.563 Inch 141				2273 15672	2273 15672		3303 22774	3303 22774		4404 30366		5505 37957	6606 45548
6 Inch	6.625 Inch 168				2071 14280	2071 14280		3195 22030	3195 22030		4157 28663		5318 36668	6390 44059
8 Inch	8.625 Inch 219		1420 9791	1574 10853	1829 12611	1829 12611	2307 15907	2841 19589	2841 19589	3375 23271	4085 28166	4613 31807	5147 35489	4971 34275
10 Inch	10.75 Inch 273		1140 7860	1399 9646	1664 11473	1664 11473	2279 15714	2279 15714	2708 18672	3277 22595	3847 26525	4558 31427	5128 35358	4558 31427
12 Inch	12.75 Inch 324		961 6626	1268 8743	1441 9936	1560 10756	2160 14893	1922 13252	2644 18230	3244 22367	3843 26497	4324 29814	5042 34765	3843 26497
14 Inch	14 Inch 356	875 6033	1092 7529	1313 9053	1313 9053	1533 10570	2079 14335	1750 12066	2625 18099	3283 22636	3829 26401	4375 30166	4921 33930
16 Inch	16 Inch 406	766 5282	956 6592	1148 7915	1148 7915	1531 10556	2009 13852	1531 10556	2585 17824	3157 21768	3733 25739	4404 30366	4882 33661
18 Inch	18 Inch 457	681 4695	849 5854	1192 8219	1021 7040	1530 10549	2042 14080	1361 9384	2553 17603	3147 21699	3743 25808	4252 29318	4848 33427
20 Inch	20 Inch 508	613 4227	919 6337	1225 8446	919 6337	1455 10032	1989 13714	1225 8446	2526 17417	3138 21637	3675 25339	4288 29566	4824 33261
22 Inch	22 Inch 559	557 3841	835 5757	1114 7681	835 5757		1949 13438	1114 7681	2506 17279	3063 21119	3619 24953	4176 28794	4733 32634
24 Inch	24 Inch 610	510 3516	766 5282	1147 7909	766 5282	1405 9687	1978 13638	1021 7040	2489 17162	3126 21554	3700 25512	4210 29028	4786 32999
30 Inch	30 Inch 762	510 3516	817 5633	1021 7040	613 4227			817 5633
32 Inch	32 Inch 813	478 3296	766 5282	957 6599	574 3958	1054 7267
34 Inch	34 Inch 864	450 3103	721 4971	901 6212	540 3723	992 6840
36 Inch	36 Inch 914	425 2930	681 4695	851 5868	510 3516	1021 7040
42 Inch	42 Inch 1067		583 4020	729 5026	438 3020	875 6033

Schedule 80 Pipes Sizes

NPS	1/2	3/4	1	1¼	1½	2	2½	3	3½	4
DN	15	20	25	32	40	50	65	80	90	100

Explore Our SCH 80 Pipes Price List

SIZE INCH	SIZE Nominal Bore	MSL PRICE LIST	ISMT PRICE LIST	JSL PRICE LIST	BAO PRICE LIST	Lontrin PRICE LIST	SMTM PRICE LIST
1/2	15	1,323.53	1,316.18	1,330.88	1,029.41	1,036.76	1,460.59
1	25	945.88	948.53	963.24	881.35	889.71	1,102.94
2	50	784.12	786.76	801.47	617.65	625.00	941.18
4	100	794.12	786.76	801.47	617.65	625.00	941.18
6	150	794.12	786.76	801.47	617.65	625.00	941.18
8	200	794.12	786.76	801.47	647.06	654.41	941.18
12	300	852.94	-	-	647.06	654.41	1,000.00
16	400	882.35	-	-	661.76	669.12	1,029.41
20	500	882.35	-	-	676.47	683.82	1,029.41
24	600	-	-	-	705.88	713.24	1,176.47

Prices are indicative, may vary based on quantity and market conditions, and are exclusive of applicable taxes. Please contact us for the latest confirmed pricing.

Benefits and Applications of Schedule 80 PVC Pipe

When it comes to high-pressure applications or areas with heavy foot or vehicle traffic, Schedule 40 PVC pipe may not be enough. That's where the Schedule 80 PVC pipe comes in, providing the extra strength and durability needed for a variety of applications.

One of the key benefits of Schedule 80 PVC pipe is its high-pressure rating. With pressure ratings ranging from 220 PSI to 850 PSI, it's a reliable alternative to Schedule 40 PVC pipe when higher pressure is required. This makes it ideal for use in commercial plumbing, chemical processing, manufacturing plants, and agricultural irrigation.

Another benefit of Schedule 80 PVC pipe is its ability to withstand physical impacts. In areas where the pipe may be exposed and subject to frequent foot traffic or activity, Schedule 80 PVC pipe can provide the extra strength and durability needed to prevent cracking or breaking. This makes it a popular choice for applications such as aquaculture and sewer piping.

In addition, Schedule 80 PVC pipe can be useful in more exposed areas where people or machinery are likely to come in contact with the pipe. It can also be buried under pavement with heavy vehicle traffic, making it a durable choice for applications in high-traffic areas.

Electricians can also benefit from using Schedule 80 PVC pipe in applications where Schedule 40 PVC pipe may not be strong enough. It can be used in any of the same places as Schedule 40 PVC pipe - underground or wrapped behind walls and ceilings - and can withstand three times the external PSI of Schedule 40 PVC pipe.

In conclusion, Schedule 80 PVC pipe provides a reliable and durable alternative to Schedule 40 PVC pipe in high-pressure applications or areas with heavy foot or vehicle traffic. Its applications are varied and include commercial plumbing, chemical processing, manufacturing plants, agricultural irrigation, aquaculture, and sewer piping. Its ability to withstand physical impacts and high external PSI make it a popular choice for electricians as well.

Frequently Asked Questions About Schedule 80 Steel Pipe

What is the thickness of Schedule 80 pipe?

Schedule 80 pipe is ideal for high pressure and temperature applications. For example, the wall of a 1-inch Sch 80 pipe is approximately 0.179 thick and rated at 630 PSI, higher than Sch 40. Most suppliers will have these pipes at the best price, in grey.

What is the difference between Schedule 80 and 40 pipes?

The difference between Schedule 40 and Schedule 80 pipes is the wall thickness of the pipe, and therefore the ability to support pressure and suitability for an application. Schedule 40 pipes will be less wall thickness and are generally used in low-pressure applications, for example; a residential plumbing system. Schedule 80 will be thicker and are preferable in high-pressure systems or industrial applications.

Is schedule 80 pipe extra heavy?

When discussing steel pipe and pipe fittings, there is an assumption that Schedule 40 and standard weight are the same, or that schedule 80 and extra heavy are the same. Neither of these assumptions is correct and can lead to the wrong material being installed at the jobsite.

Where is the Schedule 80 pipe used?

A few common uses of schedule 80 PVC include; wastewater handling, chemical plants, and used in manufacturing plants.
