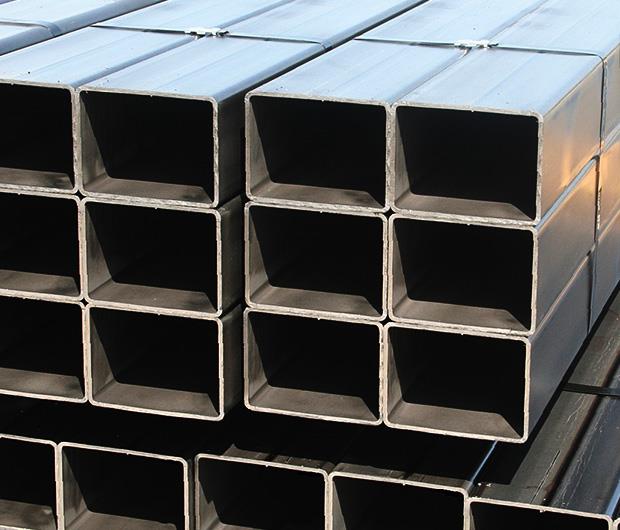

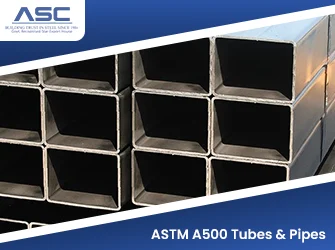

ASTM A500 Tubes & Pipes Manufacturer & Supplier
Amardeep Steel Centre is a premier Manufacturer, Supplier, and Exporter of high-quality ASTM A500 Tubes & Pipes. As the North American standard specification for cold-formed welded and seamless carbon steel structural tubing in round, square, and rectangular shapes, our ASTM A500 Tubes and ASTM A500 Pipes provide reliable strength, excellent weldability, and good formability for a vast array of construction, mechanical, and structural applications. We deliver dependable A500 Steel solutions tailored to your project requirements.
What Are ASTM A500 Tubes & Pipes?
ASTM A500 Tubes & Pipes refer to carbon steel tubing manufactured in accordance with the ASTM A500 / A500M standard specification. This standard covers cold-formed welded and seamless carbon steel structural tubing produced in round, square, and rectangular shapes. It is one of the most common specifications for hollow structural sections (HSS) used in North America.
The A500 Steel covered by this specification is typically a low-carbon steel, offering a good combination of strength, weldability, and ductility, making it suitable for applications where load-bearing capability and structural integrity are paramount. While commonly produced as welded (Electric Resistance Welded - ERW), the ASTM A500 specification also allows for seamless tubing, though ERW is more prevalent for this standard. Key grades within ASTM A500 include Grade B and Grade C (with Grade C having higher strength), and more recently Grade D. ASTM A500 Gr B Pipe (or tube) is a very common and versatile choice.
ASTM A500 Tube & Pipe Specifications
Amardeep Steel supplies ASTM A500 Tubes & Pipes conforming to industry standards. Understanding the A500 Tubing Properties is key for appropriate application.
| Specification Attribute | Details for ASTM A500 Tubes & Pipes |
|---|---|
| Primary Standard | ASTM A500 / A500M - Standard Specification for Cold-Formed Welded and Seamless Carbon Steel Structural Tubing in Rounds and Shapes. |
| Common Grades | Grade B (most common), Grade C (higher strength), Grade D (newer, intermediate strength with toughness requirements). |
| Manufacturing Process | Primarily Electric-Resistance-Welded (ERW). Seamless manufacturing is also permitted by the standard, though less common for A500. |
| Shapes | A500 Round Tube, A500 Square Tubing, A500 Rectangular Tubing. |
| Outer Dimensions (OD) | Varies widely by shape. Round: e.g., 1/2" to 20" or larger. Square/Rectangular: e.g., 1"x1" to 16"x16" or larger, with various combinations. |
| Wall Thickness (WT) | Various gauges and wall thicknesses are available, typically from ~0.083" (2.11mm) up to ~0.625" (15.88mm) or more, depending on size and grade. |
| Length | Standard lengths (e.g., 20 ft, 24 ft, 40 ft, 48 ft) and custom cut-to-length services. |
| Heat Treatment | Typically supplied in the as-welded or stress-relieved condition. Specific heat treatments may be applied to meet certain grade requirements or forming needs. |
| Testing & Certification | Tensile tests, flattening tests (for round tubes), chemical analysis. Mill Test Certificate (MTC) provided, confirming compliance with ASTM A500. |
Chemical Composition of Common ASTM A500 Grades
| Element | Grade A (Shaped & Round) | Grade B (Shaped & Round) | Grade C (Shaped & Round) | Grade D (Shaped & Round) |
|---|---|---|---|---|
| Carbon (C) | 0.26 max | 0.26 max | 0.23 max | 0.23 max |
| Manganese (Mn) | -- (Typically 1.35 max by product analysis) | -- (Typically 1.35 max by product analysis) | 1.35 max | 1.35 max |
| Phosphorus (P) | 0.035 max | 0.035 max | 0.035 max | 0.035 max |
| Sulfur (S) | 0.035 max | 0.035 max | 0.035 max | 0.035 max |
| Copper (Cu) (when specified) | 0.20 min | 0.20 min | 0.20 min | 0.20 min |
Mechanical Properties of Common ASTM A500 Grades
The A500 Tubing Properties vary by grade, influencing their suitability for different structural loads.
| Property | Grade A (Shaped / Round) | Grade B (Shaped / Round) | Grade C (Shaped / Round) | Grade D (Shaped / Round) |
|---|---|---|---|---|
| Tensile Strength | 45,000 psi (310 MPa) / 39,000 psi (270 MPa) | 58,000 psi (400 MPa) / 45,000 psi (310 MPa) | 62,000 psi (425 MPa) / 55,000 psi (380 MPa) | 58,000 psi (400 MPa) / 55,000 psi (380 MPa) |
| Yield Strength | 39,000 psi (270 MPa) / 33,000 psi (230 MPa) | 46,000 psi (315 MPa) / 42,000 psi (290 MPa) | 50,000 psi (345 MPa) / 46,000 psi (315 MPa) | 36,000 psi (250 MPa) / 36,000 psi (250 MPa) |
| Elongation in 2" (50mm) | 25% / 25% (varies by wall) | 23% / 25% (varies by wall) | 21% / 23% (varies by wall) | 23% / 23% (varies by wall) |
Dimensional Tolerances for ASTM A500 Tubing
ASTM A500 Steel Structural Tubing is manufactured to specific dimensional tolerances to ensure consistency and proper fit-up in structural assemblies. The standard provides detailed tables for various tolerances including outside dimensions, wall thickness, straightness, and twist.
| Outside Large Flat Dimension, inches [mm] | Large Flat Dimension Tolerance A, plus and minus, inches [mm] |
|---|---|
| 2½ [63.5] or under | 0.020 [0.51] |
| Over 2½ [63.5] to 3½ [88.9], inclusive | 0.025 [0.64] |
| Over 3½ [88.9] to 5½ [139.7], inclusive | 0.030 [0.76] |
| Over 5½ [139.7] | 0.01 times the specified large flat dimension |
Heat Treatment for ASTM A500 Tubes & Pipes:
ASTM A500 Tubes & Pipes are typically supplied in conditions suitable for their intended structural and mechanical applications. The following table outlines common heat treatment considerations and conditions:
| Heat Treatment / Condition | Typical Temperature Range °F [°C] (for Carbon Steels like A500) | Purpose & Key Characteristics | Applicability to ASTM A500 |
|---|---|---|---|
| As-Welded (ERW) | N/A (Localized heating during welding) | Properties are primarily from the steel chemistry and cold-forming prior to welding. Most common supply condition. | Standard condition for many ASTM A500 Grade A, B, & C tubes. Weld seam may be processed to be metallurgically similar to the base metal as per A500. |
| Stress Relieving | 1000 - 1200 [540 - 650] | Reduces internal stresses from cold-forming & welding, improves dimensional stability, can slightly improve toughness and reduce risk of distortion/cracking. | Can be applied to A500 tubing after forming or fabrication if required by the application or to improve formability for subsequent severe operations. |
| Normalizing | 1600 - 1750 [870 - 955] | Refines grain structure, improves uniformity of mechanical properties (including weld/HAZ), enhances toughness. | Less common as a final supply condition for general A500 structural use but is a permissible treatment. May be used if specific toughness or forming properties are needed. |
| Annealing (Full or Process) | Full: 1550 - 1650 [845 - 900] Process: 1000 - 1300 [540 - 705] |
Full Anneal: Produces maximum softness and ductility. Process Anneal: Softens for further cold work, relieves stress. |
Full annealing is less common for A500 structural tubes. Process annealing might be used for tubes intended for severe cold forming. |
| Quenching & Tempering (Q&T) | N/A | Achieves high hardness and strength (typical for medium/high carbon or alloy steels). | Generally NOT applicable to standard ASTM A500 carbon steel grades (A, B, C, D). Their low carbon content does not allow for significant hardening via Q&T. |
Applications & Industries Served by ASTM A500 Structural Tubing
The strength, versatility, and cost-effectiveness of ASTM A500 Steel Structural Tubing make it a preferred material for a wide range of applications:
- Construction & Infrastructure: Building frames, columns, trusses, bridges, support structures, signposts, communication towers. (A500 Square Tubing and A500 Rectangular Tubing are very common).
- Industrial Machinery & Equipment: Frames for machinery, conveyor systems, support bases, agricultural equipment.
- Automotive & Transportation: Vehicle frames, chassis components, roll cages, trailers.
- Material Handling: Racking systems, storage shelves, carts, dollies.
- Recreational Equipment: Playground structures, exercise equipment, bicycle frames (for certain types).
- Furniture Manufacturing: Frames for tables, chairs, and other structural furniture components.
- Fencing & Railings: Posts and rails for security and decorative purposes.
- General Fabrication: Numerous miscellaneous fabricated parts and assemblies requiring structural integrity.
Why Choose Amardeep Steel for Your ASTM A500 Tubes & Pipes?
Amardeep Steel is your trusted Manufacturer, Supplier, and Exporter of ASTM A500 Tubes & Pipes in India and for the global market:
- Compliance with ASTM A500: All our tubing adheres to the stringent requirements of the ASTM A500 standard, ensuring consistent quality and performance.
- Wide Range of Shapes & Sizes: We offer ASTM A500 Tubes in round, square, and rectangular profiles, covering a broad spectrum of dimensions and wall thicknesses.
- Quality Materials & Manufacturing: We utilize high-quality A500 Steel and advanced ERW manufacturing processes to produce durable and reliable tubing.
- Competitive Pricing: We provide an excellent Price for high-quality Carbon Steel A500 Tubing, offering significant value for your structural projects.
- Global Export Capabilities: Proven experience in efficiently exporting ASTM A500 Pipes worldwide, with robust packaging and adherence to international logistics.
- Customization & Value-Added Services: We offer cut-to-length services, custom orders, and can discuss specific finishing or testing requirements.
- Responsive Customer & Technical Support: Our dedicated team is ready to assist with your inquiries, from understanding A500 Tubing Properties to order fulfillment.
Related Products
Amardeep Steel Centre offers a variety of related products alongside ASTM A500 Tubes & Pipes, here’s a list of products they might typically provide, based on their common offerings:
- ASTM A53 Pipes
- ASTM A106 Seamless Carbon Steel Pipe
- ASTM A513 Mechanical Tubing
- API 5L Pipes
- Seamless Structural Steel Pipes
Get Your ASTM A500 Tubes & Pipes Price & Consultation
For the latest Price, detailed technical specifications, or to discuss your specific project requirements for ASTM A500 Tubes & Pipes, contact the structural steel experts at Amardeep Steel Centre today. We are committed to providing high-quality ASTM A500 Tubes, including ASTM A500 Gr B Pipe, A500 Square Tubing, and A500 Rectangular Tubing, along with tailored solutions for your structural and mechanical applications.
