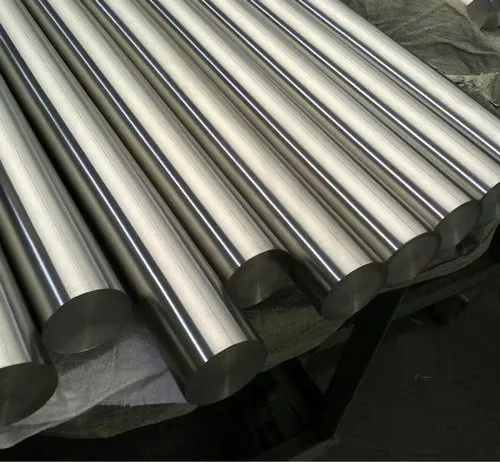

Inconel 625 Round Bar Manufacturer, Supplier & Exporter
Amardeep Steel Centre is a leading manufacturer, specialized supplier and worldwide exporter of high quality Inconel 625 Round Bars. This advanced, solid-solution strengthened nickel-chromium-molybdenum superalloy is engineered for an unparalleled combination of high strength, exceptional toughness, and outstanding corrosion resistance. Our extensive inventory of UNS N06625 Bar is meticulously produced using premium raw materials and advanced technology, rigorously conforming to international standards like ASTM B446. As a leading Inconel 625 Bar supplier, we ensure superior quality and reliability for your most critical applications.
We offer Inconel 625 Round Bars in a wide variety of grades, sizes and finishes to meet the requirements of our international clients. Amardeep Steel Centre is committed to providing Alloy 625 Bar and top quality value added service to our worldwide clients and partners. We are ready to provide our customers with the full continuity of the supply chain.
What is Inconel 625 Round Bar?
Inconel 625 Round Bar, also known by its Werkstoff number 2.4856 or UNS designation N06625, is a highly versatile nickel-based superalloy. Its remarkable properties stem from a unique Inconel 625 composition rich in nickel (approx. 58%), chromium (approx. 20%), and molybdenum (approx. 8%), along with additions of niobium and tantalum. Unlike many other high-strength alloys, Alloy 625 Bar achieves its superior mechanical properties through solid-solution strengthening—a process where molybdenum and niobium stiffen the alloy's matrix, rather than relying on precipitation hardening. This provides the bar with impressive tensile strengths up to 930 MPa and yield strengths up to 517 MPa, along with excellent resistance to a broad range of corrosive environments, including highly aggressive acids, alkalis, and seawater, even at elevated temperatures up to 1093°C (2000°F).
Table of Contents
- Inconel 625 Round Bar Specifications
- Inconel 625 Bar Chemical Composition
- Inconel 625 Bar Mechanical Properties
- Equivalent Grades of Inconel 625 Round Bar
- Nickel Alloy 625 Peeled Round Bars Weight Chart
- Type of Inconel 625 Round Bars
- Applications of Inconel 625 Round Bar
- Why Choose Amardeep Steel for Inconel 625 Round Bar?
- Related Products
- Get a Competitive Price
Inconel 625 Round Bar Specifications
| Standard Specifications | ASTM B446, ASME SB446, AMS 5666, AMS 5837, ISO 9723, ISO 9724, ISO 9725, DIN 17752, DIN 17753, DIN 17754, EN 10095, BS3076NA21, VdTüV 499 |
|---|---|
| Werkstoff No. | 2.4856 |
| UNS No. | N06625 |
| Diameter Range | 3 mm to 600 mm |
| Length Range | 1 meter to 6 meters (Single Random, Double Random, Cut Length) |
| Forms Available | Round Bar, Hex Bar, Flat Bar, Square Bar, Rod |
| Conditions | Annealed (ANN), Hardened & Tempered (H&T), Precipitation Hardened (PH) |
| Finishes | Polished, Bright Drawn (BD), Cold Drawn (CD), Cold Finished (CF), Centreless Ground (CG), Smooth Turned (ST), Rough Turned (RT), Peeled & Reeled (PR), Slit Rolled Edge (SRE), Hot Rolled Annealed & Pickled (HRAP), Hot Finished (HF) |
| Tolerances | H8 to H13, K9 to K12 series |
Chemical Composition of Inconel 625 Round Bar
|
Nickel (Ni) |
Chromium (Cr) |
Molybdenum (Mo) |
Niobium (Nb) |
Iron (Fe) |
Cobalt (Co) |
Manganese (Mn) |
Silicon (Si) |
Carbon (C) |
Aluminum (Al) |
Titanium (Ti) |
Phosphorus (P) |
Sulfur (S) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
58.0 min. |
20.0 - 23.0 |
8.0 - 10.0 |
3.15 - 4.15 |
5.0 max. |
1.0 max. |
0.50 max. |
0.50 max. |
0.10 max. |
0.40 max. |
0.40 max. |
0.015 max. |
0.015 max. |
Mechanical Properties of Inconel 625 Bar
| Property | Value |
|---|---|
| Tensile Strength | 135,000 psi / 930 MPa |
| Yield Strength | 75,000 psi / 517 MPa |
| Elongation | 42.5% |
| Density | 0.305 lb/cu in / 8.44 g/cm³ |
| Melting Range | 2350–2460°F / 1290–1350°C |
Equivalent Grades of Inconel 625 Bar
|
UNS |
Werkstoff Nr. |
EN (European) |
JIS (Japanese) |
BS (British) |
AFNOR (French) |
|---|---|---|---|---|---|
|
N06625 |
2.4856 |
NiCr22Mo9Nb |
NCF 625 |
NA 21 |
NC22DNB4M |
Nickel Alloy 625 Peeled Round Bars Weight Chart
|
Size (Inches) |
Kgs / Mtr |
Size (mm) |
Kgs / Mtr |
|---|---|---|---|
|
1″ |
3.0970 |
20 |
2.0470 |
|
1-1/8″ |
5.0033 |
22 |
2.0979 |
|
1-1/4″ |
6.0349 |
24 |
3.0543 |
|
1-3/8″ |
7.0550 |
25 |
3.0871 |
|
7/8″ |
3.0038 |
26 |
4.0170 |
|
|
|
27 |
4.0490 |
|
|
|
30 |
5.0548 |
|
|
|
32 |
6.0314 |
|
|
|
35 |
7.0553 |
|
|
|
36 |
7.0999 |
|
|
|
38 |
8.0903 |
Types of Inconel 625 Round Bars
Applications of Inconel 625 Round Bar
- Aerospace: Jet engine components, ducting, exhaust systems, and high-strength fasteners.
- Marine Engineering: Seawater heat exchangers, submarine components, propeller blades, and offshore platform equipment where Alloy 625 Bar excels.
- Chemical Processing: Reactors, vessels, and piping for handling aggressive acids and alkalis.
- Pollution Control: Flue gas desulfurization (FGD) systems, stack liners, and dampers.
- Nuclear Reactors: Core and control rod components requiring reliable UNS N06625 Bar.
- Oil & Gas: Flare stacks, downhole equipment, and components for sour gas service.
Why Choose Amardeep Steel Centre for Inconel 625 Round Bars?
- Expert Manufacturer & Supplier: As a direct manufacturer and specialized supplier of Inconel 625 Round Bar, we have complete control over quality and production.
- Competitive Price: Our large-scale operations and efficient sourcing allow us to offer a highly competitive price on every Alloy 625 Rod and bar.
- Extensive Inventory: We maintain a vast stock of Alloy 625 Round Bar in all standard sizes and forms for fast deliveries.
- Global Exporter: With experience as a trusted exporter, we ensure seamless logistics and proper documentation for all international orders of Inconel 625 Round Bars.
- Value-Added Services: We offer custom cutting, heat treatment, and precision machining services to deliver material that meets your exact needs.
