Stainless Steel 316 Sheet & Plate Manufacturer, Supplier & Exporter
Amardeep Steel Centre is a leading manufacturer, supplier, and exporter of ASTM A240 TP316 Stainless Steel Plates, Sheets, and Coils. We keep a substantial inventory of these versatile products, ready to meet the diverse needs of industries across the globe. When you choose us for your Stainless Steel 316 Sheet or Stainless Steel 316 Plate needs, you're getting flat, durable products crafted from robust 316 austenitic stainless steel, engineered for exceptional performance in challenging environments.
Amardeep Steel Centre is a leading manufacturer, supplier, and exporter of ASTM A240 TP316 Stainless Steel Plates, Stainless Steel 316 Sheets, and Stainless Steel 316 Coils. We maintain a substantial inventory of these versatile 316 stainless steel products, ready to meet diverse industry needs globally. When you choose us for your Stainless Steel 316 Sheet or Stainless Steel 316 Plate requirements, you receive durable flat products crafted from robust 316 austenitic stainless steel.
Table of Contents
- What are 316 Stainless Steel Sheets and Plates?
- Stainless Steel 316 Sheets and Plates Specifications
- Chemical Composition of Stainless Steel 316 Sheet & Plate
- Mechanical Properties of Stainless Steel 316 Sheet & Plate
- Physical properties of Stainless Steel 316 Sheet & Plate
- Equivalent Grades of Stainless Steel 316 Sheet & Plate
- Weight Chart for ASTM A240 Stainless Steel Grade 316 Plates
- Dimensions of Stainless Steel 316 Plates & Sheets
- Dimensions of 316 Stainless Steel Perforated Sheet
- Thickness & Sizes of Polished 316 Stainless Steel Sheets
- Types of Stainless Steel 316 Sheets and Plates
- Applications of Stainless Steel 316 Sheets and Plates
- Why Choose Amardeep Steel for Your Stainless Steel 316 Sheets and Plates?
- Related Products
What are 316 Stainless Steel Sheets and Plates?
316 Stainless Steel Sheets and Stainless Steel 316 Plates are flat metallic products meticulously crafted from the 316 austenitic stainless steel grade. These materials conform to the ASTM A240 Type 316 specification, making them explicitly designed for demanding applications such as pressure vessels, where high-temperature performance and corrosion resistance are paramount.
The exceptional properties of 316 stainless steel stem from its unique composition, including molybdenum (typically 2-3%) and a slightly higher nickel content than 304 grades. This alloying provides significantly enhanced resistance to various forms of corrosion, especially pitting and crevice corrosion in chloride-rich environments. Beyond their superior corrosion resistance, SS 316 coils, 316 ss sheets, and 316 ss plates exhibit impressive heat resistance, withstanding temperatures up to 870°C in intermittent services and 925°C in continuous services. This makes them highly suitable for a range of high-temperature applications.
Our inventory includes this versatile alloy in three primary forms: sheet, plate, and coil. Here’s a closer look at each.

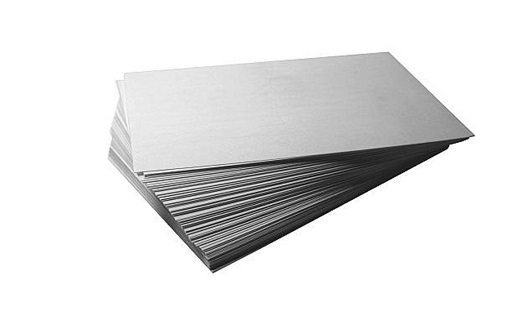

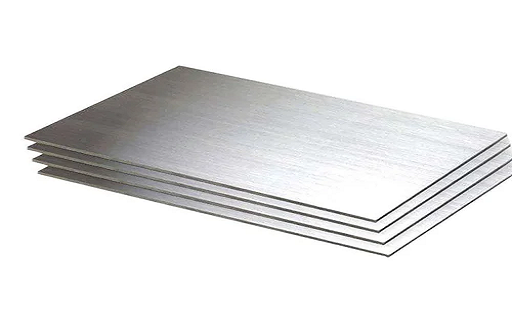

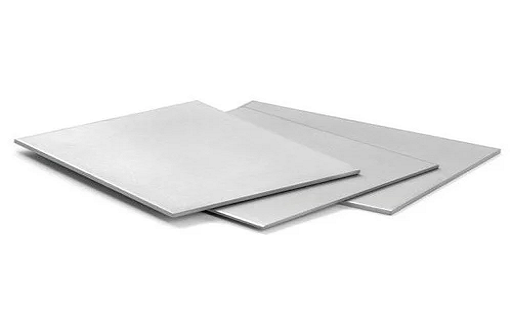

- Stainless Steel 316 Sheet: Stainless Steel 316 Sheets are flat, thin products, typically less than 6mm (0.236 inches) in thickness. They are known for their superior corrosion resistance in challenging environments, thanks to their molybdenum content. This 316 stainless sheet offers excellent formability, allowing it to be easily bent, drawn, or rolled. It also boasts good weldability, especially the low-carbon version (316L), which helps prevent carbide precipitation. These 316 ss sheets are available in various surface finishes like 2B, BA, No. 4, and mirror, making them suitable for architectural trims, food/pharmaceutical processing equipment, and chemical handling.

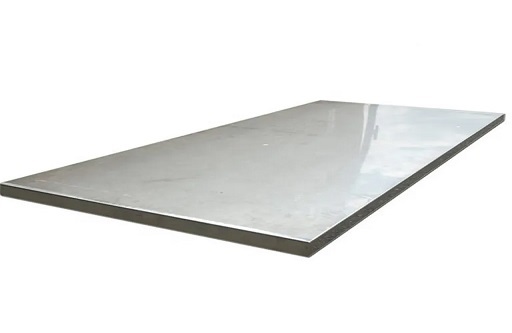

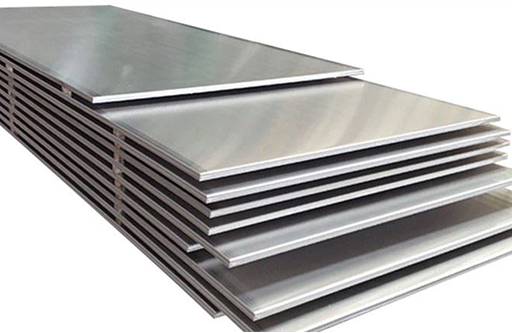

- Stainless Steel 316 Plate: Stainless Steel 316 Plates are thicker flat products, generally exceeding 6mm (0.236 inches) in thickness. These 316 stainless plates provide enhanced structural integrity, designed for heavier-duty applications where strength and durability are crucial. They maintain excellent resistance to pitting and crevice corrosion, even in aggressive environments, and offer reliable performance at elevated temperatures. Often specified under ASTM A240 / ASME SA240, our 316 stainless plates are ideal for pressure vessels, heat exchangers, and components in the pulp & paper, petroleum refining, and marine industries.

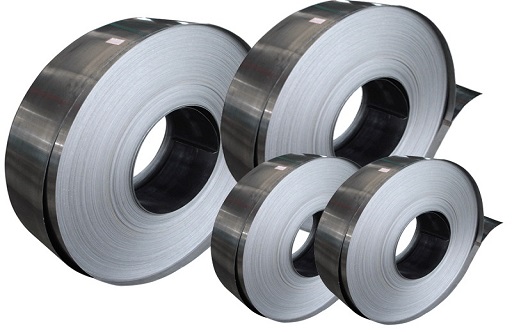

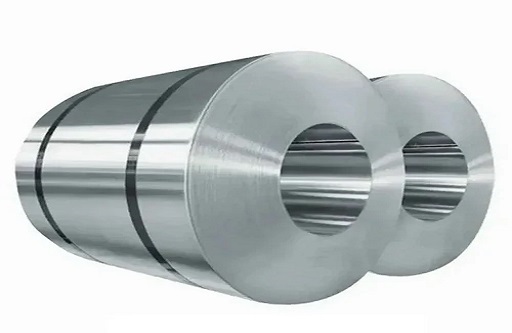

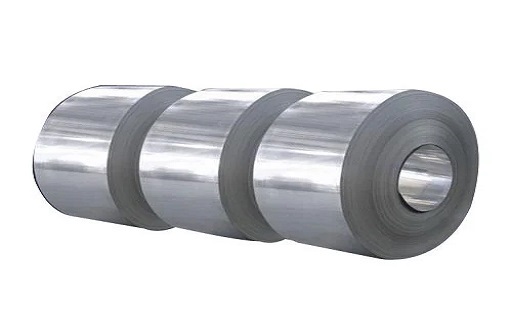

- Stainless Steel 316 Coil: Stainless Steel 316 Coils are continuous lengths of flat 316 stainless steel, typically produced through hot or cold rolling and then wound into large rolls. These stainless steel 316 coils serve as a fundamental raw material from which Stainless Steel 316 Sheets and strips are precisely cut or further processed. They offer economic benefits for large-scale production and simplify transportation. Possessing the inherent corrosion and heat resistance of 316 stainless steel, these stainless steel 316 coils are versatile for manufacturing other forms, for use in stamping and forming operations, and for creating welded pipes and tubes.
Stainless Steel 316 Sheets and Plates Specifications
| Specifications | Details |
|---|---|
| Product Forms | SS 316 Sheets, Plates, Coils |
| Standards | ASTM A240 / ASME SA240 (for pressure vessels & general use) |
| Dimensions | Thickness: 0.1mm to 100mm Thk; Width: 10mm to 2500mm; Custom lengths available. |
| Finishes | HR, CR, 2B, BA, NO(8) Polished, SATIN. |
| Services | Cutting (Plasma, Laser, Waterjet), Bending, Heat Treatment, Polishing, Cladding, Fabrication. |
| Certifications | Raw Materials Certificate, EN 10204/3.1B, 3rd Party Inspection. |
| Quote | Free Quote, Inquiries answered within 24 hours. |
Chemical Composition of Stainless Steel 316 Sheet & Plate
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N | Ti |
|---|---|---|---|---|---|---|---|---|---|---|
| 316 | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.0–18.0 | 10.0–14.0 | 2.00–3.00 | 0.10 max | – |
Mechanical Properties of Stainless Steel 316 Sheet & Plate
|
Grade |
Tensile Strength (min) |
Yield Strength (0.2% Offset) (min) |
Elongation (% in 2 in) |
Hardness (max) |
|---|---|---|---|---|
|
316 |
515 MPa (75 ksi) |
205 MPa (30 ksi) |
40% |
95 HRB / 217 HB |
Physical properties of Stainless Steel 316 Sheet & Plate
| Property | Value |
|---|---|
| Density | 8.0 g/cm³ (0.289 lb/in³) |
| Melting Range | 1375 - 1400°C (2500 - 2550°F) |
| Modulus of Elasticity | 193 GPa (28.0 x 10⁶ psi) |
| Thermal Conductivity (at 100°C) | 16.3 W/m·K |
| Coefficient of Thermal Expansion (0-100°C) | 15.9 µm/m·°C |
Equivalent Grades of Stainless Steel 316 Sheet & Plate
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | - | Z7CND17-11-02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Weight Chart for ASTM A240 Stainless Steel Grade 316 Plates
|
Thickness (Inches) |
Plate Weight per Unit Area (lbs/in²) |
Plate Weight per Unit Area (kg/m²) |
Density (lbs/in³) |
Density (g/cm³) |
|---|---|---|---|---|
|
3/16 |
0.06000 |
42.184 |
0.289 |
8.0 |
|
1/4 |
0.08000 |
56.246 |
0.289 |
8.0 |
|
3/8 |
0.12100 |
85.071 |
0.289 |
8.0 |
|
1/2 |
0.16100 |
113.194 |
0.289 |
8.0 |
|
5/8 |
0.19600 |
137.802 |
0.289 |
8.0 |
|
3/4 |
0.23500 |
165.221 |
0.289 |
8.0 |
|
7/8 |
0.27400 |
192.641 |
0.289 |
8.0 |
|
1 |
0.31300 |
220.061 |
0.289 |
8.0 |
|
1 1/4 |
0.39100 |
274.900 |
0.289 |
8.0 |
|
1 1/2 |
0.47000 |
330.443 |
0.289 |
8.0 |
|
1 3/4 |
0.54900 |
385.985 |
0.289 |
8.0 |
|
2 |
0.62700 |
440.825 |
0.289 |
8.0 |
|
2 1/4 |
0.70500 |
495.664 |
0.289 |
8.0 |
|
2 1/2 |
0.78400 |
551.207 |
0.289 |
8.0 |
|
2 3/4 |
0.86200 |
606.046 |
0.289 |
8.0 |
|
3 |
0.94100 |
661.588 |
0.289 |
8.0 |
Dimensions of Stainless Steel 316 Plates & Sheets
Metric Dimensions of Stainless Steel 316 Plate
|
Surface Finish |
Thickness (mm) |
Width (mm) |
|---|---|---|
|
2B – Cold rolled, heat treated, pickled, skin passed |
0.25–8.0 |
max. 2032 |
|
2D – Cold rolled, heat treated, pickled |
0.4–6.35 |
max. 1524 |
|
2E – Cold rolled, heat treated, mechanically descaled |
0.4–8.0 |
max. 2032 |
|
2R – Cold rolled, bright annealed |
0.25–3.5 |
max. 1524 |
|
2H – Work hardened |
0.4–6.35 |
max. 1524 |
|
Polished, brushed |
0.5–4.0 |
max. 1524 |
Imperial Dimensions of Stainless Steel 316 Plate
|
Surface Finish |
Gauge (in) |
Width (in) |
|---|---|---|
|
2B – Cold rolled, heat treated, pickled, skin passed |
10–24 |
max. 72* |
|
2D – Cold rolled, heat treated, pickled |
12–24 |
max. 60 |
|
BA Mexinox only |
18–28 |
max. 48 |
|
Polished (not brushed) |
11–24 |
max. 60 |
|
Temper rolled Mexinox only |
13–29 |
max. 48 |

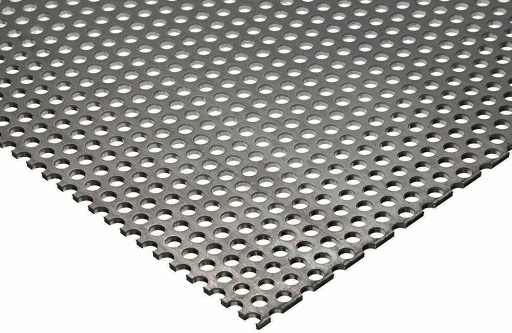

Dimensions of 316 Stainless Steel Perforated Sheet
|
Hole Dia (mm) |
Hole Centres (mm) |
O/A |
Finish |
Thickness (mm) |
Full Sheet Size (mm) |
|---|---|---|---|---|---|
|
0.75 |
1.5 |
23% |
2B |
0.6 |
2000 x 1000 |
|
1 |
2 |
23% |
2B |
1.0 |
2000 x 1000 |
|
1.5 |
2.6 |
30% |
2B |
1.0 |
2000 x 1000 |
|
2 |
3.5 |
30% |
2B |
1.0 |
2000 x 1000 |
|
2 |
3.5 |
30% |
2B |
1.0 |
2000 x 1000 |
|
3 |
5 |
33% |
2B |
1.0 |
2000 x 1000 |
|
4 |
5.6 |
46% |
2B |
1.0 |
2000 x 1000 |
|
5 |
8 |
35% |
2B |
1.0 |
2000 x 1000 |
|
6 |
8 |
51% |
2B |
1.0 |
2000 x 1000 |
|
8 |
10 |
58% |
2B |
1.0 |
2000 x 1000 |

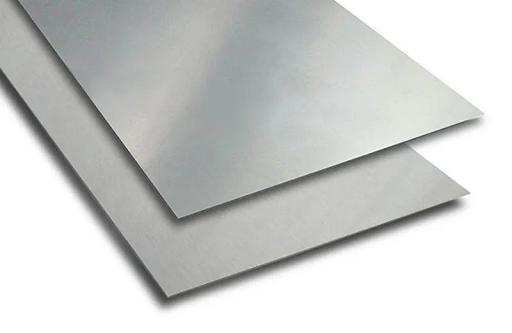

Thickness & Sizes of Polished 316 Stainless Steel Sheets
|
Product Type |
Finish |
Thickness (mm) |
Max Sheet Size (mm) |
|---|---|---|---|
|
Grade 316 |
Plain 2B |
0.9 |
2000 x 1000 |
|
Grade 316 |
Bright |
0.9 |
2000 x 1000 |
|
Grade 316 |
Brushed Finish |
0.9, 1.2 |
2000 x 1000, 2500 x 1250 |
|
Grade 316 |
Rimex Super Mirror |
0.8, 1.2 |
2400 x 1200, 2500 x 1250 |
|
Grade 316 |
Embossed |
0.8, 1.0 |
2500 x 1250 |

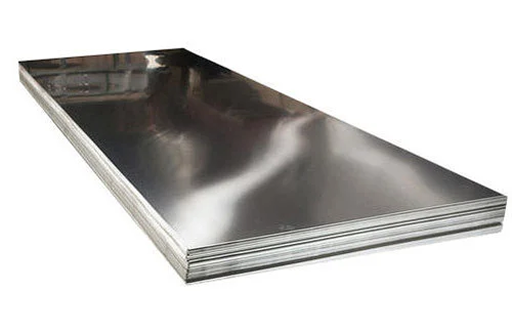

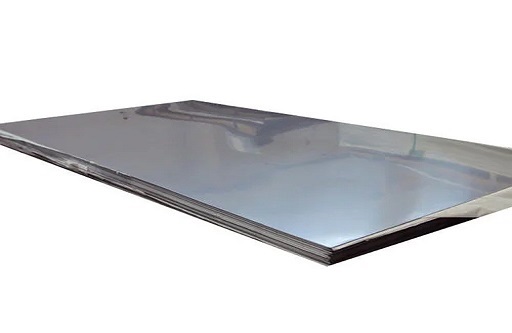

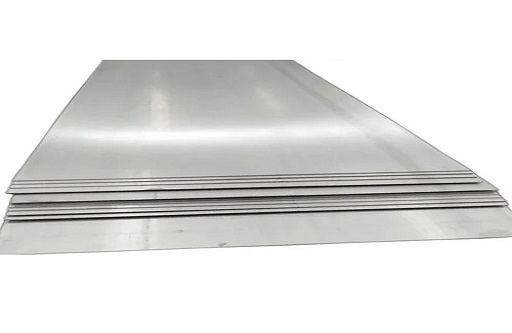

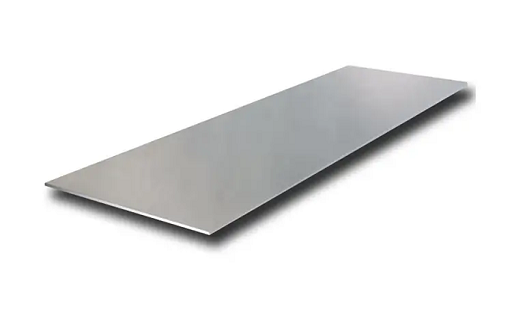

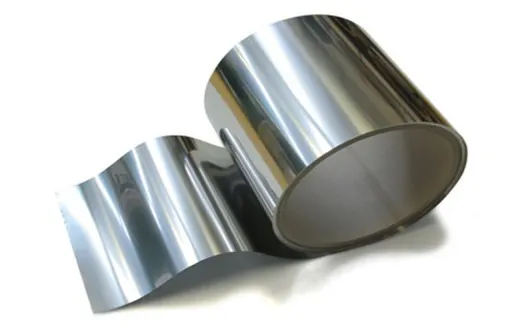

Types of Stainless Steel 316 Sheets and Plates
Applications of Stainless Steel 316 Sheets and Plates
- Marine & Shipbuilding: Boat fittings, railings, cladding, and structural components.
- Chemical & Pharmaceutical Industries: Processing equipment, tanks, and vessels for handling aggressive chemicals.
- Oil & Gas Exploration: Components for offshore platforms, pipelines, and equipment exposed to chlorides.
- Food & Dairy Plants: Equipment requiring superior hygiene and resistance to food acids.
- Aerospace: High-strength components requiring good corrosion resistance.
- Thermal & Nuclear Power Plants: Heat exchangers, condensers, and other critical parts.
- Desalination Plants: Equipment in constant contact with saltwater and brine.
Why Choose Amardeep Steel for Your Stainless Steel 316 Sheets and Plates?
- As a manufacturer, we have complete control over the quality of our Stainless Steel 316 Sheet from start to finish.
- Our large-scale operations and efficient supply chain allow us to offer a highly competitive stainless steel 316 sheet price, ensuring you get the best value for your investment.
- We maintain an extensive stock of 316 ss plate and Stainless Steel 316 Coil in all standard thicknesses and finishes.
- We can deliver material that meets your exact specifications. Our services include precision cutting, shearing, slitting, and polishing, saving you time and fabrication costs.
- We are a trusted exporter with years of experience shipping our products worldwide. We handle all logistics and provide complete documentation for a smooth, hassle-free process
