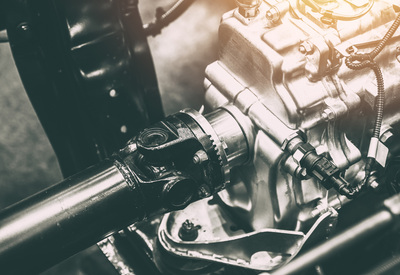

Driveline tubing is a drawn over mandrel 1020/1026 carbon steel tube used for shaft replacement and fabrication. The excellent tolerances, straightness, and high strength of the tube make it a superior product to many welded items on the market. DOM Driveline Tubing has several advantages. Tight ID and OD tolerances, minimising balancing labour costs, less ovality, straighter in length, available in greater lengths to decrease scrap loss.
| 1020 | C | Mn | Si | P | S |
| 0.150-0.20 | 0.300-0.600 | - | 0.035 max | 0.035 max | |
| 1026 | 0.220-0.280 | 0.600-0.900 | - | 0.035 max | 0.035 max |
| E355 | 0.140-0.180 | 0.1500-0.300 | 1.200-1.400 | 0.020 max | 0.010 max |
| Yield point or proof stress | Tensile Strength | Elongation | Typical Hardness |
| 60,000 – 75,000 Psi | 70,000 – 85,000 Psi | 10-15% | B-75 or B-80 |
Amardeep Steel Centre Exports Driveline Tubing to various international Countries including USA, UK, UAE and many European countries in the list.
