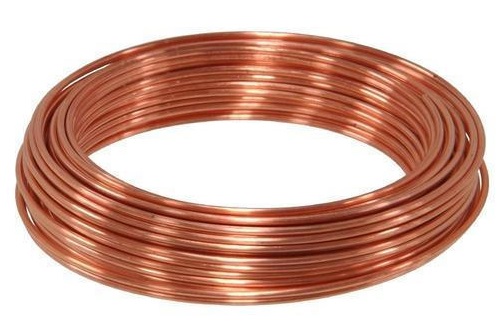

Amardeep Steel Centre is biggest Bare Copper Wire Manufacturer, Supplier, Exporter in India. Bare Copper Wire is made by bunching/ stranding of multiple numbers of copper wires together in different specification as per client’s requirement. It is designed for extra strength and flexibility. Copper is a good conductor of electricity and generally copper bare wires are used for electric fitting and cable wires are made of copper only. They are also known as “Electrolyte Copper” they are used in subways, conduit, and transit systems both light and heavy. Copper bare wires have great advantages over other wires and are therefore used heavily in all types of electrical fittings all across the world.
copper wires are heat resistant and second in electric conductivity the first being silver. They can also handle a wide load of electricity and it is much easier to handle them. That is why large circuits and subways are made out of copper wires.
This is an important quality of copper wires as their malleability allows them to be shaped in any form easily. The wires take any form that is required
this is another quality of copper wire which makes it even thinner than a strand of human hair that is why bare copper wires are preferred when it comes to headphones and other things in which thin wires are required.
Bare copper wires are resistant to corrosion which makes their use even more preferable as in long term they would be easy to handle and use.
Bare copper wires are energy efficient which clearly means that they are heavily used in the manufacturing process as they give better results as compared to other wires. Maintenance of Copper bare wires is also easy and they are easy to handle. So when thinking of wires one should go for copper wires and cables and Amardeep Steel Center is the place where one would get all types of copper wires of good quality.
Solid and stranded (classes AA and A) bare copper wire are suitable for overhead transmission and distribution applications. A stranded conductor of greater flexibility (classes B and C) are suitable for uninsulated hook up, jumpers, and grounds in electrical construction. Soft Drawn copper is unilay construction.
Size (AWG) | Weight (lbs/1000 ft) | Diameter (mils) | Circular Mil Area (mils) | Hard Drawn | Medium-Hard Drawn | Soft-Drawn (Annealed) | Allowable Ampacity+ | |||
Rated Strength> (lbs) | DC Resistance (ohms/1000 ft) @20°C | Rated Strength (lbs) | DC Resistance (ohms/1000 ft) @20°C | Rated Strength (lbs) | DC Resistance (ohms/1000 ft) @20°C | |||||
SOLID | ||||||||||
14 | 12.4 | 64.1 | 4110 | 213.5 | 2.626 | 166.6 | 2.613 | 124.2 | 2.525 | -- |
13 | 15.7 | 72 | 5180 | 268.0 | 2.083 | 208.8 | 2.072 | 156.6 | 2.003 | -- |
12 | 19.8 | 80.8 | 6530 | 336.9 | 1.652 | 261.2 | 1.643 | 197.5 | 1.588 | -- |
11 | 24.9 | 90.7 | 8230 | 422.9 | 1.310 | 327.6 | 1.303 | 249.0 | 1.260 | -- |
10 | 31.4 | 101.9 | 10380 | 529.2 | 1.039 | 410.4 | 1.033 | 314.0 | .999 | -- |
9 | 39.6 | 114.4 | 13090 | 661.2 | .824 | 514.2 | .820 | 380.5 | .792 | -- |
8 | 50 | 128.5 | 16510 | 826.0 | .653 | 643.9 | .650 | 479.8 | .628 | 95 |
7 | 63 | 144.3 | 20820 | 1030.0 | .518 | 806.6 | .515 | 605.0 | .498 | 105 |
6 | 79.4 | 162 | 26240 | 1280.0 | .411 | 1010.0 | .409 | 762.9 | .395 | 125 |
5 | 100.2 | 181.9 | 33090 | 1591.0 | .326 | 1265.0 | .324 | 961.9 | .313 | 145 |
4 | 126.3 | 204.3 | 41740 | 1970.0 | .258 | 1584.0 | .257 | 1213.0 | .249 | 170 |
3 | 159.3 | 229.4 | 52620 | 2439.0 | .205 | 1984.0 | .204 | 1530.0 | .197 | 195 |
2 | 200.9 | 257.6 | 66360 | 3003.0 | .163 | 2450.0 | .162 | 1929.0 | .156 | 225 |
1 | 253.3 | 289.3 | 83690 | 3688.0 | .129 | 3024.0 | .128 | 2432.0 | .124 | 260 |
+Ampacity based on 75°C conductor temperature; 25°C ambient temperature; 2 ft./sec. wind in sun. | ||||||||||
Size (AWG) | Stranding | Stranding Class | Weight (lbs/1000 ft) | Hard Drawn | Medium-Hard Drawn | Soft-Drawn (Annealed) | Allowable Ampacity+ | |||||
Individual Wires | Complete Conductor | Rated Strength (lbs) | DC Resistance (ohms/1000 ft) @20°C | Rated Strength (lbs) | DC Resistance (ohms/1000 ft) @20°C | Rated Strength (lbs) | DC Resistance (ohms/1000 ft) @20°C | |||||
STRANDED | ||||||||||||
8 | 7 | B | 51 | 49 | 146 | 777 | .6663 | 610 | .6629 | 499 | .6408 | 95 |
6 | 7 | B | 81 | 61 | 184 | 1228 | .4191 | 959 | .4169 | 794 | .4030 | 130 |
4 | 7 | A, B | 128.9 | 77 | 232 | 1938 | .2636 | 1505 | .2622 | 1320 | .2534 | 170 |
3 | 7 | A, B | 162.5 | 87 | 260 | 2433 | .2090 | 1885 | .2079 | 1670 | .2010 | 200 |
2 | 7 | A, B | 204.9 | 97 | 292 | 3050 | .1660 | 2360 | .1650 | 2110 | .1578 | 230 |
1 | 7 | A | 258.4 | 109 | 328 | 3801 | .1316 | 2955 | .1309 | 2552 | .1252 | 265 |
1/0 | 7 | A, AA | 326.1 | 123 | 368 | 4752 | .1042 | 3705 | .1037 | 3221 | .1002 | 310 |
2/0 | 7 | A, AA | 410.9 | 138 | 414 | 5926 | .08267 | 4640 | .08224 | 4062 | .07949 | 355 |
2/0 | 19 | B | 410.9 | 84 | 418 | 6690 | .08267 | 4765 | .08224 | 4024 | .07949 | 355 |
3/0 | 7 | A, AA | 518.1 | 155 | 464 | 7366 | .06556 | 5812 | .06522 | 5118 | .06304 | 410 |
4/0 | 7 | A, AA | 653.3 | 174 | 522 | 9154 | .05199 | 7278 | .05172 | 6459 | .04999 | 480 |
4/0 | 19 | B | 653.3 | 106 | 528 | 9617 | .05199 | 7479 | .05172 | 6453 | .04999 | 480 |
250 | 19 | A | 771.9 | 115 | 574 | 11360 | .04400 | 8836 | .04378 | 7627 | .04231 | 530 |
250 | 37 | B | 771.9 | 82 | 575 | 11600 | .04400 | 8952 | .04378 | 7940 | .04231 | 530 |
300 | 19 | A | 926.2 | 126 | 628 | 13510 | .03667 | 10530 | .03648 | 9160 | .03526 | 590 |
350 | 19 | A | 1080.6 | 136 | 679 | 15590 | .03143 | 12200 | .03127 | 10680 | .03022 | 650 |
500 | 37 | A, B | 1543.8 | 116 | 814 | 22510 | .02200 | 17550 | .02189 | 15240 | .02116 | 810 |
600 | 37 | A, AA | 1852.5 | 127 | 891 | 27020 | .01834 | 21060 | .01825 | 18300 | .01763 | 910 |
750 | 61 | A, B | 2315.6 | 111 | 998 | 34090 | .01467 | 26510 | .01459 | 22890 | .01410 | 1040 |
1000 | 61 | A, B | 3087.5 | 128 | 1152 | 45030 | .01100 | 35100 | .01094 | 30500 | .01058 | 1240 |
+Ampacity based on 75°C conductor temperature; 25°C ambient temperature; 2 ft./sec. wind in sun. | ||||||||||||
