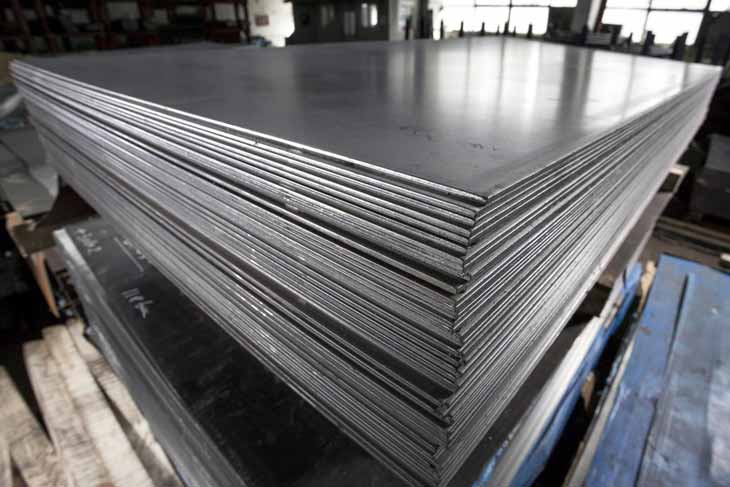

Inconel 690 Plates, Sheets and coils

Inconel 690 werkstoff nr. 2.4816 Plates, Sheets and coils Manufacturer, Exporter & Suppliers in India.

ASTM B163 Inconel 690 Welded Plates, Sheets and coils Manufacturer, Suppliers & Exporter

ASME SB-167 / 775 / 829 Inconel UNS N06690 Diamond Plates, Sheets and coils, Perforated Plates, Sheets and coils, shim sheets Suppliers.

Inconel 690 Pipes & Tubes

We are one of the leading Manufacturers, Supplier and Exporters of high quality Inconel 690 Plates, Sheets & Coils in Mumbai, India. Inconel 690 Plates/ Sheets are nickel-chromium alloy with an addition of aluminum for outstanding resistance to oxidation and other forms of high temperature corrosion. These Inconel 690 sheets (UNS N06690) are used for Heat treating muffles and retorts, Catalyst support grids in nitric acid production, Radiant tubes, Steam super-heater tube supports, and more. Inconel Plates, Sheets and Coils are available in special alloys like Inconel 690, Inconel 601, Inconel 625, Inconel 718, Inconel X-750, Incoloy 800, Incoloy 800H/ HT and Incoloy 825. We are manufactured as per the international quality and safety standards. These 690 inconel Sheets, Plates & Coils are widely used in various applications industry. We also offer these Sheets & Plates are available in different size,grades, specification & thickness as per the clients requirements.

Specification :

Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Standards : ASTM / ASME SB 168
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.


STANDARD WERKSTOFF NR. UNS JIS AFNOR BS GOST EN OR
Inconel 690 2.4816 N06690 NCF 690 NC15FE11M NA 13 МНЖМц 28-2,5-1,5 NiCr15Fe ЭИ868

Chemical Composition :



Inconel 690 Ni Fe C Mn Si Cr S
48.85 – 62 Balance 0.15 max 1.0 max 1.0 max 14.0 - 17.0 -

Mechanical & Physical Properties :



Density 8.30 g/cm3
Melting Point 1363 °C (2580 °F)
Tensile Strength Psi – 95,000 , MPa – 485
Yield Strength (0.2%Offset) Psi – 45,000 , MPa – 275
Elongation 25 %

Types Of Inconel 690 Plates, Sheets and Coils :
•   Inconel / Incoloy Plates
•   Inconel 690 Sheets
•   Inconel 690 Shim Sheet
•   Inconel 690 Perforated Sheet
•   Inconel 690 Chequered Plate
•   Inconel 690 Rolls
•   Inconel 690 Ring
•   Inconel / Incoloy Circles
•   Inconel 690 Coils
•   Inconel 690 Strips
•   Inconel 690 Flat
•    Inconel 690 Blank
•   Inconel 690 Profile
•   Inconel 690 Foils
