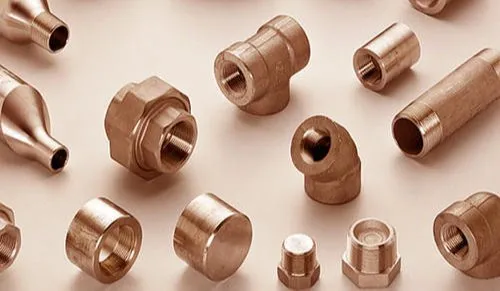

Amardeep Steel Centre is one of the leading the Manufacturers, Exporters and Supplier of Cu-Ni Forged Fittings that are using high quality raw materials in mumbai, India. We also offers a complete range of Cu-Ni Forged Pipe Fittings such as Cu-Ni elbow, Cu-Ni tee, Cu-Ni cross, Cu-Ni reducer, Cu-Ni stub ends and Cu-Ni pipe bends etc. We are ensure that all these Cu-Ni Forged Pipe Fittings are delivered at the customers' end within the postulated time. These are available in different dimentions & thickness as per the clients requirments. These are widely used in various application industry.
Range | : | ½”NB to 24”NB in Sch 10s, 40s, 80s, 160s, XXS. |
Standards | : | ASTM B122, B171, B466, B467 |
Class | : | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Type | : | Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT |
Form | : | 45 Deg Elbow, 90 Deg Elbow, Tee, Cross, Union, Half & Full Coupling, Cap, Boss, Plug, Barrel & Swage Nipple |
Grades | : | Copper Nickel Alloy UNS C70600, UNS C71500, Cupro Nickel (Cu-Ni) 90/10, Cupro Nickel (Cu-Ni) 70/30. |
STANDARD | WERKSTOFF NR. | UNS |
Copper Nickel 90/10 | 2.0872 | C70600 |
Copper Nickel 70/30 | 2.0882 | C71500 |
Grade | Cu | Mn | Pb | Ni | Fe | Zn |
Cu-Ni 90-10 | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
Cu-Ni 70-30 | 65.0 min | 1 max | .05 max | 29-33 | 0.4-1.0 | 1 max |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Copper Nickel 90-10 / 70-30 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
