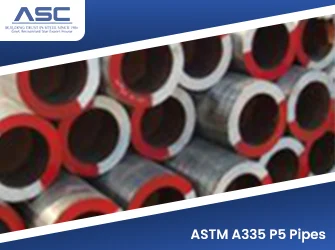

ASTM A335 P5 / 5b / 5c Alloy Steel Seamless Pipes

ASTM A335 P5 Alloy Steel Seamless Pipes Exporter, Supplier & Manufacturer.

ASTM A335 P5b Alloy Steel Seamless Pipes Exporter, Supplier & Manufacturer.

ASTM A335 Grade P5 / 5b / 5c Alloy Steel Seamless Pipes Manufacturer, Exporter & Suppliers.

ANSI B 36.10, Alloy Steel Gr. P5 / 5b / 5c Seamless Round, Square, Rectangular, Hydraulic Pipes Suppliers in India.

ASTM A335 P5 / 5b / 5c Alloy Steel Seamless Pipes

We offer a wide range of ASTM A335 P5/5b/5c Alloy Steel Seamless Pipes that is using high quality raw materials . These are manufactured in conformance with the international quality standards. Also available these seamless pipes in different size, grades, thickness & Specification demanded by the clients. These pipes are used in various application industry like petrochemical, engineering, chemical, oil and gas and other industrial etc. We also offer our clients in competitive prices in the market.

Specification :

Size : 1/8NB TO 24NB IN
Standards : ASTM A 335, ASME SA 335, ANSI B36.10
Type : Seamless
Specialized in : Large Diameter Size
Wall Thickness : Schedule 20 - Schedule XXS (heavier on request) up to 250 mm thk.
Form : Round, Square, Rectangular, Hydraulic Etc.
Length : Single Random, Double Random & Cut Length.
Tubing End : Plain End, Beveled End, Treaded.

Chemical Compositions :



C, % Mn, % P, % S, % Si, % Cr, % Mo, %
0.015 max 0.30-0.60 0.025 max 0.025 max 0.50 max 4.00-6.00 0.45-0.65

Mechanical Properties :



Tensile Strength, MPa Yield Strength, MPa Elongation, %
415 min 205 min 30 min

Heat Treatment Requirements :





P5, P9, P11, and P22





Grade

Heat Treatment Type

Normalizing Temperature Range F [C]

Subcritical Annealing
or Tempering
Temperature Range F

[C]

P5 (b,c)

Full or Isothermal Anneal





Normalize and Temper

*****

1250 [675]



Subcritical Anneal (P5c only)

*****

1325 - 1375 [715 - 745]

P9

Full or Isothermal Anneal





Normalize and Temper

*****

1250 [675]

P11

Full or Isothermal Anneal





Normalize and Temper

*****

1200 [650]

P22

Full or Isothermal Anneal





Normalize and Temper

*****

1250 [675]

P91

Normalize and Temper

1900-1975 [1040 - 1080]

1350-1470 [730 - 800]



Quench and Temper

1900-1975 [1040 - 1080]

1350-1470 [730 - 800]

Tensile Requirements :





Seamless



P-5

P-9

P-11

P-22

P-91

P91 shall not have a hardness not exceeding 250 HB/265 HV [25HRC].

Tensile   Strength, min.,   psi

ksi

60

60

60

60

85

MPa

415

415

415

415

585



Yield Strength,   min., psi



ksi

30

30

30

30

60



MPa

205

205

205

205

415



Wall Thickness :



NPS [DN] Designator Tolerance, % from Specified
Over Under
1/8 to 2 1/2 [6 to 65] incl., all t/D ratios 20.0% 12.5%
Above 2 1/2  [65], t/D < or = 5% 22.5% 12.5%
Above 2 1/2  [65], t/D > 5% 15.0% 12.5%
(t = Specified Wall Thickness; D = Specified Outside   Diameter)
