We can offer a comprehensive range of ASTM B709 28 Alloy Forged Fittings that is using high quality raw materials . We are leading manufacturer & Suppliers of high quality of ASTM B668 28 Alloy Forged Fittings. Alloy Forged Fittings offered by us Dimensional inspection,Hardness test,Ultrasonic test,Magnetic particle test,Material identification. Each Forged Fittings is analyzed on an optical emission spectrometer to verify chemical content. All products are industry-standard conforming to or exceeding API, ASTM, ASME, ANSI and other national and international standards. These plates are available in different size, specification, grades & thickness as per the clients requirements. These plates and sheets are widely used in different various application such as pressure vessel ,air receivers,Shell & Tube Heat Exchangers etc.

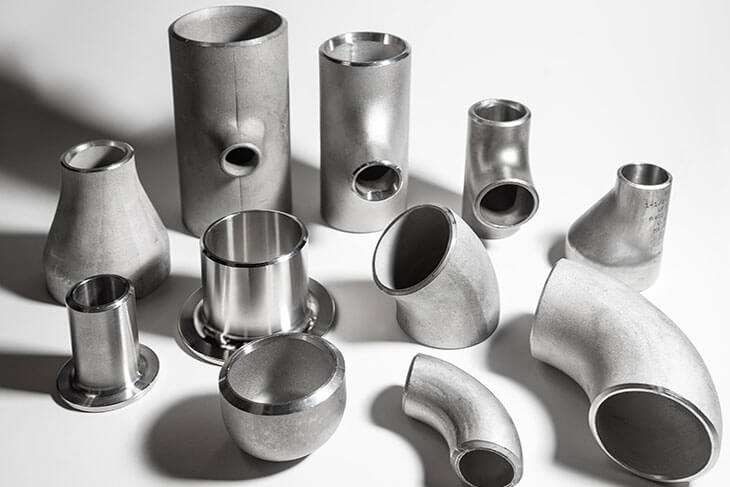

ASTM A182 Alloy 28 Forged Fittings Specification |
||
| Standard | : | ASTM / ASME A/SA 182, ASTM A276, ASME SA276 |
| Range | : | ½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS |
| Dimensions | : | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Grade | : | ASTM B668 |
| Type | : | Socketweld Fittings, Threaded Fittings |
| Form | : | Tee, Union, Full Coupling, Half Coupling,Elbow 45 Deg & 90 Deg, Swage Nipple, Cross, Cap, Plug Bush |
| Compositions | Data |
| Carbon(max.) | ≤0.020 |
| Manganese | ≤2.0 |
| Phosphorus(max.) | ≤0.025 |
| Sulfur(max.) | ≤0.010 |
| Silicon | ≤0.6 |
| Nickel | 31 |
| Chromium | 27 |
| Copper | 1.0 |
| Properties | Data |
| Yield strength(min) | 250Mpa |
| Tensile strength(min) | 650Mpa |
| Elongation(%) | 40 |
